1-1. Key information
1
Before driving
GX460_OM_OM60J63U_(U)
■When required to leave a key to the vehicle with a parking attendant
Lock the glove box as circumstances demand. (P. 5 3 1 )
Remove the mechanical key for your own use and provide the attendant with the
electronic key only.
■Key number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the event that
a mechanical key is lost, a new key can be made at your Lexus dealer using the key
number plate. ( P. 74 3 )
■When riding in an aircraft
When bringing an electronic key onto an aircraft, make sure you do not press any
buttons on the electronic key while inside the aircraft cabin. If you are carrying an
electronic key in your bag etc., ensure that the buttons are not likely to be pressed
accidentally. Pressing a button may cause the electronic key to emit radio waves
that could interfere with the operation of the aircraft.
NOTICE
■To prevent key damage
Observe the following:
●Do not drop the keys, subject them to strong shocks or bend them.
●Do not expose the keys to high temperatures for a long period of time.
●Do not get the keys wet or wash them in an ultrasonic washer etc.
●Do not attach metallic or magnetic materials to the keys or place the keys close to
such materials.
●Do not disassemble the keys.
●Do not attach a sticker or anything else to the surface of the electronic key.
●Do not place the keys near objects that produce magnetic fields, such as TVs,
audio systems, glass top ranges, or medical electrical equipment, such as low-fre-
quency therapy equipment.

40
1-2. Opening, closing and locking the doors
GX460_OM_OM60J63U_(U)
■Switching the door unlock function
It is possible to set which doors the entry function unlocks.Turn the “ENGINE START STOP” switch OFF.
When the indicator on the key surfac e is turned off, press and hold
or for approximately 5 seconds while pressing on the key.
The setting changes each time an operation is preformed, as shown below. (When
changing the setting continuously, release the buttons, wait for at least 5 seconds,
and repeat .)
To prevent unintended triggering of the alarm, unlock the doors using the wireless
remote control and open a door once after the settings have been changed. (If a
door is not opened within 60 seconds after is pressed, the doors will be
locked again and the alarm will automatically be set).
In case that the alarm is triggere d, immediately stop the alarm. (P. 121)
STEP1
STEP2
STEP2
Multi-information
displayUnlocking functionBeep
Hold the driver’s door handle
to unlock only the driver’s
door.
Exterior: Beeps three
times
Interior: Pings once
Hold the front passenger’s
door handle to unlock all
doors.
Hold either door handle to
unlock all doors.Exterior: Beeps twice
Interior: Pings once

52
1-2. Opening, closing and locking the doors
GX460_OM_OM60J63U_(U)
Side doors
The vehicle can be locked and unlocked using the entry function, wireless
remote control or door lock switch.
■Entry function
 P. 3 3
■ Wireless remote control
 P. 4 9
■ Door lock switch
Locks all the doors
Unlocks all the doors
■ Inside lock button
Locks the door
Unlocks the door
The front doors can be opened
by pulling the inside handles
even if the lock buttons are in
the lock position.

56
1-2. Opening, closing and locking the doors
GX460_OM_OM60J63U_(U)
■Impact detection door lock release system
In the event that the vehicle is subject to a strong impact, all the doors are unlocked.
Depending on the force of the impact or the type of accident, however, the system
may not operate.
■Using the mechanical key
The doors can also be locked and unlocked with the mechanical key. (P. 744)
■Customization
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features P. 7 8 8 )
CAUTION
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failing to do so may result in a door open ing and an occupant falling out, resulting in
death or serious injury.
●Always use a seat belt.
●Always lock all doors.
●Ensure that all doors are properly closed.
●Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehicle and it
may result in death or serious injury.
Be especially careful for the front doors, as the doors may be opened even if the
inside lock buttons are in locked position.
●Set the rear door child-protector locks when children are seated in the second
seat.

155
1
1-7. Safety information
Before driving
GX460_OM_OM60J63U_(U)

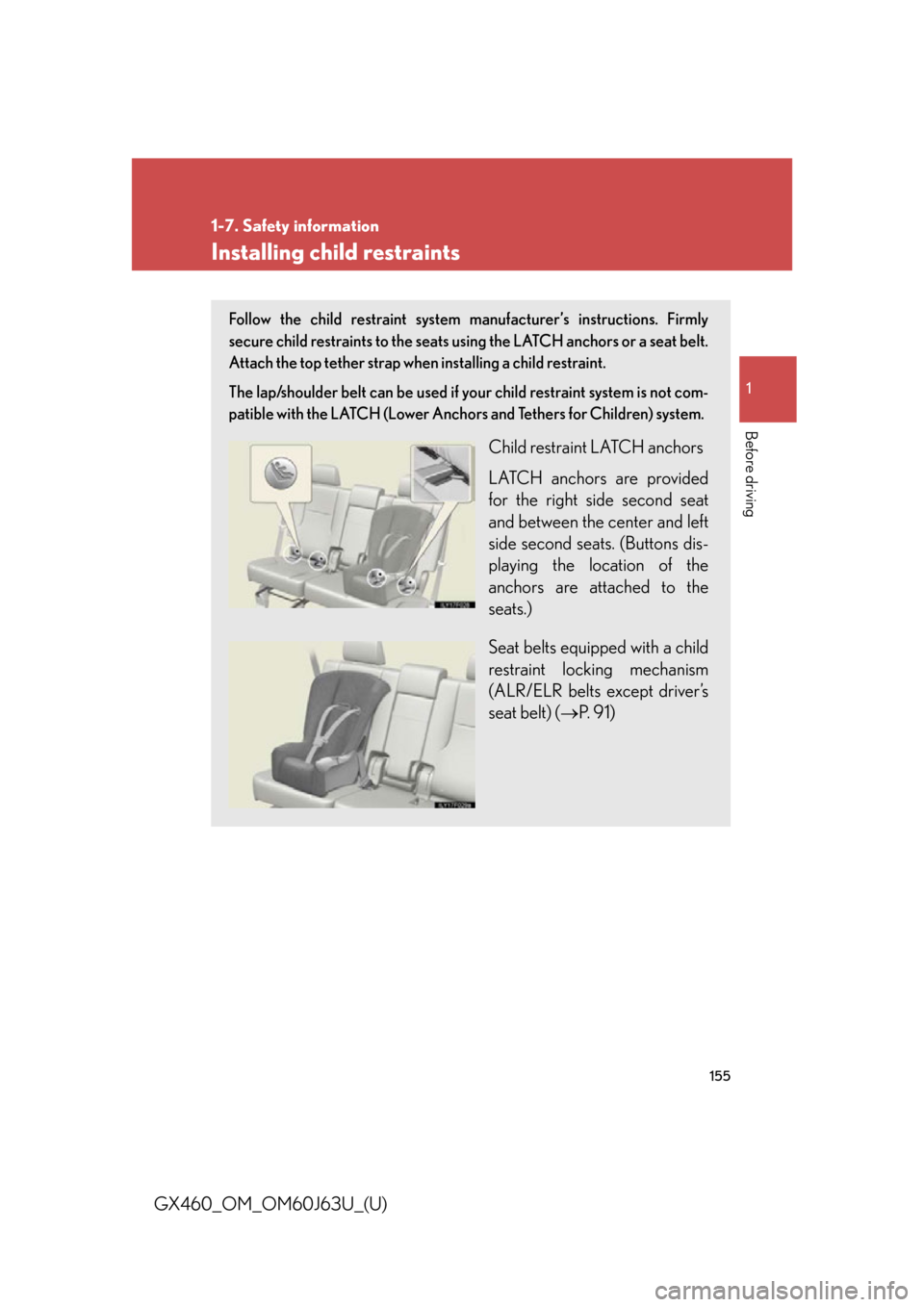

Installing child restraints
Follow the child restraint system manufacturer’s instructions. Firmly
secure child restraints to the seats using the LATCH anchors or a seat belt.
Attach the top tether strap when installing a child restraint.
The lap/shoulder belt can be used if your child restraint system is not com-
patible with the LATCH (Lower Anchors and Tethers for Children) system.
Child restraint LATCH anchors
LATCH anchors are provided
for the right side second seat
and between the center and left
side second seats. (Buttons dis-
playing the location of the
anchors are attached to the
seats.)
Seat belts equipped with a child
restraint locking mechanism
(ALR/ELR belts except driver’s
seat belt) (P. 9 1 )

421
3-2. Using the audio system
3
Interior features
GX460_OM_OM60J63U_(U)
Using the radio
Traffic information button
Station selector
Changing the program type
Seeking the frequency
Displaying text message
AM•FM/SAT mode buttons Po w e r Vo l u m e
Scanning for receivable stationsAdjusting the frequency

571
3-7. Other interior features
3
Interior features
GX460_OM_OM60J63U_(U)Pull the case until it locks.
Check that the lock release button
can be seen.
STEP2
Lock release button
■Adjusting the sub cover (vehicles with third seats)
Fasten the button when
the second seats are
in the rear-most position.
Unfasten the buttons before sliding the sec-
ond seats forward.

574
3-7. Other interior features
GX460_OM_OM60J63U_(U)
Garage door opener
The garage door opener (HomeLink® Universal Transceiver) is manufactured
under license from HomeLink®.
Programming HomeLink® (for U.S. owners)
The HomeLink
® compatible transceiver in your vehicle has 3 buttons
which can be programmed to operate 3 different devices. Refer to the
programming method below appropriate for the device.
Indicator light
Buttons
The garage door opener can be programmed to operate garage doors,
gates, entry doors, door locks, home lighting systems, and security systems,
and other devices.

575
3-7. Other interior features
3
Interior features
GX460_OM_OM60J63U_(U)■
Programming HomeLink
®
Point the remote control transmit-
ter for the device 1 in. (25 mm)
from the HomeLink
® buttons.
Keep the HomeLink® indicator
light in view while programming.
Press and hold one of the
HomeLink® buttons and the trans-
mitter button. When the
HomeLink
® indicator light
changes from a slow to a rapid
flash, you can release both buttons.
If the HomeLink® indicator light
comes on but does not flash, or
flashes rapidly for 2 seconds and
remains lit, the HomeLink
® button
is already programmed. Use the
other buttons or follow the “Repro-
gramming a HomeLink
® button”
instructions. ( P. 5 7 9 )
STEP1
STEP2

576
3-7. Other interior features
GX460_OM_OM60J63U_(U)Test the HomeLink
® operation by
pressing the newly programmed
button.
If a HomeLink® button has been
programmed for a garage door,
check to see if the garage door
opens and closes. If the garage
door does not operate, see if your
garage transmitter is of the rolling
code type. Press and hold the pro-
grammed HomeLink
® button. The
remote control transmitter is of the
rolling code type if the HomeLink
®
indicator light flashes rapidly for 2
seconds and then remains lit. If
your transmitter is the rolling code
type, proceed to the heading “Pro-
gramming a rolling code system”.
Repeat the steps above to progra m another device for any of the
remaining HomeLink® buttons.
STEP3
STEP4
