oil filter Lexus GX460 2014 Key information / LEXUS 2014 GX460 OWNERS MANUAL (OM60K80U)

GX460_OM_OM60K80U_(U)
4496-3. Do-it-yourself maintenance
6
Maintenance and care
CAUTION
The engine compartment contains many mechanisms and fluids that may move suddenly,
become hot, or become electrically energized. To avoid death or serious injury, observe
the following precautions:
■When working on the engine compartment
●Keep hands, clothing and tools away from the moving fan and engine drive belt.
●Be careful not to touch the engine, radiator, exhaust manifold, etc. right after driving
as they may be hot. Oil and other fluids may also be hot.
●Do not leave anything that may burn easily, such as paper or rags, in the engine com-
partment.
●Do not smoke, cause sparks or expose an open flame to fuel or the battery. Fuel and
battery fumes are flammable.
●Be extremely cautious when working on the battery. It contains poisonous and corro-
sive sulfuric acid.
■When working near the electric cooling fans or radiator grille
Be sure the engine switch is off. With the engine switch in IGNITION ON mode, the
electric cooling fans may automatically start to run if the air conditioning is on and/or
the coolant temperature is high. ( P. 4 5 7 )
■When working on or under the vehicle
Do not get under the vehicle with just the jack supporting it.
Always use automotive jack stands or other solid supports.
■Safety glasses
Wear safety glasses to prevent flying or fallin g material, fluid spray, etc. from getting in
your eyes.
NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear due to dirt
in the air.

GX460_OM_OM60K80U_(U)
4556-3. Do-it-yourself maintenance
6
Maintenance and careThe coolant level is satisfactory if it is between the “F” and “L” lines on the reser-
voir when the engine is cold.
Reservoir cap
“F”
“L”
If the level is on or below the “L” line, add
coolant up to the “F” line.
CAUTION
■Used engine oil
●Used engine oil contains potentially harm ful contaminants which may cause skin dis-
orders such as inflammation or skin cancer, so care should be taken to avoid pro-
longed and repeated contact. To remove used engine oil from your skin, wash
thoroughly with soap and water.
●Dispose of used oil and filters only in a safe and acceptable manner. Do not dispose of
used oil and filters in household trash, in sewers or onto the ground. Call your Lexus
dealer, service station or auto parts store for information concerning recycling or dis-
posal.
●Do not leave used engine oil within the reach of children.
NOTICE
■To prevent serious engine damage
Check the oil level on regular basis.
■When replacing the engine oil
●Be careful not to spill engine oil on the vehicle components.
●Avoid overfilling, or the engine could be damaged.
●Check the oil level on the dipstick every time you refill the vehicle.
●Be sure the engine oil filler cap is properly tightened.
Engine coolant
1
2
3

556

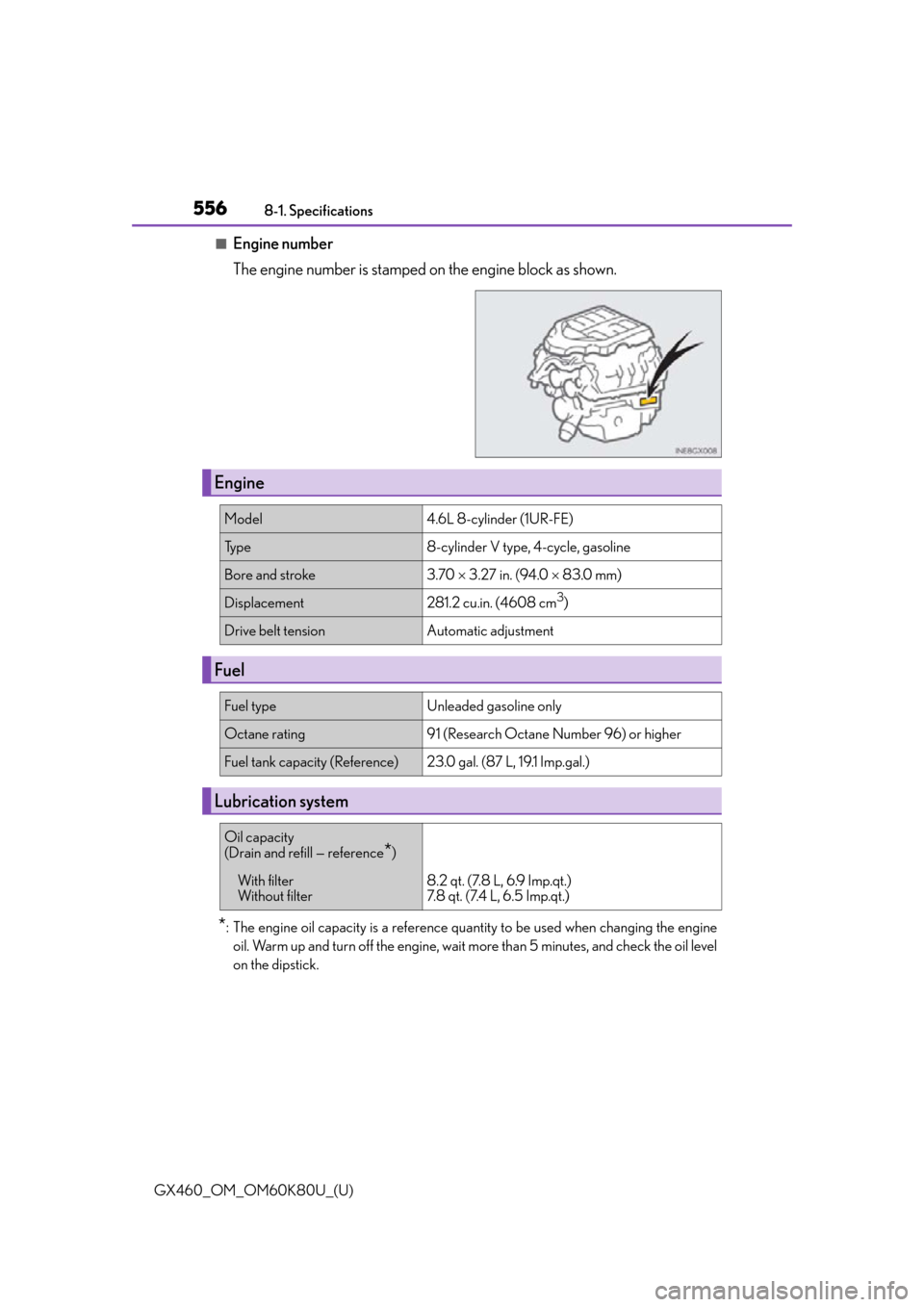

GX460_OM_OM60K80U_(U)8-1. Specifications
■Engine number
The engine number is stamped on the engine block as shown.
*: The engine oil capacity is a reference quantity to be used when changing the engine
oil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level
on the dipstick.
Engine
Model4.6L 8-cylinder (1UR-FE)
Ty p e8-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70  3.27 in. (94.0  83.0 mm)
Displacement281.2 cu.in. (4608 cm3)
Drive belt tensionAutomatic adjustment
Fuel
Fuel typeUnleaded gasoline only
Octane rating91 (Research Octane Number 96) or higher
Fuel tank capacity (Reference)23.0 gal. (87 L, 19.1 Imp.gal.)
Lubrication system
Oil capacity
(Drain and refill — reference*)
With filter
Without filter8.2 qt. (7.8 L, 6.9 Imp.qt.)
7.8 qt. (7.4 L, 6.5 Imp.qt.)

614Alphabetical index
GX460_OM_OM60K80U_(U)
Meter ............................................................. 77Indicators................................................... 72
Instrument panel light control ......... 78
Meters......................................................... 77
Multi-information display ................. 80
Warning lights ........................................ 72
Micro dust and pollen filter ............... 381
Mirrors Inside rear view mirror ......................137
Outside rear view mirror defoggers ............................................ 381
Outside rear view mirrors .............. 139
Vanity mirrors ......................................... 411
Moon roof..................................................145 Jam protection function ................... 143
Operation ............................................... 145
MP3 disc
*
Multi-information display ..................... 80 Switching the display............................ 81
Trip information ...................................... 81
Multi-terrain Monitor ......................... 303
Multi-terrain Select.............................. 298
Navigation system
*
Odometer ................................................... 77
Off-road precautions ......................... 369
Oil Engine oil ...............................................556
Front differential oil ...........................559
Rear differential oil ............................559
Transfer.................................................. 560
Opener Back door................................................. 99
Fuel filler door........................................210
Hood........................................................450
Outside rear view mirrors .................. 139 Adjusting and folding ........................139
Blind spot monitor ............................ 347
Outside rear view mirror defoggers............................................ 381
Outside temperature display ............. 84
Overheating, Engine .......................... 548
Parking assist sensors (intuitive parking assist)...................234
Parking assist monitor ........................ 253
Parking brake ........................................... 191 Operation................................................. 191
Parking brake engaged warning buzzer ............................... 507
Personal lights ....................................... 392 Switch ...................................................... 393
Wattage .................................................563
N
O
P

620
GX460_OM_OM60K80U_(U)GAS STATION INFORMATION
Auxiliary catch leverFuel filler door
P. 4 5 0 P. 2 1 2
Hood lock release leverFuel filler door openerTire inflation pressure
P. 4 5 0 P. 2 1 2P. 5 6 2
Fuel tank capacity
(Reference)23.0 gal. (87 L, 19.1 Imp.gal.)
Fuel typeUnleaded gasoline with a Octa
ne Rating of 91 or higher
(Research Octane Number 96) P. 2 1 0 , 5 5 6
Cold tire inflation
pressure P. 5 6 2
Engine oil capacity
(Drain and refill —
reference)With filter
Without filter 8.2 qt.(7.8 L, 6.9 Imp.qt.)
7. 8 q t . ( 7. 4 L , 6 . 5 I m p . q t . )
Engine oil type
“Toyota Genuine Motor Oil” or equivalent
P. 5 5 6
