Lexus GX460 2014 Navigation Manual

10
GX_EMVN_OM60K84U_(U)13.07.02 11:50
1. BASIC FUNCTION
1. BUTTONS OVERVIEW
GX_EMVN_OM60K84U_(U).book Page 10 Tuesday, July 2, 2013 11:51 AM

1. BASIC FUNCTION
1
QUICK GUIDE
11
GX_EMVN_OM60K84U_(U)13.07.02 11:50
No.FunctionPa g e
Press to display the hands-free operation screen.298
Press to display the “Information” screen.18
Press to display the “Setup” screen.16
Press to display the home screen.12
Press to display the air conditioning control screen.“Owner ’s Manual”
Press to display the map screen.72
Press to display the audio/visual screen.158
GX_EMVN_OM60K84U_(U).book Page 11 Tuesday, July 2, 2013 11:51 AM

12
1. BASIC FUNCTION
GX_EMVN_OM60K84U_(U)13.07.02 11:50
2. HOME SCREEN
XThree-way split screen
Press the “HOME” button to display the home screen.
The home screen can display multiple information screens, such as the navigation sys-
tem screen, audio system screen and fuel consumption screen, simultaneously. When
a screen is selected, the selected screen is switched to a full-screen display. The home
screen can be set to either a three-way split screen or a two-way split screen.
For details about setting the home screen: → P.32
GX_EMVN_OM60K84U_(U).book Page 12 Tuesday, July 2, 2013 11:51 AM

1. BASIC FUNCTION
1
QUICK GUIDE
13
GX_EMVN_OM60K84U_(U)13.07.02 11:50
XTwo-way split screen
No.FunctionPa g e
Displays the condition of the Bluetooth® connection14
Select to change the display items/area and the home screen layout.32
GX_EMVN_OM60K84U_(U).book Page 13 Tuesday, July 2, 2013 11:51 AM

14
1. BASIC FUNCTION
GX_EMVN_OM60K84U_(U)13.07.02 11:50
STATUS DISPLAY
The condition of the Bluetooth® connection, as well as the level of reception and the
amount of cellular phone battery charge left, are displayed on the status bar. This status
bar is always shown on all modes.
No.IndicatorsConditions
The condition of
the Bluetooth®
connection
(Gray) (Blue)
No connection Poor Good
• An antenna for the Bluetooth® connection is built into the instru-
ment panel. The condit ion of the Bluetooth® connection may
deteriorate and the system may not function when a Bluetooth®
phone is used in the following conditions and/or places:
The cellular phone is obstructed by certain objects (such as when
it is behind the seat or in the glove box or console box).
The cellular phone is touching or is covered with metal materials.
• Leave the Bluetooth
® phone in a place where the condition of the
Bluetooth® connection is good.
GX_EMVN_OM60K84U_(U).book Page 14 Tuesday, July 2, 2013 11:51 AM

1. BASIC FUNCTION
1
QUICK GUIDE
15
GX_EMVN_OM60K84U_(U)13.07.02 11:50
The level of re-
ception
Poor Excellent
• The level of reception does not always correspond with the level
displayed on the cellular phone. The level of reception may not be
displayed depending on the phone you have.
When the cellular phone is out of the service area or in a place
inaccessible by radio waves, “No Service” is displayed.
• “Rm” is displayed when receiving in a roaming area. While roam-
ing, display “Rm” top-left on the icon.
• The receiving area may not be di splayed depending on the type of
phone you have.
The amount of
battery charge
leftEmpty Full
• The amount displayed does not always correspond with the
amount displayed on the Bluetooth
® device.
The amount of battery charge left may not be displayed depending
on the type of the Bluetooth
® device connected.
This system does not have a charging function.
No.IndicatorsConditions
GX_EMVN_OM60K84U_(U).book Page 15 Tuesday, July 2, 2013 11:51 AM

16
GX_EMVN_OM60K84U_(U)13.07.02 11:50

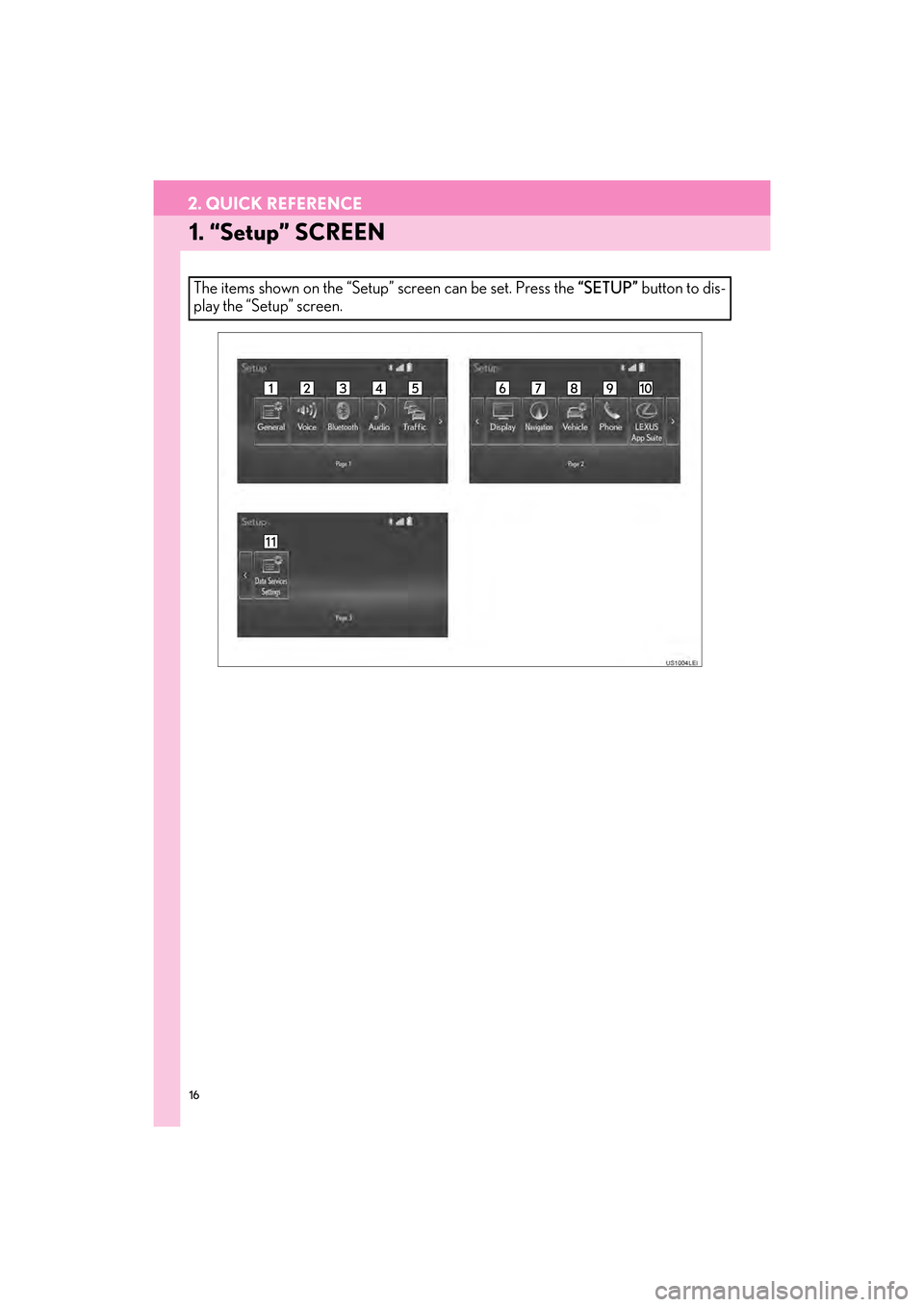

2. QUICK REFERENCE
1. “Setup” SCREEN
The items shown on the “Setup” screen can be set. Press the “SETUP” button to dis-
play the “Setup” screen.
GX_EMVN_OM60K84U_(U).book Page 16 Tuesday, July 2, 2013 11:51 AM

2. QUICK REFERENCE
1
QUICK GUIDE
17
GX_EMVN_OM60K84U_(U)13.07.02 11:50
No.FunctionPa g e
Select to change the selected language, operation sound, automatic
screen change settings, etc.55
Select to set the voic e guidance settings.62
Select to set Bluetooth® phones and Bluetooth® audio devices.45
Select to set radio and external media settings.257
Select to set traffic information.147
Select to adjust the contrast and brightness of the screens, turn the
screen off, etc.38
Select to set memory points (home, preset destinations, address book
entries, areas to avoid), navigation de tails or to delete previous destina-
tions.129, 141
Select to set vehicle informatio n such as maintenance information.64
Select to set the phone sound, contacts, message settings, etc.320
Select to set LEXUS App Suite settings.374
Select to set data services settings.296
GX_EMVN_OM60K84U_(U).book Page 17 Tuesday, July 2, 2013 11:51 AM

18
2. QUICK REFERENCE
GX_EMVN_OM60K84U_(U)13.07.02 11:50
2. “Information” SCREEN
This screen can be used to display traffic information, fuel consumption, etc. Press the
“INFO/APPS” button to display the “Information” screen.
No.FunctionPa g e
Select to display the “L EXUS App Suite” screen.354
Select to display the fuel consumption screen.“Owner ’s
Manual”
Select to display traffic information.90
Select to display weather information.294
Select to display the “L EXUS Insider” screen.370
GX_EMVN_OM60K84U_(U).book Page 18 Tuesday, July 2, 2013 11:51 AM

19
1
QUICK GUIDE
GX_EMVN_OM60K84U_(U)13.07.02 11:50
3. NAVIGATION OPERATION
1. REGISTERING HOME
Press the “NAV” button.
Select “Dest.”.Select “Go Home”.
Select “Yes”.
There are different kinds of meth-
ods to search for your home.
(→
P.9 5 )1
2
3
4
5
GX_EMVN_OM60K84U_(U).book Page 19 Tuesday, July 2, 2013 11:51 AM
