165
1. BASIC OPERATION
4
AUDIO/VIDEO SYSTEM
GX_EMVN_OM60K84U_(U)13.07.02 11:50
1Select .
2Select the “Sound” tab.
3Select the desired screen button.
TONE AND BALANCE
TONE:
How good an audio program sounds is
largely determined by the mix of the tre-
ble, mid and bass levels. In fact, different
kinds of music and vocal programs usu-
ally sound better with different mixes of
treble, mid and bass.
BALANCE:
A good balance of the left and right ste-
reo channels and of the front and rear
sound levels is also important.
Keep in mind that when listening to a ste-
reo recording or broadcast, changing
the right/left balance will increase the
volume of 1 group of sounds while de-
creasing the volume of another.
No.Function
Select “+” or “-” to adjust high-
pitched tones.
Select “+” or “-” to adjust mid-pitched
tones.
Select “+” or “-” to adjust low-pitched
tones.
Select to adjust the sound balance
between the front and rear speakers.
Select to adjust the sound balance
between the left and right speakers.
GX_EMVN_OM60K84U_(U).book Page 165 Tuesday, July 2, 2013 11:51 AM

166
1. BASIC OPERATION
GX_EMVN_OM60K84U_(U)13.07.02 11:50
XDVD video/iPod video/VTR
1Select “Options” on the control screen.
2Select “Wide” on the options screen.
3Select the desired item to be adjusted. X
DVD video/iPod video/VTR
1Select “Options” on the control screen.
2Select “Display” on the option screen.
3Select the desired item to be adjusted.
AUDIO SCREEN
ADJUSTMENT
SCREEN SIZE SETTINGS
The screen size can be selected for each
type of media.
No.Function
Select to display a 4 : 3 screen, with
either side in black.
Select to enlarge the image horizon-
tally and vertically to full screen.
Select to enlarge the image by the
same ratio horizontally and vertically.
CONTRAST, BRIGHTNESS,
COLOR AND TONE
ADJUSTMENT
The brightness, contrast, color and tone
of the screen can be adjusted.
GX_EMVN_OM60K84U_(U).book Page 166 Tuesday, July 2, 2013 11:51 AM

167
1. BASIC OPERATION
4
AUDIO/VIDEO SYSTEM
GX_EMVN_OM60K84U_(U)13.07.02 11:50
1Press this switch to operate the voice
command system.
Screen buttonFunction
“Color” “R”Select to strengthen the
red color of the screen.
“Color” “G”
Select to st rengthen the
green color of the
screen.
“Tone” “+”Select to st rengthen the
tone of the screen.
“Tone” “-”Select to weaken the
tone of the screen.
“Contrast” “+”Select to st rengthen the
contrast of the screen.
“Contrast” “-”Select to weaken the
contrast of the screen.
“Brightness” “+”Select to brighten the
screen.
“Brightness” “-”Select to darken the
screen.
INFORMATION
●
Depending on the audio source, some
functions may not be available.
VOICE COMMAND SYSTEM
z The voice command system and its list of
commands can be operated. ( →P. 2 8 0 )
GX_EMVN_OM60K84U_(U).book Page 167 Tuesday, July 2, 2013 11:51 AM

168
GX_EMVN_OM60K84U_(U)13.07.02 11:50

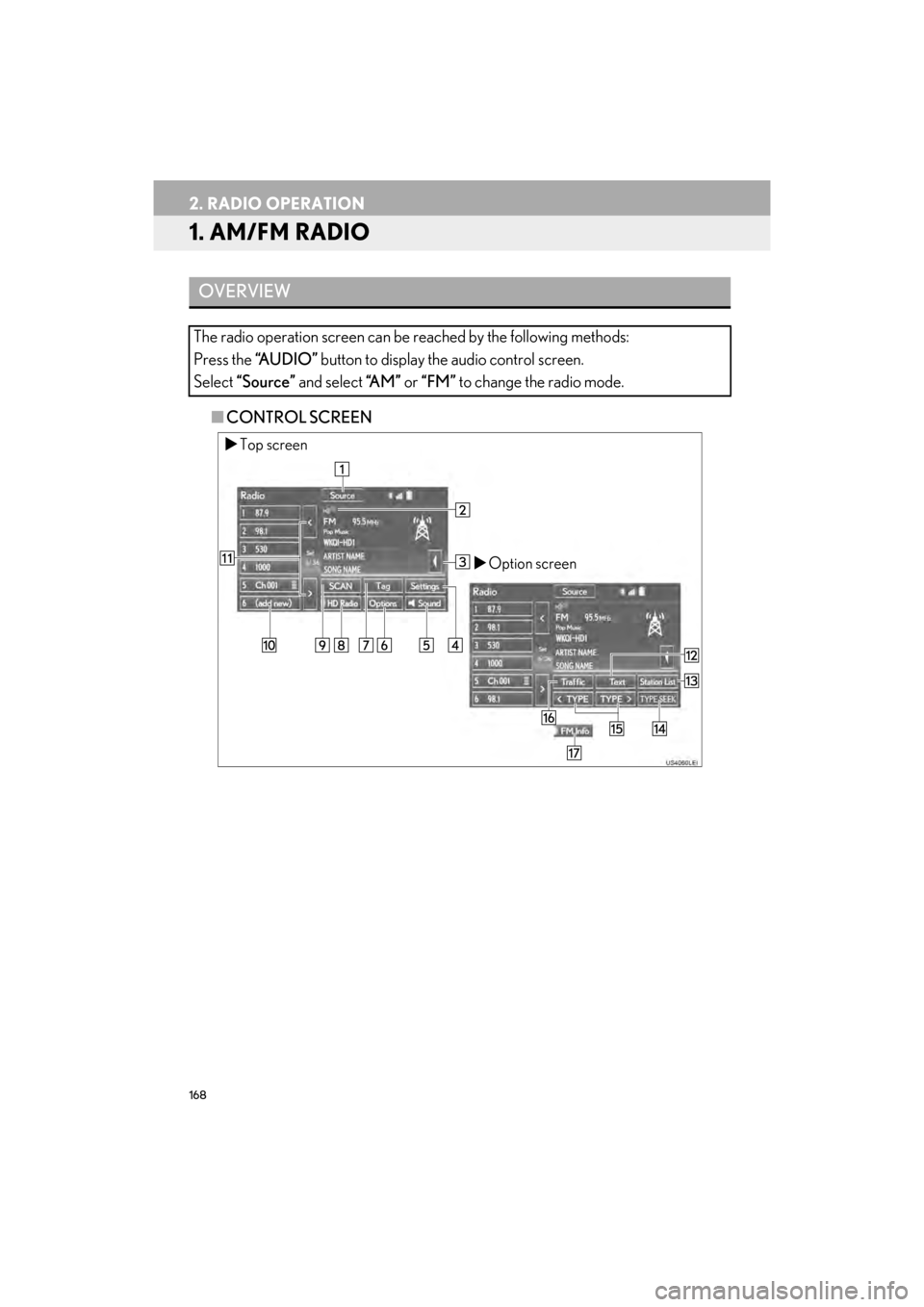

2. RADIO OPERATION
1. AM/FM RADIO
■CONTROL SCREEN
OVERVIEW
The radio operation screen can be reached by the following methods:
Press the “A U D I O ” button to display the audio control screen.
Select “Source” and select “A M ” or “FM” to change the radio mode.
XTop screen
XOption screen
GX_EMVN_OM60K84U_(U).book Page 168 Tuesday, July 2, 2013 11:51 AM

169
2. RADIO OPERATION
GX_EMVN_OM60K84U_(U)13.07.02 11:50
4
AUDIO/VIDEO SYSTEM
■CONTROL PANEL
No.Function
Select to display the audi o source selection screen.
Select to display the multi cast channel selection screen.
Select to display the cache radio operation buttons.
Select to display the audio setting screen.
Select to display the sound setting screen.
Select to display the option screen.
Select to store information of the audio currently being broadcast on the radio.
•Select to turn HD radio mode on/off.
When the “HD Radio” indicator is off, the station li st shows only analog broadcasts.
GX_EMVN_OM60K84U_(U).book Page 169 Tuesday, July 2, 2013 11:51 AM

170
2. RADIO OPERATION
GX_EMVN_OM60K84U_(U)13.07.02 11:50
Select to scan for receivable stations.
Select to tune to preset stations/channels.
Select to change the pa ge of preset buttons.
Select to display text messages.
Select to display a list of receivable stations.
Select to seek a receivable st ation of the selected category.
Select to select a program type/channel category.
FM only: Select to display traffic messages.
Analog FM only: Select to display RBDS text messages.
•Turn to step up/down frequencies.
• Turn to move up/down the list.
•Press to select a preset station.
• Press and hold to seek for a station.
•Turn to adjust volume.
• Press to turn the audio system on/off.
• Press and hold to restart the audio system.
INFORMATION
●
The radio automatically changes to stereo reception when a stereo broadcast is received.
No.Function
GX_EMVN_OM60K84U_(U).book Page 170 Tuesday, July 2, 2013 11:51 AM

171
2. RADIO OPERATION
GX_EMVN_OM60K84U_(U)13.07.02 11:50
4
AUDIO/VIDEO SYSTEM
1Tune in the desired station.
2Select “add new” .
zTo change the preset station to a different
one, select and hold the preset station.
3Select “Yes” on the confirmation screen.
4Select “OK” after setting the new preset
station.
1Select “Options” .
2Select “Station List” .
PRESETTING A STATION
Radio mode has a mix preset function,
which can store up to 36 stations (6 sta-
tions per page x 6 pages) from any of the
AM, FM or SAT bands.
INFORMATION
●
The number of preset radio stations dis-
played on the screen can be changed.
( → P. 2 5 9 )
SELECTING A STATION FROM
THE LIST
A station list can be displayed.
GX_EMVN_OM60K84U_(U).book Page 171 Tuesday, July 2, 2013 11:51 AM

172
2. RADIO OPERATION
GX_EMVN_OM60K84U_(U)13.07.02 11:50
3FM radio only: Select the desired pro-
gram type.
4Select the desired station and select
“OK”.
■REFRESHING THE STATION LIST
1Select “Refresh” on the “Station List”
screen and the following screen will be
displayed.
“Cancel Refresh” : Select to cancel the re-
fresh.
“Source” : Select to change to another au-
dio source while refreshing.
INFORMATION
●
The audio system sound is muted during
refresh operation.
●In some situations, it may take some time
to update the station list.
GX_EMVN_OM60K84U_(U).book Page 172 Tuesday, July 2, 2013 11:51 AM

173
2. RADIO OPERATION
GX_EMVN_OM60K84U_(U)13.07.02 11:50
4
AUDIO/VIDEO SYSTEM
1Select on the right side of the screen.
2Select the desired cache radio opera-
tion button.CACHING A RADIO
PROGRAM
A radio program can be cached and
played back in a time-shifted manner.
PLAYING BACK THE CACHE
MANUALLY
The broadcast cached in the program
cache can be played back manually.
No.Function
Hides the cache operation buttons
Select: Skips backward 2 minutes
Select and hold: Fast rewinds contin-
uously
Returns to the live radio broadcast
Pauses the playback (To restart, se-
lect )
Select: Skips forward 2 minutes
Select and hold: Fast forwards con-
tinuously
Red vertical bar: Shows what portion
of the cached broadcast is currently
playing
Light blue bar: Shows time in which
cache writing is in progress
GX_EMVN_OM60K84U_(U).book Page 173 Tuesday, July 2, 2013 11:51 AM

174
2. RADIO OPERATION
GX_EMVN_OM60K84U_(U)13.07.02 11:50
AUTOMATIC PLAYBACK OF
THE CACHE
If the radio broadcast is interrupted by
another audio output, such as an
incoming phone call, the system will
automatically cache the interrupted
portion and perform time-shift playback
when the interruption ends. To manually
operate the cache operation: ( →P.173)
INFORMATION
●
The system can store up to 15 minutes.
Cached data will be erased when the
radio mode or station is changed or when
the audio system is turned off.
●If noise or silence occurs during the cach-
ing process, cache writing will continue,
with the noise or silence recorded as is. In
this case, the cached broadcast will con-
tain the noise or silence when played
back.
RADIO BROADCAST DATA
SYSTEM
This audio system is equipped with Ra-
dio Broadcast Data Systems (RBDS).
RBDS mode allows text messages to be
received from radio stations that utilize
RBDS transmitters.
When RBDS is on, the radio can
— only select stations of a particular pro-
gram type,
— display messages from radio stations,
— search for a stronger signal station.
RBDS features are available only when
listening to an FM station that
broadcasts RBDS information and the
“FM Info” indicator is on.
