41
2. Bluetooth® SETTINGS
GX_EMVN_OM60K84U_(U)13.07.02 11:50
2
BASIC FUNCTION
5Register the Bluetooth® device using
your Bluetooth
® device.
z A PIN-code is not required for SSP
(Secure Simple Pairing) compatible
Bluetooth
® devices. Depending on the
type of Bluetooth® device being con-
nected, a message confirming registration
may be displayed on the Bluetooth
®
device’s screen. Respond and operate the
Bluetooth® device according to the confir-
mation message.
6Check that the following screen is dis-
played when registration is complete.
z The system waits for connection requests
coming from the registered device.
z At this stage, the Bluetooth
® functions are
not yet available.
7Select “OK” when the connection sta-
tus changes from “Connecting...” to
“Connected”.
z If an error message is displayed, follow the
guidance on the screen to try again.
REGISTERING A Bluetooth®
AUDIO PLAYER FOR THE
FIRST TIME
To use the Bluetooth® Audio, it is nec-
essary to register an audio player with
the system.
Once the player has been registered, it
is possible to use the Bluetooth
® Audio.
This operation cannot be performed
while driving.
For details about registering a
Bluetooth
® device: →P.46
GX_EMVN_OM60K84U_(U).book Page 41 Tuesday, July 2, 2013 11:51 AM

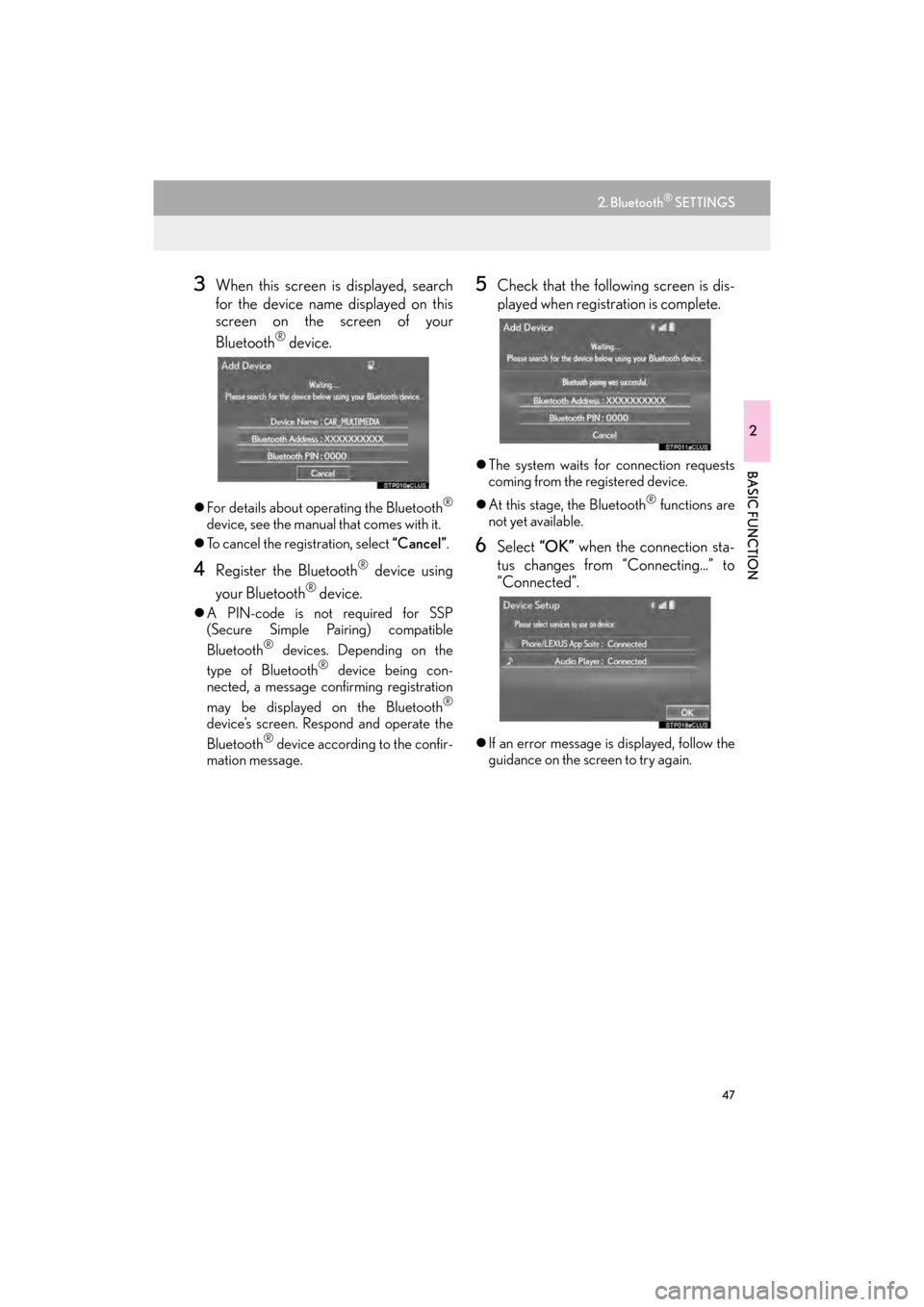

47
2. Bluetooth® SETTINGS
GX_EMVN_OM60K84U_(U)13.07.02 11:50
2
BASIC FUNCTION
3When this screen is displayed, search
for the device name displayed on this
screen on the screen of your
Bluetooth
® device.
zFor details about operating the Bluetooth®
device, see the manual that comes with it.
z To cancel the registration, select “Cancel”.
4Register the Bluetooth® device using
your Bluetooth
® device.
z A PIN-code is not required for SSP
(Secure Simple Pairing) compatible
Bluetooth
® devices. Depending on the
type of Bluetooth® device being con-
nected, a message confirming registration
may be displayed on the Bluetooth
®
device’s screen. Respond and operate the
Bluetooth® device according to the confir-
mation message.
5Check that the follow ing screen is dis-
played when registration is complete.
z The system waits for connection requests
coming from the registered device.
z At this stage, the Bluetooth
® functions are
not yet available.
6Select “OK” when the connection sta-
tus changes from “Connecting...” to
“Connected”.
z If an error message is displayed, follow the
guidance on the screen to try again.
GX_EMVN_OM60K84U_(U).book Page 47 Tuesday, July 2, 2013 11:51 AM

187
2. RADIO OPERATION
GX_EMVN_OM60K84U_(U)13.07.02 11:50
4
AUDIO/VIDEO SYSTEM
IF THE SATELLITE RADIO TUNER MALFUNCTIONS
When problems occur with the XM tuner, a message will appear on the screen. Refer-
ring to the table below to identify the prob lem, take the suggested corrective action.
MessageExplanation
“SAT Ck Antenna”
The XM antenna is not connected. Check whether the XM antenna
cable is attached securely.
A short circuit occurs in the ant enna or the surrounding antenna ca-
ble. See a Lexus certifie d dealer for assistance.
“SAT Ch Unauth”
You have not subscribed to XM Sat ellite Radio. The radio is being
updated with the latest encryption code. Contact XM Satellite Radio
for subscription information. When a contract is canceled, you can
choose “CH 000” and all free-to-air channels.
The premium channel you selected is not authorized. Wait for about
2 seconds until the radio returns to the previous channel or “CH
001”. If it does not change automa tically, select another channel. To
listen to the premium channel, contact XM Satellite Radio.
“SAT No Signal”The XM signal is too weak at the cu rrent location. Wait until your ve-
hicle reaches a location with a stronger signal.
“Loading”The unit is acquiring audio or program information. Wait until the unit
has received the information.
“SAT Ch Off Air”The channel you selected is not br oadcasting any programming. Se-
lect another channel.
-----There is no song/program title or artist name/feature associated with
the channel at that time. No action is required.
“SAT Ch Unavail”The channel you selected is no longer available. Wait for about 2 sec-
onds until the radio returns to the previous channel or “CH 001”. If it
does not change automatica lly, select another channel.
INFORMATION
●
Contact the XM Listener Care Center at 1-877-515-3987 (U.S.A.) or 1-877-438-9677
(Canada).
GX_EMVN_OM60K84U_(U).book Page 187 Tuesday, July 2, 2013 11:51 AM

282
1. VOICE COMMAND SYSTEM OPERATION
GX_EMVN_OM60K84U_(U)13.07.02 11:50
■DISPLAYING THE “Voice Settings”
SCREENS
zSelecting can be displayed the
“Voice Settings” screen.
INFORMATION
●
If the navigation system does not respond
or the confirmation screen does not dis-
appear, press the talk switch and try
again.
●If a voice command cannot be recog-
nized, voice guidance will say “Pardon?”
(“Command not recognized.” will be dis-
played on the screen) and voice com-
mand reception will restart.
●If a voice command cannot be recog-
nized 2 consecutive times, the voice
command guidance system will say
“Paused. To restart voice recognition,
push the talk switch. To cancel voice rec-
ognition, press and ho ld the talk switch.”
Then voice recognition will be sus-
pended.
●“Voice Recognition Prompts” can be set
to on or off on the “Voice Settings”
screen. ( →P. 6 2 )
●Voice guidance can be canceled by set-
ting voice prompts to off. Use this setting
when it is desirable to say a command
immediately after pressing the talk switch
and hearing a beep.
GX_EMVN_OM60K84U_(U).book Page 282 Tuesday, July 2, 2013 11:51 AM

305
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
7
PHONE
GX_EMVN_OM60K84U_(U)13.07.02 11:50
XWhen is selected
3Check that the “Call” screen is dis-
played.
X When the desired contact is selected
3Select the desired number.
4Check that the “Call” screen is dis-
played.
1Display the phone top screen.
(→ P.303)
2Select the “Contacts” tab and select the
desired contact.
3Select the desired number.
4Check that the “Call” screen is dis-
played.
INFORMATION
●
When making a call to the same number
continuously, only the most recent call is
listed in call history.
●When a phone number registered in the
contact list is received, the name is dis-
played.
●Number-withheld calls are also memo-
rized in the system.
●International phone calls may not be
made depending on the type of cellular
phone you have.
●The list should group together consecu-
tive entries with the same phone number
and same call type. For example, two calls
from John’s mobile would be displayed as
follows: John (2)
BY CONTACTS LIST
Calls can be made by using contact data
which is transferred from a registered
cellular phone. ( →P.306)
Up to 2500 contacts (maximum of 4
phone numbers and e-mail addresses
per contact) can be registered in the
contact list.
GX_EMVN_OM60K84U_(U).book Page 305 Tuesday, July 2, 2013 11:51 AM

342
3. WHAT TO DO IF...
GX_EMVN_OM60K84U_(U)13.07.02 11:50
∗: For details, refer to th e owner’s manual that came with the cellular phone.
Even though all con-
ceivable measures
have been taken, the
symptom status does
not change.
The cellular phone is
not close enough to
this system.Bring the cellular
phone closer to this
system.

The cellular phone is
the most likely cause
of the symptom.
Turn the cellular
phone off, remove
and reinstall the bat-
tery pack, and then
restart the cellular
phone.
∗
Enable the cellular
phone’s Bluetooth®
connection.
∗
Stop the cellular
phone’s security soft-
ware and close all ap-
plications.
∗
Before using an ap-
plication installed on
the cellular phone,
carefully check its
source and how its
operation might af-
fect this system.
∗
SymptomLikely causeSolution
Pa g e
Cellular
phoneThis
system
GX_EMVN_OM60K84U_(U).book Page 342 Tuesday, July 2, 2013 11:51 AM

350
1. LEXUS ENFORM WITH SAFETY CONNECT OVERVIEW
GX_EMVN_OM60K84U_(U)13.07.02 11:50
3. TYPE B: FUNCTION ACHIEVED BY USING DCM AND THE NAVIGATION SYSTEM
Of the functions included in Lexus Enform with Safety Connect, Destination Assist,
eDestination, and Lexus Insider are achie ved through the cooperation of the DCM
and navigation system.
These are subscription-based telematics se rvices that use Global Positioning System
(GPS) data, embedded cellular technology to provide safety and security as well as
convenience features to subscribers.
The services are supported by Lexus’ desi gnated response center, which operates 24
hours per day, 7 days per week.
The services are available by subscription on select, telematics hardware-equipped
vehicles.
No.Name
Lexus’ designated response center
TEL, GPS antenna
DCM
Navigation system
GX_EMVN_OM60K84U_(U).book Page 350 Tuesday, July 2, 2013 11:51 AM
