GX 460 _O M_ OM6 0K 80 U_ (U)
3334-5. Using the driving support systems
4
Driving

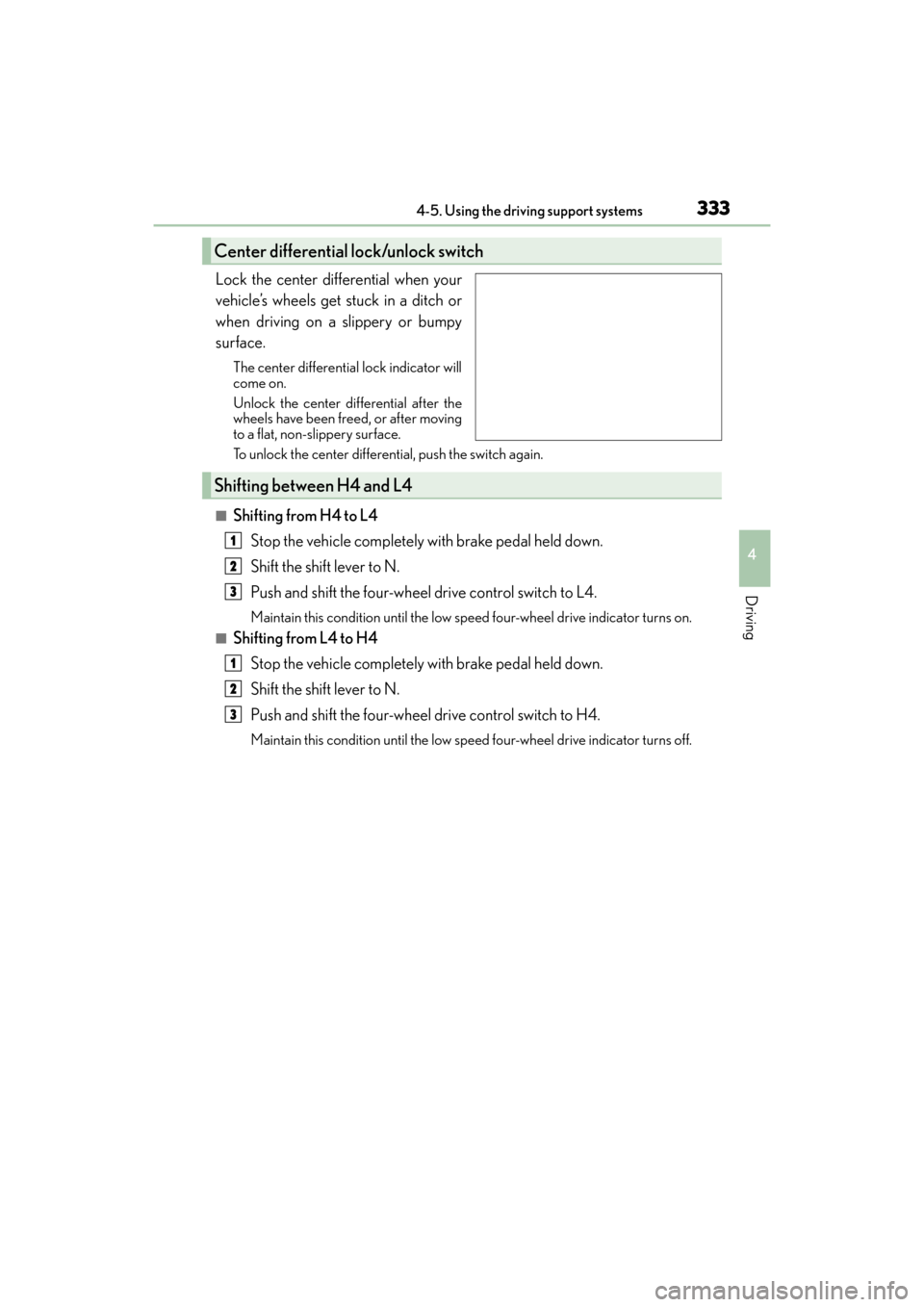

Lock the center differential when your
vehicle’s wheels get stuck in a ditch or
when driving on a slippery or bumpy
surface.
The center differential lock indicator will
come on.
Unlock the center differential after the
wheels have been freed, or after moving
to a flat, non-slippery surface.
To unlock the center differential, push the switch again.
■Shifting from H4 to L4Stop the vehicle completely with brake pedal held down.
Shift the shift lever to N.
Push and shift the four-wheel drive control switch to L4.
Maintain this condition until the low sp eed four-wheel drive indicator turns on.
■Shifting from L4 to H4
Stop the vehicle completely with brake pedal held down.
Shift the shift lever to N.
Push and shift the four-wheel drive control switch to H4.
Maintain this condition until the low sp eed four-wheel drive indicator turns off.
Center differential lock/unlock switch
Shifting between H4 and L4
1
2
3
1
2
3
GX460_OM_OM60K80U_(U).book Page 333 Wednesday, July 3, 2013 11:40 AM

334
GX 460 _O M_ OM6 0K 80 U_ (U)4-5. Using the driving support systems
■When the four-wheel drive control switch can be operated
●The engine switch is in IGNITION ON mode.
●The shift lever is in the N position.
●The vehicle is stopped completely.
■The low speed four-wheel drive indicator
●The indicator blinks while sw
itching between H4 and L4.
●If the low speed four-wheel drive indicator continues to blink when you operate the
four-wheel drive control switch to the H4 or L4 position, stop the vehicle completely,
shift the shift lever securely into N and then operate the switch again.
●If the shift lever is moved before the low speed four-wheel drive indicator turns on/off,
the transfer mode may not be shifted completely. The transfer mode disengages both
the front and rear drive shafts from the powertrain and allows the vehicle to move
regardless of the shift position. (At this time, the indicator blinks and the buzzer sounds.)
Therefore, the vehicle is free to roll even if the shift lever is in P. You or someone else
could be seriously injured. You must comple te the shifting of the transfer mode and
confirm that the indicator has turned off (H4) or turned on (L4).
●If the engine coolant temperature is too low, the four-wheel drive control system may
not be able to shift. When the engine is warmer operate the switch again.
If the indicator continue to blink even if doing so, have the vehicle inspected by your
Lexus dealer as soon as possible. There may be a trouble in the four-wheel drive system.
■When the transfer mode is switched to L4
Vehicles without Multi-terrain Select:
VSC is automatically turned off. (The VSC OFF indicator will come on.)
Vehicles with Multi-terrain Select:
VSC and TRAC/Active TRAC are automatically turned off. (The VSC OFF indicator will
come on and the “TRAC OFF” will be shown on the multi-information display.)
■When the center differential lock/unlock switch can be operated
The engine switch is in IGNITION ON mode.
■The center differential lock indicator
●The indicator blinks wh ile locking/unlocking the center differential.
●If the center differential lock indicator b links and the buzzer sounds when the center
differential is locked, stop the slipping or spinning and push the switch again.
If the indicator continue to blink even if doing so, have the vehicle inspected by your
Lexus dealer as soon as possible. There may be a trouble in the four-wheel drive system.
■Locking/unlocking the center differential
●If the operation is not completed, the center di fferential lock indicator blinks. If the indi-
cator does not turn off when unlocking the center differential, drive straight ahead
while accelerating or decelerating, or drive in reverse.
●Avoid turning suddenly while the center differential is locked. If you do turn suddenly,
the difference in turning speeds between the front and rear wheels may have a similar
effect to braking, thus making driving difficult.
GX460_OM_OM60K80U_(U).book Page 334 Wednesday, July 3, 2013 11:40 AM

GX 460 _O M_ OM6 0K 80 U_ (U)
3354-5. Using the driving support systems
4
Driving

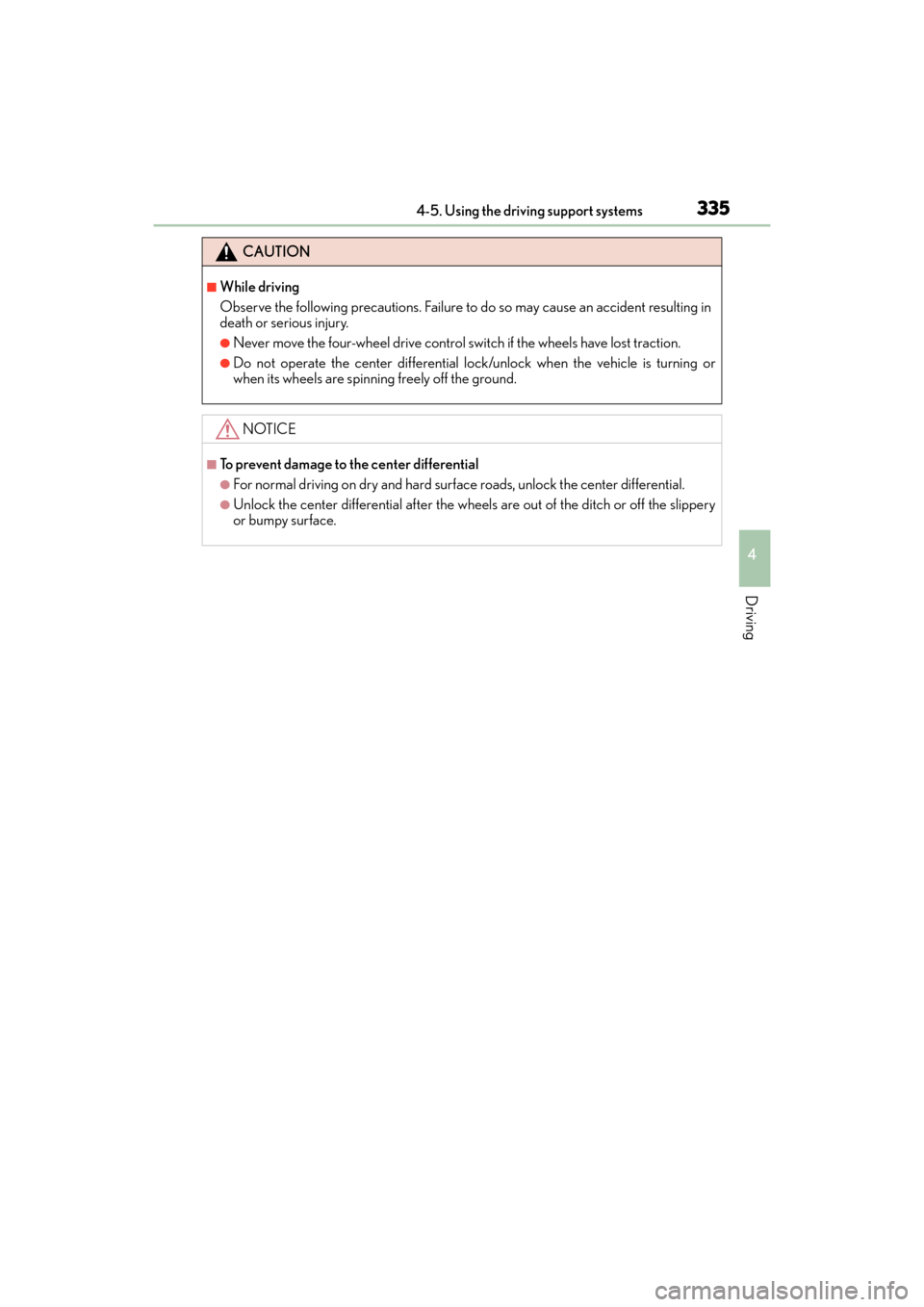

CAUTION
■While driving
Observe the following precautions. Failure to do so may cause an accident resulting in
death or serious injury.
●Never move the four-wheel drive control switch if the wheels have lost traction.
●Do not operate the center differential lock/unlock when the vehicle is turning or
when its wheels are spinning freely off the ground.
NOTICE
■To prevent damage to the center differential
●For normal driving on dry and hard surface roads, unlock the center differential.
●Unlock the center differential after the wheels are out of the ditch or off the slippery
or bumpy surface.
GX460_OM_OM60K80U_(U).book Page 335 Wednesday, July 3, 2013 11:40 AM

GX 460 _O M_ OM6 0K 80 U_ (U)
3734-6. Driving tips
4
Driving
NOTICE
■To prevent the water damage
Take all necessary safety measures to ensure that water damage to the engine or other
components does not occur.
●Water entering the engine air intake will cause severe engine damage.
●Water entering the automatic transmission will cause deterioration in shift quality,
locking up of your transmission accompanied by vibration, and ultimately damage.
●Water can wash the grease from wheel bearings, causing rusting and premature fail-
ure, and may also enter the differentials, transmission and transfer case, reducing the
gear oil’s lubricating qualities.
■When you drive through water
If driving through water, such as when crossing shallow streams, first check the depth of
the water and the bottom of the riverbed for firmness. Drive slowly and avoid deep
water.
■Inspection after off-road driving
●Sand and mud that has accumulated in brake drums and around brake discs may
affect braking efficiency and may damage brake system components.
●Always perform a maintenance inspection afte r each day of off-road driving that has
taken you through rough terrain, sand, mud, or water. For scheduled maintenance
information, refer to the “Warranty and Services Guide”, “Owner’s Manual Supple-
ment” or “Scheduled Maintenance”.
GX460_OM_OM60K80U_(U).book Page 373 Wednesday, July 3, 2013 11:40 AM

5027-2. Steps to take in an emergency
GX 460 _O M_ OM6 0K 80 U_ (U)
If your Lexus is transported by a flat bed
truck, it should be tied down at the
locations shown in the illustration.
If you use chains or cables to tie down
your vehicle, the angles shaded in black
must be 45°.
Do not overly tighten the tie downs or
the vehicle may be damaged.
■Before emergency towing The engine switch must be in the ACCESSORY mode (engine off) or IGNITION ON
mode (engine running).
Put the four-wheel drive control switch in H4 and push the center differential lock/
unlock switch to unlock the center differential. ( →P. 3 3 2 )
Vehicles with the rear height control air suspension: Put the vehicle height in the N
mode and press the height control OFF button to turn off the rear height control air
suspension. ( →P. 3 2 7 )
Shift the shift lever in N.
Release the parking brake.
Using a flat bed truck
1
2
3
4
5
GX460_OM_OM60K80U_(U).book Page 502 Wednesday, July 3, 2013 11:40 AM

5097-2. Steps to take in an emergency
GX 460 _O M_ OM6 0K 80 U_ (U)
7
When trouble arises
(Flashes)
Center differential lock indicator light Indicates a malfunction in the four-wheel drive system if the light
continues flashing. ( →P. 3 3 2 )
→ Have the vehicle inspected by your Lexus dealer immediately.
Open door warning light (warning buzzer)*1
Indicates that a door, the hood or the trunk is not fully closed
→ Check that all the doors, the hood and the back door are closed.
Low fuel level warning light
Indicates that remaining fuel is approximately 3.5 gal. (13.1 L, 2.9
Imp. gal.) or less
→ Refuel the vehicle.
Driver’s and front passenger’s seat belt reminder light (warning
buzzer)
*2
Warns the driver and/or front passenger to fasten their seat belts
→ Fasten the seat belt.
If the front passenger’s seat is occupied, the front passenger’s
seat belt also needs to be fastened to make the warning light
(warning buzzer) turn off.
Master warning light
A buzzer sounds and the warning light comes on and flashes to
indicate that the master warning system has detected a malfunc-
tion.
→ P. 5 1 4
Tire pressure warning light
When the light comes on:
Low tire inflation pressure such as
• Natural causes (→ P. 511)
•Flat tire ( →P. 5 2 7 )
→ Adjust the tire inflation pressure to the specified level.
The light will turn off after a few minutes. In case the light does
not turn off even if the tire inflation pressure is adjusted, have the
system checked by your Lexus dealer.
When the light comes on after blinking for 1 minute:
Malfunction in the tire pressure warning system
→ Have the system checked by your Lexus dealer.
Warning lightWarning light/Details/Actions
GX460_OM_OM60K80U_(U).book Page 509 Wednesday, July 3, 2013 11:40 AM

5107-2. Steps to take in an emergency
GX 460 _O M_ OM6 0K 80 U_ (U)
*1: Open door warning buzzer: → P. 5 1 6
*2: Seat belt reminders:
The driver’s seat belt buzzer sounds to alert the driver that his or her seat belt is not
fastened. Once the engine switch is turned to IGNITION ON mode, the buzzer
sounds for 6 seconds. If the vehicle reaches a speed of 12 mph (20 km/h), the buzzer
sounds once. If the seat belt is still unfast ened after 30 seconds, the buzzer will sound
intermittently for 10 seconds. Then, if the seat belt is still unfastened, the buzzer will
sound in a different tone for 20 more seconds.
The front passenger’s seat belt buzzer sounds to alert the front passenger that his or
her seat belt is not fastened. The buzzer sounds once if the vehicle reaches a speed of
12 mph (20 km/h). If the seat belt is still unfastened after 30 seconds, the buzzer will
sound intermittently for 10 seconds. Then, if the seat belt is still unfastened, the buzzer
will sound in a different tone for 20 more seconds.
■SRS warning light
This warning light system monitors the airbag sensor assembly, front airbag sensors, side
and curtain shield airbag sensors, rear side and curtain shield airbag sensors, floor sen-
sor, driver’s seat belt buckle switch, front passenger occupant classification system (ECU
and sensors), “AIR BAG ON” indicator light, “AIR BAG OFF” indicator light, front pas-
senger’s seat belt buckle switch, seat belt pretensioner assemblies, airbags, intercon-
necting wiring and power sources. ( →P. 3 4 )
■Front passenger detection sensor, seat belt reminder and warning buzzer
●If luggage is placed on the front passenger seat, the front passenger detection sensor
may cause the warning light to flash and the warning buzzer to sound even if a passen-
ger is not sitting in the seat.
●If a cushion is placed on the seat, the sensor may not detect a passenger, and the warn-
ing light may not operate properly.
■If the malfunction indicator lamp comes on while driving
First check the following:
●Is the fuel tank empty?
If it is, fill the fuel tank immediately.
●Is the fuel tank cap loose?
If it is, tighten it securely.
The light will go off after several driving trips.
If the light does not go off even after several trips, contact your Lexus dealer as soon as
possible.
■If the low speed four-wheel drive indicator light or the center differential lock indicator
light blinks
Take the specified steps. ( →P. 3 3 2 )
GX460_OM_OM60K80U_(U).book Page 510 Wednesday, July 3, 2013 11:40 AM

551
GX 460 _O M_ OM6 0K 80 U_ (U)
7
When trouble arises
7-2. Steps to take in an emergency
If the vehicle becomes stuck
Stop the engine. Set the parking brake and shift the shift lever to P.
Remove the mud, snow or sand from around the stuck tire.
Place wood, stones or some other material under the tires to help provide
traction.
Restart the engine.
Lock the center differential. (→P. 333)
Shift the shift lever to the D or R positi on and release the parking brake. Then,
while exercising caution, depress the accelerator pedal.
■When it is difficult to free the vehicle
Turn off TRAC or Active TRAC/VSC/Trailer Sway Control if these functions are ham-
pering your attempts to free the vehicle. ( →P. 3 4 3 )
Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt, or snow:
Press to turn off TRAC or Active TRAC/VSC/
Trailer Sway Control.
1
2
3
4
5
6
GX460_OM_OM60K80U_(U).book Page 551 Wednesday, July 3, 2013 11:40 AM

GX 460 _O M_ OM6 0K 80 U_ (U)
5598-1. Specifications
8
Vehicle specifications
*: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the factory.Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent of
matching quality to satisfy the above specification. Please contact your Lexus dealer
for further details.
*: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the factory. Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent of
matching quality to satisfy the above specification. Please contact your Lexus dealer
for further details.
Electrical system (battery)
Specific gravity reading at
68 °F (20 °C):12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11.8  12.0 V Discharged
(*: Voltage is checked 20 minutes after the engine
and all the lights are turned off.)
Charging rates5 A max.
Front differential
Oil capacity1.48 qt. (1.40 L, 1.23 Imp.qt.)
Oil type and viscosity*Toyota Genuine Differential Gear Oil LT 75W-85
GL-5 or equivalent
Rear differential
Oil capacity2.85 qt. (2.70 L, 2.38 Imp.qt.)
Oil type and viscosity*Toyota Genuine Differential Gear Oil LT 75W-85
GL-5 or equivalent
GX460_OM_OM60K80U_(U).book Page 559 Wednesday, July 3, 2013 11:40 AM

609Alphabetical index
GX 460 _O M_ OM6 0K 80 U_ (U)
Bottle holders......................................... 399
BrakeFluid............................................................ 561
Parking brake.......................................... 191
Warning light ...................................... 507
Brake assist ...............................................341
Break-in tips............................................. 150
Brightness control
Instrument panel light control .....................................................78
BSM (Blind Spot Monitor)................ 347
Care ................................................ 434, 437 Aluminum wheels ..............................434
Exterior....................................................434
Interior ..................................................... 437
Seat belts ............................................... 438
Cargo hooks .......................................... 402
Center differential................................ 332
CD player
*
Chains ....................................................... 366
Child restraint system............................ 52 Booster seats, definition ....................53
Booster seats, installation....................61
Convertible seats, definition ............53
Convertible seats, installation............................................. 58
Installation with LATCH system ..................................................... 57
Installing CRS with seat belts ......... 58
Installing CRS with top straps..................................... 62 Infant seats, definition.......................... 53
Infant seats, installation .......................58
Child safety .................................................. 51 Airbag precautions...............................37
Back door precautions...................... 101
Battery precautions ..............460, 547
Child restraint system......................... 52
Glass hatch precaution ................... 105
How your child should wear the seat belt .......................................... 30
Installing child restraints .................... 56
Moon roof precautions ....................148
Power window lock switch............. 142
Power window precautions ........... 144
Rear door child-protectors ............. 95
Removed key battery precautions ...................................... 480
Seat belt precautions ............................ 31
Seat heater precautions .................390
Child-protectors ..................................... 95
Cleaning Aluminum wheels .............................. 434
Exterior ................................................... 434
Interior ..................................................... 437
Seat belts................................................438
Coat hooks ............................................... 417
Compass ................................................... 419
Condenser...............................................457
Console box........................................... 396
Cool box .................................................. 409
Cooling system ..................................... 455 Engine overheating ..........................548
Conversation mirror............................. 412
C
*:For vehicles with a navigation system or a multimedia system, refer to the “NAVIGATION SYSTEM OWNER’S MANUAL” or“MULTIMEDIA OWNER’S MANUAL”.
GX460_OM_OM60K80U_(U).book Page 609 Wednesday, July 3, 2013 11:40 AM
