reset Lexus GX460 2014 User Guide

GX 460 _O M_ OM6 0K 80 U_ (U)

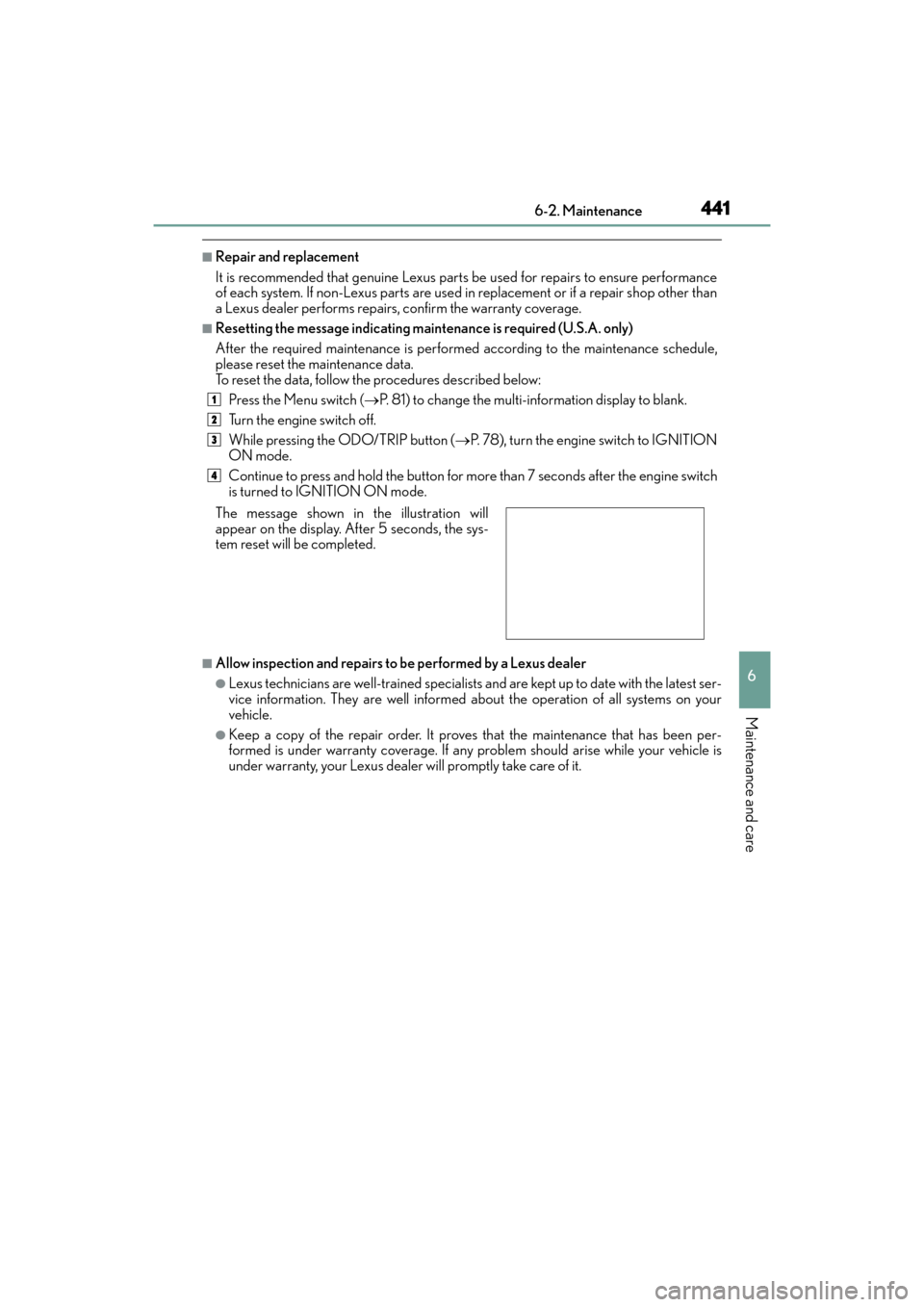

4416-2. Maintenance
6
Maintenance and care
■Repair and replacement
It is recommended that genuine Lexus parts be used for repairs to ensure performance
of each system. If non-Lexus parts are used in replacement or if a repair shop other than
a Lexus dealer performs repairs, confirm the warranty coverage.
■Resetting the message indicating maintenance is required (U.S.A. only)
After the required maintenance is performed according to the maintenance schedule,
please reset the maintenance data.
To reset the data, follow the procedures described below:Press the Menu switch ( →P. 81) to change the multi- information display to blank.
Turn the engine switch off.
While pressing the ODO/TRIP button (→ P. 78), turn the engine switch to IGNITION
ON mode.
Continue to press and hold the button for more than 7 seconds after the engine switch
is turned to IGNITION ON mode.
■Allow inspection and repairs to be performed by a Lexus dealer
●Lexus technicians are well-trained specialists and are kept up to date with the latest ser-
vice information. They are well informed about the operation of all systems on your
vehicle.
●Keep a copy of the repair order. It proves that the maintenance that has been per-
formed is under warranty coverage. If any problem should arise while your vehicle is
under warranty, your Lexus dealer will promptly take care of it.
The message shown in the illustration will
appear on the display. After 5 seconds, the sys-
tem reset will be completed.
1
2
3
4
sec_06-02.fm Page 441 Tuesday, July 9, 2013 5:45 PM

5207-2. Steps to take in an emergency
GX 460 _O M_ OM6 0K 80 U_ (U)
*: Refer to the separate “Scheduled Maintenance” or “Owner’s Manual Supplement”for the maintenance interval applicable to your vehicle.
(If equipped)
Indicates that the pre-collision system is not currently
functional because the grille cover or the sensor is dirty
→ Check the grille cover and the sensor and clean
them if they are dirty.
(If equipped)
Indicates a malfunction in the rear height control air sus-
pension
A buzzer also sounds.
→ Immediately stop the vehicle in a safe place and
contact your Lexus dealer.
(U.S.A. only)
Indicates that all maintenance according to the driven
distance on the maintenance schedule
* should be per-
formed soon.
Comes on approximately 4500 miles (7200 km) after
the maintenance data has been reset.
→ If necessary, perform maintenance.
(U.S.A. only)
Indicates that all maintenance is required to correspond
to the driven distance on the maintenance schedule*.
Comes on approximately 5000 miles (8000 km) after
the maintenance data has been reset. (The indicator will
not work properly unless the maintenance data has been
reset.)
→Perform the necessary maintenance.
Please reset the maintenance data after the mainte-
nance is performed ( →P. 441)
Wa r n i n g m e s s a g eDetails/Actions
GX460_OM_OM60K80U_(U).book Page 520 Wednesday, July 3, 2013 11:40 AM

613Alphabetical index
GX 460 _O M_ OM6 0K 80 U_ (U)
Keyless entrySmart access system with push-button start ...................... 92, 99
Wireless remote control .......... 92, 99
Keys............................................................... 88
Battery-saving function ...................... 110
Electronic key ............................... 88, 181
If the electronic key does not operate properly.............................543
If you lose your keys ........................ 604
Key number plate ................................ 88
Keyless entry .................................. 92, 99
Mechanical key ......................................89
Replacing the battery ....................... 479
Wireless remote control .................. 88
KDSS ......................................................... 342 Warning light ...................................... 508
Lane Departure Alert (LDA) .......... 228
Lever Auxiliary catch lever ........................ 450
Hood lock release lever ................ 450
Shift lever ................................................. 186
Turn signal lever .................................. 190
Wiper lever ...........................................202
License plate lights.................................192
Light switch ............................................ 192
Wattage ................................................. 563 Light
Engine switch light ............................ 392
Fog light switch ...................................200
Headlight switch .................................. 192
Illuminated entry system................. 394
Interior light........................................... 393
Interior light list .................................... 392
Luggage compartment light ........ 393
Personal light ....................................... 393
Replacing light bulbs .......................486
Turn signal lever .................................. 190
Vanity lights ..............................................411
Wattage .................................................563
Light bulbs
Replacing ...............................................486
Wattage .................................................563
Lock steering column...........................184
Luggage cover ...................................... 404
Maintenance Do-it-yourself maintenance ......... 447
Maintenance data..............................554
Maintenance requirements .......... 440
Reset the maintenance data........... 441
Malfunction indicator lamp .............. 507
Master warning light ............................. 514
K
LM
*:For vehicles with a navigation system or a multimedia system, refer to the “NAVIGATION SYSTEM OWNER’S MANUAL” or“MULTIMEDIA OWNER’S MANUAL”.
GX460_OM_OM60K80U_(U).book Page 613 Wednesday, July 3, 2013 11:40 AM

615Alphabetical index
GX 460 _O M_ OM6 0K 80 U_ (U)
Power outlet .............................................413
Power steering
Power windows .......................................142Jam protection function ................... 146
Operation ................................................142
Window lock switch ...........................142
Pre-Collision System (PCS) ............ 357 Function ..................................................357
PCS OFF switch ............................... 358
Warning light ...................................... 508
Radiator .................................................... 457
Radio
*
Rear fog lights ........................................200 Switch...................................................... 200
Wattage ................................................. 563
Rear seat ..................................................... 117
Adjustment ............................................... 117
Rear turn signal lights .......................... 190
Replacing light bulbs ......................... 491
Turn signal lever .................................. 190
Wattage ................................................. 563
Rear view mirror
Inside rear view mirror ......................137
Outside rear view mirrors .............. 139
Rear view monitor system ................ 243
Rear window defogger ....................... 381
Rear window wiper.............................. 207
Refueling ................................................... 210 Capacity ................................................ 556
Fuel types ....................................210, 556
Opening the fuel tank cap............... 212 Replacing
Electronic key battery ..................... 479
Fuses ..........................................................481
Light bulbs.............................................486
Tires .......................................................... 527
Wireless remote control
battery.................................................. 479
Reporting safety defects
for U.S. owners .................................. 590
Reset the maintenance data .............. 441
Safety connect....................................... 428
Seat belts .................................................... 28
Adjusting the seat belt........................ 29
Automatic Locking Retractor ........ 30
Child restraint system installation ............................................. 56
Cleaning and maintaining the seat belt .......................................438
Emergency Locking Retractor................................................ 30
How to wear your seat belt............. 28
How your child should wear the seat belt .......................................... 30
Pregnant women,
proper seat belt use........................... 31
Reminder light and buzzer .......... 509
Seat belt pretensioners ...................... 29
Seat belt extender ................................ 30
SRS warning light .............................. 507
RS
*:For vehicles with a navigation system or a multimedia system, refer to the “NAVIGATION SYSTEM OWNER’S MANUAL” or“MULTIMEDIA OWNER’S MANUAL”.
GX460_OM_OM60K80U_(U).book Page 615 Wednesday, July 3, 2013 11:40 AM
