Lexus GX460 2014 Owner's Manual

5497-2. Steps to take in an emergency
GX 460 _O M_ OM6 0K 80 U_ (U)
7
When trouble arises
The coolant level is satisfactory if it is between the “F” and “L” lines on the res-
ervoir. Reservoir
“F”
“L”
Radiator cap
Add coolant if necessary. ( →P. 4 5 2 )
Water can be used in an emergency if
coolant is unavailable.
Start the engine and turn the air conditioning system on to check that the radi-
ator cooling fans operate and to check for coolant leaks from the radiator or
hoses.
The fans operate when the air conditioning system is turned on immediately after a
cold start. Confirm that the fans are operating by checking the fan sound and air flow.
If it is difficult to check these, turn the air conditioning system on and off repeatedly.
(The fans may not operate in freezing temperatures.)
If the fans are not operating:
Stop the engine immediately and contact your Lexus dealer.
If the fans are operating:
Have the vehicle inspected at the nearest Lexus dealer.
4
1
2
3
4
5
6
7
GX460_OM_OM60K80U_(U).book Page 549 Wednesday, July 3, 2013 11:40 AM

5507-2. Steps to take in an emergency
GX 460 _O M_ OM6 0K 80 U_ (U)
CAUTION
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the hood, do not open the hood until the steam
has subsided. The engine compartment may be very hot.
●Keep hands and clothing (especially a tie, a scarf or a muffler) away from the fans and
belts. Failure to do so may cause the hands or clothing to be caught, resulting in seri-
ous injury.
●Do not loosen the radiator cap or the coolant reservoir cap while the engine and radi-
ator are hot. High temperature steam or coolant could spray out.
NOTICE
■When adding engine coolant
Add coolant slowly after the engine has cool ed down sufficiently. Adding cool coolant
to a hot engine too quickly can cause damage to the engine.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust etc.).
●Do not use any coolant additives.
GX460_OM_OM60K80U_(U).book Page 550 Wednesday, July 3, 2013 11:40 AM

551
GX 460 _O M_ OM6 0K 80 U_ (U)
7
When trouble arises
7-2. Steps to take in an emergency
If the vehicle becomes stuck
Stop the engine. Set the parking brake and shift the shift lever to P.
Remove the mud, snow or sand from around the stuck tire.
Place wood, stones or some other material under the tires to help provide
traction.
Restart the engine.
Lock the center differential. (→P. 333)
Shift the shift lever to the D or R positi on and release the parking brake. Then,
while exercising caution, depress the accelerator pedal.
■When it is difficult to free the vehicle
Turn off TRAC or Active TRAC/VSC/Trailer Sway Control if these functions are ham-
pering your attempts to free the vehicle. ( →P. 3 4 3 )
Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt, or snow:
Press to turn off TRAC or Active TRAC/VSC/
Trailer Sway Control.
1
2
3
4
5
6
GX460_OM_OM60K80U_(U).book Page 551 Wednesday, July 3, 2013 11:40 AM

5527-2. Steps to take in an emergency
GX 460 _O M_ OM6 0K 80 U_ (U)
CAUTION
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the surrounding
area is clear, to avoid striking other vehicles, objects or people. The vehicle may also
lunge forward or lunge back suddenly as it becomes free. Use extreme caution.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an acci-
dent and result in death or serious injury.
NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the wheels and depressing the accelerator pedal more than neces-
sary.
●If the vehicle remains stuck even after these procedures are performed, the vehicle
may require towing to be freed.
GX460_OM_OM60K80U_(U).book Page 552 Wednesday, July 3, 2013 11:40 AM

553
GX 460 _O M_ OM6 0K 80 U_ (U)

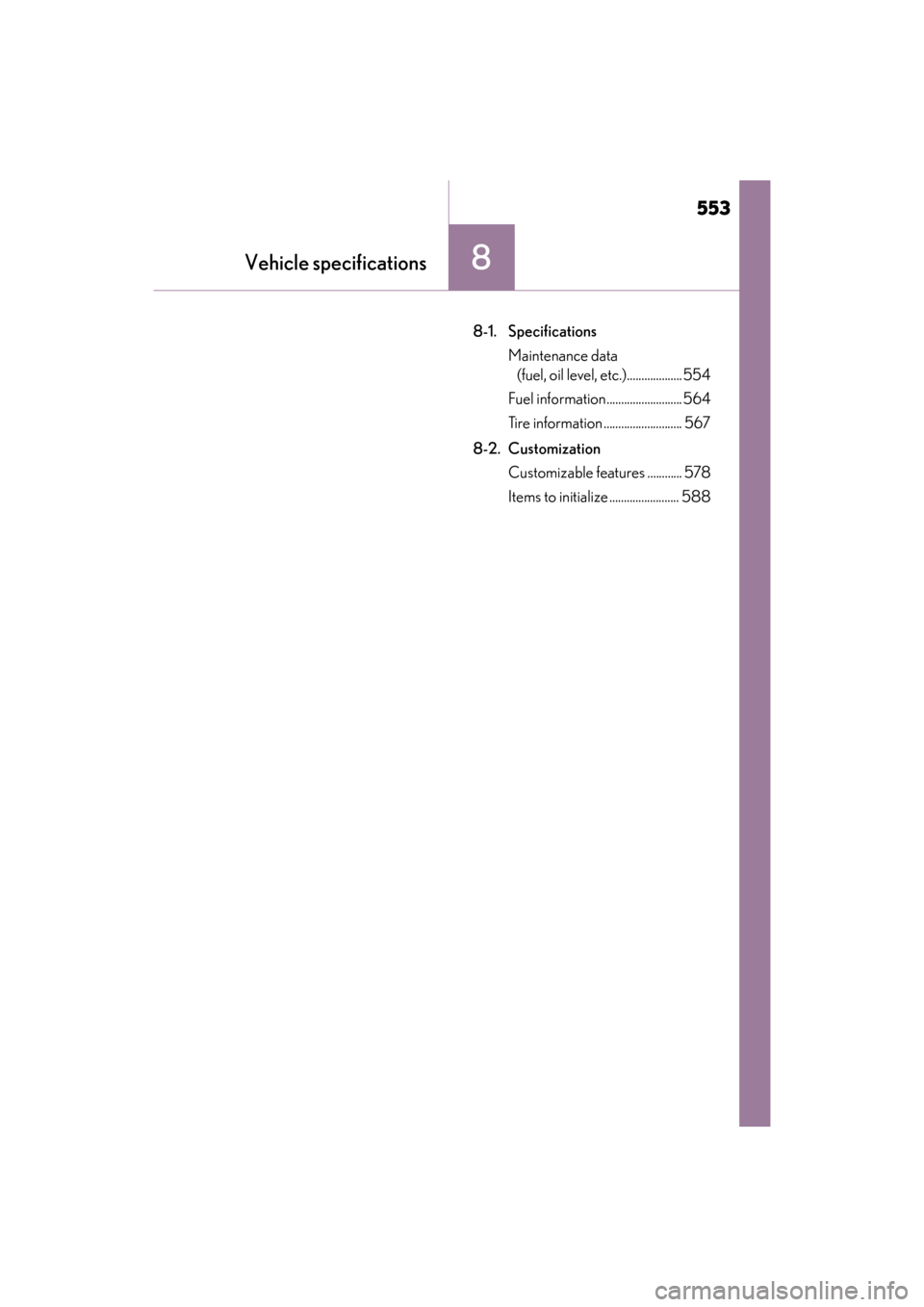

8Vehicle specifications
8-1. SpecificationsMaintenance data (fuel, oil level, etc.)................... 554
Fuel information.......................... 564
Tire information ........................... 567
8-2. Customization Customizable features ............ 578
Items to initialize ........................ 588
GX460_OM_OM60K80U_(U).book Page 553 Wednesday, July 3, 2013 11:40 AM

554
GX 460 _O M_ OM6 0K 80 U_ (U)8-1. Specifications
Maintenance data (fuel, oil level, etc.)
*1: Unladen vehicles
*2: Vehicles without roof rails and shark fin antenna
*3: Vehicles with roof rails and without shark fin antenna
*4: Vehicles with shark fin antenna
*5: Vehicles without rear height control air suspension
*6: Vehicles with rear height control air suspension
Dimensions and weights
Overall length189.2 in. (4880 mm)
Overall width74 . 2 i n . ( 1 8 8 5 m m )
Overall height*1
71.7 in. (1820 mm)*2, 6
72.0 in. (1830 mm)*2, 5
72.2 in. (1835 mm)*3, 6
72.6 in. (1845 mm)*3, 5
73.8 in. (1875 mm)*4, 6
74 . 2 i n . ( 1 8 8 5 m m )*4, 5
Wheelbase109.8 in. (2790 mm)
Front and rear tread62.4 in. (1585 mm)
Vehicle capacity weight
(Occupants + luggage)1280 lb. (580 kg)*6
1315 lb. (595 kg)*5
TWR (trailer weight +
cargo weight) (With
towing hitch)With brake6500 lb. (2948 kg)
Without brake1000 lb. (453 kg)
GX460_OM_OM60K80U_(U).book Page 554 Wednesday, July 3, 2013 11:40 AM

GX 460 _O M_ OM6 0K 80 U_ (U)
5558-1. Specifications
8
Vehicle specifications
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your vehicle.
This is the primary identification number for your Lexus. It is used in register-
ing the ownership of your vehicle.
This number is stamped on the front
right frame.
This number is also stamped on the
top left of the instrument panel.
This number is also on the Certifica-
tion Regulation label on the left-
hand side center pillar.
Vehicle identification
GX460_OM_OM60K80U_(U).book Page 555 Wednesday, July 3, 2013 11:40 AM

556
GX 460 _O M_ OM6 0K 80 U_ (U)8-1. Specifications
■Engine number
The engine number is stamped on the engine block as shown.
*: The engine oil capacity is a reference quantity to be used when changing the engine
oil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level
on the dipstick.
Engine
Model4.6L 8-cylinder (1UR-FE)
Ty p e8-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70 × 3.27 in. (94.0 × 83.0 mm)
Displacement281.2 cu.in. (4608 cm3)
Drive belt tensionAutomatic adjustment
Fuel
Fuel typeUnleaded gasoline only
Octane rating91 (Research Octane Number 96) or higher
Fuel tank capacity (Reference)23.0 gal. (87 L, 19.1 Imp.gal.)
Lubrication system
Oil capacity
(Drain and refill — reference*)
With filter
Without filter8.2 qt. (7.8 L, 6.9 Imp.qt.)
7.8 qt. (7.4 L, 6.5 Imp.qt.)
GX460_OM_OM60K80U_(U).book Page 556 Wednesday, July 3, 2013 11:40 AM

GX 460 _O M_ OM6 0K 80 U_ (U)
5578-1. Specifications
8
Vehicle specifications
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good start-
ing in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However, it
must be replaced with SAE 0W-20
at the next oil change.
Oil viscosity (0W-20 is explained here as an example):• The 0W in 0W-20 indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
How to read oil container label:
The International Lubricant Specifi-
cation Advisory Committee (ILSAC)
Certification Mark is added to some
oil containers to help you select the
oil you should use.
Outside temperature
GX460_OM_OM60K80U_(U).book Page 557 Wednesday, July 3, 2013 11:40 AM

558
GX 460 _O M_ OM6 0K 80 U_ (U)8-1. Specifications
Cooling system
Capacity
(reference)With rear heater16.3 qt. (15.4 L, 13.6 Imp.qt.)
Without rear heater14.5 qt. (13.7 L, 12.1 Imp.qt.)
Coolant typeUse either of the following:
• “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-basednon-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.
Ignition system (spark plug)
MakeDENSO SK20HR11
Gap0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
GX460_OM_OM60K80U_(U).book Page 558 Wednesday, July 3, 2013 11:40 AM
