GX460_OM_OM60K80U_(U)
9
6-1. Maintenance and care Cleaning and protecting the vehicle exterior ................ 434
Cleaning and protecting the vehicle inte rior...................437
6-2. Maintenance Maintenance requirements ............................ 440
General maintenance.............. 443
Emission inspection and maintenance (I/M)
programs .................................... 446
6-3. Do-it-yourself maintenance Do-it-yourself service precautions.................................447
Hood ............................................... 450
Engine compartment ................. 451
Tires.................................................. 464
Tire inflation pressure ................. 471
Wheels ............................................475
Air conditioning filter ................ 477
Electronic key battery...............479
Checking and replacing fuses............................................... 481
Headlight aim .............................. 484
Light bulbs .................................... 486 7-1. Essential information
Emergency flashers .................. 498
If your vehicle has to be stopped in an emergency.... 499
7-2. Steps to take in an emergency If your vehicle needs to be towed................................500
If you think something is wrong...........................................505
Fuel pump shut off system ...... 506
If a warning light turns on or a warning buzzer
sounds ......................................... 507
If a warning message is displayed ......................................514
If you have a flat tire ...................527
If the engine will not start ........ 540
If the shift lever cannot be shifted from P ........................... 542
If the electronic key does not operate properly ............. 543
If the vehicle battery is discharged ................................. 545
If your vehicle overheats ......... 548
If the vehicle becomes stuck ...............................................551
6Maintenance and care7When trouble arises

15Pictorial index
GX460_OM_OM60K80U_(U)
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 202
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 366
To prevent freezing (windshield wiper de-icer
*) . . . . . . . . . . . . . . . . . . . . . . . . P. 381
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 435
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 210
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P . 210
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 556
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 464
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 562
Winter tires/tire chain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 366
Checking/rotation/tire pressure warning system . . . . . . . . . . . . . . . . . . . . . . . .P. 464
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 527
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 450
Opening. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 450
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 556
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 548
Camera*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 243, 253
Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 192
Parking lights/daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 192
Fog lights
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 200
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 190
Stop/tail lights
Hill-start assist control*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 342
Downhill assist control system
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 339
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 19 2
Back-up lights
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 18 6
Side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 192
4
5
6
7
8
Light bulbs of the exterior lights for driving
(Replacing method: P. 486, Watts: P. 563)
*: If equipped
9
10
11
12
13
14
15
16

GX460_OM_OM60K80U_(U)
732. Instrument cluster
2
Instrument cluster
Warning lights inform the driver of malfunctions in any of the vehicle’s systems.
Warning lights
*1
(U.S.A.)
Brake system warning light
( P. 5 0 7 )*1LED headlight system
warning light ( P. 5 0 8 )
*1
(Canada)
Brake system warning light
( P. 5 0 7 )*1, 2Automatic headlight
leveling system warning
light ( P. 5 0 8 )
*1Charging system warning
light ( P. 5 0 7 )*1Kinetic dynamic suspension
system warning light
( P. 5 0 8 )
*1
(U.S.A.)
Malfunction indicator lamp
( P. 5 0 7 )*2Low speed four-wheel
drive indicator light
( P. 5 0 8 )
*1
(Canada)
Malfunction indicator lamp
( P. 5 0 7 )*2Center differential lock
indicator light ( P. 5 0 9 )
*1SRS warning light
( P. 5 0 7 ) Open door warning light
(
 P. 5 0 9 )
*1
(U.S.A.)
ABS warning light
( P. 5 0 7 ) Low fuel level warning light
(
 P. 5 0 9 )
*1
(Canada)
ABS warning light
( P. 5 0 7 ) Seat belt reminder light
(
 P. 5 0 9 )
*1, 2
(if equipped)
Pre-collision system
warning light ( P. 5 0 8 )*1Master warning light
( P. 5 0 9 )
*1Slip indicator light
( P. 5 0 8 )*1Tire pressure warning light
( P. 5 0 9 )

434
GX460_OM_OM60K80U_(U)6-1. Maintenance and care
Cleaning and protecting the vehicle exterior
●Working from top to bottom, liberally apply water to the vehicle body, wheel
wells and underside of the vehicle to remove any dirt and dust.
●Wash the vehicle body using a sponge or soft cloth, such as a chamois.
●For hard-to-remove marks, use car wash soap and rinse thoroughly with
water.
●Wipe away any water.
●Wax the vehicle when the waterproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehicle body is cool.
■Automatic car washes
●Fold the mirrors back before washing the vehicle. Start washing from the front of the
vehicle. Make sure to extend the mirrors before driving.
●Brushes used in automatic car washes may scratch the vehicle surface and harm your
vehicle’s paint.
■High pressure car washes
●Do not allow the nozzles of the car wash to come within close proximity of the windows
and the air suspension unit.
●Before using the car wash, check that the fuel
filler door on your vehicle is closed prop-
erly.
■Aluminum wheels
●Remove any dirt immediately by using a neutral detergent. Do not use hard brushes or
abrasive cleaners. Do not use strong or harsh chemical cleaners. Use the same mild
detergent and wax as used on the paint.
●Do not use detergent on the wheels when they are hot, for example after driving for
long distance in the hot weather.
●Wash detergent from the wheels immediately after use.
■Bumpers and side moldings
Do not scrub with abrasive cleaners.
Perform the following to protect the ve hicle and maintain it in prime condi-
tion:

GX460_OM_OM60K80U_(U)
4736-3. Do-it-yourself maintenance
6
Maintenance and care
■Tire inflation pressure check interval
You should check tire inflation pressure every two weeks, or at least once a month. Do
not forget to check the spare.
■Effects of incorrect tire inflation pressure
Driving with incorrect tire inflation pressure may result in the following:
●Reduced fuel efficiency
●Reduced driving comfort and tire life
●Reduced safety
●Damage to the drive train
If a tire needs frequent inflating, have it checked by your Lexus dealer.
■Instructions for checking tire inflation pressure
When checking tire inflation pressure, observe the following:
●Check only when the tires are cold.
If your vehicle has been parked for at le ast 3 hours and has not been driven for more
than 1 mile or 1.5 km, you will get an accur ate cold tire inflation pressure reading.
●Always use a tire pressure gauge.
The appearance of the tire can be misleading. In addition, tire inflation pressure that is
even just a few pounds off can affect ride quality and handling.
●Do not reduce tire inflation pressure after driv ing. It is normal for tire inflation pressure
to be higher after driving.
●Never exceed the vehicle capacity weight.
Passengers and luggage weight should be placed so that the vehicle is balanced.

5097-2. Steps to take in an emergency
GX460_OM_OM60K80U_(U)
7
When trouble arises

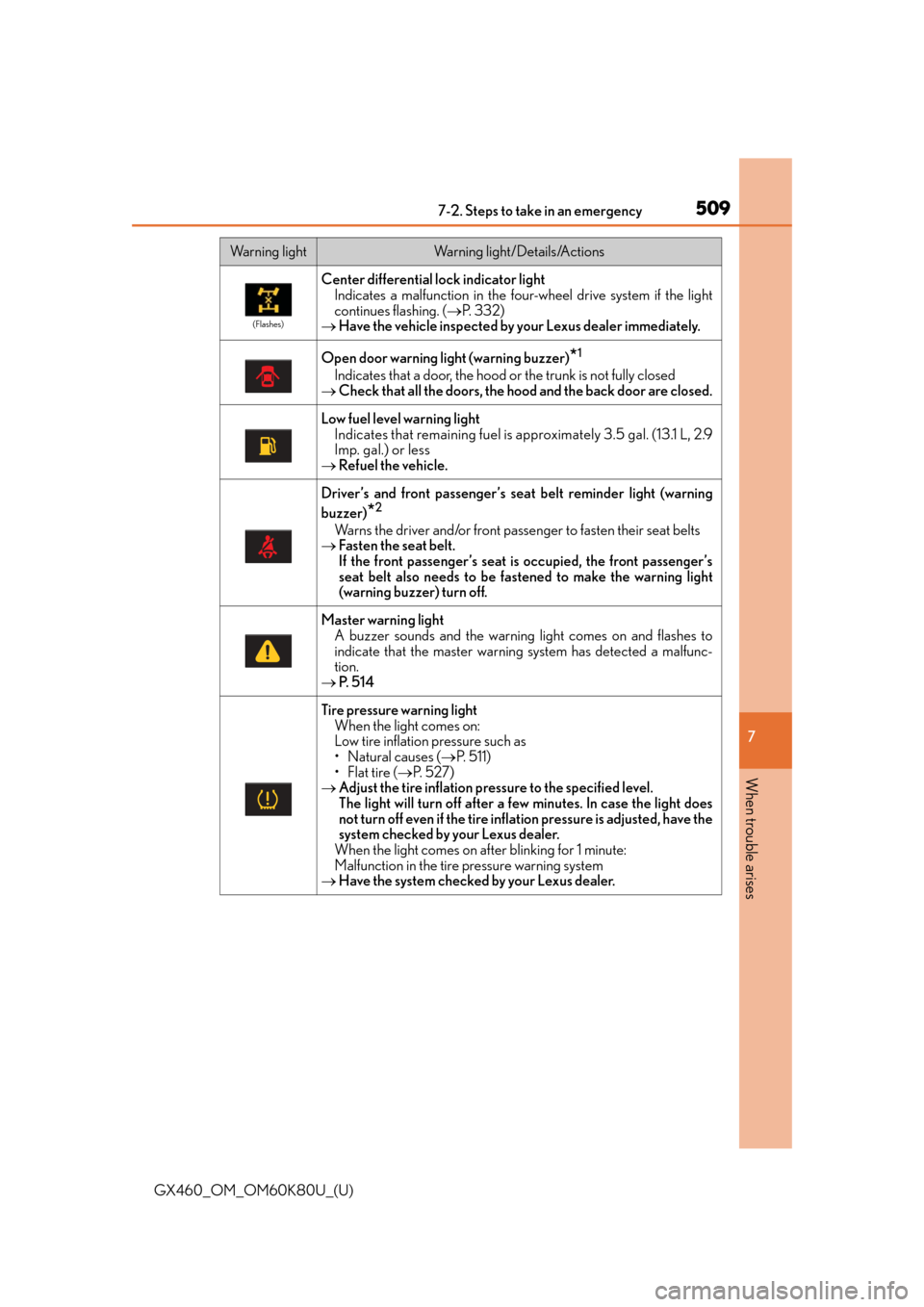

(Flashes)
Center differential lock indicator light Indicates a malfunction in the four -wheel drive system if the light
continues flashing. ( P. 3 3 2 )
 Have the vehicle inspected by your Lexus dealer immediately.
Open door warning light (warning buzzer)*1
Indicates that a door, the hood or the trunk is not fully closed
 Check that all the doors, the hood and the back door are closed.
Low fuel level warning light
Indicates that remaining fuel is a pproximately 3.5 gal. (13.1 L, 2.9
Imp. gal.) or less
 Refuel the vehicle.
Driver’s and front passenger’s seat belt reminder light (warning
buzzer)
*2
Warns the driver and/or front passenger to fasten their seat belts
 Fasten the seat belt.
If the front passenger’s seat is occupied, the front passenger’s
seat belt also needs to be fa stened to make the warning light
(warning buzzer) turn off.
Master warning light
A buzzer sounds and the warning light comes on and flashes to
indicate that the master warning system has detected a malfunc-
tion.
 P. 5 1 4
Tire pressure warning light
When the light comes on:
Low tire inflation pressure such as
• Natural causes ( P. 511)
•Flat tire ( P. 5 2 7 )
 Adjust the tire inflation pressure to the specified level.
The light will turn off after a fe w minutes. In case the light does
not turn off even if the tire inflation pressure is adjusted, have the
system checked by your Lexus dealer.
When the light comes on after blinking for 1 minute:
Malfunction in the tire pressure warning system
 Have the system checked by your Lexus dealer.
Warning lightWarning light/Details/Actions

5137-2. Steps to take in an emergency
GX460_OM_OM60K80U_(U)
7
When trouble arises
CAUTION
■Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly when cold and
inflated to the inflation pressure recomm ended by the vehicle manufacturer on the
vehicle placard or tire inflation pressure la bel (tire and load information label). (If your
vehicle has tires of a different size than the size indicated on the vehicle placard or tire
inflation pressure label [tire and load in formation label], you should determine the
proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire pressure moni-
toring system (TPMS-tire pressure warning system) that illuminates a low tire pressure
telltale (tire pressure warning light) when on e or more of your tires is significantly
under-inflated. Accordingly, when the low ti re pressure telltale (tire pressure warning
light) illuminates, you should stop and check your tires as soon as possible, and inflate
them to the proper pressure. Driving on a significantly under-inflated tire causes the
tire to overheat and can lead to tire failure. Under-inflation also reduces fuel efficiency
and tire tread life, and ma y affect the vehicle’s handling and stopping ability.
Please note that the TPMS (tire pressure wa rning system) is not a substitute for proper
tire maintenance, and it is the driver’s responsibility to maintain correct tire pressure,
even if under-inflation has no t reached the level to trigger illumination of the TPMS low
tire pressure telltale (tire pressure warning light).
Your vehicle has also been equipped with a TPMS (tire pressure warning system) mal-
function indicator to indicate when the system is not operating properly. The TPMS
(tire pressure warning system) malfunction indi cator is combined with the low tire pres-
sure telltale (tire pressure warning light). When the system detects a malfunction, the
telltale will flash for approximately one minu te and then remain continuously illumi-
nated. This sequence will cont inue upon subsequent vehicle start-ups as long as the
malfunction exists. When the malfunction indicator is illuminated, the system may not
be able to detect or signal low tire pressure as intended.
TPMS (tire pressure warning system) malfun ctions may occur for a variety of reasons,
including the installation of replacement or alternate tires or wheels on the vehicle that
prevent the TPMS (tire pressure warning system) from functioning properly. Always
check the TPMS (tire pressure warning syst em) malfunction telltale after replacing one
or more tires or wheels on your vehicle to ensure that the replacement or alternate
tires and wheels allow the TPMS (tire pressure warning system) to continue to function
properly.
NOTICE
■Precaution when inst alling a different tire
When differently constructed tires or tires of different makers, models or tread pat-
terns are installed, the tire pressure warning system may not operate properly.

GX460_OM_OM60K80U_(U)
5738-1. Specifications
8
Vehicle specifications
Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pressure
Tire pressure when the vehicle has been parked for
three hours or more, or has not been driven more than 1
mile or 1.5 km under that condition
Maximum inflation pres-
sureThe maximum cold inflated pressure to which a tire may
be inflated, shown on the sidewall of the tire
Recommended inflation
pressureCold tire inflation pressure recommended by a manu-
facturer
Accessory weight
The combined weight (in excess of those standard items
which may be replaced) of automatic transmission,
power steering, power brakes, power windows, power
seats, radio and heater, to the extent that these items are
available as factory-installed equipment (whether
installed or not)
Curb weight
The weight of a motor vehicle with standard equipment,
including the maximum capacity of fuel, oil and coolant,
and if so equipped, air co nditioning and additional
weight optional engine
Maximum loaded vehicle
weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant weight150 lb. (68 kg) times the numb er of occupants specified
in the second column of Table 1* that follows
Occupant distributionDistribution of occupants in a vehicle as specified in the
third column of Table 1
* below
Production options weight
The combined weight of installed regular production
options weighing over 5 lb. (2.3 kg) in excess of the
standard items which they replace, not previously con-
sidered in curb weight or accessory weight, including
heavy duty brakes, ride levelers, roof rack, heavy duty
battery, and special trim
RimA metal support for a tire or a tire and tube assembly
upon which the tire beads are seated
Rim diameter
(Wheel diameter)Nominal diameter of the bead seat
Rim size designationRim diameter and width
Rim type designationThe industry manufacturer’s designation for a rim by
style or code

618Alphabetical index
GX460_OM_OM60K80U_(U)
Tools........................................................... 528
TowingDinghy towing ......................................180
Emergency towing........................... 500
Towing eyelet...................................... 500
Trailer Sway Control ........................ 342
Trailer towing ........................................ 162
Trailer Sway Control........................... 342
TRAC (Traction Control) ...................341
Transmission Automatic transmission ................... 186
AVS switch ............................................ 331
If the shift lever cannot be shifted from P ...................................542
Trip information..........................................81
Trip meters ................................................. 78
Turn signal lights .................................... 190 Replacing light bulbs .............490, 491
Turn signal lever .................................. 190
Wattage ................................................. 563
USB port
*
Valet key ..................................................... 88
Vanity lights................................................ 411 Vanity lights ............................................. 411
Wattage ................................................. 563
Vanity mirrors ........................................... 411
Vehicle identification number ......... 555
VSC (Vehicle Stability Control) ......341 Warning buzzers ................................. 507
Brake system ....................................... 507
Downshifting ......................................... 189
Open back door............................... 509
Open door .......................................... 509
Seat belt remainder ......................... 509
Warning lights ....................................... 507 ABS .......................................................... 507
Automatic headlight leveling system ................................................. 508
Brake system ....................................... 507
Charging system ............................... 507
KDSS....................................................... 508
LED headlight .................................... 508
Low fuel level ...................................... 509
Malfunction indicator lamp........... 507
Master warning light ....................... 509
Open door .......................................... 509
Parking brake indicator .................. 507
PCS ......................................................... 508
Seat belt reminder light ................. 509
Slip indicator ....................................... 508
SRS............................................................ 507
Tire pressure warning light .......... 509
Warning message.................................. 514
Warning reflector holder.................. 402
Washer ..................................................... 202 Checking ............................................... 463
Preparing and checking before winter .................................... 366
Switch ...................................................... 202
Washing and waxing ...........................434
Wide view front & side monitor ...... 279
U
V
W

620
GX460_OM_OM60K80U_(U)GAS STATION INFORMATION
Auxiliary catch leverFuel filler door
P. 4 5 0 P. 2 1 2
Hood lock release leverFuel filler door openerTire inflation pressure
P. 4 5 0 P. 2 1 2P. 5 6 2
Fuel tank capacity
(Reference)23.0 gal. (87 L, 19.1 Imp.gal.)
Fuel typeUnleaded gasoline with a Octa
ne Rating of 91 or higher
(Research Octane Number 96) P. 2 1 0 , 5 5 6
Cold tire inflation
pressure P. 5 6 2
Engine oil capacity
(Drain and refill —
reference)With filter
Without filter 8.2 qt.(7.8 L, 6.9 Imp.qt.)
7. 8 q t . ( 7. 4 L , 6 . 5 I m p . q t . )
Engine oil type
“Toyota Genuine Motor Oil” or equivalent
P. 5 5 6
