roof Lexus GX460 2014 Specifications / LEXUS 2014 GX460 QUICK GUIDE OWNERS MANUAL (OM60K88U)

3
GX460_QG_OM60K88U_(U)
Keys ............................................................................................................................................................ 12
LDA (Lane Departure Alert).......................................................................................................... 27
Lexus Enform with Safety Connect (for U.S.A., if equipped)............................................89
List of Warning/Indicator Lights ................................................................................................... 97
Moon Roof ............................................................................................................................................. 94
Multi-information Display ................................................................................................................. 18
Multi-terrain Monitor......................................................................................................................... 32
Multi-terrain Select.............................................................................................................................30
Navigation System
Register home ................................................................................................................................. 47
Destination input
 Search by address ................................................................................ 49
Destination input
 Search points of interest by name................................................... 51
Destination input
 Search points of interest by category........................................... 52
Destination input
 Search points of interest by phone number...............................53
Voice Command System ............................................................................................................82
Portable Audio Device Ports ..........................................................................................................86
Power Windows ................................................................................................................................... 93
Rear Air Conditioning System
Control panel ................................................................................................................................. 80
Using the automatic mode........................................................................................................80
Control screen (front controller) ............................................................................................. 81
Rear Seat Entertainment System ...................................................................................................74
Rear Window Wiper and Washer ................................................................................................ 43

10
GX460_QG_OM60K88U_(U)
OverviewRoof
: If equipped
*: Refer to “OWNER’S MANUAL”.
Garage door opener buttons*
“SOS” button P. 87
Vanity lights*
Personal/interior lights*
Moon roof switches P. 94

12
GX460_QG_OM60K88U_(U)
Keys
■Electronic key
Smart access system with push-button start
(P. 13, 16)
Wireless remote control (P. 1 2 )
■Mechanical key
To take out the mechanical key, slide the
release lever and take the key out.
After using the mechanical key, store it in
the electronic key. Carry the mechanical
key together with the electronic key.
If the electronic key battery is depleted
or the entry function does not operate
properly, you will need the mechanical
key.
■Wireless remote control
Locks the doors
Unlocks the doors
Opens the windows and moon roof*
Opens the glass hatch (press and hold)
Sounds the alarm (if equipped)
*: This setting must be customized at your
Lexus dealer.1
2
3
4
5

94
GX460_QG_OM60K88U_(U)
Moon Roof
■Opening and closing
Opens the moon roof*
The moon roof stops slightly before the
fully open position to reduce wind
noise.
Press the switch again to fully open the
moon roof.
Closes the moon roof*
*: Lightly press either end of the moon roof
switch to stop the moon roof partway.
■Tilting up and down
Tilts the moon roof up*
Tilts the moon roof down*
*: Lightly press either end of the moon roof
switch to stop the moon roof partway.
1
2
1
2

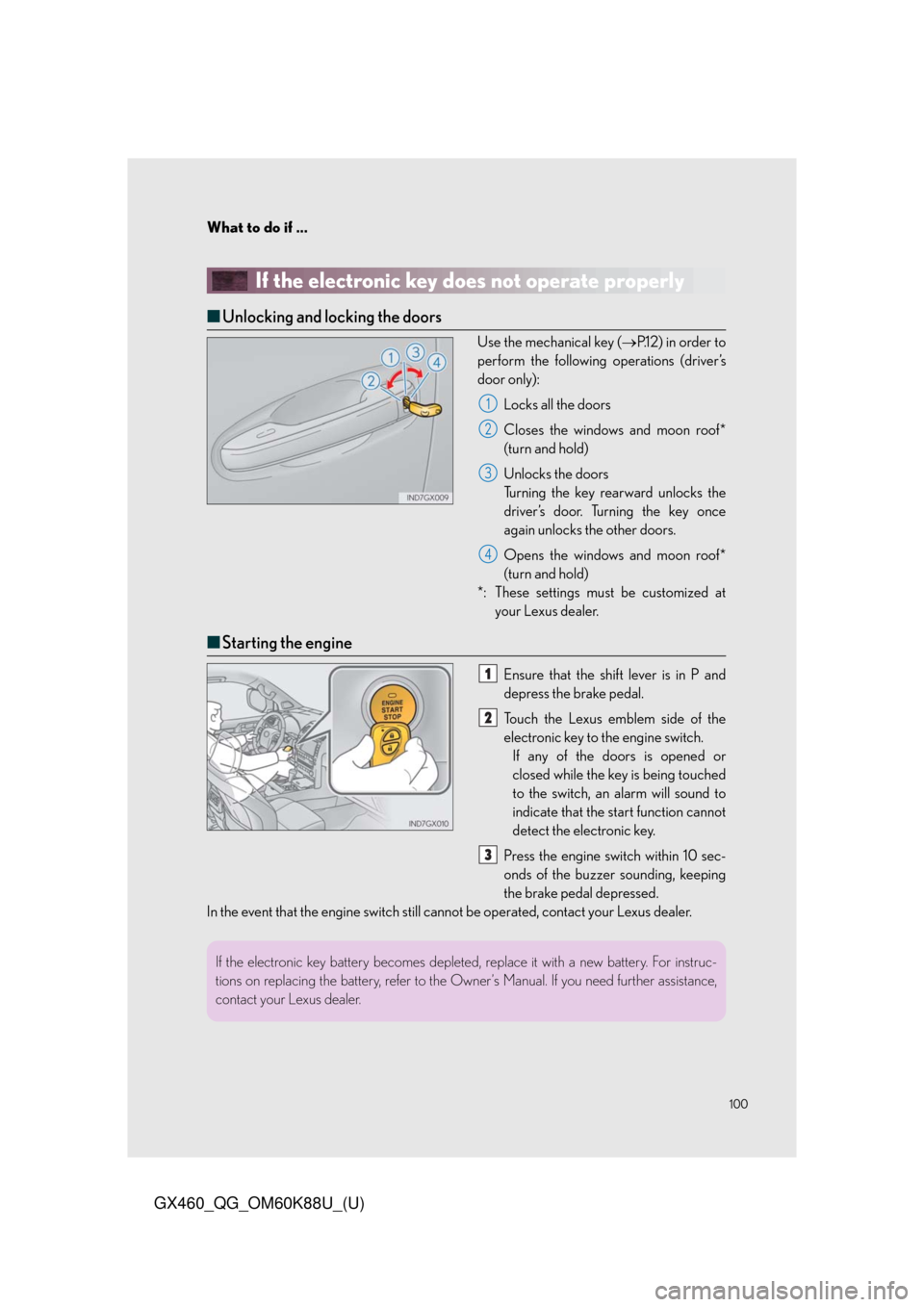

100
What to do if ...
GX460_QG_OM60K88U_(U)
If the electronic key does not operate properly
■Unlocking and locking the doors
Use the mechanical key (P.1 2 ) i n o r d e r t o
perform the following operations (driver’s
door only):
Locks all the doors
Closes the windows and moon roof*
(turn and hold)
Unlocks the doors
Turning the key rearward unlocks the
driver’s door. Turning the key once
again unlocks the other doors.
Opens the windows and moon roof*
(turn and hold)
*: These settings must be customized at
your Lexus dealer.
■Starting the engine
Ensure that the shift lever is in P and
depress the brake pedal.
Touch the Lexus emblem side of the
electronic key to the engine switch.
If any of the doors is opened or
closed while the key is being touched
to the switch, an alarm will sound to
indicate that the start function cannot
detect the electronic key.
Press the engine switch within 10 sec-
onds of the buzzer sounding, keeping
the brake pedal depressed.
In the event that the engine switch still cannot be operated, contact your Lexus dealer.
1
2
3
4
1
2
3
If the electronic key battery becomes depleted, replace it with a new battery. For instruc-
tions on replacing the battery, refer to the Owner’s Manual. If you need further assistance,
contact your Lexus dealer.
