audio Lexus GX460 2015 Navigation Manual

259
6. SETUP
GX460_Navi_OM60L77U_(U)14.06.02 10:48
4
AUDIO/VISUAL SYSTEM
1Display the audio setting screen.
(→ P.258)
2Select “iPod Settings” .
3Select “Video Sound Input” .
4Select a screen button for the desired
setting.
1Display the audio setting screen.
(→ P.258)
2Select “External Video Settings” .
3Select “Video Signal Switch” .
4Select a screen button for the desired
setting.
iPod SETTINGSEXTERNAL VIDEO SETTINGS
GX_Navi_OM60L77U_(U).book Page 259 Monday, June 2, 2014 10:49 AM

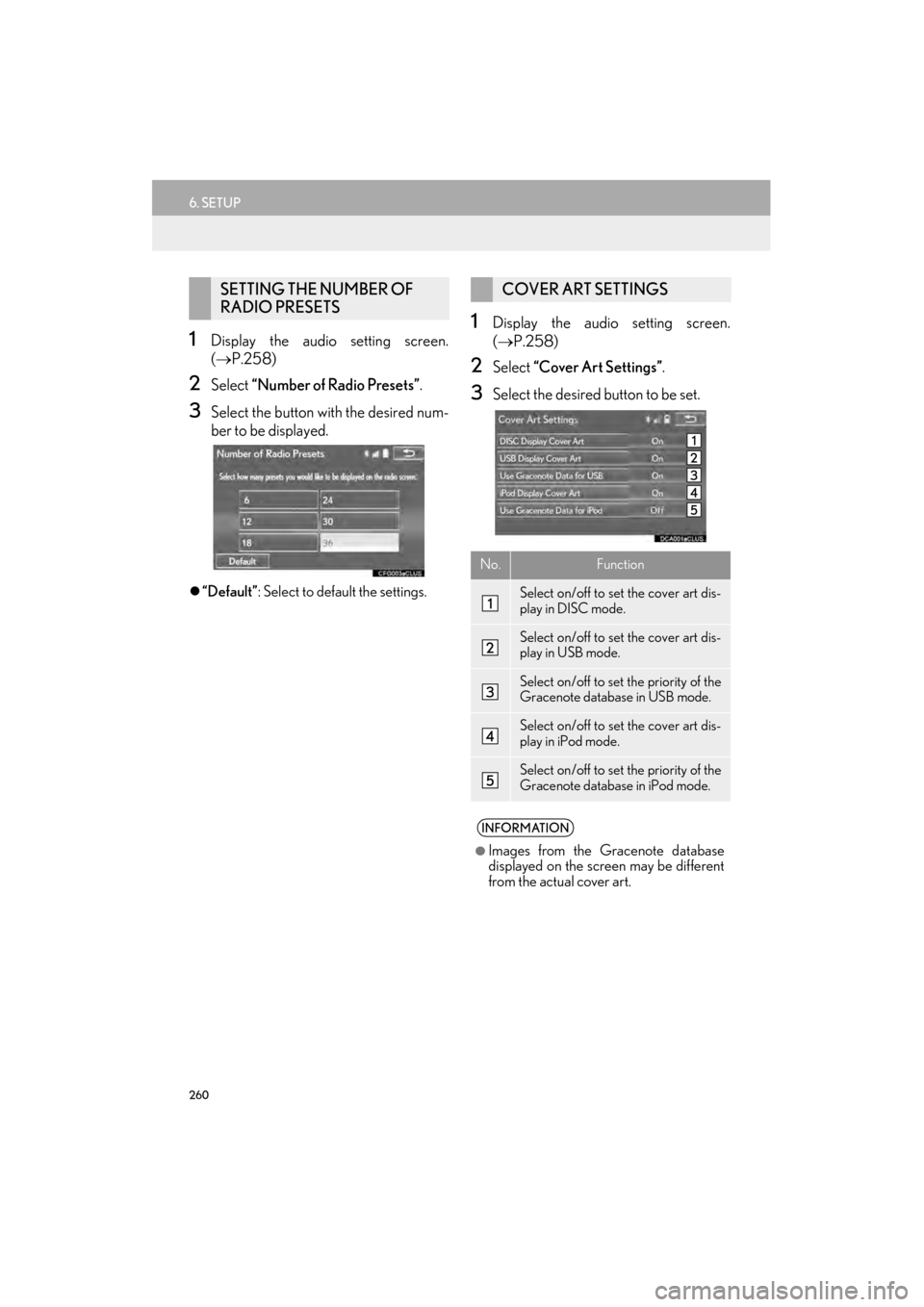

260
6. SETUP
GX460_Navi_OM60L77U_(U)14.06.02 10:48
1Display the audio setting screen.
(→ P.258)
2Select “Number of Radio Presets” .
3Select the button with the desired num-
ber to be displayed.
z“Default” : Select to default the settings.
1Display the audio setting screen.
(→ P.258)
2Select “Cover Art Settings” .
3Select the desired button to be set.
SETTING THE NUMBER OF
RADIO PRESETSCOVER ART SETTINGS
No.Function
Select on/off to set the cover art dis-
play in DISC mode.
Select on/off to set the cover art dis-
play in USB mode.
Select on/off to set the priority of the
Gracenote database in USB mode.
Select on/off to set the cover art dis-
play in iPod mode.
Select on/off to set the priority of the
Gracenote database in iPod mode.
INFORMATION
●
Images from the Gracenote database
displayed on the screen may be different
from the actual cover art.
GX_Navi_OM60L77U_(U).book Page 260 Monday, June 2, 2014 10:49 AM

261
6. SETUP
GX460_Navi_OM60L77U_(U)14.06.02 10:48
4
AUDIO/VISUAL SYSTEM
1Display the audio setting screen.
(→ P.258)
2Select “DVD Settings” .
zSelecting “DVD Settings” on the DVD top
screen can also display “DVD Settings”
screen. ( →P.1 9 5 )
3Select the items to be set.
zWhen “Default” is selected, all menus are
initialized.
■ AUDIO LANGUAGE
1Select “Audio Language” .
2Select the desired language to be heard
on the “Audio Language” screen.
zIf the desired language to be heard cannot
be found on this screen, select “Other ” and
enter a language code. ( →P. 2 6 2 )
■SUBTITLE LANGUAGE
1Select “Subtitle Language” .
2Select the desired language to be read
on the “Subtitle Language” screen.
zIf the desired language to be read cannot
be found on this screen, select “Other ” and
enter a language code. ( →P. 2 6 2 )
■MENU LANGUAGE
1Select “Menu Language” .
2Select the desired language to be read
on the “Menu Language” screen.
zIf the desired language to be read cannot
be found on this screen, select “Other ” and
enter a language code. ( →P. 2 6 2 )
DVD SETTINGS
The audio language can be changed.
The subtitle language can be changed.
The language on the DVD video menu
can be changed.
GX_Navi_OM60L77U_(U).book Page 261 Monday, June 2, 2014 10:49 AM

262
6. SETUP
GX460_Navi_OM60L77U_(U)14.06.02 10:48
■ANGLE MARK
1Select “A n g l e M a r k ” .
2Select “On” or “Off ” .
■PARENTAL LOCK
1Select “Parental Lock” .
2Enter the 4-digit personal code on the
“Key Code” screen.
3Select a parental level ( 1-8) on the “Se-
lect Restriction Level” screen.
■ AUTO START
1Select “Auto Start Playback” .
2Select “On” or “Off ” .
■DYNAMIC RANGE
1Select “Dynamic Range” .
2Select “MAX” , “STD” or “MIN”.
■ENTER AUDIO/SUBTITLE/MENU
LANGUAGE CODE
1Enter the 4-digit language code.
2Select “OK”.
The multi-angle mark can be turned on
or off on the screen while discs that are
multi-angle compatible are being
played.
The level of viewer restrictions can be
changed.
Discs that are inserted while the vehicle
is in motion will automatically start play-
ing. Certain discs may not play.
The difference between the lowest vol-
ume and the highest volume can be ad-
justed.
If “Other ” on the “Audio Language”
screen, “Subtitle Language” screen or
“Menu Language” screen is selected,
the desired language to be heard or
read can be selected by entering a lan-
guage code.
GX_Navi_OM60L77U_(U).book Page 262 Monday, June 2, 2014 10:49 AM

263
6. SETUP
GX460_Navi_OM60L77U_(U)14.06.02 10:48
4
AUDIO/VISUAL SYSTEM
CodeLanguage
0514English
1001Japanese
0618French
0405German
0920Italian
0519Spanish
2608Chinese
1412Dutch
1620Portuguese
1922Swedish
1821Russian
1115Korean
0512Greek
0101Afar
0102Abkhazian
0106Afrikaans
0113Amharic
0118Arabic
0119Assamese
0125Aymara
0126Azerbaijani
0201Bashkir
0205Byelorussian
0207Bulgarian
0208Bihari
0209Bislama
0214Bengali, Bangla
0215Tibetan
0218Breton
0301Catalan
0315Corsican
0319Czech
0325Welsh
0401Danish
0426Bhutani
0515Esperanto
0520Estonian
0521Basque
0601Persian
0609Finnish
0610Fiji
0615Faroese
0625Frisian
0701Irish
0704Scottish-Gaelic
0712Galician
0714Guarani
0721Gujarati
0801Hausa
0809Hindi
0818Croatian
0821Hungarian
CodeLanguage
GX_Navi_OM60L77U_(U).book Page 263 Monday, June 2, 2014 10:49 AM

265
6. SETUP
GX460_Navi_OM60L77U_(U)14.06.02 10:48
4
AUDIO/VISUAL SYSTEM
1912Slovenian
1913Samoan
1914Shona
1915Somali
1917Albanian
1918Serbian
1919Siswati
1920Sesotho
1921Sundanese
1923Swahili
2001Tamil
2005Telugu
2007Tajik
2008Thai
2009Tigrinya
2011Turkmen
2012Tagalog
2014Setswana
2015Tongan
2018Turkish
2019Tsonga
2020Tatar
2023Twi
2111Ukrainian
2118Urdu
2126Uzbek
CodeLanguage
2209Vietnamese
2215Volapük
2315Wolof
2408Xhosa
2515Yoruba
2621Zulu
CodeLanguage
GX_Navi_OM60L77U_(U).book Page 265 Monday, June 2, 2014 10:49 AM

266
GX460_Navi_OM60L77U_(U)14.06.02 10:48
7. TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
1. OPERATING INFORMATION
NOTICE
●To avoid damage to the audio/visual sys-
tem:
• Be careful not to spill beverages overthe audio/visual system.
• Do not put anything other than an appropriate disc into the disc slot.
INFORMATION
●
The use of a cellular phone inside or near
the vehicle may cause a noise from the
speakers of the audio/visual system which
you are listening to. However, this does
not indicate a malfunction.
RADIO
Usually, a problem with radio reception
does not mean there is a problem with
the radio — it is just the normal result of
conditions outside the vehicle.
For example, nearby buildings and ter-
rain can interfere with FM reception.
Power lines or phone wires can interfere
with AM signals. And of course, radio
signals have a limited range. The farther
the vehicle is from a station, the weaker
its signal will be. In addition, reception
conditions change constantly as the ve-
hicle moves.
Here, some common reception prob-
lems that probably do not indicate a
problem with the radio are described.
GX_Navi_OM60L77U_(U).book Page 266 Monday, June 2, 2014 10:49 AM

267
7. TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
GX460_Navi_OM60L77U_(U)14.06.02 10:48
4
AUDIO/VISUAL SYSTEM
Fading and drifting stations: Generally, the
effective range of FM is about 25 miles (40
km). Once outside this range, you may no-
tice fading and drifting, which increase with
the distance from the radio transmitter.
They are often accompanied by distortion.
Multi-path: FM signals are reflective, mak-
ing it possible for 2 signals to reach the vehi-
cle’s antenna at the same time. If this
happens, the signals will cancel each other
out, causing a momentary flutter or loss of
reception.
Static and fluttering: These occur when sig-
nals are blocked by buildings, trees or other
large objects. Increasing the bass level may
reduce static and fluttering.
Station swapping: If the FM signal being lis-
tened to is interrupted or weakened, and
there is another strong station nearby on
the FM band, the radio may tune in the sec-
ond station until the original signal can be
picked up again.Fading: AM broadcasts are reflected by the
upper atmosphere — especially at night.
These reflected signals can interfere with
those received directly from the radio sta-
tion, causing the radio station to sound al-
ternately strong and weak.
Station interference: When a reflected sig-
nal and a signal received directly from a ra-
dio station are very nearly the same
frequency, they can interfere with each oth-
er, making it difficult to hear the broadcast.
Static: AM is easily affected by external
sources of electrical noise, such as high ten-
sion power lines, lightening or electrical
motors. This results in static.
FMAM
GX_Navi_OM60L77U_(U).book Page 267 Monday, June 2, 2014 10:49 AM

268
7. TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
GX460_Navi_OM60L77U_(U)14.06.02 10:48
zCargo loaded on the roof luggage carrier,
especially metal objects, may adversely
affect the reception of XM Satellite Radio.
z Alternation or modifications carried out
without appropriate authorization may
invalidate the user’s right to operate the
equipment.
z This DVD player is intended for use with
4.7 in. (12 cm). discs only.
z Extremely high temperatures can keep the
DVD player from working. On hot days,
use the air conditioning system to cool the
inside of the vehicle before using the player.
z Bumpy roads or other vibrations may make
the DVD player skip.
z If moisture gets into the DVD player, the
discs may not be able to be played. Remove
the discs from the player and wait until it
dries. z
Use only discs marked as shown above.
The following products may not be playable
on your player:
•SACD
•dts CD
• Copy-protected CD
•DVD audio
•Video CD
•DVD-RAM
XM
DVD PLAYER AND DISC
CAUTION
●DVD players use an invisible laser beam
which could cause hazardous radiation
exposure if directed outside the unit. Be
sure to operate the player correctly.
DVD PLAYER
Audio CDs
DVD video
discs
DVD-R/RW
discs
GX_Navi_OM60L77U_(U).book Page 268 Monday, June 2, 2014 10:49 AM

269
7. TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
GX460_Navi_OM60L77U_(U)14.06.02 10:48
4
AUDIO/VISUAL SYSTEM
XSpecial shaped discs
X Transparent/translucent discs
X Low quality discs X
Labeled discs
NOTICE
●Do not use special shaped, transparent/
translucent, low quality or labeled discs
such as those shown in the illustrations.
The use of such discs may damage the
player, or it may be impossible to eject the
disc.
●This system is not designed for use of
Dual Discs. Do not use Dual Discs
because they may cause damage to the
player.
●Do not use discs with a protection ring.
The use of such discs may damage the
player, or it may be impossible to eject the
disc.
●Do not use printable discs. The use of
such discs may damage the player, or it
may be impossible to eject the disc.
GX_Navi_OM60L77U_(U).book Page 269 Monday, June 2, 2014 10:49 AM
