Lexus GX460 2015 Navigation Manual

180
2. RADIO OPERATION
GX460_Navi_OM60L77U_(U)14.06.02 10:48
2. XM Satellite Radio
■CONTROL SCREEN
OVERVIEW
The radio operation screen can be reached by the following methods:
Press the “A U D I O ” button to display the audio control screen.
Select “Source” and select “SAT”.
GX_Navi_OM60L77U_(U).book Page 180 Monday, June 2, 2014 10:49 AM

181
2. RADIO OPERATION
GX460_Navi_OM60L77U_(U)14.06.02 10:48
4
AUDIO/VISUAL SYSTEM
■CONTROL PANEL
GX_Navi_OM60L77U_(U).book Page 181 Monday, June 2, 2014 10:49 AM

182
2. RADIO OPERATION
GX460_Navi_OM60L77U_(U)14.06.02 10:48
No.Function
Select to display the audio source selection screen.
Select to display a receivable channel list.
Select to display the sound setting screen.
Select to display text messages.
Select to select a program type/channel category.
Select to scan for receivable channels.
Select to tune to preset stations/channels.
Select to change the page of preset buttons.
•Tu r n t o s t e p u p /d o w n c h a n n e l s .
• Turn to move up/down the list.
•Press to select a preset channel.
• Press and hold to seek for a channel.
•Turn to adjust volume.
• Press to turn the audio system on/off.
• Press and hold to restart the audio system.
GX_Navi_OM60L77U_(U).book Page 182 Monday, June 2, 2014 10:49 AM

183
2. RADIO OPERATION
GX460_Navi_OM60L77U_(U)14.06.02 10:48
4
AUDIO/VISUAL SYSTEM
HOW TO SUBSCRIBE TO XM
Satellite Radio
To listen to a satellite radio broadcast in
the vehicle, a subscription to the XM
Satellite Radio service is necessary.
An XM Satellite Radio is a tuner de-
signed exclusively to receive broadcasts
provided under a separate subscription.
Availability is limited to the 48 contigu-
ous U.S. states and some Canadian
provinces.
HOW TO SUBSCRIBE
It is necessary to enter into a separate
service agreement with XM Satellite
Radio in order to receive satellite broad-
cast programming in the vehicle. Addi-
tional activation and service
subscription fees apply that are not in-
cluded in the purchase price of the vehi-
cle and digital satellite tuner.
z For complete information on subscrip-
tion rates and terms, or to subscribe to
XM Satellite Radio:
XU.S.A.
Refer to
www.siriusxm.com or call
1-877-515-3987.
X Canada
Refer to www.xmradio.ca
or call
1-877-438-9677.
NOTICE
●XM Radio Services Legal Disclaimers
and Warnings
•Fees and Taxes Subscription fee,
taxes, one time activation fee, and other
fees may apply. Subscription fee is con-
sumer only. All fees and programming
subject to change.
Subscriptions subject to Customer
Agreement available at www.siri-
usxm.com. (U.S.A.) or www.xmradio.ca
(Canada) XM service only available in
the 48 contiguous United States and
Canada.
Explicit Language Notice Channels
with frequent explicit language are indi-
cated with an “XL” preceding the chan-
nel name. Channel blocking is available
for XM Satellite Radio receivers by
notifying XM at;
U.S.A. Customers:
Visit www.siriusxm.com or calling
1-877-515-3987
Canadian Customers:
Visit www.xmradio.ca or calling
1-877-438-9677
GX_Navi_OM60L77U_(U).book Page 183 Monday, June 2, 2014 10:49 AM

184
2. RADIO OPERATION
GX460_Navi_OM60L77U_(U)14.06.02 10:48
NOTICE
●It is prohibited to copy, decompile, disas-
semble, reverse engineer, hack, manipu-
late, or otherwise make available any
technology or software incorporated in
receivers compatible with the XM
Satellite Radio System or that support the
XM website, the Online Service or any of
its content. Furthermore, the AMBE
®
voice compression software included in
this product is protected by intellectual
property rights including patent rights,
copyrights, and trade secrets of Digital
Voice Systems, Inc.
●Note: this applies to XM receivers only
and not XM Ready devices.
INFORMATION
●
XM Radio Services Descriptions
• Radio and Entertainment XM offers more than 170 satellite radio
channels of commercial-free music and
premier sports, news, talk, and enter-
tainment. XM is broadcast via satellites
to millions of listeners across the conti-
nental United States. XM subscribers
listen to XM on satellite radio receivers
for the car, home, and portable use.
More information about XM is available
online at www.siriusxm.com (U.S.A.) or
www.xmradio.ca (Canada).
INFORMATION
●
XM Radio Services Subscription
Instructions
• For XM Services requiring a subscrip- tion (such as XM Radio, and some Info-
tainment & data services), the following
paragraph shall be included.
Required XM Radio and some Infotain-
ment & data services monthly subscrip-
tions sold separately after trial period.
Subscription fee is consumer only. All
fees and programming subject to
change. Subscriptions are subject to the
Customer Agreement available at
www.siriusxm.com. XM service only
available in the 48 contiguous United
States.  2011 Sirius XM Radio Inc.
Sirius, XM and all related marks and
logos are trademarks of Sirius XM
Radio Inc. All other marks, channel
names and logos are the property of
their respective owners.
For more information, program sched-
ules, and to subscribe or extend sub-
scription after complimentary trial
period; more information is available at:
USA Customers:
Visit www.siriusxm.com or call
1-866-635-2349
GX_Navi_OM60L77U_(U).book Page 184 Monday, June 2, 2014 10:49 AM

185
2. RADIO OPERATION
GX460_Navi_OM60L77U_(U)14.06.02 10:48
4
AUDIO/VISUAL SYSTEM
zIf “CH 000” is selected using the “TUNE/
SCROLL” knob, the ID code, which is 8
alphanumeric characters, will be displayed.
If another channel is selected, the ID code
will no longer be displayed. The channel
(000) alternates between displaying the
radio ID and the specific radio code.
INFORMATION
●
XM Satellite Radio is solely responsible
for the quality, ava ilability and content of
the satellite radio services provided,
which are subject to the terms and condi-
tions of the XM Satellite Radio customer
service agreement.
●Customers should have their radio ID
ready; the radio ID can be found by tun-
ing to “CH 000” on the radio. For details,
see “DISPLAYING THE RADIO ID”
below.
●All fees and programming are the
responsibility of XM Satellite Radio and
are subject to change.
SATELLITE TUNER
TECHNOLOGY NOTICE
Lexus’s satellite radio tuners are award-
ed Type Approval Certificates from XM
Satellite Radio Inc. as proof of compati-
bility with the services offered by XM
Satellite Radio.
INFORMATION
●
Satellite tuner
The tuner supports only Audio Services
(Music and Talk) and the accompanying
Te x t I n f o r m a t i o n o f X M
® Satellite Radio.
DISPLAYING THE RADIO ID
Each XM tuner is identified with a
unique radio ID. The radio ID is required
when activating an XM service or when
reporting a problem.
GX_Navi_OM60L77U_(U).book Page 185 Monday, June 2, 2014 10:49 AM

186
2. RADIO OPERATION
GX460_Navi_OM60L77U_(U)14.06.02 10:48

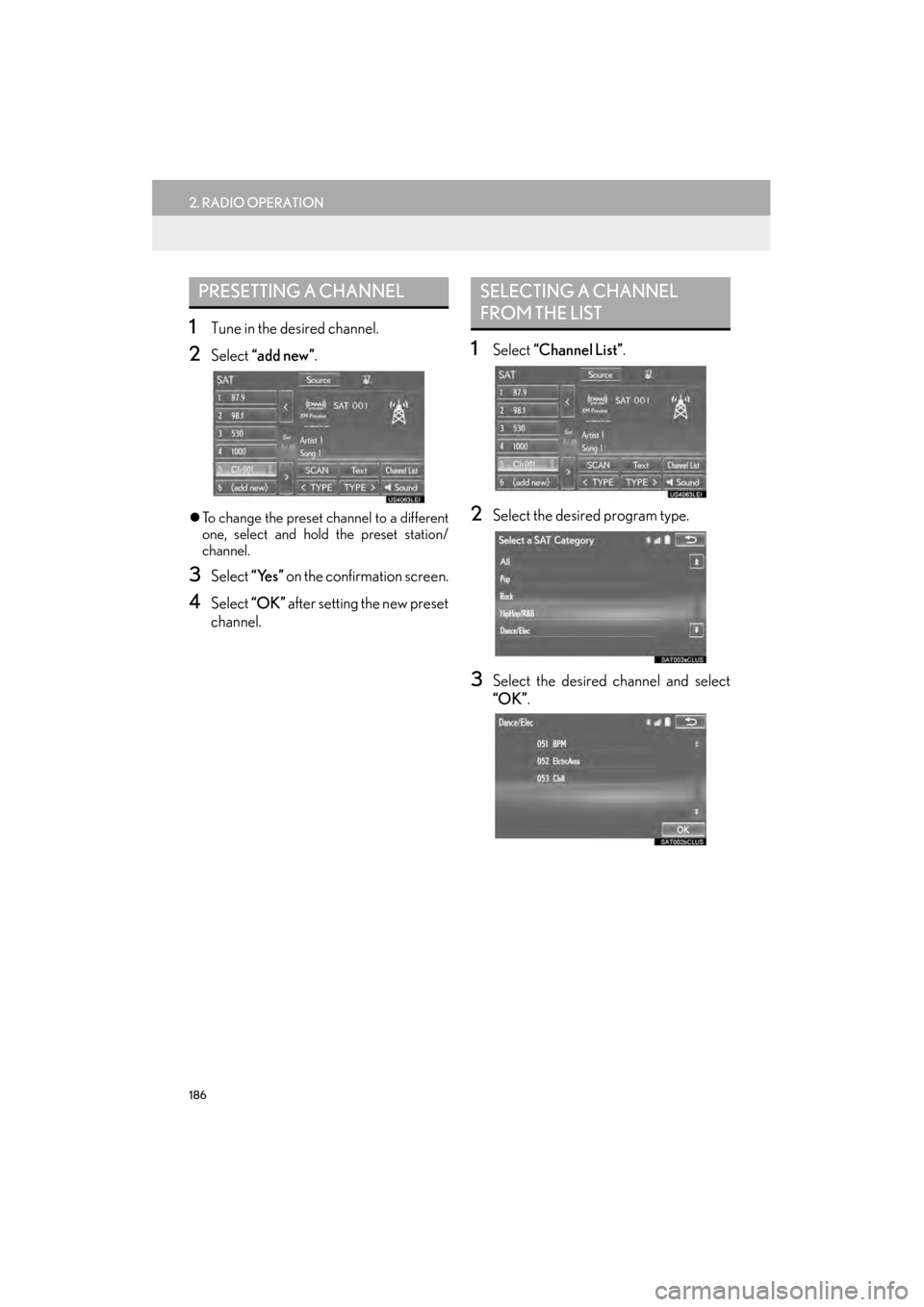

1Tune in the desired channel.
2Select “add new” .
zTo change the preset channel to a different
one, select and hold the preset station/
channel.
3Select “Yes” on the confirmation screen.
4Select “OK” after setting the new preset
channel.
1Select “Channel List” .
2Select the desired program type.
3Select the desired channel and select
“OK”.
PRESETTING A CHANNELSELECTING A CHANNEL
FROM THE LIST
GX_Navi_OM60L77U_(U).book Page 186 Monday, June 2, 2014 10:49 AM

187
2. RADIO OPERATION
GX460_Navi_OM60L77U_(U)14.06.02 10:48
4
AUDIO/VISUAL SYSTEM
IF THE SATELLITE RADIO TUNER MALFUNCTIONS
When problems occur with the XM tuner, a message will appear on the screen. Refer-
ring to the table below to identify the problem, take the suggested corrective action.
MessageExplanation
“SAT Ck Antenna”
The XM antenna is not connected. Check whether the XM antenna
cable is attached securely.
A short circuit occurs in the antenna or the surrounding antenna ca-
ble. See a Lexus certified dealer for assistance.
“SAT Ch Unauth”
You have not subscribed to XM Satellite Radio. The radio is being
updated with the latest encryption code. Contact XM Satellite Radio
for subscription information. When a contract is canceled, you can
choose “CH 000” and all free-to-air channels.
The premium channel you selected is not authorized. Wait for about
2 seconds until the radio returns to the previous channel or “CH
001”. If it does not change automatically, select another channel. To
listen to the premium channel, contact XM Satellite Radio.
“SAT No Signal”The XM signal is too weak at the current location. Wait until your ve-
hicle reaches a location with a stronger signal.
“Loading”The unit is acquiring audio or program information. Wait until the unit
has received the information.
“SAT Ch Off Air”The channel you selected is not broadcasting any programming. Se-
lect another channel.
-----There is no song/program title or artist name/feature associated with
the channel at that time. No action is required.
“SAT Ch Unavail”The channel you selected is no longer available. Wait for about 2 sec-
onds until the radio returns to the previous channel or “CH 001”. If it
does not change automatically, select another channel.
INFORMATION
●
Contact the XM Listener Care Center at 1-877-515-3987 (U.S.A.) or 1-877-438-9677
(Canada).
GX_Navi_OM60L77U_(U).book Page 187 Monday, June 2, 2014 10:49 AM

188
2. RADIO OPERATION
GX460_Navi_OM60L77U_(U)14.06.02 10:48
3. INTERNET RADIO
1Select the desired application screen
button.
zThe internet radio application screen is dis-
played.
z Perform operations according to the dis-
played application screen.
z If a compatible phone is already registered,
it will be connected automatically.
z By pressing the “A U D I O ” button, the
“Audio” screen can be returned to.
LISTENING TO INTERNET
RADIO
One of LEXUS App Suite’s features is
the ability to listen to internet radio. In or-
der to use this service, a compatible
phone and the navigation system needs
to be set up. For details: →P.356
INFORMATION
●
Other applications can be activated
while listening to internet radio.
●An iPhone cannot be connected via
Bluetooth® and USB connection at the
same time. However, it is possible to
recharge an iPhone while using applica-
tions by connecting via USB. The system
uses the connection method that was
used last. Therefore, if connected via
USB after Bluetooth
® connection, it is
necessary to reconnect the iPhone via
Bluetooth
®.
●Some parts of applications can be
adjusted using the switches on the steer-
ing wheel.
●For additional information, refer to
http://www.lexus.com/enform/
or call
1-800-255-3987.
GX_Navi_OM60L77U_(U).book Page 188 Monday, June 2, 2014 10:49 AM

189
GX460_Navi_OM60L77U_(U)14.06.02 10:48
4
AUDIO/VISUAL SYSTEM
3. MEDIA OPERATION
1. CD
■CONTROL SCREEN
OVERVIEW
The CD operation screen can be re ached by the following methods:
XInserting a disc ( →P.162)
Press the “A U D I O ” button to display the audio control screen.
Select “Source” and select “DISC”.
XAudio CD
XMP3/WMA/AAC disc
GX_Navi_OM60L77U_(U).book Page 189 Monday, June 2, 2014 10:49 AM
