wheel Lexus GX460 2015 Navigation Manual

307
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
7
PHONE
GX460_Navi_OM60L77U_(U)14.06.02 11:29
XWhen is selected
3Check that the “Call” screen is dis-
played.
X When the desired contact is selected
3Select the desired number.
4Check that the “Call” screen is dis-
played.
1Display the phone top screen.
(→ P.305)
2Select the “Contacts” tab and select the
desired contact.
3Select the desired number.
4Check that the “Call” screen is dis-
played.
INFORMATION
●
When making a call to the same number
continuously, only the most recent call is
listed in call history.
●When a phone number registered in the
contact list is received, the name is dis-
played.
●Number-withheld calls are also memo-
rized in the system.
●International phone calls may not be
made depending on the type of cellular
phone you have.
●The list should group together consecu-
tive entries with the same phone number
and same call type. For example, two calls
from John’s mobile would be displayed as
follows: John (2)
●By pressing the switch on the steering
wheel, a call to the latest history item can
be made.
BY CONTACTS LIST
Calls can be made by using contact data
which is transferred from a registered
cellular phone. ( →P.308)
Up to 2500 contacts (maximum of 4
phone numbers and e-mail addresses
per contact) can be registered in the
contact list.
07-1.fm Page 307 Monday, June 2, 2014 11:30 AM

310
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
GX460_Navi_OM60L77U_(U)14.06.02 11:29
1Display the phone top screen.
(→ P.305)
2Select the “Dial Pad” tab and enter the
phone number.
3Select or press the switch on
the steering wheel.
4Check that the “Call” screen is dis-
played.
1Press the switch on the steering
wheel to display the phone top screen.
2Press the switch on the steering
wheel to display the “Call History”
screen.
3Press the switch on the steering
wheel to call the latest history item.
4Check that the “Call” screen is dis-
played.
BY DIAL PAD
INFORMATION
●
Depending on the type of Bluetooth®
phone being connected, it may be neces-
sary to perform additional steps on the
phone.
BY OFF HOOK SWITCH
Calls can be made using the latest call
history item.
07-1.fm Page 310 Monday, June 2, 2014 11:30 AM

311
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
GX460_Navi_OM60L77U_(U)14.06.02 11:29
7
PHONE
4. RECEIVING ON THE Bluetooth® PHONE
1Select or press the switch on
the steering wheel to talk on the phone.
To refuse to receive the call : Select
or press the switch on the steering
wheel.
To adjust the volume of a received call :
Turn the “PWR/VOL” knob, or use the vol-
ume control switch on the steering wheel.
INCOMING CALLS
When a call is received, this screen is
displayed with a sound.
INFORMATION
●
During international phone calls, the
other party’s name or number may not be
displayed correctly depending on the
type of cellular phone you have.
●The incoming call display mode can be
set. ( →P. 3 3 7 )
●The ringtone that has been set in the
“Sound Settings” screen sounds when
there is an incoming call. Depending on
the type of Bluetooth
® phone, both the
navigation system and Bluetooth® phone
may sound simultaneously when there is
an incoming call. ( →P.323)
07-1.fm Page 311 Monday, June 2, 2014 11:30 AM

314
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
GX460_Navi_OM60L77U_(U)14.06.02 11:29
1Select “Transmit Volume” .
2Select the desired level for the transmit
volume.
3Select “OK”.
1Select or press the switch on
the steering wheel to start talking with
the other party.
To refuse to receive the call : Select
or press the switch on the steering
wheel.
z Each time is selected or the
switch on the steering wheel is pressed
during an interrupted call, the party who is
on hold will be switched.
TRANSMIT VOLUME SETTING
INFORMATION
●
The sound quality of the voice heard from
the other party’s speaker may be nega-
tively impacted.
●To reset the transmit volume, select
“Default” .
●“Transmit Volume” is dimmed when mute
is on.
INCOMING CALL WAITING
When a call is interrupted by a third par-
ty while talking, this screen is displayed.
INFORMATION
●
This function may not be available
depending on the type of cellular phone.
07-1.fm Page 314 Monday, June 2, 2014 11:30 AM

315
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
GX460_Navi_OM60L77U_(U)14.06.02 11:29
7
PHONE
6. Bluetooth® PHONE MESSAGE FUNCTION
1Press the button.
2Select .
zThe phone top screen can be displayed by
pressing the
switch on the steering
wheel.
3Check that the message inbox screen is
displayed.
: Select to change to phone mode.
Received messages can be forwarded
from the connected Bluetooth® phone,
enabling checking and replying using
the navigation system.
Depending on the type of Bluetooth
®
phone connected, received messages
may not be transferred to the message
inbox.
If the phone does not support the mes-
sage function, this function cannot be
used.
FunctionPage
Receiving a message316
Checking messages317
Replying to a message (quick reply)318
Calling the message sender320
Message settings335
07-1.fm Page 315 Monday, June 2, 2014 11:30 AM

317
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
7
PHONE
GX460_Navi_OM60L77U_(U)14.06.02 11:29
1Display the message inbox screen.
(→ P.315)
2Select the desired message from the list.
3Check that the message is displayed.
CHECKING MESSAGES
No.Function
Select “Mark Unread” or “Mark
Read” to mark mail unread or read
on the message inbox screen.
This function is available when
“Update Message Read Status on
Phone” is set to on. ( →P.335)
Select to reply the message.
(→ P.318)
Select to display the previous or next
message.
Select to have messages read out.
To cancel this function, select “Stop”.
When “Automatic Message Read-
out” is set to on, messages will be au-
tomatically read out. ( →P.335)
Select to make a call to the sender.
INFORMATION
●
Reading a text message is not available
while driving.
●Depending on the type of Bluetooth®
phone being connected, it may be
necessary to perform additional steps on
the phone.
●Messages are displayed in the
appropriate connected Bluetooth®
phone’s registered mail address folder.
Select the tab of the desired folder to be
displayed.
●Only received messages on the
connected Bluetooth® phone can be
displayed.
●The text of the message is not displayed
while driving.
●Tu r n t h e “PWR/VOL” knob, or use the
volume control switch on the steering
wheel to adjust the message read out
volume.
07-1.fm Page 317 Monday, June 2, 2014 11:30 AM

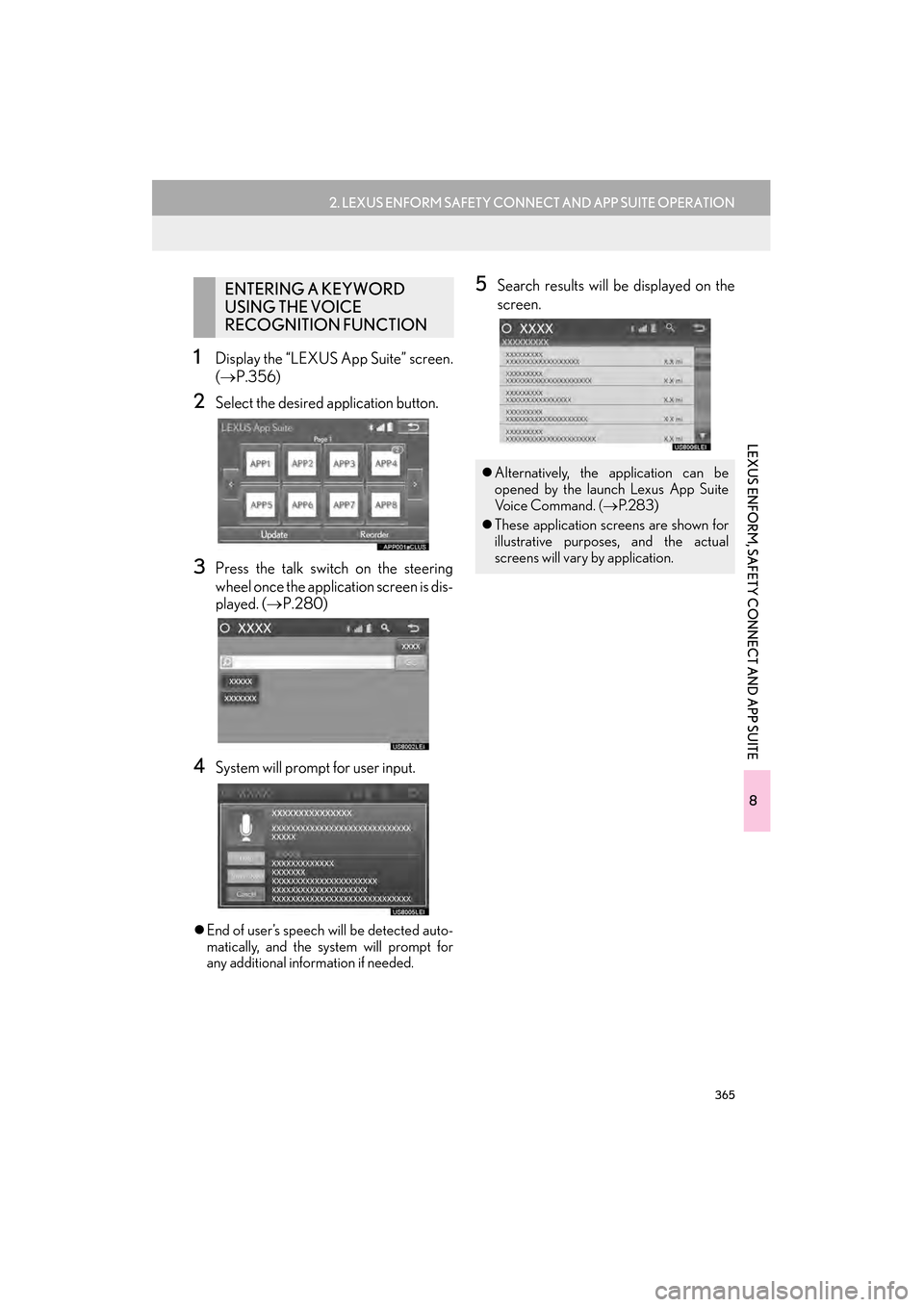

365
2. LEXUS ENFORM SAFETY CONNECT AND APP SUITE OPERATION
GX460_Navi_OM60L77U_(U)14.06.02 10:48
8
LEXUS ENFORM, SAFETY CONNECT AND APP SUITE
1Display the “LEXUS App Suite” screen.
(→ P.356)
2Select the desired application button.
3Press the talk switch on the steering
wheel once the application screen is dis-
played. ( →P.280)
4System will prompt for user input.
zEnd of user’s speech will be detected auto-
matically, and the system will prompt for
any additional information if needed.
5Search results will be displayed on the
screen.ENTERING A KEYWORD
USING THE VOICE
RECOGNITION FUNCTION
zAlternatively, the application can be
opened by the launch Lexus App Suite
Voice Command. ( →P. 2 8 3 )
z These application screens are shown for
illustrative purposes, and the actual
screens will vary by application.
GX_Navi_OM60L77U_(U).book Page 365 Monday, June 2, 2014 10:49 AM

366
2. LEXUS ENFORM SAFETY CONNECT AND APP SUITE OPERATION
GX460_Navi_OM60L77U_(U)14.06.02 10:48
2. Destination Assist
1Press the “NAV” button.
2Select “Dest.” .
3Select “Destination Assist” .
4When an agent comes on the line, tell
the agent the address, business name,
or the type of POI or service.
To adjust the volume of a received call:
Use the volume control switch on the
steering wheel.
zTo hang up the phone, select “Disconnect”
or press the switch on the steering
wheel.
Destination Assist provides you with live
assistance for finding destinations via the
Lexus Enform with Safety Connect re-
sponse center. You can request either a
specific business, address, or ask for
help locating your desired destination
by category, such as restaurants, gas
stations, shopping centers or other
Points of Interest (POI).
After you tell the agent your choice of
destination, its coordinates are sent
wirelessly to your vehicle’s navigation
system.
MAKE A CALL WITH
Destination Assist
GX_Navi_OM60L77U_(U).book Page 366 Monday, June 2, 2014 10:49 AM

373
2. LEXUS ENFORM SAFETY CONNECT AND APP SUITE OPERATION
GX460_Navi_OM60L77U_(U)14.06.02 10:48
8
LEXUS ENFORM, SAFETY CONNECT AND APP SUITE
1Press the “INFO/APPS” button.
2Select “Lexus Insider”.
3Select the desired article title.
“Read All”: Select to listen to all stored
Lexus Insider broadcasts.
z To disrupt the audio read of Lexus Insider,
press the “MODE” switch on the steering
wheel, or press the “A U D I O ” button on the
audio system.
VIEWING AND PLAYING
RECEIVED Lexus Insider
MESSAGES
GX_Navi_OM60L77U_(U).book Page 373 Monday, June 2, 2014 10:49 AM

374
2. LEXUS ENFORM SAFETY CONNECT AND APP SUITE OPERATION
GX460_Navi_OM60L77U_(U)14.06.02 10:48
1Display the “LEXUS Insider” screen.
(→ P.373)
2Select the desired article.
3Select “Next” or “Previous” to listen to
another article.
z The “ ” or “ ” switch on the steering wheel
can be used to move to the previous or next
article.
z To stop listening to the broadcast, select
“Stop” or press the “PWR/VOL” knob on
the audio system.
MESSAGE ICONS
Icons appear at the left of the Lexus
Insider story titles and indicate as shown
in below.
IconArticle
Unread article
Previously read article
Unread article with
downloadable Point of
Interest (POI)
Previously read article
with downloadable Point
of Interest (POI)
LISTENING TO ANOTHER
ARTICLE
GX_Navi_OM60L77U_(U).book Page 374 Monday, June 2, 2014 10:49 AM
