audio Lexus GX460 2015 Navigation Manual

11
GX460_Navi_OM60L77U_(U)14.06.02 10:48
1QUICK GUIDE9
2 BASIC FUNCTION27
3 NAVIGATION SYSTEM69
4AUDIO/VISUAL SYSTEM155
5 VOICE COMMAND SYSTEM279
6INFORMATION295
7PHONE299
8 LEXUS ENFORM, SAFETY CONNECT
AND APP SUITE345
INDEX379
TABLE OF CONTENTS
GX_Navi_OM60L77U_(U).book Page 1 Monday, June 2, 2014 10:49 AM

2
GX460_Navi_OM60L77U_(U)14.06.02 10:48
This manual explains the operation of the Navigation System. Please read this manual
carefully to ensure proper use. Keep this manual in your vehicle at all times.
The screen shots in this document and the actual screens of the navigation system dif-
fer depending on whether the functions and/or a contract existed and the map data
was available at the time of producing this document.
Please be aware that the content of this manual may be different from the navigation
system in some cases, such as when the system’s software is updated.
The Navigation System is one of the most technologically advanced vehicle accesso-
ries ever developed. The system receives satellite signals from the Global Positioning
System (GPS) operated by the U.S. Department of Defense. Using these signals and
other vehicle sensors, the system indicates your present position and assists in locating
a desired destination.
The navigation system is designed to select efficient routes from your present starting
location to your destination. The system is also designed to direct you to a destination
that is unfamiliar to you in an efficient manner. The system uses DENSO maps. The cal-
culated routes may not be the shortest nor the least traffic congested. Your own per-
sonal local knowledge or “short cut” may at times be faster than the calculated routes.
The navigation system’s database includes Point of Interest categories to allow you to
easily select destinations such as restaurants and hotels. If a destination is not in the da-
tabase, you can enter the street address or a major intersection close to it and the sys-
tem will guide you there.
The system will provide both a visual map and audio instructions. The audio instructions
will announce the distance remaining and the direction to turn in when approaching an
intersection. These voice instructions will help you keep your eyes on the road and are
timed to provide enough time to allow you to maneuver, change lanes or slow down.
Please be aware that all current vehicle navigation systems have certain limitations that
may affect their ability to perform properly. The accuracy of the vehicle’s position de-
pends on satellite conditions, road configuration, vehicle condition or other circum-
stances. For more information on the limitations of the system, refer to pages 149
through 151.
NAVIGATION SYSTEM OWNER’S MANUAL
NAVIGATION SYSTEM
Introduction
GX_Navi_OM60L77U_(U).book Page 2 Monday, June 2, 2014 10:49 AM

1
2
3
4
5
6
7
8
7
GX460_Navi_OM60L77U_(U)14.06.02 10:48
1. BASIC OPERATION ................................... 158
QUICK REFERENCE .......................................158
SOME BASICS .....................................................160
2. RADIO OPERATION ................................ 168
AM/FM RADIO ...................................................168
XM Satellite Radio ...............................................180
INTERNET RADIO ............................................ 188
3. MEDIA OPERATION ................................ 189
CD ...............................................................................189
DVD............................................................................ 195
USB MEMORY .................................................. 202
iPod ............................................................................207
Bluetooth
® AUDIO ............................................ 214
AUX ........................................................................... 221
VTR ............................................................................224
4. REAR SEAT ENTERTAINMENT SYSTEM OPERATION.......................... 227
REAR SEAT ENTERTAINMENT SYSTEM FEATURES ..................................... 227
5. AUDIO/VISUAL REMOTE
CONTROLS ..............................................255
STEERING SWITCHES.................................. 255
6. SETUP..............................................................258
AUDIO SETTINGS........................................... 258
7. TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM ................... 266
OPERATING INFORMATION..................266
1. VOICE COMMAND SYSTEM OPERATION............................................ 280
VOICE COMMAND SYSTEM ..................280
CASUAL SPEECH RECOGNIZATION .................................... 288
COMMAND LIST .............................................289
2. MOBILE ASSISTANT OPERATION.............................................293
MOBILE ASSISTANT ...................................... 293
1. INFORMATION DISPLAY ...................... 296
RECEIVING DOPPLER WEATHER INFORMATION ............................................. 296
DATA SERVICES SETTINGS...................... 298
1. PHONE OPERATION (HANDS-FREE SYSTEM
FOR CELLULAR PHONES) ............... 300
QUICK REFERENCE ..................................... 300
SOME BASICS .................................................... 301
CALLING ON THE Bluetooth
®
PHONE ...............................................................305
RECEIVING ON THE Bluetooth
®
PHONE .................................................................. 311
TALKING ON THE Bluetooth
®
PHONE ................................................................ 312
Bluetooth
® PHONE MESSAGE
FUNCTION ....................................................... 315
2. SETUP .............................................................322
PHONE/MESSAGE SETTINGS ............... 322
3. WHAT TO DO IF... ..................................... 338
TROUBLESHOOTING..................................338
4AUDIO/VISUAL SYSTEM5VOICE COMMAND SYSTEM
6INFORMATION
7PHONE
GX_Navi_OM60L77U_(U).book Page 7 Monday, June 2, 2014 10:49 AM

1. BASIC FUNCTION
1
QUICK GUIDE
11
GX460_Navi_OM60L77U_(U)14.06.02 10:48
No.FunctionPa g e
Press to display the hands-free operation screen.300
Press to display the “Information” screen.18
Press to display the “Setup” screen.16
Press to display the home screen.12
Press to display the air conditioning control screen.“Owner ’s Manual”
Press to display the map screen.72
Press to display the audio/visual screen.158
GX_Navi_OM60L77U_(U).book Page 11 Monday, June 2, 2014 10:49 AM

12
1. BASIC FUNCTION
GX460_Navi_OM60L77U_(U)14.06.02 10:48
2. HOME SCREEN
XThree-way split screen
Press the “HOME” button to display the home screen.
The home screen can display multiple information screens, such as the navigation sys-
tem screen, audio system screen and fuel consumption screen, simultaneously. When
a screen is selected, the selected screen is switched to a full-screen display. The home
screen can be set to either a three-way split screen or a two-way split screen.
For details about setting the home screen: → P.32
GX_Navi_OM60L77U_(U).book Page 12 Monday, June 2, 2014 10:49 AM

2. QUICK REFERENCE
1
QUICK GUIDE
17
GX460_Navi_OM60L77U_(U)14.06.02 10:48
No.FunctionPa g e
Select to change the selected language, operation sound, automatic
screen change settings, etc.55
Select to set the voice guidance settings.62
Select to set Bluetooth® phones and Bluetooth® audio devices.45
Select to set radio and external media settings.258
Select to set traffic information.147
Select to adjust the contrast and brightness of the screens, turn the
screen off, etc.38
Select to set memory points (home, preset destinations, address book
entries, areas to avoid), navigation details or to delete previous destina-
tions.129, 141
Select to set vehicle information such as maintenance information.64
Select to set the phone sound, contacts, message settings, etc.322
Select to set LEXUS App Suite settings.376
Select to set data services settings.298
GX_Navi_OM60L77U_(U).book Page 17 Monday, June 2, 2014 10:49 AM

1
2
3
4
5
6
7
8
2
27
GX460_Navi_OM60L77U_(U)14.05.27 10:30
1. INITIAL SCREEN ....................................... 28
2. TOUCH SCREEN GESTURES............. 30
3. TOUCH SCREEN OPERATION.......... 31
4. HOME SCREEN OPERATION ........... 32
5. ENTERING LETTERS AND NUMBERS/LIST SCREEN
OPERATION............................................ 34
ENTERING LETTERS AND
NUMBERS................................................................. 34
LIST SCREEN.............................................................. 35
6. SCREEN ADJUSTMENT ........................ 38 1. REGISTERING/CONNECTING
Bluetooth
® DEVICE ............................... 40
REGISTERING A Bluetooth® PHONE
FOR THE FIRST TIME ......................................... 40
REGISTERING A Bluetooth
® AUDIO
PLAYER FOR THE FIRST TIME ....................... 41
PROFILES ...................................................................... 43
2. SETTING Bluetooth® DETAILS ............ 45
“Bluetooth* Setup” SCREEN ............................... 45
REGISTERING A Bluetooth® DEVICE .......... 46
DELETING A Bluetooth® DEVICE.................. 48
CONNECTING A Bluetooth®
DEVICE ...................................................................... 48
EDITING THE Bluetooth
® DEVICE
INFORMATION .................................................... 50
“System Settings” SCREEN ................................... 53
1. GENERAL SETTINGS.............................. 55
GENERAL SETTINGS SCREEN ...................... 55
2. VOICE SETTINGS ..................................... 62
VOICE SETTINGS SCREEN ............................... 62
3. VEHICLE SETTINGS ................................ 64
MAINTENANCE ...................................................... 65
1BASIC INFORMATION BEFORE
OPERATION2Bluetooth® SETTINGS
3OTHER SETTINGS
*: Bluetooth is a registered tr ademark of Bluetooth SIG, Inc.
BASIC FUNCTION
GX_Navi_OM60L77U_(U).book Page 27 Monday, June 2, 2014 10:49 AM

32
1. BASIC INFORMATION BEFORE OPERATION
GX460_Navi_OM60L77U_(U)14.06.02 10:48
4. HOME SCREEN OPERATION
1Press the “HOME” button.
2Check that the home screen is dis-
played.
zWhen a screen is selected, the selected
screen will change to a full-screen display.
1Select .
2Check that “Customize Home Screen”
is displayed.
The home screen can display multiple
information screens, such as the naviga-
tion system screen, audio system screen
and fuel consumption screen, simulta-
neously. CUSTOMIZING THE HOME
SCREEN
The display items/area on the home
screen and the home screen layout can
be changed.
No.FunctionPage
Select to change the dis-
play items/area.33
Select to change the home
screen layout.33
GX_Navi_OM60L77U_(U).book Page 32 Monday, June 2, 2014 10:49 AM

38
1. BASIC INFORMATION BEFORE OPERATION
GX460_Navi_OM60L77U_(U)14.06.02 10:48
6. SCREEN ADJUSTMENT
1Press the “SETUP” button.
2Select “Display” .
3Select the items to be set.The contrast and brightness of the
screen display and the image of the
camera display can be adjusted. The
screen can also be turned off, and/or
changed to either day or night mode.
(For information regarding audio/visual
screen adjustment:
→P.166)
No.FunctionPage
Select to turn the screen off.
To turn it on, press any but-
ton.

Select to turn day mode
on/off.39
Select to adjust the screen
display.
39Select to adjust the camera
display.
GX_Navi_OM60L77U_(U).book Page 38 Monday, June 2, 2014 10:49 AM

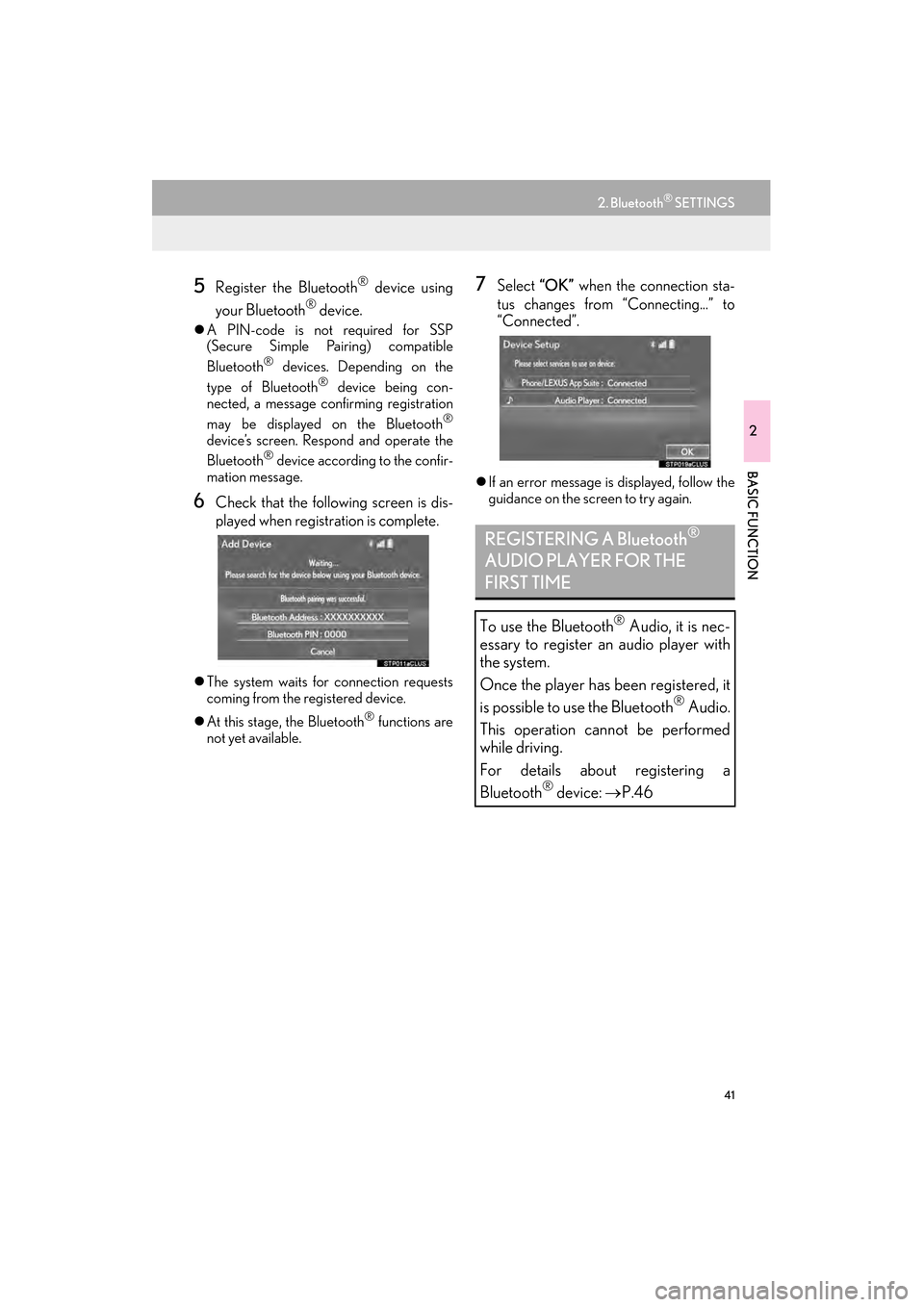

41
2. Bluetooth® SETTINGS
GX460_Navi_OM60L77U_(U)14.06.02 10:48
2
BASIC FUNCTION
5Register the Bluetooth® device using
your Bluetooth
® device.
z A PIN-code is not required for SSP
(Secure Simple Pairing) compatible
Bluetooth
® devices. Depending on the
type of Bluetooth® device being con-
nected, a message confirming registration
may be displayed on the Bluetooth
®
device’s screen. Respond and operate the
Bluetooth® device according to the confir-
mation message.
6Check that the following screen is dis-
played when registration is complete.
z The system waits for connection requests
coming from the registered device.
z At this stage, the Bluetooth
® functions are
not yet available.
7Select “OK” when the connection sta-
tus changes from “Connecting...” to
“Connected”.
z If an error message is displayed, follow the
guidance on the screen to try again.
REGISTERING A Bluetooth®
AUDIO PLAYER FOR THE
FIRST TIME
To use the Bluetooth® Audio, it is nec-
essary to register an audio player with
the system.
Once the player has been registered, it
is possible to use the Bluetooth
® Audio.
This operation cannot be performed
while driving.
For details about registering a
Bluetooth
® device: →P.46
GX_Navi_OM60L77U_(U).book Page 41 Monday, June 2, 2014 10:49 AM
