Lexus GX460 2015 Owner's Manual

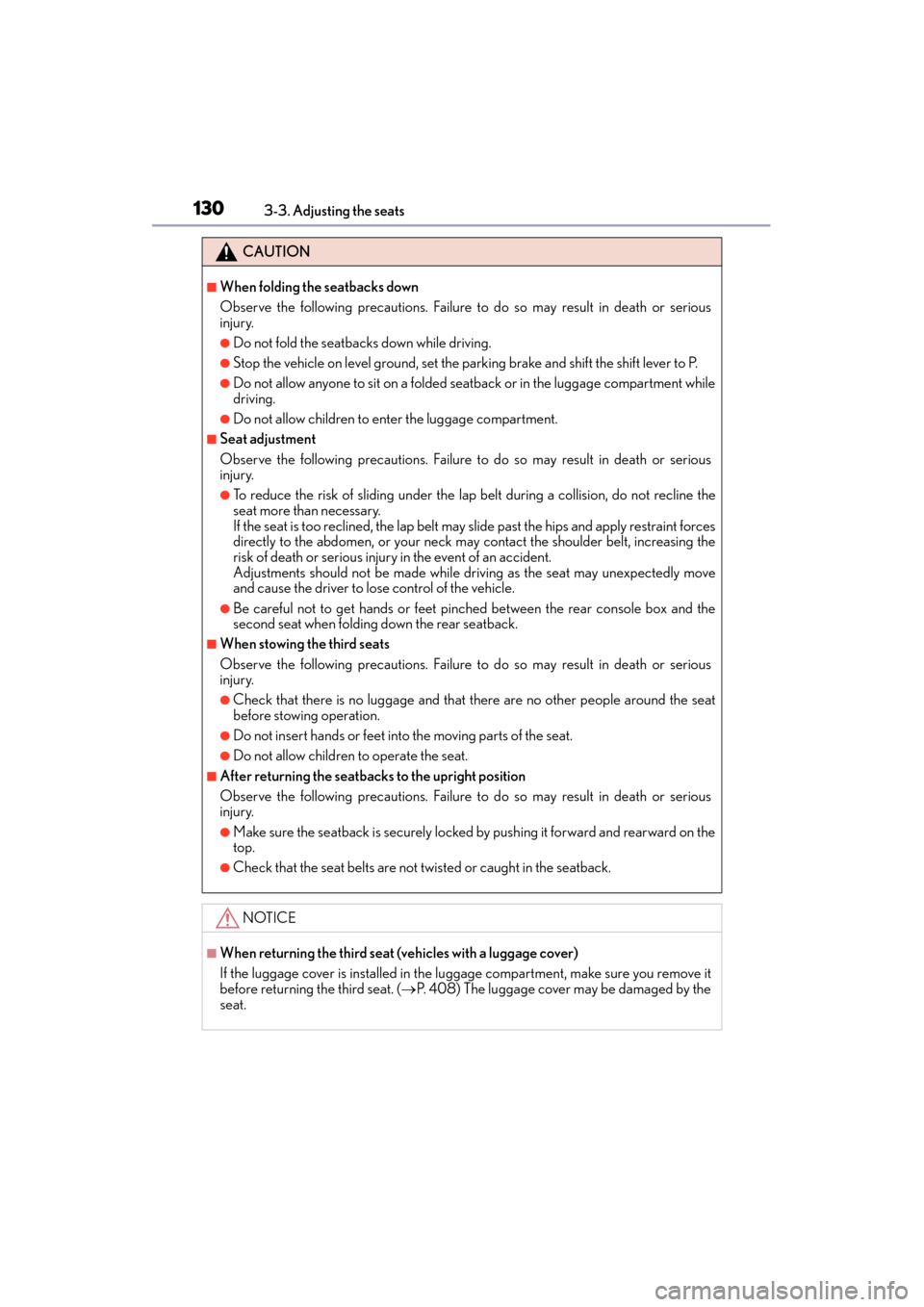

130
GX 460 _O M_ OM6 0L 72U _( U)3-3. Adjusting the seats
CAUTION
■When folding the seatbacks down
Observe the following precautions. Failure to do so may result in death or serious
injury.
●Do not fold the seatbacks down while driving.
●Stop the vehicle on level ground, set the parking brake and shift the shift lever to P.
●Do not allow anyone to sit on a folded seatback or in the luggage compartment while
driving.
●Do not allow children to enter the luggage compartment.
■Seat adjustment
Observe the following precautions. Failure to do so may result in death or serious
injury.
●To reduce the risk of sliding under the lap
belt during a collision, do not recline the
seat more than necessary.
If the seat is too reclined, th e lap belt may slide past the hips and apply restraint forces
directly to the abdomen, or your neck may contact the shoulder belt, increasing the
risk of death or serious injury in the event of an accident.
Adjustments should not be made while dr iving as the seat may unexpectedly move
and cause the driver to lose control of the vehicle.
●Be careful not to get hands or feet pinched between the rear console box and the
second seat when folding down the rear seatback.
■When stowing the third seats
Observe the following precautions. Failure to do so may result in death or serious
injury.
●Check that there is no luggage and that there are no other people around the seat
before stowing operation.
●Do not insert hands or feet into the moving parts of the seat.
●Do not allow children to operate the seat.
■After returning the seatbacks to the upright position
Observe the following precautions. Failure to do so may result in death or serious
injury.
●Make sure the seatback is securely locked by pushing it forward and rearward on the
top.
●Check that the seat belts are not twisted or caught in the seatback.
NOTICE
■When returning the third seat (vehicles with a luggage cover)
If the luggage cover is insta lled in the luggage compartment, make sure you remove it
before returning the third seat. ( →P. 408) The luggage cover may be damaged by the
seat.
GX460_OM_OM60L72U_(U).book Page 130 Friday, May 16, 2014 3:03 PM

131
GX 460 _O M_ OM6 0L 72U _( U)3-3. Adjusting the seats
3
Operation of each component
Driving position memory
The seat and steering wheel are automatically adjusted to allow the driver to
enter and exit the vehicle easily.
When all of the following have been
performed, the driver’s seat and steer-
ing wheel are automatically adjusted to
a position that allows driver to enter
and exit the vehicle easily.
• The shift lever has been shifted to P.
• The engine switch has been turned off.
• The driver’s seat belt has been unfas-
tened.
When any of the following has been performed, the driver’s seat and steering
wheel automatically return to their original positions. • The engine switch has been turned to ACCESSORY mode or IGNITION
ON mode.
• The driver’s seat belt has been fastened.
■Operation of the power easy access system
When exiting the vehicle, the power easy access system may not operate if the seat is
already close to the rearmost position, etc.
■Customization
The seat movement amount settings of the power easy access system can be custom-
ized. (Customizable features: →P. 5 8 6 )
This feature automatically adjusts the driver’s seats, steering wheel and out-
side rear view mirrors to make entering and exiting the vehicle easier or to
suit your preferences.
Power easy access system
GX460_OM_OM60L72U_(U).book Page 131 Friday, May 16, 2014 3:03 PM

132
GX 460 _O M_ OM6 0L 72U _( U)3-3. Adjusting the seats
Your preferred driving position (the position of the driver’s seat, steering wheel
and outside rear view mirrors) can be recorded and recalled by pressing a but-
ton.
Two different driving positions can be recorded into memory.
■Recording procedure
Check that the shift lever is in P.
Turn the engine switch to IGNITION ON mode.
Adjust the driver’s seat, steering wheel, and outside rear view mirrors to the
desired positions.
While pressing the “SET” button,
or within 3 seconds after the
“SET” button is pressed, press
button “1” or “2” until the buzzer
sounds.
If the selected button has already
been preset, the previously recorded
position will be overwritten.
■Recall procedureCheck that the shift lever is in P.
Turn the engine switch to IGNITION ON mode.
Press one of the buttons for the
driving position you want to recall
until the buzzer sounds.
Driving position memory
1
2
3
4
1
2
3
GX460_OM_OM60L72U_(U).book Page 132 Friday, May 16, 2014 3:03 PM

GX 460 _O M_ OM6 0L 72U _( U)
1333-3. Adjusting the seats
3
Operation of each component
■To stop the position recall operation part-way through
Perform any of the following:
●Press the “SET” button.
●Press button “1” or “2”.
●Operate any of the seat adjustment switches (only cancels seat position recall).
●Operate the tilt and telescopic steering control switch (only cancels steering wheel
position recall).
■Seat positions that can be memorized (→ P. 1 1 8 )
The adjusted positions other th an the position adjusted by lumbar support switch can be
recorded.
■Operating the driving position memory after turning the engine switch off
Recorded seat positions can be activated up to 180 seconds after the driver’s door is
opened and another 60 seconds after it is closed again.
■In order to correctly use the driving position memory function
If a seat position is already in the furthest possible position and the seat is operated in the
same direction, the recorded position may be slightly different when it is recalled.
Each electronic key can be registered to recall your preferred driving position.
■Registering procedure
Record your driving position to button “1” or “2” before performing the follow-
ing:
Carry only the key you want to register, and then close the driver’s door.
If 2 or more keys are in the vehicle, the driving position cannot be recorded
properly.
Check that the shift lever is in P.
Turn the engine switch to IGNITION ON mode.
Recall the driving position that you want to record.
Memory recall function
1
2
3
GX460_OM_OM60L72U_(U).book Page 133 Friday, May 16, 2014 3:03 PM

134
GX 460 _O M_ OM6 0L 72U _( U)3-3. Adjusting the seats
While pressing the recalled but-
ton, press and hold the door lock
switch (either lock or unlock) until
the buzzer sounds.
If the button could not be registered,
the buzzer sounds continuously for
approximately 3 seconds.
■Recall procedure
Carry the electronic key that has been registered to the driving position,
and then unlock and open the driver’s door using the smart access system
with push-button start or wireless remote control.
The driving position will move to the recorded position (not including the steering
wheel). However, the seat will move to a position slightly behind the recorded posi-
tion in order to make entering the vehicle easier.
If the driving position is in a position that has already been recorded, the seat and
outside rear view mirrors will not move.
Turn the engine switch to ACCESSORY mode or IGNITION ON mode,
or fasten a seat belt.
The seat and steer ing wheel will move to the recorded position.
■Cancelation procedure
Carry only the key you want to cancel and then close the driver’s door.
If 2 or more keys are in the vehicle, the driving position cannot be canceled
properly.
Turn the engine switch to IGNITION ON mode.
While pressing the “SET” button, press and hold the door lock switch
(either lock or unlock) until the buzzer sounds twice.
If the button could not be canceled, the buzzer sounds continuously for approxi-
mately 3 seconds.
4
1
2
1
2
GX460_OM_OM60L72U_(U).book Page 134 Friday, May 16, 2014 3:03 PM

GX 460 _O M_ OM6 0L 72U _( U)
1353-3. Adjusting the seats
3
Operation of each component
■Recalling the driving position using the memory recall function
●Different driving positions can be registered for each electronic key. Therefore, the
driving position that is recalled may be different depending on the key being carried.
●If a door other than the driver’s door is unlocked with the smart access system with
push-button start, the driving position cannot be recalled. In this case, press the driving
position button which has been set.
■Customization
The unlock door settings of the memory recall function can be customized.
(Customizable features: →P. 5 8 6 )
CAUTION
■Seat adjustment caution
Take care during seat adjustment so that the seat does not strike the rear passenger or
squeeze your body against the steering wheel.
GX460_OM_OM60L72U_(U).book Page 135 Friday, May 16, 2014 3:03 PM

136
GX 460 _O M_ OM6 0L 72U _( U)3-3. Adjusting the seats
Head restraints
Vertical adjustment
Up
Pull the head restraints up.
Down
Push the head restraint down while
pushing the lock release button.
Angle adjustment (front seats only) (if
equipped)
To fold the head restraints, pull the lock
release strap.
To return the head restraints, lift them up
until they lock.
Head restraints are provided for all seats.
Front and second seats
Lock release button
1
2
Third seats
GX460_OM_OM60L72U_(U).book Page 136 Friday, May 16, 2014 3:03 PM

GX 460 _O M_ OM6 0L 72U _( U)
1373-3. Adjusting the seats
3
Operation of each component
■Removing the head restraints
XFront and second seats
XThird seats
The head restraint cannot be removed.
■Installing the head restraints (front and second seats)
■Adjusting the height of the head restraints (front and second seats)
■Using the second center seat head restraint
■Using the third seats
Always lift the head restraints up until they lock when using. Pull the head restraint up while pressing the lock
release button.
Align the head restraint with the installation
holes and push it down to the lock position.
Make sure that the head restraints are adjusted
so that the center of the head restraint is closest
to the top of your ears.
Always raise the head restraint one level from
the stowed position when using.
Lock release button
GX460_OM_OM60L72U_(U).book Page 137 Friday, May 16, 2014 3:03 PM

138
GX 460 _O M_ OM6 0L 72U _( U)3-3. Adjusting the seats
CAUTION
■Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to do so may
result in death or serious injury.
●Use the head restraints designed for each respective seat.
●Adjust the head restraints to the correct position at all times.
●After adjusting the head restraints, push
down on them and make sure they are
locked in position.
●Do not drive with the head restraints removed.
GX460_OM_OM60L72U_(U).book Page 138 Friday, May 16, 2014 3:03 PM

1393-4. Adjusting the steering wheel and mirrors
3
Operation of each component
GX 460 _O M_ OM6 0L 72U _( U)
Steering wheel
Up
Down
Toward the driver
Away from the driver
To sound the horn, press on or close to
the mark.
Adjustment procedure
1
2
3
4
Horn
