5147-2. Steps to take in an emergency
GX460_OM_OM60M73U_(U)

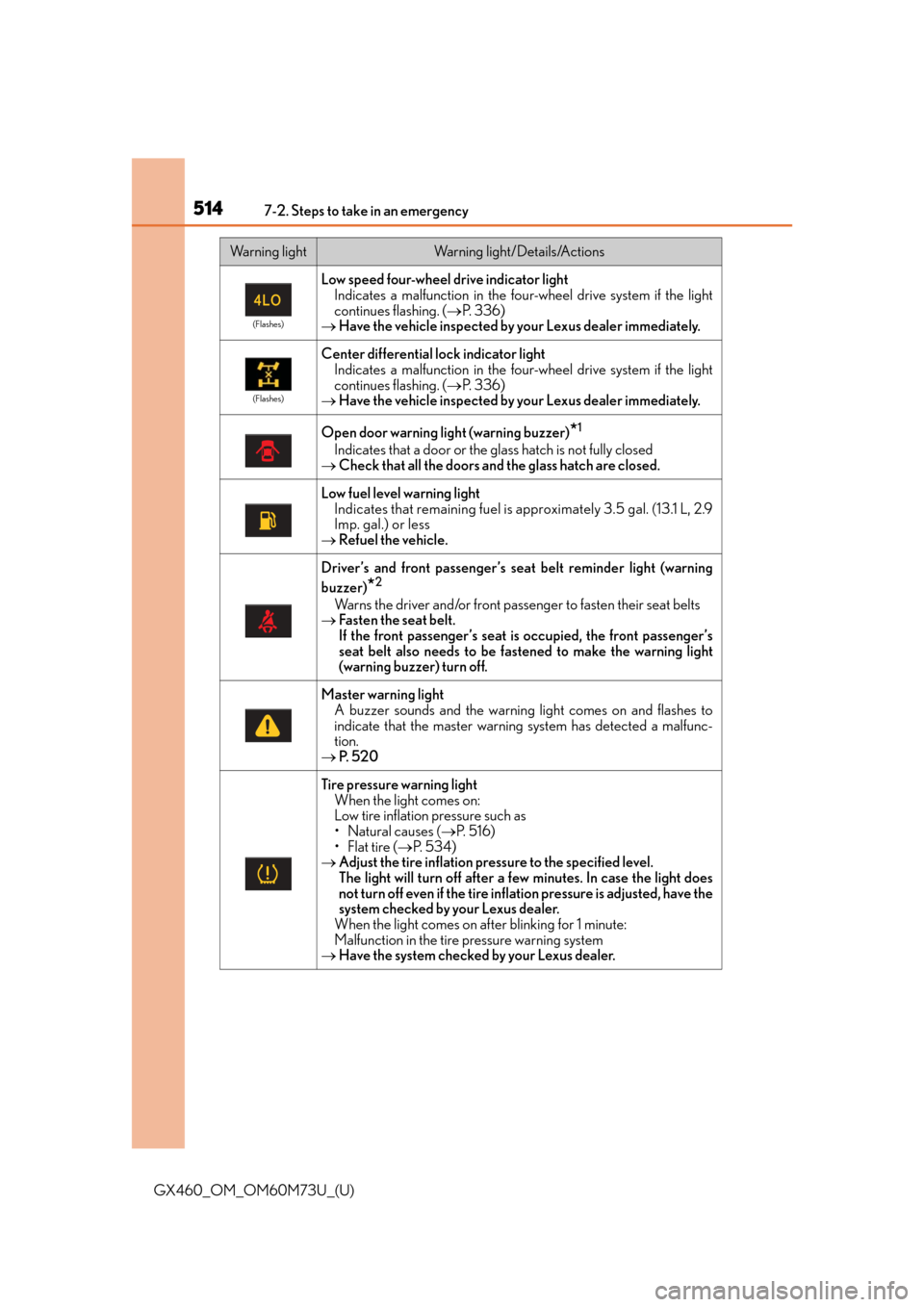

(Flashes)
Low speed four-wheel drive indicator lightIndicates a malfunction in the four -wheel drive system if the light
continues flashing. ( P. 3 3 6 )
 Have the vehicle inspected by your Lexus dealer immediately.
(Flashes)
Center differential lock indicator light
Indicates a malfunction in the four -wheel drive system if the light
continues flashing. ( P. 3 3 6 )
 Have the vehicle inspected by your Lexus dealer immediately.
Open door warning light (warning buzzer)*1
Indicates that a door or the glass hatch is not fully closed
 Check that all the doors and the glass hatch are closed.
Low fuel level warning light
Indicates that remaining fuel is a pproximately 3.5 gal. (13.1 L, 2.9
Imp. gal.) or less
 Refuel the vehicle.
Driver’s and front passenger’s seat belt reminder light (warning
buzzer)
*2
Warns the driver and/or front passenger to fasten their seat belts
 Fasten the seat belt.
If the front passenger’s seat is occupied, the front passenger’s
seat belt also needs to be fa stened to make the warning light
(warning buzzer) turn off.
Master warning light
A buzzer sounds and the warning light comes on and flashes to
indicate that the master warning system has detected a malfunc-
tion.
 P. 5 2 0
Tire pressure warning light
When the light comes on:
Low tire inflation pressure such as
• Natural causes ( P. 5 1 6 )
•Flat tire ( P. 5 3 4 )
 Adjust the tire inflation pressure to the specified level.
The light will turn off after a fe w minutes. In case the light does
not turn off even if the tire inflation pressure is adjusted, have the
system checked by your Lexus dealer.
When the light comes on after blinking for 1 minute:
Malfunction in the tire pressure warning system
 Have the system checked by your Lexus dealer.
Warning lightWarning light/Details/Actions

5157-2. Steps to take in an emergency
GX460_OM_OM60M73U_(U)
7
When trouble arises
*1: Open door warning buzzer:  P. 5 2 2
*2: Seat belt reminders:
The driver’s seat belt buzzer sounds to alert the driver that his or her seat belt is not
fastened. Once the engine switch is turned to IGNITION ON mode, the buzzer
sounds for 6 seconds. If the vehicle reaches a speed of 12 mph (20 km/h), the buzzer
sounds once. If the seat belt is still unfastened after 30 seconds, the buzzer will sound
intermittently for 10 seconds. Then, if the seat belt is still unfastened, the buzzer will
sound in a different tone for 20 more seconds.
The front passenger’s seat belt buzzer sounds to alert the front passenger that his or
her seat belt is not fastened. The buzzer sounds once if the vehicle reaches a speed of
12 mph (20 km/h). If the seat belt is still unfastened after 30 seconds, the buzzer will
sound intermittently for 10 seconds. Then, if the seat belt is still unfastened, the buzzer
will sound in a different tone for 20 more seconds.
■SRS warning light
This warning light system monitors the airbag sensor assembly, front airbag sensors, side
and curtain shield airbag sensor s, rear side and curtain shield airbag sensors, floor sen-
sor, driver’s seat belt buckle switch, front passenger occupant classification system (ECU
and sensors), “AIR BAG ON” indicator light, “AIR BAG OFF” indicator light, front pas-
senger’s seat belt buckle sw itch, seat belt pretensioner assemblies, airbags, intercon-
necting wiring and power sources. ( P. 3 4 )
■Front passenger detection sensor, seat belt reminder and warning buzzer
●If luggage is placed on the front passenger seat, the front passenger detection sensor
may cause the warning light to flash and the warning buzzer to sound even if a passen-
ger is not sittin g in the seat.
●If a cushion is placed on th e seat, the sensor may not detect a passenger, and the warn-
ing light may not operate properly.
■If the malfunction indicator lamp comes on while driving
First check the following:
●Is the fuel tank empty?
If it is, fill the fuel tank immediately.
●Is the fuel tank cap loose?
If it is, tighten it securely.
The light will go off after several driving trips.
If the light does not go off even after severa l trips, contact your Lexus dealer as soon as
possible.

5167-2. Steps to take in an emergency
GX460_OM_OM60M73U_(U)
■If the low speed four-wheel drive indicator light or the center differential lock indicator
light blinks
Take the specified steps. (P. 3 3 8 )
■When the tire pressure warning light comes on
Check the tire inflation pressure and adjust to the appropriate level.
■The tire pressure warning light may turn on due to natural causes
The tire pressure warning light may turn on du e to natural causes such as natural air leaks
or tire inflation pressure changes caused by temperature. In this case, adjusting the tire
inflation pressure will turn off the warning light (after a few minutes).
■When a tire is replaced with a spare tire
The tire pressure warning light will turn on if the tire inflation pressure of the spare tire is
low. If a tire goes flat, the tire pressure warning light will not turn off even though the flat
tire has been replaced with the spare tire.
■Conditions that the tire pressure warning system may not function properly
 P. 4 7 2
■If the tire pressure warning light frequently comes on after blinking for 1 minute
If the tire pressure warning light frequently comes on after blinking for 1 minute when the
engine switch is turned to IGNITION ON mo de, have it checked by your Lexus dealer.
■Warning buzzer
In some cases, the buzzer may not be heard due to being in a noisy location or audio
sound.
■Customization
The vehicle speed linked seat belt reminder buzzer can be disabled.
(Customizable features: P. 5 8 6 )

5177-2. Steps to take in an emergency
GX460_OM_OM60M73U_(U)
7
When trouble arises
CAUTION
■If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediat ely and contact your Lexus dealer. The vehi-
cle will become extremely unstable during braking, and the ABS system may fail, which
could cause an accident resulting in death or serious injury.
■If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could cause loss of vehi-
cle control and result in death or serious injury.
●Stop your vehicle in a safe place as soon as possible. Adjust the tire inflation pressure
immediately.
●If the tire pressure warning light comes on even after tire inflation pressure adjust-
ment, it is probable that you have a flat tire. Check the tires. If the tire is flat, change to
the spare tire and have the flat tire repaired by the nearest Lexus dealer.
●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you could lose
control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.

5187-2. Steps to take in an emergency
GX460_OM_OM60M73U_(U)
CAUTION
■Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly when cold and
inflated to the inflation pressure recomm ended by the vehicle manufacturer on the
vehicle placard or tire inflation pressure la bel (tire and load information label). (If your
vehicle has tires of a different size than the size indicated on the vehicle placard or tire
inflation pressure label [tire and load in formation label], you should determine the
proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire pressure moni-
toring system (TPMS-tire pressure warning system) that illuminates a low tire pressure
telltale (tire pressure warning light) when on e or more of your tires is significantly
under-inflated. Accordingly, when the low ti re pressure telltale (tire pressure warning
light) illuminates, you should stop and check your tires as soon as possible, and inflate
them to the proper pressure. Driving on a significantly under-inflated tire causes the
tire to overheat and can lead to tire failure. Under-inflation also reduces fuel efficiency
and tire tread life, and ma y affect the vehicle’s handling and stopping ability.
Please note that the TPMS (tire pressure wa rning system) is not a substitute for proper
tire maintenance, and it is the driver’s resp onsibility to maintain correct tire pressure,
even if under-inflation has no t reached the level to trigger illumination of the TPMS low
tire pressure telltale (tire pressure warning light).
Your vehicle has also been equipped with a TPMS (tire pressure warning system) mal-
function indicator to indicate when the system is not operating properly. The TPMS
(tire pressure warning system) malfunction indi cator is combined with the low tire pres-
sure telltale (tire pressure warning light). When the system detects a malfunction, the
telltale will flash for approximately one minu te and then remain continuously illumi-
nated. This sequence will cont inue upon subsequent vehicle start-ups as long as the
malfunction exists. When the malfunction indicator is illuminated, the system may not
be able to detect or signal low tire pressure as intended.
TPMS (tire pressure warning system) malfun ctions may occur for a variety of reasons,
including the installation of replacement or alternate tires or wheels on the vehicle that
prevent the TPMS (tire pressure warning system) from functioning properly. Always
check the TPMS (tire pressure warning syst em) malfunction telltale after replacing one
or more tires or wheels on your vehicle to ensure that the replacement or alternate
tires and wheels allow the TPMS (tire pressure warning system) to continue to function
properly.

520
GX460_OM_OM60M73U_(U)7-2. Steps to take in an emergency
If a warning message is displayed
Master warning light
The master warning light also comes on
or flashes in order to indicate that a mes-
sage is currently being displayed on the
instrument cluster.
Multi-information display
Rear height control air suspension
display
If any of the warning lights comes on ag ain after the following actions have been
performed, contact your Lexus dealer.
If a warning is shown on the instrument cluster, stay calm and perform the fol-
lowing actions:
1
2
3

5247-2. Steps to take in an emergency
GX460_OM_OM60M73U_(U)
(If equipped)
Indicates a malfunction in the LDA (Lane Departure
Alert) systemA buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
Indicates a malfunction in the steering lock system
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates a malfunction in the pre-collision system
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates a malfunction in the BSM (Blind Spot Monitor)
system
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
Indicates abnormal engine oil pressure
The warning light may come on if the engine oil pres-
sure is too low.
A buzzer also sounds.
 Immediately stop the vehicle in a safe place and
contact your Lexus dealer.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)

5257-2. Steps to take in an emergency
GX460_OM_OM60M73U_(U)
7
When trouble arises
Indicates that the automatic transmission fluid tempera-
ture is too high A buzzer also sounds.
 Immediately stop the vehicle in a safe place, shift the
shift lever to P and wait until the warning message
and light go off. If the warning message and light go
off, you may start the vehicle again.
If the warning message and light do not go off, con-
tact your Lexus dealer.
Indicates a malfunction in the automatic transmission
system A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
Indicates that the moon roof is not fully closed (with the
engine switch off, and the driver’s door open)
A buzzer also sounds.
 Close the moon roof.
Indicates that engine oil level is low
A buzzer also sounds.
 Check the level of engine oil, and add if necessary.
Indicates a malfunction in:
• The LED headlight system;
• The automatic headlig ht leveling system; or
• The Automatic High Beam system (if equipped) A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
Indicates that the wash er fluid level is low
 Add washer fluid.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)

616What to do if... (Troubleshooting)
GX460_OM_OM60M73U_(U)
●It is locked automatically to prevent theft of the vehicle. ( P. 1 8 7 )
●Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be operated
if the window lock switch is pressed. ( P. 1 4 6 )
●The auto power off function will be oper ated if the vehicle is left in ACCES-
SORY or IGNITION ON mode (the engine is not running) for a period of
time. ( P. 1 8 7 )
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts?
( P. 5 1 4 )
●The parking brake indicator is on
Is the parking brake released? ( P. 1 9 5 )
Depending on the situation, other type s of warning buzzer may also sound.
( P. 5 1 2 , 5 2 0 )
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. ( P. 7 0 )
To stop the alarm, turn the engine switch to IGNITION ON mode or start the
engine. The steering wheel cannot be turned after the engine is stopped
The windows do not open or close by operating the power window
switches
The engine switch is turned off automatically
A warning buzzer sounds during driving
An alarm is activated and the horn sounds

617What to do if... (Troubleshooting)
GX460_OM_OM60M73U_(U)
●Is the electronic key left inside the vehicle or the moon roof opened?
Check the message on the multi-information display. (P. 5 2 0 )
●When a warning light turns on or a warning message is displayed, refer to
P. 5 1 2 , 5 2 0 .
●Stop the vehicle in a safe place and replace the flat tire with the spare tire.
( P. 5 3 4 )
●Try the procedure for when the vehicle becomes stuck in mud, dirt, or snow.
(P. 5 5 9 )
A warning buzzer sounds when leaving the vehicle
A warning light turns on or a warning message is displayed
When a problem has occurred
If you have a flat tire
The vehicle becomes stuck
