2614-5. Using the driving support systems
4
Driving

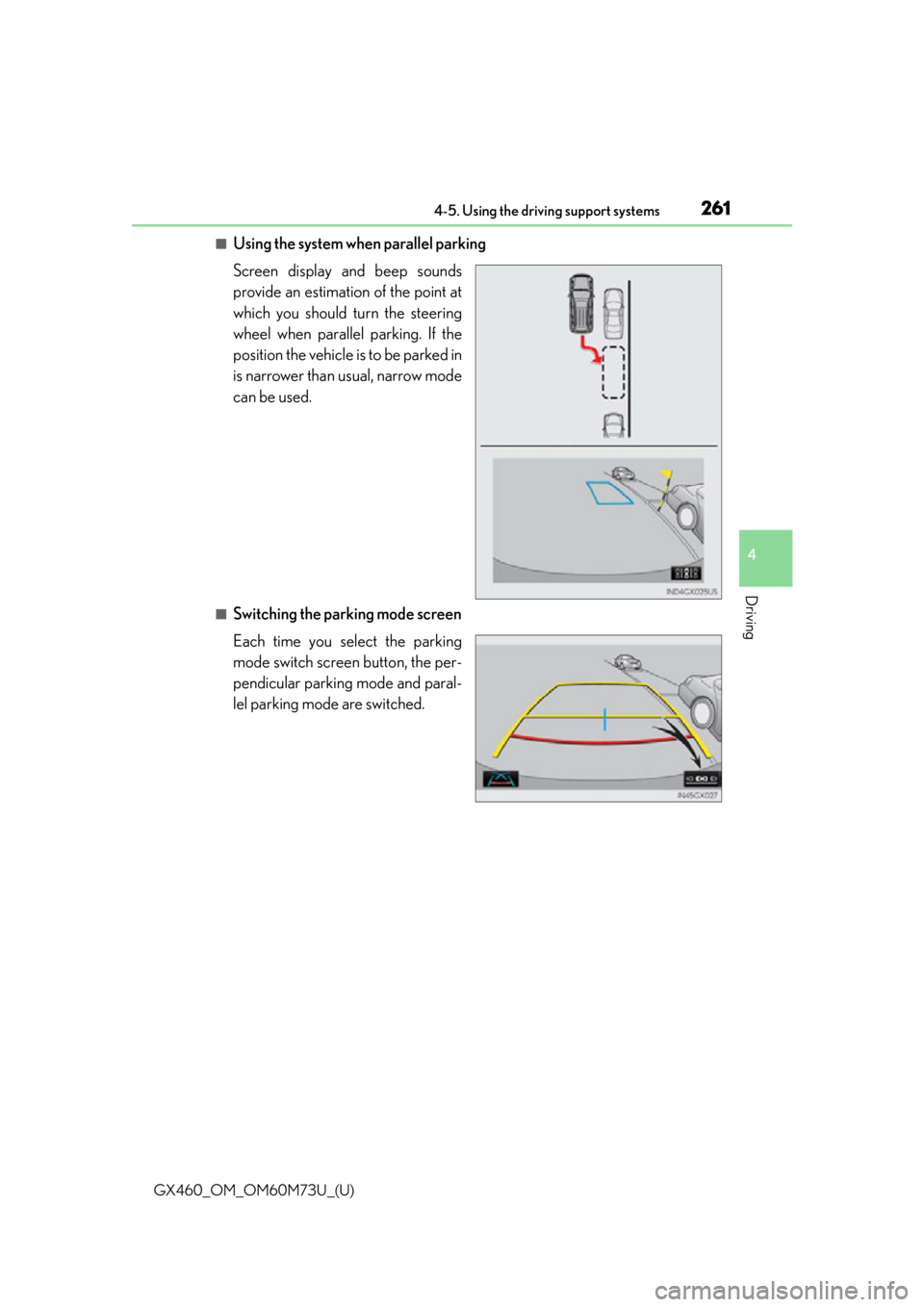

■Using the system when parallel parking
Screen display and beep sounds
provide an estimation of the point at
which you should turn the steering
wheel when parallel parking. If the
position the vehicle is to be parked in
is narrower than usual, narrow mode
can be used.
■Switching the parking mode screen
Each time you select the parking
mode switch screen button, the per-
pendicular parking mode and paral-
lel parking mode are switched.

262
GX460_OM_OM60M73U_(U)4-5. Using the driving support systems

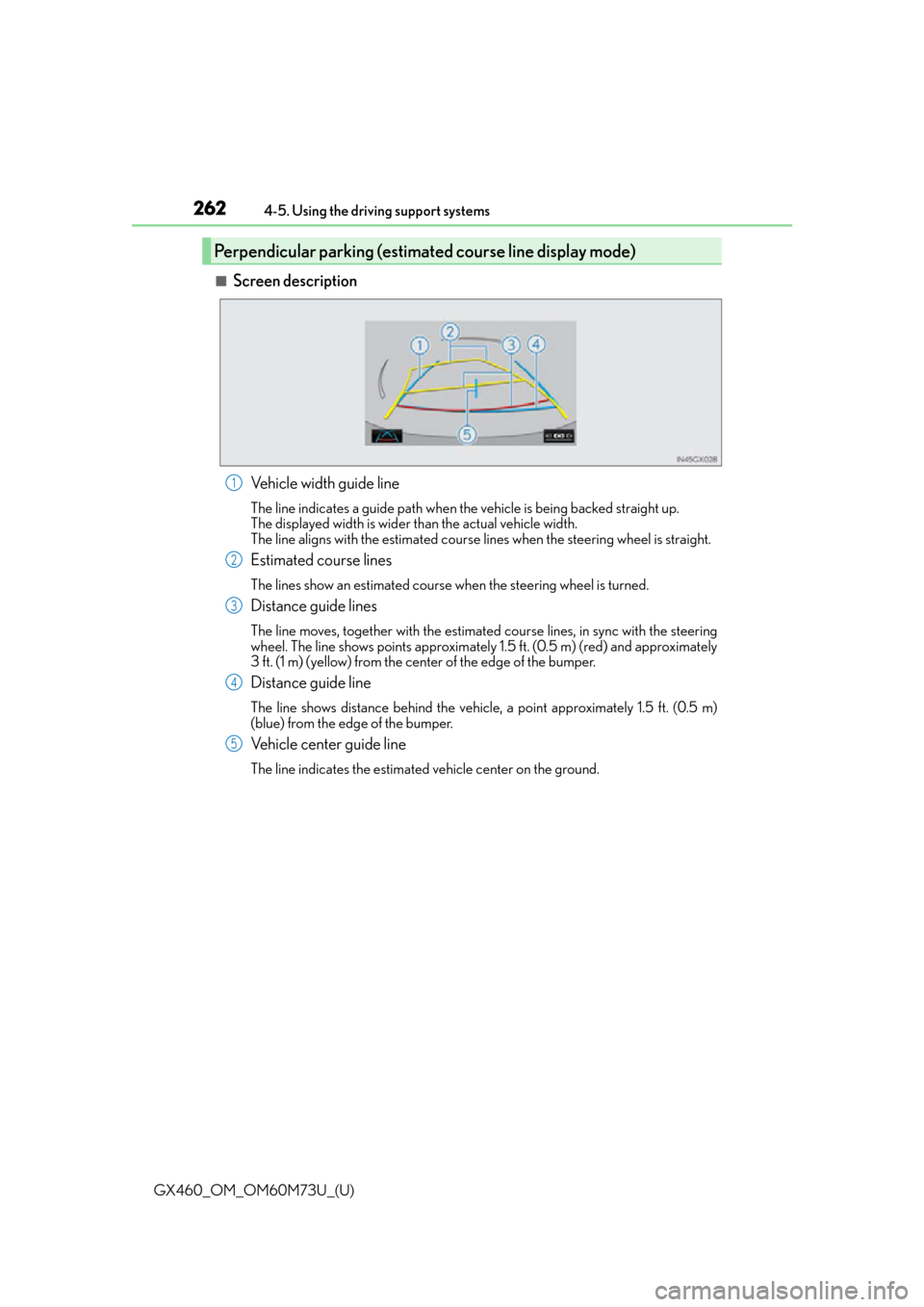

■Screen description
Vehicle width guide line
The line indicates a guide path when the vehicle is being backed straight up.
The displayed width is wider than the actual vehicle width.
The line aligns with the estimated course lines when the steering wheel is straight.
Estimated course lines
The lines show an estimated course when the steering wheel is turned.
Distance guide lines
The line moves, together with the estimated course lines, in sync with the steering
wheel. The line shows points approximately 1.5 ft. (0.5 m) (red) and approximately
3 ft. (1 m) (yellow) from the center of the edge of the bumper.
Distance guide line
The line shows distance behind the vehicle, a point approximately 1.5 ft. (0.5 m)
(blue) from the edge of the bumper.
Vehicle center guide line
The line indicates the estimated vehicle center on the ground.
Perpendicular parking (estimated course line display mode)
1
2
3
4
5

GX460_OM_OM60M73U_(U)
2634-5. Using the driving support systems
4
Driving

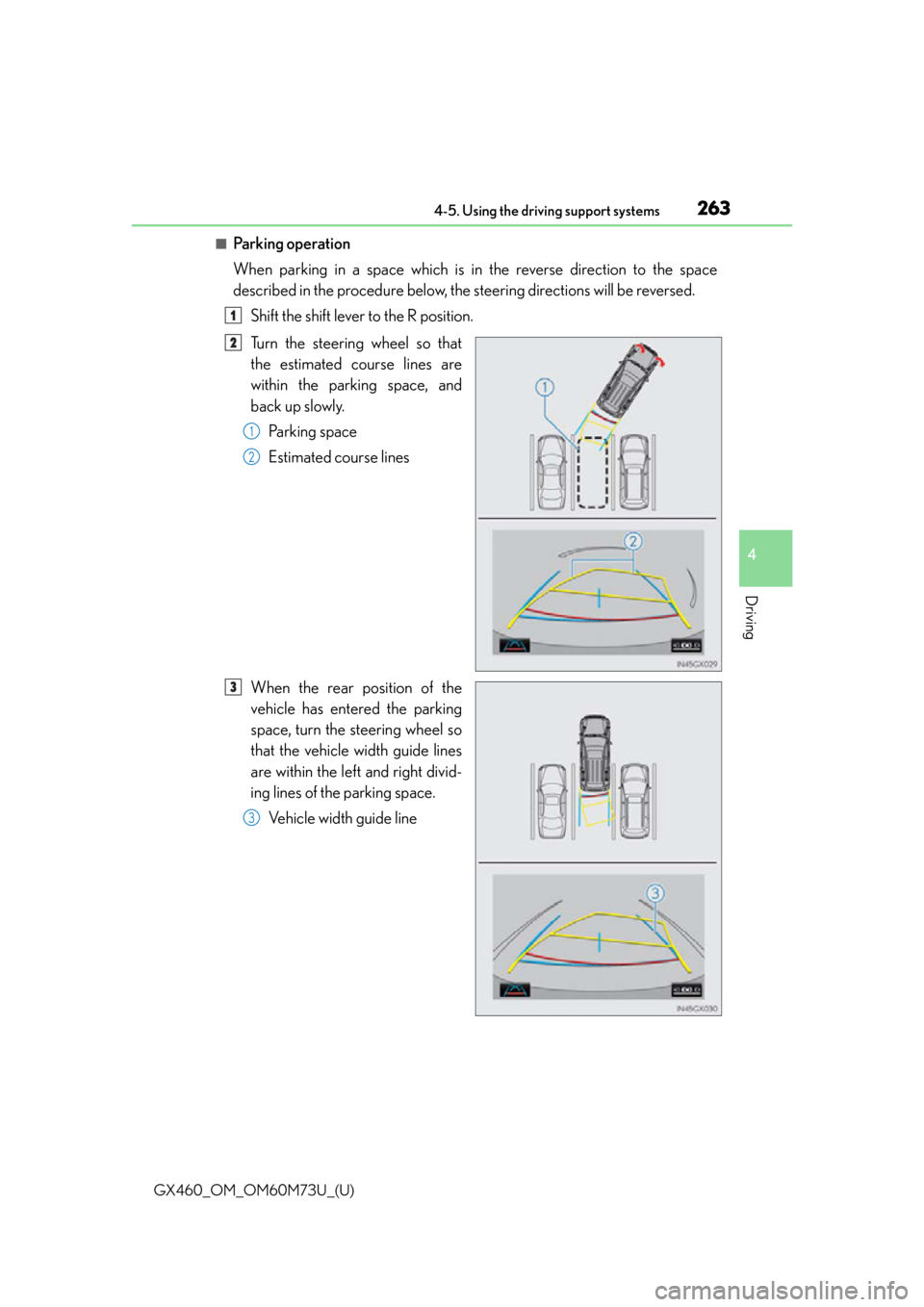

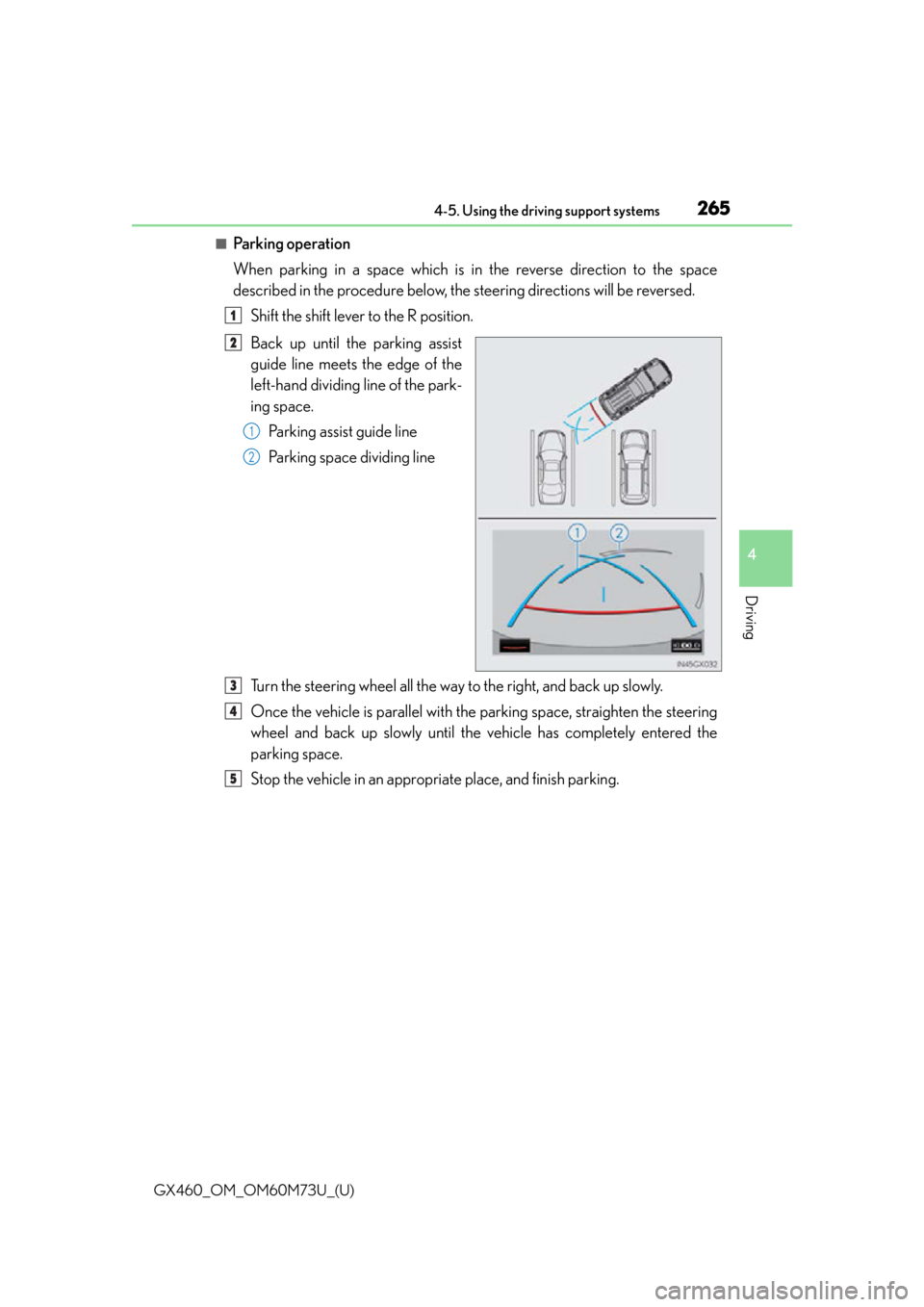

■Pa r k i n g o p e ra t i o n
When parking in a space which is in the reverse direction to the space
described in the procedure below, the steering directions will be reversed.Shift the shift lever to the R position.
Turn the steering wheel so that
the estimated course lines are
within the parking space, and
back up slowly.Parking space
Estimated course lines
When the rear position of the
vehicle has entered the parking
space, turn the steering wheel so
that the vehicle width guide lines
are within the left and right divid-
ing lines of the parking space. Vehicle width guide line
1
2
1
2
3
3

264
GX460_OM_OM60M73U_(U)4-5. Using the driving support systems
Once the vehicle width guide lines and the parking space lines are parallel,
straighten the steering wheel and back up slowly until the vehicle has com-
pletely entered the parking space.
Stop the vehicle in an appropri
ate place, and finish parking.

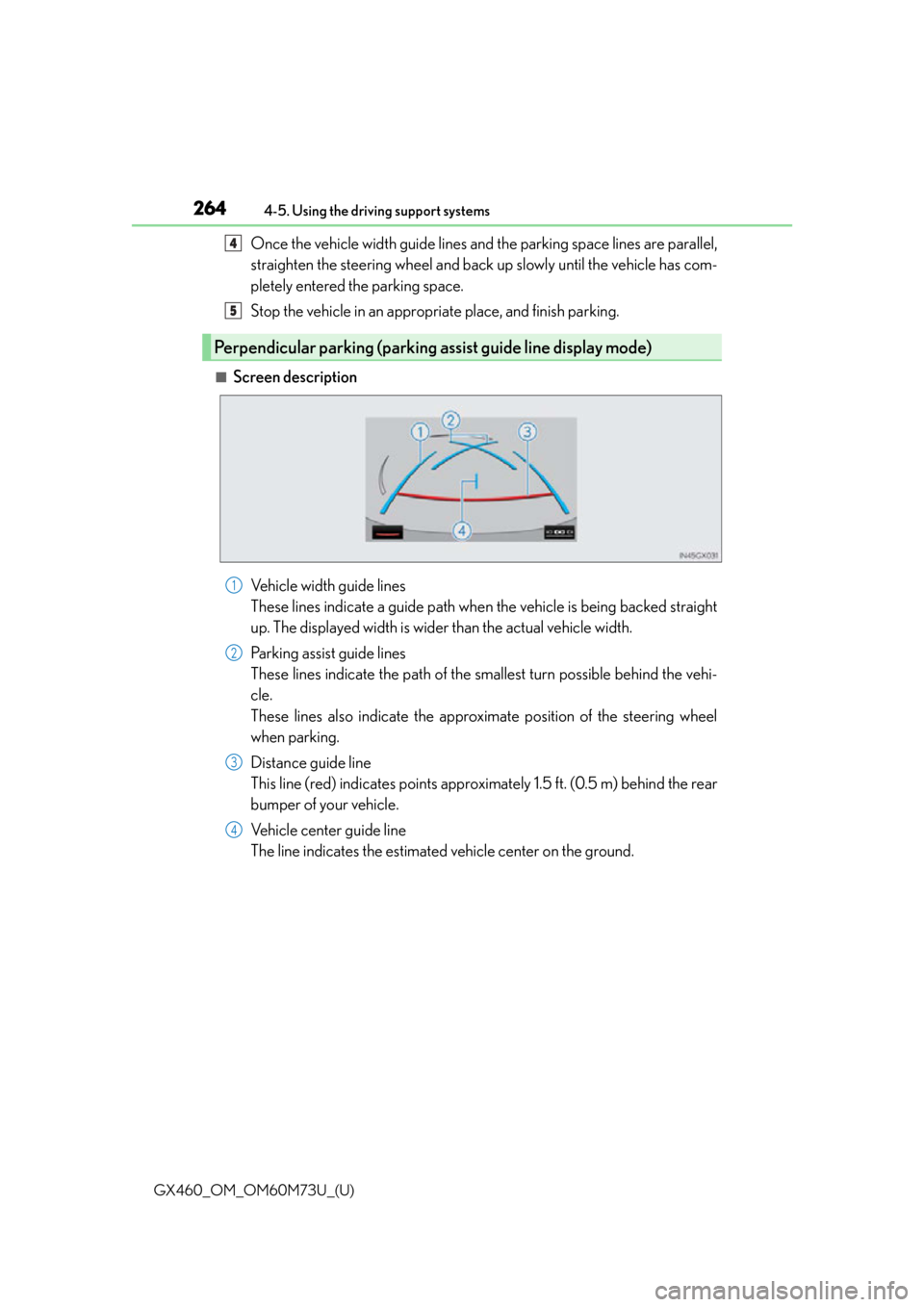

■Screen description
Vehicle width guide lines
These lines indicate a guide path when the vehicle is being backed straight
up. The displayed width is wider than the actual vehicle width.
Parking assist guide lines
These lines indicate the path of the smallest turn possible behind the vehi-
cle.
These lines also indicate the approximate position of the steering wheel
when parking.
Distance guide line
This line (red) indicates points approxim ately 1.5 ft. (0.5 m) behind the rear
bumper of your vehicle.
Vehicle center guide line
The line indicates the estimated vehicle center on the ground.
Perpendicular parking (parking assist guide line display mode)
4
5
1
2
3
4

GX460_OM_OM60M73U_(U)
2654-5. Using the driving support systems
4
Driving
■Pa r k i n g o p e ra t i o n
When parking in a space which is in the reverse direction to the space
described in the procedure below, the steering directions will be reversed.Shift the shift lever to the R position.
Back up until the parking assist
guide line meets the edge of the
left-hand dividing line of the park-
ing space.Parking assist guide line
Parking space dividing line
Turn the steering wheel all the way to the right, and back up slowly.
Once the vehicle is parallel with the parking space, straighten the steering
wheel and back up slowly until the vehicle has completely entered the
parking space.
Stop the vehicle in an appropri ate place, and finish parking.
1
2
1
2
3
4
5

266
GX460_OM_OM60M73U_(U)4-5. Using the driving support systems

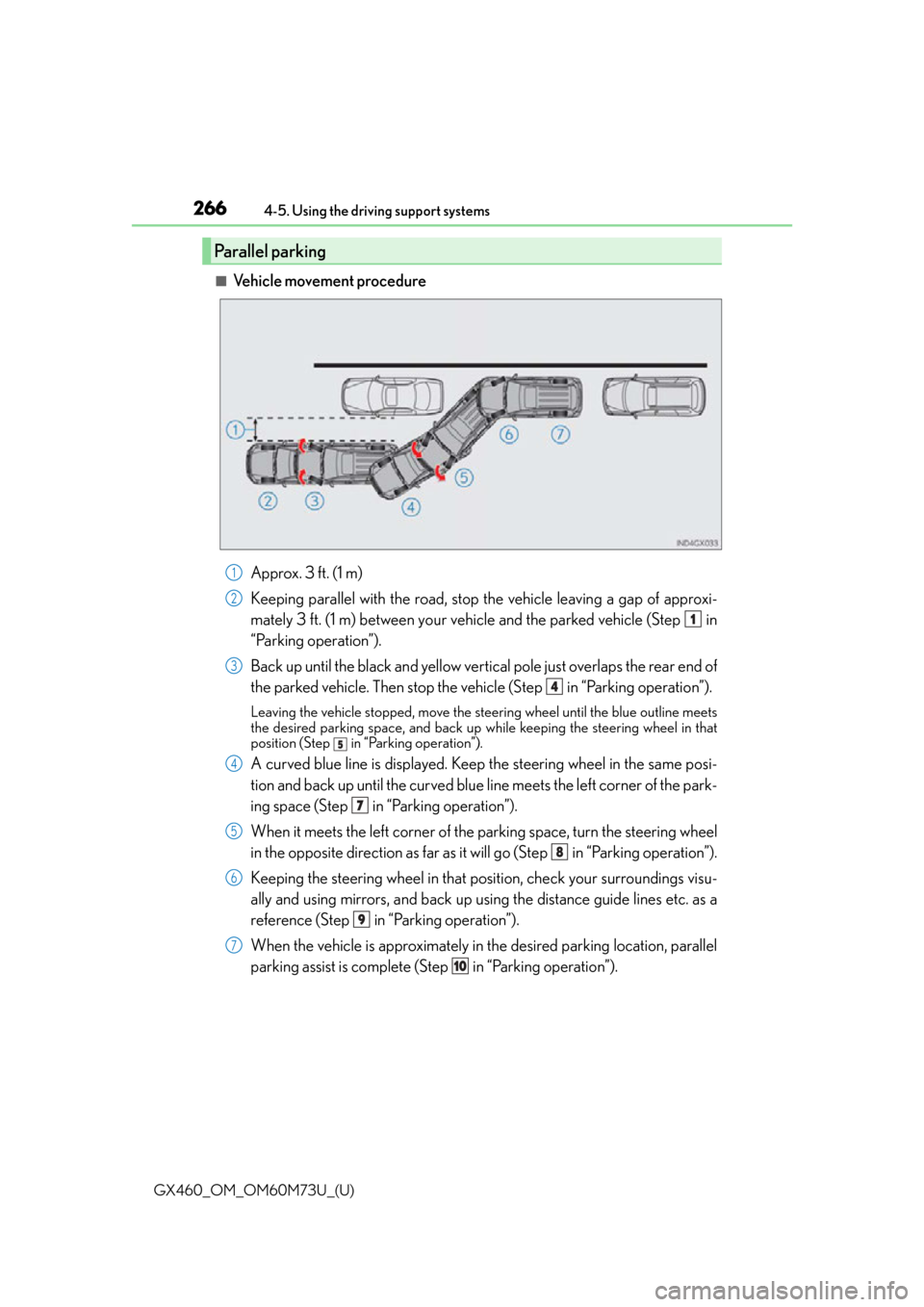

■Vehicle movement procedure
Approx. 3 ft. (1 m)
Keeping parallel with the road, stop the vehicle leaving a gap of approxi-
mately 3 ft. (1 m) between your vehicle and the parked vehicle (Step in
“Parking operation”).
Back up until the black and yellow vertical pole just overlaps the rear end of
the parked vehicle. Then stop the ve hicle (Step in “Parking operation”).
Leaving the vehicle stopped, move the steering wheel until the blue outline meets
the desired parking space, and back up while keeping the steering wheel in that
position (Step
in “Parking operation”).
A curved blue line is displayed. Keep the steering wheel in the same posi-
tion and back up until the curved blue line meets the left corner of the park-
ing space (Step in “Parking operation”).
When it meets the left corner of the parking space, turn the steering wheel
in the opposite direction as far as it will go (Step in “Parking operation”).
Keeping the steering wheel in that posi tion, check your surroundings visu-
ally and using mirrors, and back up us ing the distance guide lines etc. as a
reference (Step in “Parking operation”).
When the vehicle is approximately in the desired parking location, parallel
parking assist is complete (Step in “Parking operation”).
Parallel parking
1
2
1
3
4
5
4
7
5
8
6
9
7
10

GX460_OM_OM60M73U_(U)
2674-5. Using the driving support systems
4
Driving
■Pa r k i n g o p e ra t i o n

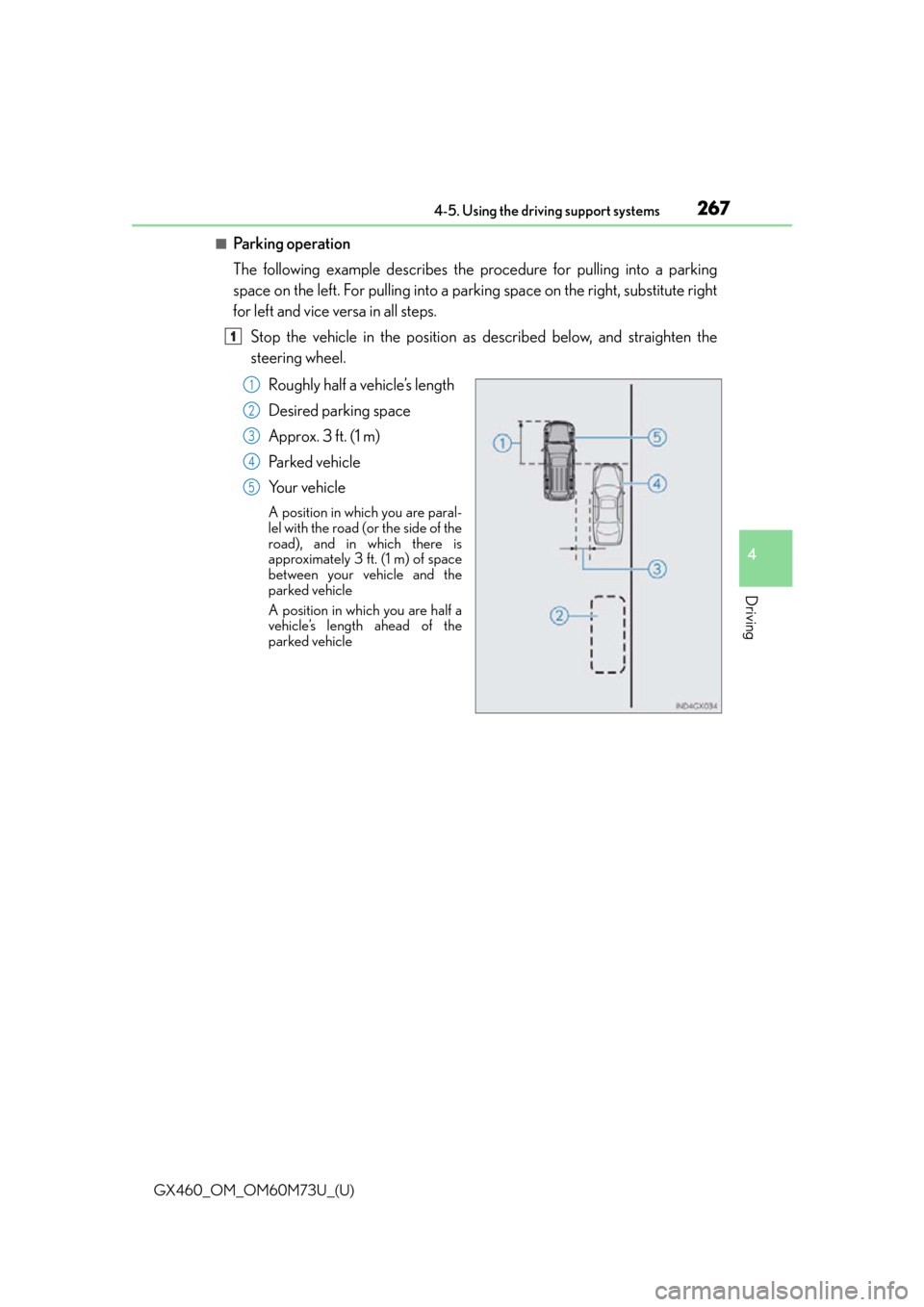

The following example describes the procedure for pulling into a parking
space on the left. For pulling into a parking space on the right, substitute right
for left and vice versa in all steps.Stop the vehicle in the position as described below, and straighten the
steering wheel.
Roughly half a vehicle’s length
Desired parking space
Approx. 3 ft. (1 m)
Parked vehicle
Your vehicle
A position in which you are paral-
lel with the road (or the side of the
road), and in which there is
approximately 3 ft. (1 m) of space
between your vehicle and the
parked vehicle
A position in which you are half a
vehicle’s length ahead of the
parked vehicle
1
1
2
3
4
5

268
GX460_OM_OM60M73U_(U)4-5. Using the driving support systems

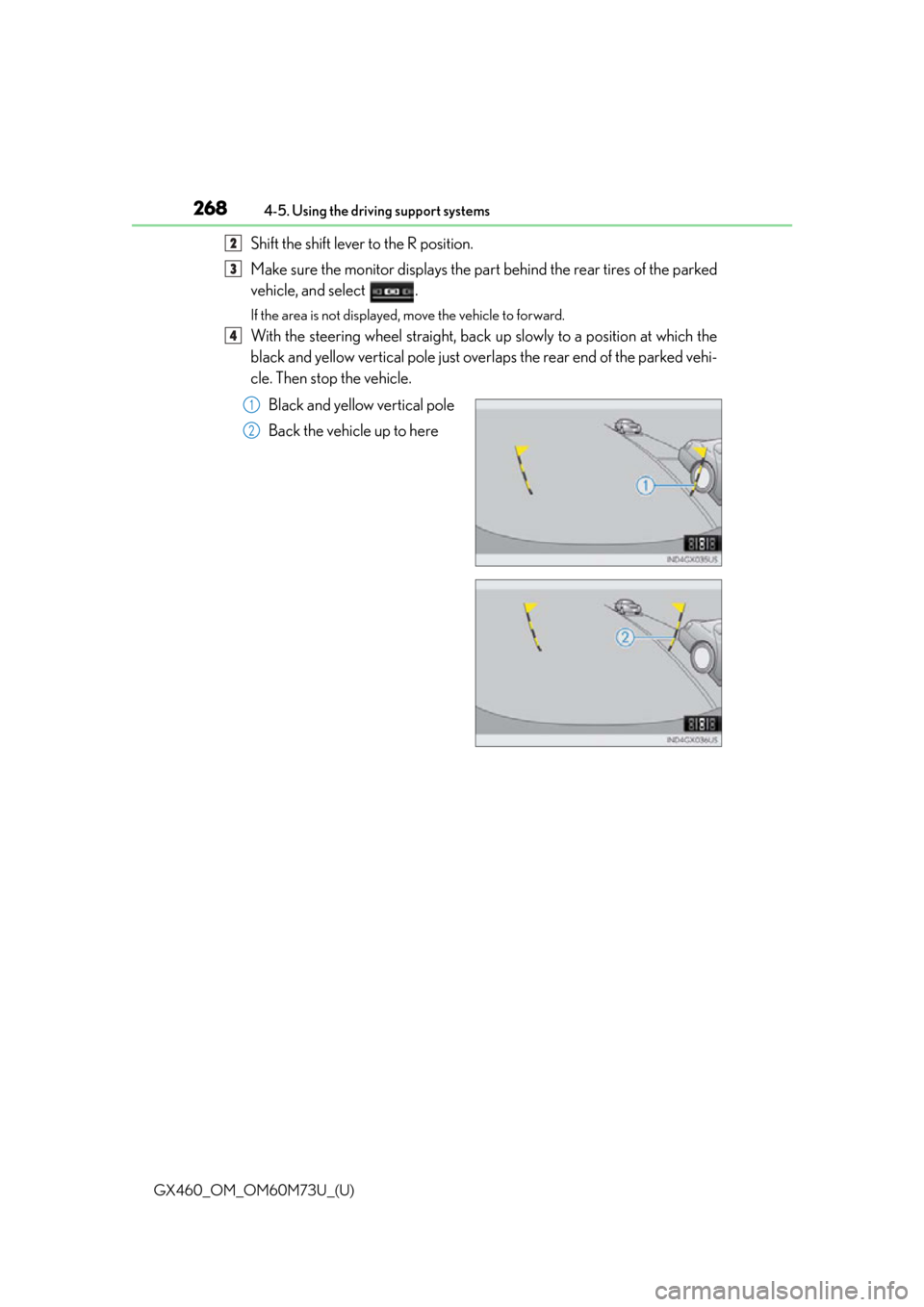

Shift the shift lever to the R position.
Make sure the monitor displays the part behind the rear tires of the parked
vehicle, and select .
If the area is not displayed, move the vehicle to forward.
With the steering wheel straight, back up slowly to a position at which the
black and yellow vertical pole just over
laps the rear end of the parked vehi-
cle. Then stop the vehicle.
Black and yellow vertical pole
Back the vehicle up to here
2
3
4
1
2

GX460_OM_OM60M73U_(U)
2694-5. Using the driving support systems
4
Driving

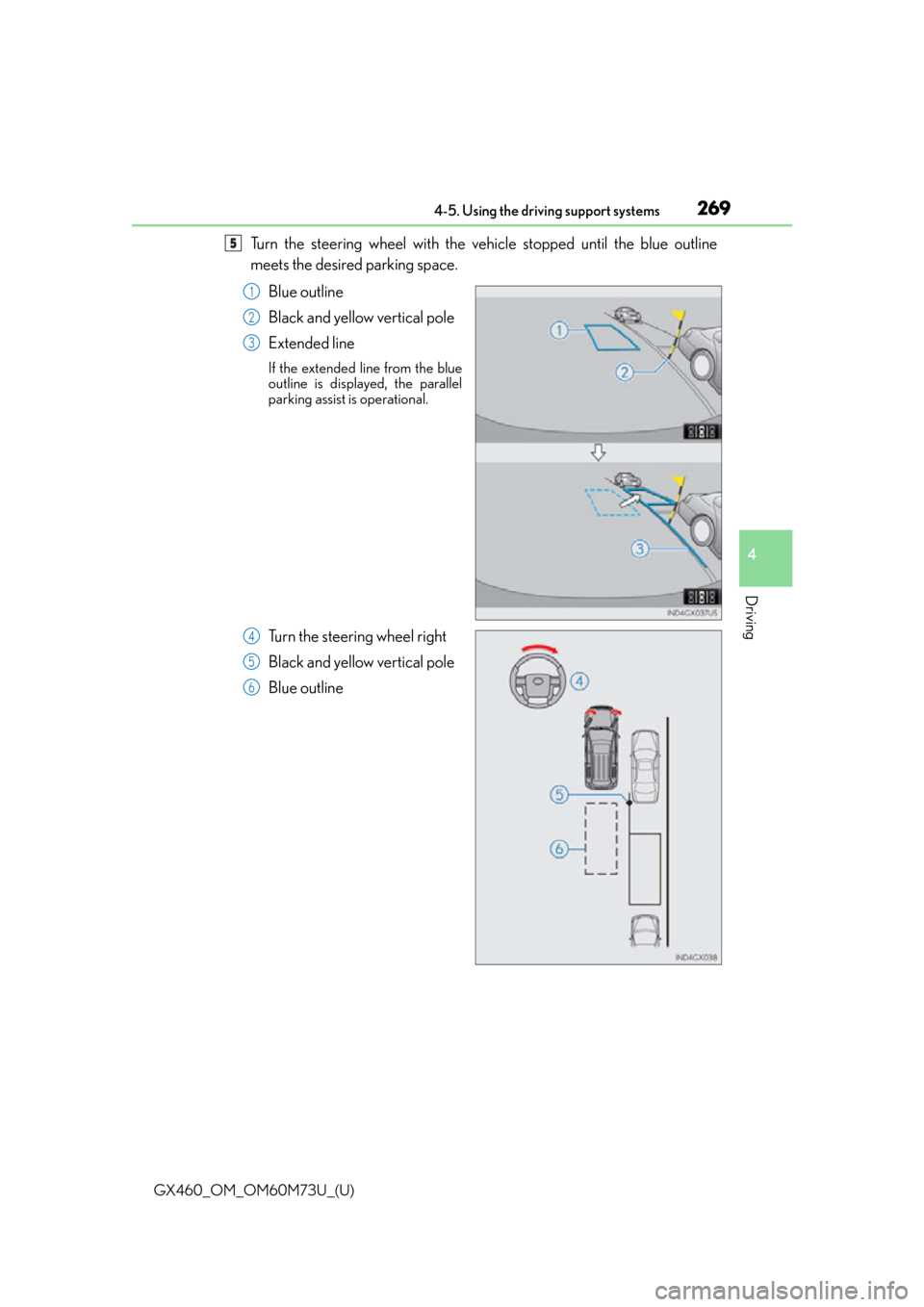

Turn the steering wheel with the vehicle stopped until the blue outline
meets the desired parking space.Blue outline
Black and yellow vertical pole
Extended line
If the extended line from the blue
outline is displayed, the parallel
parking assist is operational.
Turn the steering wheel right
Black and yellow vertical pole
Blue outline
5
1
2
3
4
5
6

270
GX460_OM_OM60M73U_(U)4-5. Using the driving support systems

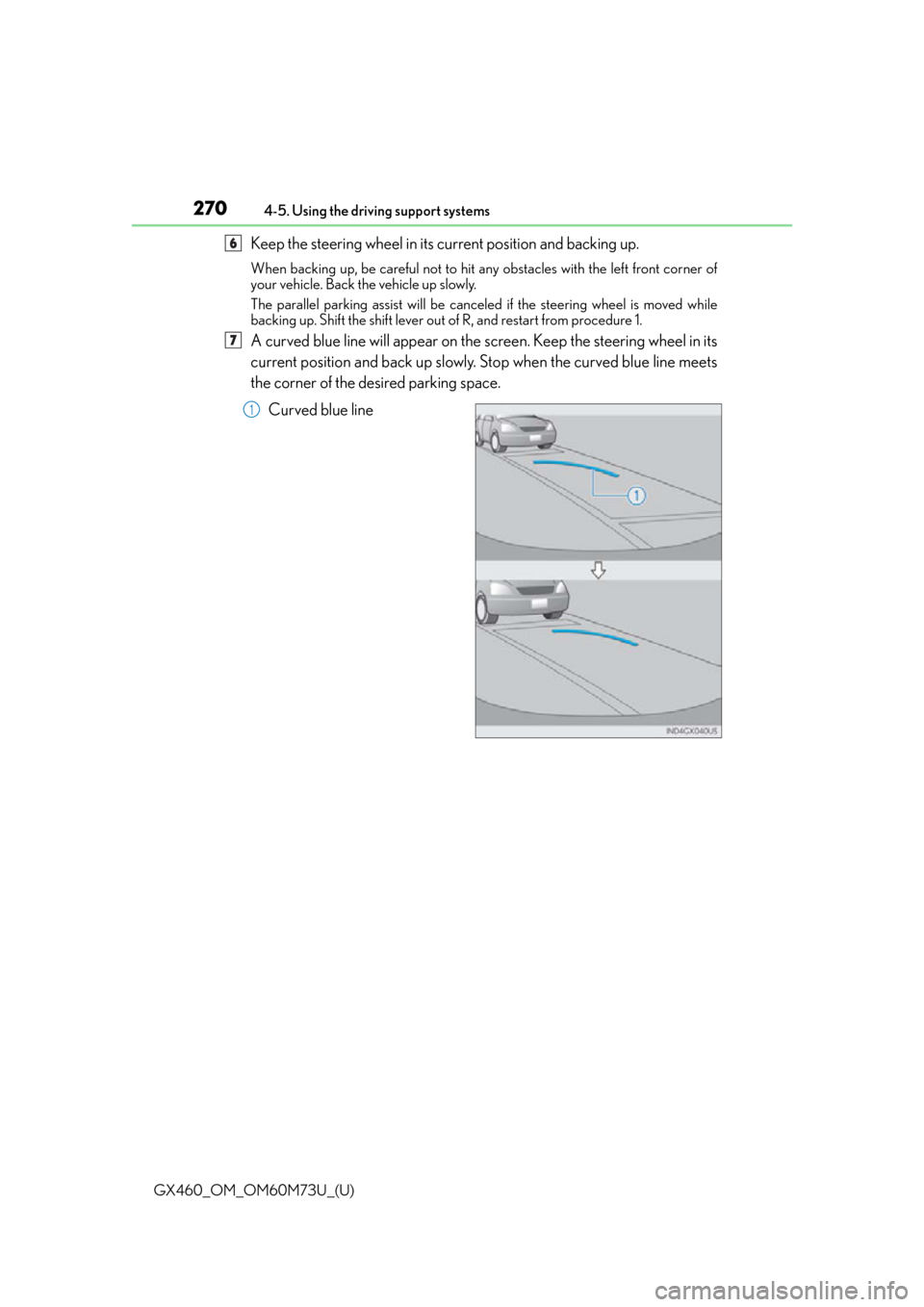

Keep the steering wheel in its cu
rrent position and backing up.
When backing up, be careful not to hit any obstacles with the left front corner of
your vehicle. Back the vehicle up slowly.
The parallel parking assist will be cance led if the steering wheel is moved while
backing up. Shift the shift lever out of R, and restart from procedure 1.
A curved blue line will appear on the screen. Keep the steering wheel in its
current position and back up slowly. Stop when the curved blue line meets
the corner of the desired parking space.
Curved blue line
6
7
1
