radio Lexus GX460 2017 Navigation Manual

238
4. REAR SEAT ENTERTAINMENT SYSTEM OPERATION
GX460_Navi_OM60N98U_(U)16.05.30 14:27
1Select Apps mode on the source screen
to display the control screen.
■CONTROL SCREEN
1Display the audio source selection
screen. ( →P.232)
2Select “DISC” .
zEven the “DISC” button is pressed, the
mode can be changed to the DISC mode.
■ CONTROL SCREEN
■ CONTROLLERUSING THE RADIO (INTERNET
RADIO BROADCAST)
One of Apps’s features is the ability to
listen to internet radio. In order to use
this service, an Apps compatible phone
and the navigation system needs to be
set. ( →P.357)
PLAYING AN AUDIO CD/CD
TEXT
No.Function
Select to set repeat playback.
Select to set random playback.
No.Function
Press to play/pause.
Press to fast forward/rewind.
zPress to select a track.
z Press and hold to fast forward/
rewind.
GX_Navi_OM60N98U_(U).book Page 238 Monday, May 30, 2016 2:28 PM

256
5. AUDIO/VISUAL REMOTE CONTROLS
GX460_Navi_OM60N98U_(U)16.05.30 14:27
X switch
ModeOperationFunction
AM/FM
RadioPressPreset station up/down
Press and hold
(0.8 sec. or more)Seek up/down continuously while the switch is being
pressed
SAT
PressPreset channel up/down
Press and hold
(0.8 sec. or more)Type seek up/down
Press and hold
(1.5 sec. or more)Fast up/down
CD
PressTrack up/down
Press and hold
(0.8 sec. or more)Fast forward/rewind
MP3/
WMA/AAC
discPressFile up/down
Press and hold
(0.8 sec. or more)Fast forward/rewind
DVD
PressChapter up/down
Press and hold
(0.8 sec. or more)Fast forward/rewind
USB
PressFile/Track up/down
Press and hold
(0.8 sec. or more)Fast forward/rewind
iPod
PressTrack/File up/down
Press and hold
(0.8 sec. or more)Fast forward/rewind
BT audio
PressTrack up/down
Press and hold
(0.8 sec. or more)Fast forward/rewind
GX_Navi_OM60N98U_(U).book Page 256 Monday, May 30, 2016 2:28 PM

258
GX460_Navi_OM60N98U_(U)16.05.30 14:27
6. SETUP
1. AUDIO SETTINGS
1Press the “SETUP” button.
2Select “A u d i o ” .
3Select the items to be set.
*: Only in DVD video mode
Detailed audio settings can be pro-
grammed.AUDIO SETTINGS SCREEN
No.FunctionPage
Select to set the iPod audio
signal input settings.259
Select to set the video signal
format settings.259
Select to change the number
of preset radio stations dis-
played on the screen.260
Select to set detailed cover
art settings.260
*Select to set detailed DVD
settings.261
GX_Navi_OM60N98U_(U).book Page 258 Monday, May 30, 2016 2:28 PM

260
6. SETUP
GX460_Navi_OM60N98U_(U)16.05.30 14:27
1Display the audio setting screen.
(→ P.258)
2Select “Number of Radio Presets” .
3Select the button with the desired num-
ber to be displayed.
z“Default” : Select to default the settings.
1Display the audio setting screen.
(→ P.258)
2Select “Cover Art Settings” .
3Select the desired button to be set.
SETTING THE NUMBER OF
RADIO PRESETSCOVER ART SETTINGS
No.Function
Select on/off to set the cover art dis-
play in DISC mode.
Select on/off to set the cover art dis-
play in USB mode.
Select on/off to set the priority of the
Gracenote database in USB mode.
Select on/off to set the cover art dis-
play in iPod mode.
Select on/off to set the priority of the
Gracenote database in iPod mode.
INFORMATION
●
Images from the Gracenote database
displayed on the screen may be different
from the actual cover art.
GX_Navi_OM60N98U_(U).book Page 260 Monday, May 30, 2016 2:28 PM

266
GX460_Navi_OM60N98U_(U)16.05.30 14:27
7. TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
1. OPERATING INFORMATION
NOTICE
●To avoid damage to the audio/visual sys-
tem:
• Be careful not to spill beverages overthe audio/visual system.
• Do not put anything other than an appropriate disc into the disc slot.
INFORMATION
●
The use of a cellular phone inside or near
the vehicle may cause a noise from the
speakers of the audio/visual system which
you are listening to. However, this does
not indicate a malfunction.
RADIO
Usually, a problem with radio reception
does not mean there is a problem with
the radio — it is just the normal result of
conditions outside the vehicle.
For example, nearby buildings and ter-
rain can interfere with FM reception.
Power lines or phone wires can interfere
with AM signals. And of course, radio
signals have a limited range. The farther
the vehicle is from a station, the weaker
its signal will be. In addition, reception
conditions change constantly as the ve-
hicle moves.
Here, some common reception prob-
lems that probably do not indicate a
problem with the radio are described.
GX_Navi_OM60N98U_(U).book Page 266 Monday, May 30, 2016 2:28 PM

267
7. TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
GX460_Navi_OM60N98U_(U)16.05.30 14:27
4
AUDIO/VISUAL SYSTEM
Fading and drifting stations: Generally, the
effective range of FM is about 25 miles (40
km). Once outside this range, you may no-
tice fading and drifting, which increase with
the distance from the radio transmitter.
They are often accompanied by distortion.
Multi-path: FM signals are reflective, mak-
ing it possible for 2 signals to reach the vehi-
cle’s antenna at the same time. If this
happens, the signals will cancel each other
out, causing a momentary flutter or loss of
reception.
Static and fluttering: These occur when sig-
nals are blocked by buildings, trees or other
large objects. Increasing the bass level may
reduce static and fluttering.
Station swapping: If the FM signal being lis-
tened to is interrupted or weakened, and
there is another strong station nearby on
the FM band, the radio may tune in the sec-
ond station until the original signal can be
picked up again.Fading: AM broadcasts are reflected by the
upper atmosphere — especially at night.
These reflected signals can interfere with
those received directly from the radio sta-
tion, causing the radio station to sound al-
ternately strong and weak.
Station interference: When a reflected sig-
nal and a signal received directly from a ra-
dio station are very nearly the same
frequency, they can interfere with each oth-
er, making it difficult to hear the broadcast.
Static: AM is easily affected by external
sources of electrical noise, such as high ten-
sion power lines, lightening or electrical
motors. This results in static.
FMAM
GX_Navi_OM60N98U_(U).book Page 267 Monday, May 30, 2016 2:28 PM

268
7. TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
GX460_Navi_OM60N98U_(U)16.05.30 14:27
zCargo loaded on the roof luggage carrier,
especially metal objects, may adversely
affect the reception of XM Satellite Radio.
z Alternation or modifications carried out
without appropriate authorization may
invalidate the user’s right to operate the
equipment.
z This DVD player is intended for use with
4.7 in. (12 cm). discs only.
z Extremely high temperatures can keep the
DVD player from working. On hot days,
use the air conditioning system to cool the
inside of the vehicle before using the player.
z Bumpy roads or other vibrations may make
the DVD player skip.
z If moisture gets into the DVD player, the
discs may not be able to be played. Remove
the discs from the player and wait until it
dries. z
Use only discs marked as shown above.
The following products may not be playable
on your player:
•SACD
•dts CD
• Copy-protected CD
•DVD audio
•Video CD
•DVD-RAM
XM
DVD PLAYER AND DISC
CAUTION
●DVD players use an invisible laser beam
which could cause hazardous radiation
exposure if directed outside the unit. Be
sure to operate the player correctly.
DVD PLAYER
Audio CDs
DVD video
discs
DVD-R/RW
discs
GX_Navi_OM60N98U_(U).book Page 268 Monday, May 30, 2016 2:28 PM

291
1. VOICE COMMAND SYSTEM OPERATION
5
VOICE COMMAND SYSTEM
GX460_Navi_OM60N98U_(U)16.05.30 14:27
XRadio
X Audio
X Info
CommandAction
“Tune to AM”Changes the radio to the specified AM frequency
“Tune to FM”Changes the radio to the specified FM frequency
“Play station”Changes the radio to an FM station of the specified genre
“Tune to FM
HD ”Changes the radio to the specified HD radio station
“Tune to preset ”Changes the radio to the specified preset radio station
“Tune to ”Changes the radio to the satellite radio channel with the
specified name
“Tune to channel ”Changes the radio to the spec ified satellite radio channel
number
“Play satellite station”Changes the radio to a satellite radio channel of the spec-
ified genre
CommandAction
“Play Playlist ”Plays tracks from the selected playlist
“Play Artist ”Plays tracks from the selected artist
“Play Song ”Plays the selected track
“Play Album ”Plays tracks from the selected album
CommandAction
“Destination Assist”Connects the system to the Lexus response center
“Show Forecast”Displays weather information
“Show Traffic”Displays traffic information
“Lexus Insider”Displays the Lexus insider list
GX_Navi_OM60N98U_(U).book Page 291 Monday, May 30, 2016 2:28 PM

292

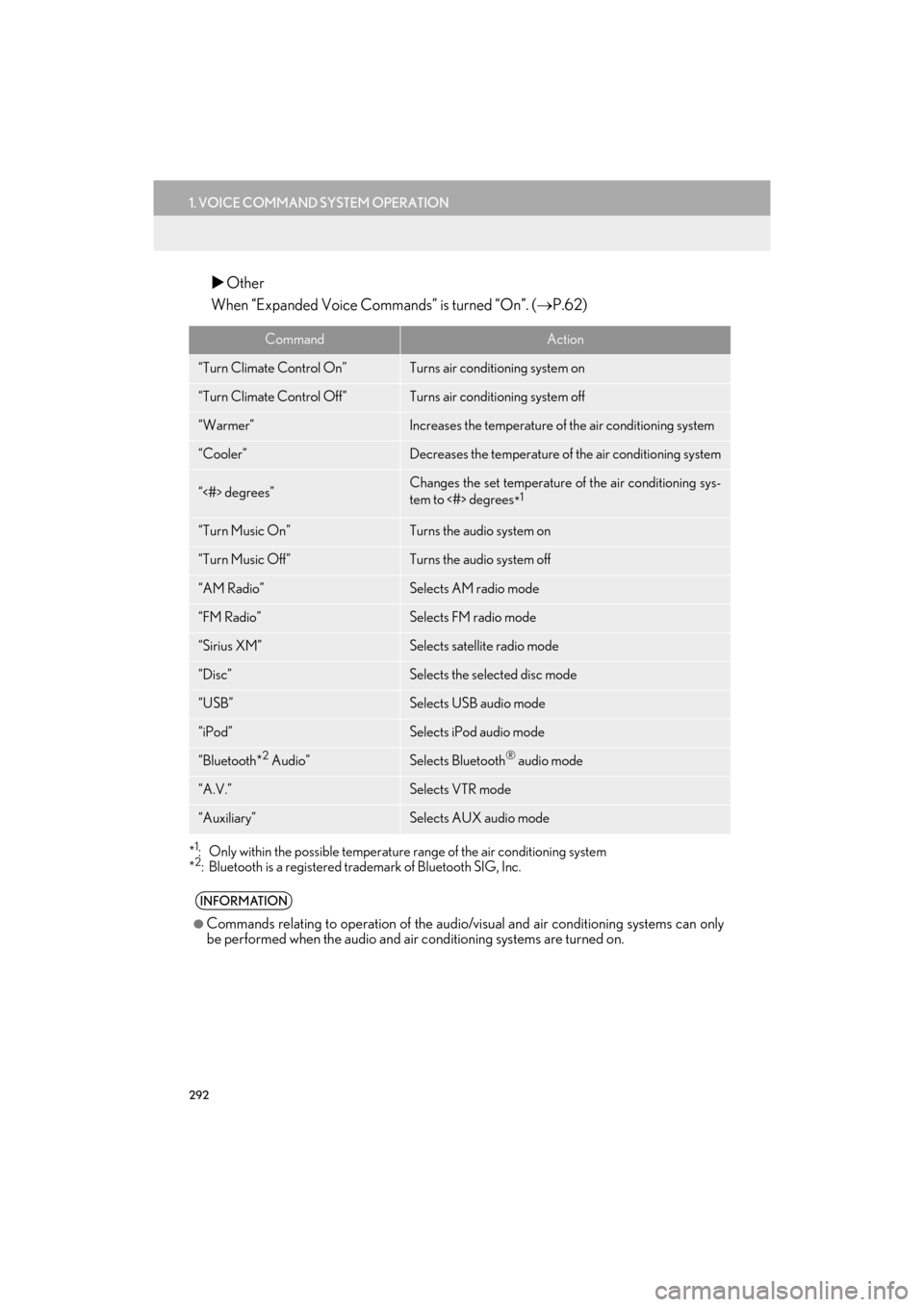

1. VOICE COMMAND SYSTEM OPERATION
GX460_Navi_OM60N98U_(U)16.05.30 14:27
XOther
When “Expanded Voice Commands” is turned “On”. ( →P.62)
*1: Only within the possible temperature range of the air conditioning system
*2: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
CommandAction
“Turn Climate Control On”Turns air conditioning system on
“Turn Climate Control Off”Turns air conditioning system off
“Warmer”Increases the temperature of the air conditioning system
“Cooler”Decreases the temperature of the air conditioning system
“<#> degrees”Changes the set temperature of the air conditioning sys-
tem to <#> degrees *1
“Turn Music On”Turns the audio system on
“Turn Music Off”Turns the audio system off
“AM Radio”Selects AM radio mode
“FM Radio”Selects FM radio mode
“Sirius XM”Selects satellite radio mode
“Disc”Selects the selected disc mode
“USB”Selects USB audio mode
“iPod”Selects iPod audio mode
“Bluetooth*2 Audio”Selects Bluetooth® audio mode
“A.V.”Selects VTR mode
“Auxiliary”Selects AUX audio mode
INFORMATION
●
Commands relating to operation of the audio/visual and air conditioning systems can only
be performed when the audio and air conditioning systems are turned on.
GX_Navi_OM60N98U_(U).book Page 292 Monday, May 30, 2016 2:28 PM

296
GX460_Navi_OM60N98U_(U)16.05.30 14:27
1. INFORMATION DISPLAY
1. RECEIVING DOPPLER WEATHER INFORMATION
1Press the “INFO/APPS” button.
2Select “Weather” .
3Check that the “Weather” screen is dis-
played.Doppler weather radar information can
be received via the HD radio or by the
LEXUS App Suite application on a
Bluetooth
® phone. For details about the
LEXUS App Suite application: →P.351
DISPLAYING DOPPLER
WEATHER INFORMATION
No.Function
Select to display the weather of the
current location. ( →P.297)
Select to display the weather of a de-
sired location in the recently
checked locations list.
Select to display the weather of a de-
sired location in the national cities
list.
Select to display the weather of a de-
sired location in the other local cities
list.
Select to display Doppler weather
radar information over the map.
GX_Navi_OM60N98U_(U).book Page 296 Monday, May 30, 2016 2:28 PM
