ignition Lexus GX460 2017 Navigation Manual

28
GX460_Navi_OM60N98U_(U)16.05.30 14:27
1. BASIC INFORMATION BEFORE OPERATION
1. INITIAL SCREEN
1When the engine switch is in
ACCESSORY or IGNITION ON
mode, the initial screen will be displayed
and the system will begin operating.
zAfter a few seconds, the “Caution” screen
will be displayed.
z After about 5 seconds, the “Caution”
screen automatically switches to the map
screen. (Select
“Continue” to display the
map screen.)
z Images shown on the initial screen can be
changed to suit individual preferences.
(→ P. 5 8 )
CAUTION
●When the vehicle is stopped with the
engine running, always apply the parking
brake for safety.
MAINTENANCE
INFORMATION
This system reminds users when to re-
place certain parts or components and
shows dealer information (if registered)
on the screen.
When the vehicle reaches a previously
set driving distance or date specified for
a scheduled maintenance check, the
“Maintenance Reminder” screen will be
displayed when the navigation system is
turned on.
z This screen goes off if the screen is not
operated for several seconds.
z To prevent this screen from being dis-
played again, select “Do Not Display
This Message Again”.
z To register maintenance information:
→ P. 6 5
z If is selected, the registered phone
number can be called.
GX_Navi_OM60N98U_(U).book Page 28 Monday, May 30, 2016 2:28 PM

49
2. Bluetooth® SETTINGS
GX460_Navi_OM60N98U_(U)16.05.30 14:27
2
BASIC FUNCTION
3Select the desired connection.
X When another Bluetooth
® device is con-
nected
z To disconnect the Bluetooth® device,
select “Yes”.
4Check that a confirmation screen is dis-
played when the connection is com-
plete.
zIf an error message is displayed, follow the
guidance on the screen to try again.
■ AUTO CONNECTION MODE
zWhen the engine switch is in
ACCESSORY or IGNITION ON mode,
the system searches for a nearby registered
device.
z The system will connect with the registered
device that was last connected, if it is
nearby.
■ CONNECTING MANUALLY
1Press the “SETUP” button.
2Select “Bluetooth*” .
3Follow the steps in “CONNECTING A
Bluetooth
® DEVICE” from “STEP 2”.
( → P.48)
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
INFORMATION
●
It may take time if the device connection
is carried out during Bluetooth® audio
playback.
●Depending on the type of Bluetooth®
device being connected, it may be neces-
sary to perform additional steps on the
device.
●When disconnect ing a Bluetooth®
device, it is recommended to disconnect
using the navigation system.
To turn auto connection mode on, set
“Bluetooth* Power” to on. ( →P.53)
Leave the Bluetooth
® device in a loca-
tion where the connection can be estab-
lished.
When the auto connection has failed or
“Bluetooth* Power” is turned off, it is
necessary to connect Bluetooth
® man-
ually.
GX_Navi_OM60N98U_(U).book Page 49 Monday, May 30, 2016 2:28 PM

54
2. Bluetooth® SETTINGS
GX460_Navi_OM60N98U_(U)16.05.30 14:27
1Select “Bluetooth* Power”.
When “Bluetooth* Power” is on :
The Bluetooth
® device is automatically
connected when the engine switch is in AC-
CESSORY or IGNITION ON mode.
When “Bluetooth* Power” is off :
The Bluetooth
® device is disconnected,
and the system will not connect to it next
time.
1Select “Bluetooth* Name” .
2Enter a name and select “OK”.
1Select “Bluetooth* PIN” .
2Enter a PIN-code and select “OK”.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
CHANGING “Bluetooth*
Power”
INFORMATION
●
While driving, the auto connection state
can be changed from off to on, but can-
not be changed from on to off.
EDITING THE SYSTEM NAME
EDITING THE PIN-CODE
GX_Navi_OM60N98U_(U).book Page 54 Monday, May 30, 2016 2:28 PM

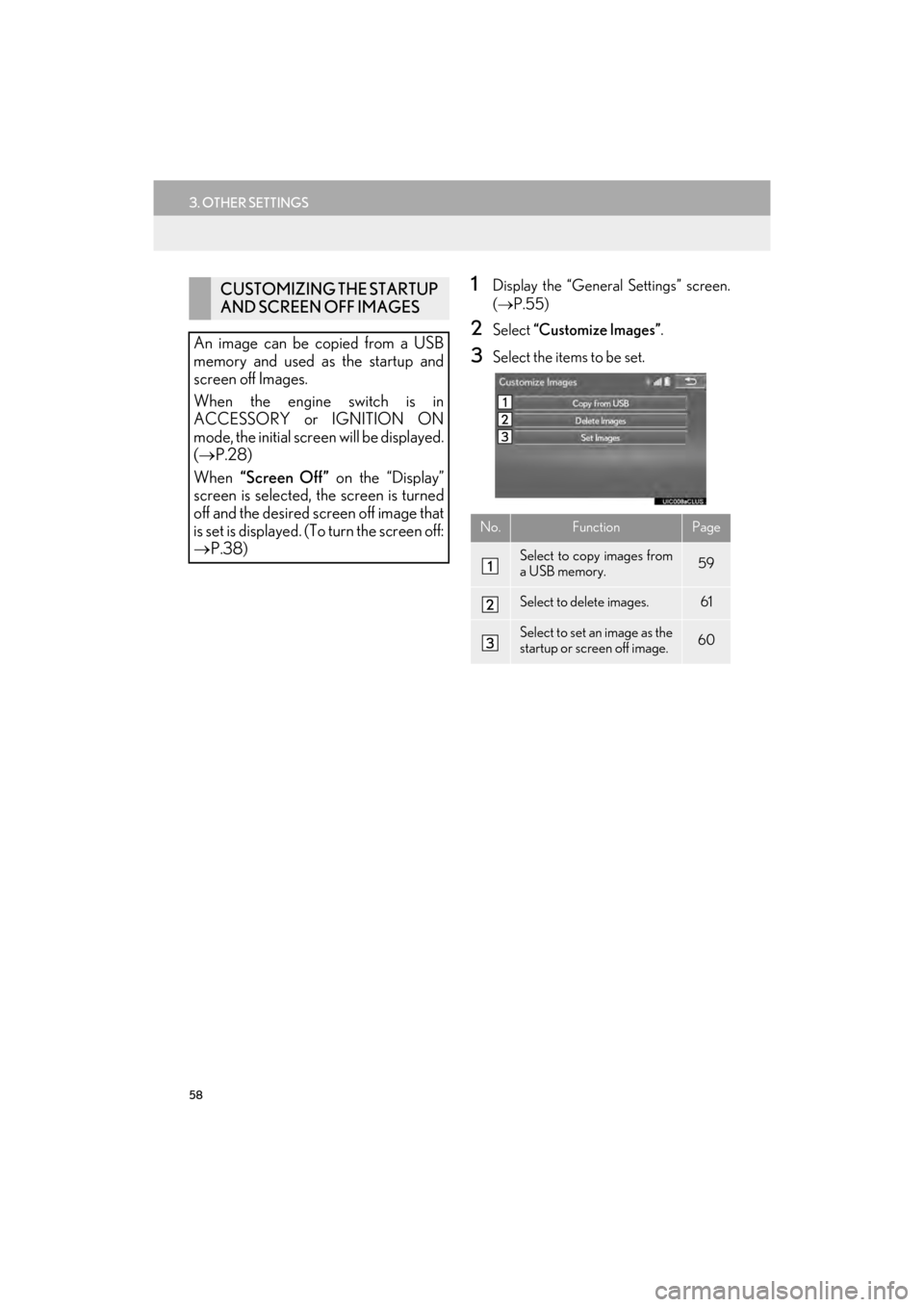

58
3. OTHER SETTINGS
GX460_Navi_OM60N98U_(U)16.05.30 14:27
1Display the “General Settings” screen.
(→ P.55)
2Select “Customize Images” .
3Select the items to be set.
CUSTOMIZING THE STARTUP
AND SCREEN OFF IMAGES
An image can be copied from a USB
memory and used as the startup and
screen off Images.
When the engine switch is in
ACCESSORY or IGNITION ON
mode, the initial screen will be displayed.
( → P.28)
When “Screen Off” on the “Display”
screen is selected, the screen is turned
off and the desired screen off image that
is set is displayed. (To turn the screen off:
→ P.38)
No.FunctionPage
Select to copy images from
a USB memory.59
Select to delete images.61
Select to set an image as the
startup or screen off image.60
GX_Navi_OM60N98U_(U).book Page 58 Monday, May 30, 2016 2:28 PM

160
1. BASIC OPERATION
GX460_Navi_OM60N98U_(U)16.05.30 14:27
2. SOME BASICS
“PWR/VOL” knob: Press to turn the audio/
visual system on and off. The system turns
on in the last mode used. Turn this knob to
adjust the volume.
“A U D I O ” button: Press to display screen
buttons for the audio/visual system (audio
control mode).
This section describes some of the basic
features of the audio/visual system.
Some information may not pertain to
your system.
Your audio/visual system works when
the engine switch is turned to ACCES-
SORY or IGNITION ON mode.
CAUTION
●For vehicles sold in U.S.A.:
Part 15 of the FCC Rules
FCC WARNING: Changes or
modifications not expressly approved by
the party responsible for compliance
could void the user’s authority to operate
the equipment.
●Laser products
• USE OF CONTROL OR ADJUSTMENT OR PERFORMANCE
OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS
RADIATION EXPOSURE.
• THE USE OF OPTICAL INSTRUMENTS WITH THIS
PRODUCT WILL INCREASE EYE
HAZARD.
NOTICE
●To prevent the battery from being dis-
charged, do not leave the audio/visual
system on longer than necessary when
the engine is not running.
TURNING THE SYSTEM ON
AND OFF
z A function that enables automatic return
to the previous screen from the audio/
visual screen can be selected.
(→P.55)
GX_Navi_OM60N98U_(U).book Page 160 Monday, May 30, 2016 2:28 PM

195
3. MEDIA OPERATION
GX460_Navi_OM60N98U_(U)16.05.30 14:27
4
AUDIO/VISUAL SYSTEM
2. DVD
For safety reasons, the DVD video discs can only be viewed when the following con-
ditions are met:
(a) The vehicle is completely stopped.
(b) The engine switch is in ACCESSORY or IGNITION ON mode.
(c) The parking brake is applied.
While driving in DVD video mode, only the DVD’s audio can be heard.
The playback condition of some DVD discs may be determined by the DVD software
producer. This DVD player plays a disc as the software producer intended. As such,
some functions may not work properly. Be sure to read the instruction manual that
comes with the individual DVD disc. ( →P.268)
OVERVIEW
The DVD operation screen can be reached by the following methods:
XInserting a disc ( →P.162)
Press the “A U D I O ” button to display the audio control screen.
Select “Source” and select “DISC”.
GX_Navi_OM60N98U_(U).book Page 195 Monday, May 30, 2016 2:28 PM

218
3. MEDIA OPERATION
GX460_Navi_OM60N98U_(U)16.05.30 14:27
INFORMATION
●
Depending on the Bluetooth® device that is connected to the system, the music may start
playing when selecting while it is pa used. Conversely, the music may pause when
selecting while it is playing.
●In the following conditions, the system may not function:
•The Bluetooth
® device is turned off.
•The Bluetooth
® device is not connected.
•The Bluetooth
® device has a low battery.
●It may take time to connect the phone when Bluetooth® audio is being played.
●For operating the portable player, see the instruction manual that comes with it.
●If the Bluetooth® device is disconnected due to poor reception from the Bluetooth® net-
work when the engine switch is in ACCESSORY or IGNITION ON mode, the system
automatically reconnects the portable player.
●If the Bluetooth® device is disconnected on purpose, such as it was turned off, this does not
happen. Reconnect the portable player manually.
●Bluetooth® device information is registered when the Bluetooth® device is connected to
the Bluetooth® audio system. When selling or disp osing of the vehicle, remove the
Bluetooth® audio information from the system. ( →P. 6 1 )
GX_Navi_OM60N98U_(U).book Page 218 Monday, May 30, 2016 2:28 PM

227
GX460_Navi_OM60N98U_(U)16.05.30 14:27
4
AUDIO/VISUAL SYSTEM
4. REAR SEAT ENTERTAINMENT SYSTEM OPERATION
1. REAR SEAT ENTERTAINMENT SYSTEM FEATURES*
The rear seat entertainment system is designed for the rear passengers to enjoy audio
and DVD video separately from the front audio/visual system. The rear seat entertain-
ment system can be used when the engine switch is in ACCESSORY or IGNITION
ON mode.
No.Name
Front audio/visual system
Displays
Rear seat entertainment system controller
Headphone volume control dials and headphone jacks
HDMI port
A/V input port
*: If equipped
GX_Navi_OM60N98U_(U).book Page 227 Monday, May 30, 2016 2:28 PM

231
4. REAR SEAT ENTERTAINMENT SYSTEM OPERATION
GX460_Navi_OM60N98U_(U)16.05.30 14:27
4
AUDIO/VISUAL SYSTEM
zThis screen appears for a few seconds
when the engine switch is in ACCESSORY
or IGNITION ON mode.
1Press the button. When the switch is moved to “R”, opera-
tions can be performed on the right screen.
When switch is moved to “L”, operations
can be performed on the left screen.
1Press the button.
z
While the display is off, some remote con-
trol buttons can be operated.
CAUTION SCREEN
TURNING THE REAR DISPLAY
ON/OFF
CHANGING THE DISPLAY TO
BE OPERATED
TURNING THE REAR DISPLAY
OFF USING THE REMOTE
CONTROLLER
GX_Navi_OM60N98U_(U).book Page 231 Monday, May 30, 2016 2:28 PM

343
3. WHAT TO DO IF...
7
PHONE
GX460_Navi_OM60N98U_(U)16.05.30 14:27
XWhen using the Bluetooth® message function
X In other situations
SymptomLikely causeSolution
Pag e
Cellular
phoneThis
system
Messages cannot be
viewed.
Message transfer is
not enabled on the
cellular phone.Enable message
transfer on the cellu-
lar phone (approve
message transfer on
the phone).
∗
Automatic transfer
function on this sys-
tem is set to off.Set automatic trans-
fer function on this
system to on.335
New message notifi-
cations are not dis-
played.
Notification of SMS/
MMS/E-mail recep-
tion on this system is
set to off.Set notification of
SMS/MMS/E-mail
reception on this sys-
tem to on.
∗335
Automatic message
transfer function is
not enabled on the
cellular phone.Enable automatic
transfer function on
the cellular phone.∗
SymptomLikely causeSolution
Pag e
Cellular phoneThis
system
The Bluetooth® con-
nection status is dis-
played at the top of
the screen each time
the engine switch is in
ACCESSORY or
IGNITION ON
mode.
Connection confir-
mation display on this
system is set to on.To turn off the dis-
play, set connection
confirmation display
on this system to off.
53
