wheel Lexus GX460 2017 Navigation Manual

40
GX460_Navi_OM60N98U_(U)16.05.30 14:27
2. Bluetooth® SETTINGS
1. REGISTERING/CONNECTING Bluetooth® DEVICE
1Turn the Bluetooth® connection setting
of your cellular phone on.
z This function is not available when
Bluetooth® connection setting of your cel-
lular phone is set to off.
2Press the button.
z Operations up to this point can also be per-
formed by pressing the switch on the
steering wheel.
3Select “Yes” to register a phone.
4When this screen is displayed, search
for the device name displayed on this
screen on the screen of your
Bluetooth
® device.
zFor details about operating the Bluetooth®
device, see the manual that comes with it.
z To cancel the registration, select “Cancel”.
REGISTERING A Bluetooth®
PHONE FOR THE FIRST TIME
To use the hands-free system, it is neces-
sary to register a Bluetooth® phone with
the system.
Once the phone has been registered, it
is possible to use the hands-free system.
This operation cannot be performed
while driving.
For details about registering a
Bluetooth
® device: →P.46
GX_Navi_OM60N98U_(U).book Page 40 Monday, May 30, 2016 2:28 PM

159
1. BASIC OPERATION
4
AUDIO/VISUAL SYSTEM
GX460_Navi_OM60N98U_(U)16.05.30 14:27
■CONTROL PANEL
FunctionPage
Using the radio168
Playing an audio CD or MP3/WMA/AAC disc189
Playing a DVD195
Playing a USB memory202
Playing an iPod207
Playing a Bluetooth® device214
Using the AUX port221
Playing the VTR224
Using the rear seat entertainment system*227
Using the steering wheel audio switches255
Audio system settings258
INFORMATION
●
The display and button positions will diffe r depending on the type of the system.
*: If equipped
GX_Navi_OM60N98U_(U).book Page 159 Monday, May 30, 2016 2:28 PM

188
2. RADIO OPERATION
GX460_Navi_OM60N98U_(U)16.05.30 14:27

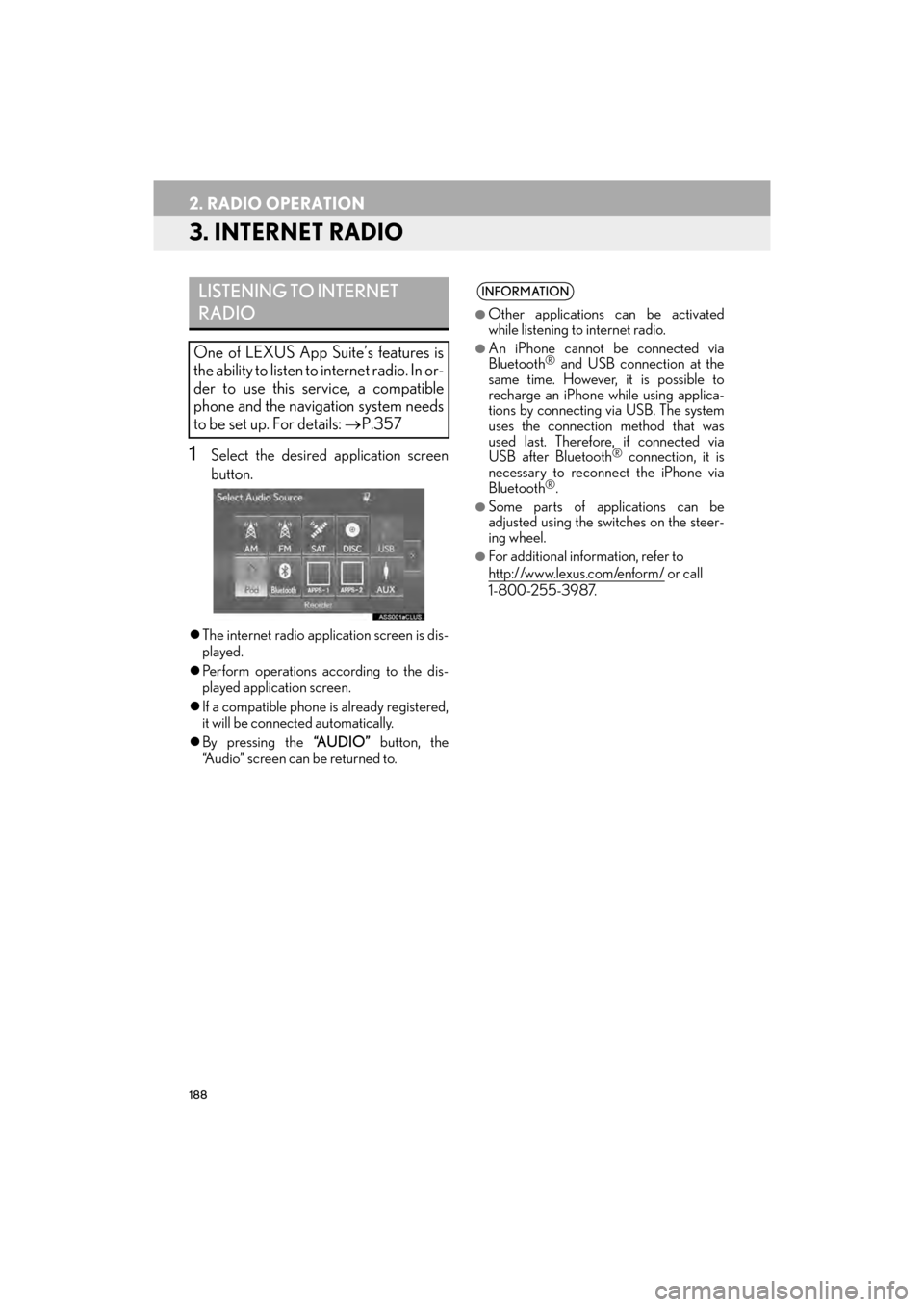

3. INTERNET RADIO
1Select the desired application screen
button.
zThe internet radio application screen is dis-
played.
z Perform operations according to the dis-
played application screen.
z If a compatible phone is already registered,
it will be connected automatically.
z By pressing the “A U D I O ” button, the
“Audio” screen can be returned to.
LISTENING TO INTERNET
RADIO
One of LEXUS App Suite’s features is
the ability to listen to internet radio. In or-
der to use this service, a compatible
phone and the navigation system needs
to be set up. For details: →P.357
INFORMATION
●
Other applications can be activated
while listening to internet radio.
●An iPhone cannot be connected via
Bluetooth® and USB connection at the
same time. However, it is possible to
recharge an iPhone while using applica-
tions by connecting via USB. The system
uses the connection method that was
used last. Therefore, if connected via
USB after Bluetooth
® connection, it is
necessary to reconnect the iPhone via
Bluetooth
®.
●Some parts of applications can be
adjusted using the switches on the steer-
ing wheel.
●For additional information, refer to
http://www.lexus.com/enform/
or call
1-800-255-3987.
GX_Navi_OM60N98U_(U).book Page 188 Monday, May 30, 2016 2:28 PM

255
GX460_Navi_OM60N98U_(U)16.05.30 14:27
4
AUDIO/VISUAL SYSTEM
5. AUDIO/VISUAL REMOTE CONTROLS
1. STEERING SWITCHES
XVolume control switch
Some parts of the audio/visual system can be adjusted using the switches on the steer-
ing wheel.
No.Switch
Volume control switch
“∧∨ ” switch
“MODE” switch
ModeOperationFunction
All
PressVolume up/down
Press and hold
(0.8 sec. or more)Volume up/down continuously
GX_Navi_OM60N98U_(U).book Page 255 Monday, May 30, 2016 2:28 PM

287
1. VOICE COMMAND SYSTEM OPERATION
5
VOICE COMMAND SYSTEM
GX460_Navi_OM60N98U_(U)16.05.30 14:27
1Press the talk switch.
2Say the phone number.
zIn the same manner as it is displayed on the
screen, “Dial ”, after saying “Dial
a number” say the phone number.
z Say the phone number one digit at a time.
For example, if the phone number is
2345678:
Say “two three four five six seven eight”
XCalling to the following phone number
• 3 digit numbers (911, 411, 611)
• 7 digit numbers (Local phone numbers)
• 10 digit numbers (Area code + Local
phone number)
• 11 digit phone numbers (1 + Area code + Local phone number)
3When the confirmation screen appears,
say “Yes” or select “Yes” or press the
switch on the steering wheel.
z As the system cannot recognize additional
numbers, say the complete number without
stopping.
X Calling to other phone number
3Say “Call” or push the switch on the
steering wheel.
VOICE COMMAND
EXAMPLE: DIAL NUMBERz When the system recognizes multiple
phone numbers, a phone number candi-
date list will be displayed on the screen.
Pressing the
switch on the steering
wheel makes a call to the top entry on the
list. If the desired phone number is not
displayed on the top of the screen, say
the number of the desired phone number
from the candidate list to select a phone
number from the candidate list.
EXPANDED VOICE
COMMANDS
Selecting “On” next to “Expanded
Voice Commands” on the “Voice Set-
tings” screen enables expanded voice
commands operation. ( →P.62)
Expanded voice commands are dis-
played on the screen of the “Other” tab.
Expanded voice commands are listed in
the table ( →P.289)
INFORMATION
●
The “Other” tab is not displayed when
“Expanded Voice Commands” is “Off”.
GX_Navi_OM60N98U_(U).book Page 287 Monday, May 30, 2016 2:28 PM

293
GX460_Navi_OM60N98U_(U)16.05.30 14:27
5
VOICE COMMAND SYSTEM
2. MOBILE ASSISTANT OPERATION
1. MOBILE ASSISTANT
1Press and hold this switch until you hear
the beeps.
2The Mobile Assistant can be used only
when the following screen is displayed.
zTo cancel the Mobile Assistant, select
“Cancel” , or press and hold the on the
steering wheel.
z To restart the Mobile Assistant for addi-
tional commands, press the on the
steering wheel.
• Mobile Assistant can only be restarted
after the system responds to a voice com-
mand. • After some phone and music commands,
the Mobile Assistant feature will automat-
ically end to complete the requested
action.
The Mobile Assistant feature will
activate Apple’s Siri® Eyes Free mode
via the steering wheel switches. To
operate the Mobile Assistant, a
compatible cellular phone must be
registered and connected to this system
via Bluetooth
®. ( → P.40)
zThe volume of the Mobile Assistant can
be adjusted using the “PWR/VOL” knob
or steering wheel volume control
switches. The Mobile Assistant and
phone call volumes are synchronized.
INFORMATION
●
The available features and functions may
vary based on the iOS version installed
on the connected device.
●Some Siri features are limited in Eyes
Free mode. If you attempt to use an
unavailable function, Siri will inform you
that the function is not available.
●If Siri is not enabled on the cellular phone
connected via Bluetooth®, an error mes-
sage will be displayed on the screen.
●While a phone call is active, the Mobile
Assistant cannot be used.
●If using the navigation feature of the cellu-
lar phone, ensure the active audio source
is Bluetooth
® audio or iPod in order to
hear turn by turn direction prompts.
GX_Navi_OM60N98U_(U).book Page 293 Monday, May 30, 2016 2:28 PM

300
GX460_Navi_OM60N98U_(U)16.05.30 14:27
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
1. QUICK REFERENCE
The phone top screen can be used to make a phone call. To display the hands-free op-
eration screen, press the
button, or the switch on the steering wheel.
Several functions are available to operate on each screen that is displayed by selecting
the 4 tabs.
FunctionPage
Phone operation
Registering/connecting Bluetooth® device40
Calling on the Bluetooth® phone305
Receiving on the Bluetooth® phone311
Talking on the Bluetooth® phone312
Message functionUsing the Bluetooth® phone message function315
Setting up a phonePhone settings322
Bluetooth® settings45
GX_Navi_OM60N98U_(U).book Page 300 Monday, May 30, 2016 2:28 PM

301
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
GX460_Navi_OM60N98U_(U)16.05.30 14:27
7
PHONE
2. SOME BASICS
The hands-free system enables calls to
be made and received without having to
take your hands off the steering wheel.
This system supports Bluetooth
®.
Bluetooth® is a wireless data system
that enables cellular phones to be used
without being connected by a cable or
placed in a cradle.
The operating procedure of the phone is
explained here.
CAUTION
●While driving, do not use a cellular phone
or connect the Bluetooth® phone.
●Your audio unit is fitted with Bluetooth®
antennas. People with implantable car-
diac pacemakers, cardiac resynchroniza-
tion therapy-pacemakers or implantable
cardioverter defibrillators should main-
tain a reasonable distance between
themselves and the Bluetooth
® antennas.
The radio waves may affect the operation
of such devices.
●Before using Bluetooth® devices, users
of any electrical medical device other
than implantable cardiac pacemakers,
cardiac resynchronization therapy-pace-
makers or implantable cardioverter
defibrillators should consult the manufac-
turer of the device for information about
its operation under the influence of radio
waves. Radio waves could have unex-
pected effects on the operation of such
medical devices.
NOTICE
●Do not leave your cellular phone in the
vehicle. The temperature inside may rise
to a level that could damage the phone.
INFORMATION
●
If your cellular phone does not support
Bluetooth®, this system cannot function.
●In the following conditions, the system
may not function:
• The cellular phone is turned off.
• The current position is outside the com- munication area.
• The cellular phone is not connected.
• The cellular phone has a low battery.
●When using Bluetooth® audio and
hands-free system at the same time, the
following problems may occur:
• The Bluetooth
® connection may be cut.
• Noise may be heard on the Bluetooth
®
audio playback.
GX_Navi_OM60N98U_(U).book Page 301 Monday, May 30, 2016 2:28 PM

302
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
GX460_Navi_OM60N98U_(U)16.05.30 14:27
XSteering switch
Volume control switch
z Press the “+” side to increase the volume.
z Press the “-” side to decrease the volume.
Off hook switch
On hook switch
REGISTERING/
CONNECTING A Bluetooth®
PHONE
To use the hands-free system for cellular
phones, it is necessary to register a cel-
lular phone with the system. ( →P.40)
Bluetooth® PHONE
CONDITION DISPLAY
The condition of the Bluetooth
® phone
appears on the upper right side of the
screen. ( →P.14)
USING THE PHONE SWITCH/
MICROPHONE
By pressing the phone switch, a call can
be received or ended without taking
your hands off the steering wheel.
GX_Navi_OM60N98U_(U).book Page 302 Monday, May 30, 2016 2:28 PM

305
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
GX460_Navi_OM60N98U_(U)16.05.30 14:27
7
PHONE
3. CALLING ON THE Bluetooth® PHONE
1Press the button.
2Select the desired tab to call from.
zThe phone top screen can be displayed by
pressing the
switch on the steering
wheel.
After a Bluetooth® phone has been reg-
istered, a call can be made using the
hands-free system. There are several
methods by which a call can be made, as
described below.
How to make a call listPage
By favorites list306
By call history306
By contacts list*307
By dial pad*310
By e-mail/SMS/MMS320
By POI call83
By off hook switch310
By LEXUS App Suite*364
By voice command system286
*: The operation cannot be performed while driving.
GX_Navi_OM60N98U_(U).book Page 305 Monday, May 30, 2016 2:28 PM
