display Lexus GX460 2017 Owner's Manual

528
GX 460 _O M_ OM6 0F 6 8U _(U )7-2. Steps to take in an emergency
If a warning message is displayed
Master warning light
The master warning light also comes on
or flashes in order to indicate that a mes-
sage is currently being displayed on the
instrument cluster.
Multi-information display
Rear height control air suspension
display
If any of the warning lights comes on ag ain after the following actions have been
performed, contact your Lexus dealer.
If a warning is shown on the instrument cluster, stay calm and perform the fol-
lowing actions:
1
2
3
GX460_OM_OM60F68U_(U).book Page 528 Wednesday, June 8, 2016 6:37 PM

5367-2. Steps to take in an emergency
GX 460 _O M_ OM6 0F 6 8U _(U )

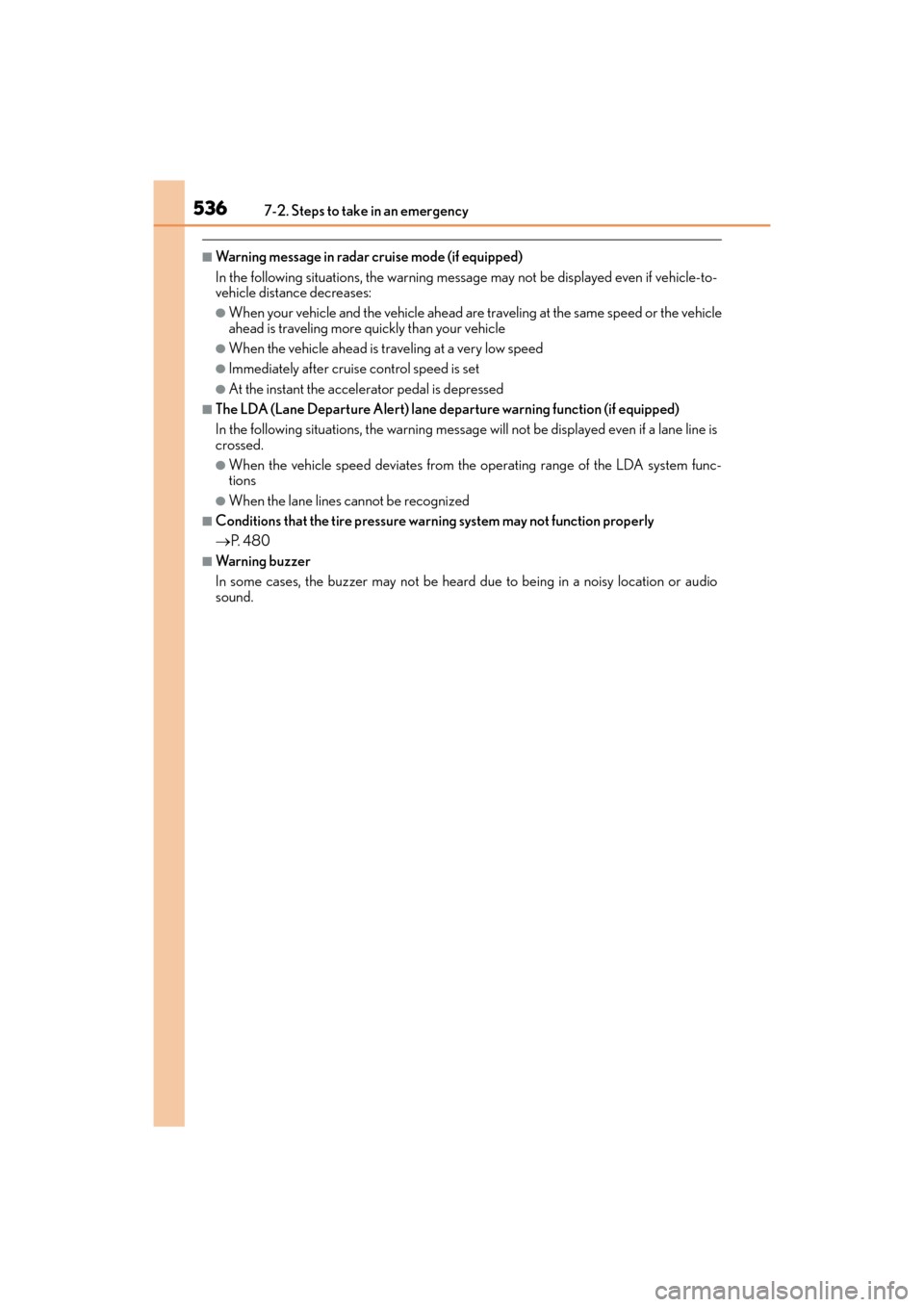

■Warning message in radar cruise mode (if equipped)
In the following situations, the warning message may not be displayed even if vehicle-to-
vehicle distance decreases:
●When your vehicle and the vehicle ahead are traveling at the same speed or the vehicle
ahead is traveling more quickly than your vehicle
●When the vehicle ahead is traveling at a very low speed
●Immediately after cruise control speed is set
●At the instant the accelerator pedal is depressed
■The LDA (Lane Departure Alert) lane departure warning function (if equipped)
In the following situations, the warning message will not be displayed even if a lane line is
crossed.
●When the vehicle speed deviates from the operating range of the LDA system func-
tions
●When the lane lines cannot be recognized
■Conditions that the tire pressure warning system may not function properly
→P. 4 8 0
■Warning buzzer
In some cases, the buzzer may not be heard due to being in a noisy location or audio
sound.
GX460_OM_OM60F68U_(U).book Page 536 Wednesday, June 8, 2016 6:37 PM

5377-2. Steps to take in an emergency
GX 460 _O M_ OM6 0F 6 8U _(U )
7
When trouble arises
Interior buzzerExteriorbuzzerWa r n i n g m e s s a g eDetails/Actions
Once 3 times The electronic key was carried out-
side the vehicle and a door other
than the driver’s door was opened
and closed while the engine switch
was in a mode other than off.
→
Bring the electronic key back
into the vehicle.
The driver’s door was opened and
closed while the electronic key was
not in the vehicle, the shift lever was
in P and the engine switch was not
turned off.
→ Turn the engine switch off.
Bring the electronic key back
into the vehicle.
OnceCon-
tinuous
An attempt was made to exit the
vehicle with the electronic key and
lock the doors without first turning
the engine switch off.
→Turn the engine switch off and
lock the doors again.
Once
• An attempt was made to start the
engine without the electronic key
being present, or the electronic
key was not functioning normally.
• An attempt was made to drive when the regular key was not
inside the vehicle.
→ Confirm that the electronic key
is inside the vehicle.
(Flashes)
(Displayed alternately)
(Flashes)
(Flashes)
GX460_OM_OM60F68U_(U).book Page 537 Wednesday, June 8, 2016 6:37 PM

5387-2. Steps to take in an emergency
GX 460 _O M_ OM6 0F 6 8U _(U )
Con-
tinuous
The driver’s door was opened when
the shift lever was not in P and the
engine switch was not turned off.
→Shift the shift lever to P.
Con-
tinuousCon-
tinuous
The driver’s door was opened and
closed while the electronic key was
not in the vehicle, the shift lever was
not in P and the engine switch was
not turned off.
→Shift the shift lever to P.
→ Bring the electronic key back
into the vehicle.
OnceContin-
uous
• An attempt was made to lock
either front door by opening a
door and putting the inside lock
button into the lock position, then
closing the door with the elec-
tronic key still inside the vehicle.
• An attempt was made to lock the doors using the smart access sys-
tem with push-button start while
the electronic key was still inside
the vehicle.
→ Retrieve the electronic key
from the vehicle and lock the
doors again.
Interior
buzzerExteriorbuzzerWa r n i n g m e s s a g eDetails/Actions
(Flashes)
(Displayed alternately)
(Flashes)
(Flashes)
GX460_OM_OM60F68U_(U).book Page 538 Wednesday, June 8, 2016 6:37 PM

594
GX 460 _O M_ OM6 0F 6 8U _(U )8-2. Customization

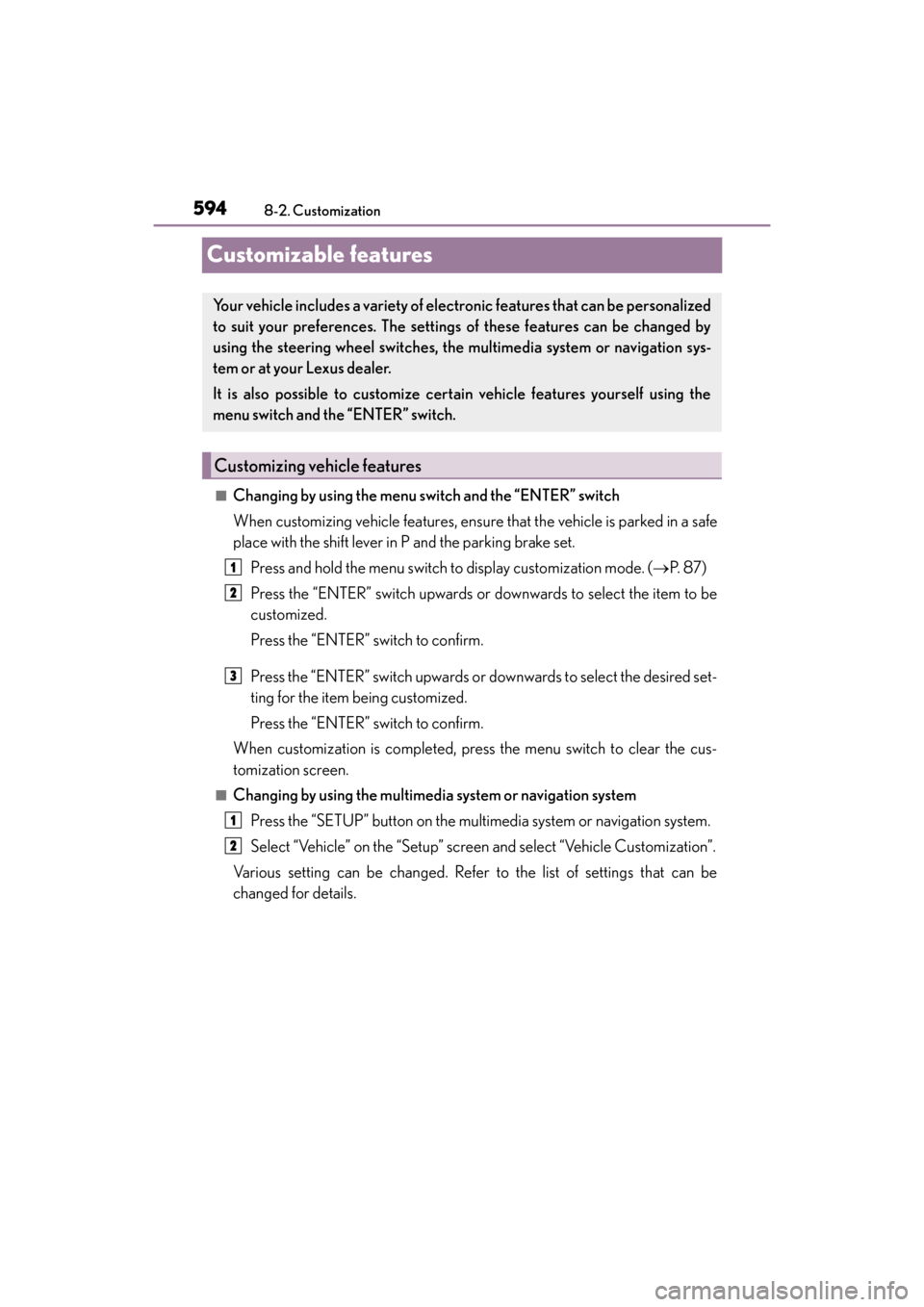

Customizable features
■Changing by using the menu switch and the “ENTER” switch
When customizing vehicle features, ensure that the vehicle is parked in a safe
place with the shift lever in
P and the parking brake set.
Press and hold the menu switch to display customization mode. ( →P. 8 7 )
Press the “ENTER” switch upwards or downwards to select the item to be
customized.
Press the “ENTER” switch to confirm.
Press the “ENTER” switch upwards or downwards to select the desired set-
ting for the item being customized.
Press the “ENTER” switch to confirm.
When customization is completed, press the menu switch to clear the cus-
tomization screen.
■Changing by using the multimedia system or navigation system
Press the “SETUP” button on the multimedia system or navigation system.
Select “Vehicle” on the “Setup” screen and select “Vehicle Customization”.
Various setting can be changed. Refer to the list of settings that can be
changed for details.
Your vehicle includes a variety of electronic features that can be personalized
to suit your preferences. The settings of these features can be changed by
using the steering wheel switches, the mu ltimedia system or navigation sys-
tem or at your Lexus dealer.
It is also possible to customize certai n vehicle features yourself using the
menu switch and the “ENTER” switch.
Customizing vehicle features
1
2
3
1
2
GX460_OM_OM60F68U_(U).book Page 594 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
5958-2. Customization
8
Vehicle specifications
Some function settings are changed simultaneously with other functions being
customized. Contact your Lexus dealer for further details.
Settings that can be changed using the menu switch and the “ENTER” switch
Settings that can be changed using the multimedia system or navigation sys-
tem
Settings that can be changed by your Lexus dealer
Definition of symbols: O = Available, – =Not available
■Multi-information display ( →P. 8 6 )
*: The default setting varies according to countries.
Customizable features
1
2
3
FunctionDefault settingCustomized
setting
Language*EnglishFrenchOOOSpanish
Units*miles (MPG US)km (km/L)O—Okm (L/100km)
Eco Driving Indicator LightOnOffO—O
123
GX460_OM_OM60F68U_(U).book Page 595 Wednesday, June 8, 2016 6:37 PM

604
GX 460 _O M_ OM6 0F 6 8U _(U )8-2. Customization
■Intuitive parking assist* (→P. 2 4 4 )
*: If equipped
■In the following situations, customize mode will automatically be turned off.
●A warning message appears after the cu
stomize mode screen is displayed.
●The engine switch is turned to OFF.
●The vehicle begins to move while the customize mode screen is displayed.
FunctionDefault settingCustomized
setting
Buzzer volumeLevel 5Level 1 to 5—OO
Display settingAll sensors displayedDisplay off—OO
Detection distance of the
front center sensorFarNear—OO
Detection distance of the
rear center sensorFarNear—OO
123
CAUTION
■During customization
As the engine needs to be running during customization, ensure that the vehicle is
parked in a place with adequate ventilation. In a closed area such as a garage, exhaust
gases including harmful carbon monoxide (CO) may collect and enter the vehicle. This
may lead to death or a serious health hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while customizing fea-
tures.
GX460_OM_OM60F68U_(U).book Page 604 Wednesday, June 8, 2016 6:37 PM

625What to do if... (Troubleshooting)
GX 460 _O M_ OM6 0F 6 8U _(U )
●Is the electronic key left inside the vehicle or the moon roof opened?
Check the message on the multi-information display. ( →P. 5 2 8 )
●When a warning light turns on or a warning message is displayed, refer to
P. 520, 528.
●Stop the vehicle in a safe place and replace the flat tire with the spare tire.
(→ P. 5 4 2 )
●Try the procedure for when the vehicle becomes stuck in mud, dirt, or snow.
(→ P. 5 6 7 )
A warning buzzer sounds wh
en leaving the vehicle
A warning light turns on or a warning message is displayed
When a problem has occurred
If you have a flat tire
The vehicle becomes stuck
GX460_OM_OM60F68U_(U).book Page 625 Wednesday, June 8, 2016 6:37 PM

628Alphabetical index
GX 460 _O M_ OM6 0F 6 8U _(U )
Condenser .............................................. 469
Console box ........................................... 406
Cool box ....................................................419
Cooling system ..................................... 467Engine overheating.......................... 564
Conversation mirror ........................... 422
Crawl Control ....................................... 346
Cruise control
Cruise control...................................... 224
Dynamic radar crui se control...... 227
Cup holders ............................................408
Curtain shield airbags ........................... 36
Current fuel consumption ................... 87
Customizable features ....................... 594
DAC (Downhill Assist Control system)................................................... 349
Daytime running light system .......... 204
Defogger Front windshield ................................ 390
Outside rear view mirrors .............. 391
Rear window ......................................... 391
Differential............................................... 575
Dimension ............................................... 570
Display
Multi-information display ..................86
Trip information ..................................... 87
Warning message ............................ 528
Do-it-yourself maintenance ............. 459
Doors............................................................ 98 Back door ........................................... 105
Door glasses ......................................... 150
Door lock ..................................................98
Open door warning light............... 522
Outside rear view mirrors ...............147
Rear door child-protector................101 Driver’s seat position memory..........135
Driving ........................................................158
AVS switch ............................................. 341
Break-in tips ...........................................159
Correct posture .................................... 28
Procedures ............................................ 158
Winter drive tips .................................377
Dynamic radar cruise control .......... 227
Eco Driving Indicator ............................ 90
EDR (Event data recorder)................... 10
Electronic key ............................................94 Battery-saving function ......................117
If the electronic key does not operate properly ........................... 558
Replacing the battery ...................... 492
Emergency, in case of
If the electronic key does not operate properly ........................... 558
If the engine will not start ...............556
If the vehicle has discharged battery ..........................561
If the warning buzzer
sounds ................................................. 520
If the warning light turns on .......... 520
If you have a flat tire .......................... 542
If you lose your keys......................... 622
If you think something is wrong.................................................... 518
If your vehicle becomes stuck...................................................... 567
If your vehicle needs to be towed .....................................................512
If your vehicle overheats ................564
D
E
GX460_OM_OM60F68U_(U).book Page 628 Wednesday, June 8, 2016 6:37 PM

632Alphabetical index
GX 460 _O M_ OM6 0F 6 8U _(U )
Meter ............................................................ 83Indicators...................................................78
Instrument panel light control .........84
Meters.........................................................83
Multi-information display ..................86
Warning lights ........................................ 78
Micro dust and pollen filter ................391
Mirrors Inside rear view mirror ..................... 145
Outside rear view mirror defoggers ............................................ 391
Outside rear view mirrors ...............147
Vanity mirrors ........................................421
Moon roof................................................. 153
Jam protection function ................... 154
Operation ............................................... 153
MP3 disc
*
Multi-information display ..................... 86
Switching the display........................... 87
Trip information ..................................... 87
Multi-terrain Monitor ...........................313
Multi-terrain Select..............................308
Navigation system
*
Odometer .................................................. 83
Off-road precautions ......................... 380
Oil Engine oil ............................................... 572
Front differential oil ........................... 575
Rear differential oil ............................ 575
Transfer................................................... 576
Opener Back door............................................... 106
Fuel filler door.......................................222
Hood........................................................ 462
Outside rear view mirrors.................. 147 Adjusting and folding ........................ 147
Blind Spot Monitor ........................... 357
Outside rear view mirror
defoggers.............................................391
Outside temperature display ............. 90
Overheating, Engine .......................... 564
Parking assist sensors
(intuitive parking assist)...................244
Parking assist monitor .........................263
Parking brake .......................................... 201 Operation................................................201
Parking brake engaged warning buzzer ...............................530
Personal lights ....................................... 402 Switch ......................................................403
Wattage ................................................. 579
N
O
P
GX460_OM_OM60F68U_(U).book Page 632 Wednesday, June 8, 2016 6:37 PM
