Lexus GX460 2017 Owner's Manual

GX 460 _O M_ OM6 0F 6 8U _(U )
1393-3. Adjusting the seats
3
Operation of each component
■Recalling the driving position using the memory recall function
●Different driving positions can be registered for each electronic key. Therefore, the
driving position that is recalled may be different depending on the key being carried.
●If a door other than the driver’s door is unlocked with the smart access system with
push-button start, the driving position cannot be recalled. In this case, press the driving
position button which has been set.
■Customization
The unlock door settings of the memory recall function can be customized.
(Customizable features: →P. 5 9 4 )
CAUTION
■Seat adjustment caution
Take care during seat adjustment so that the seat does not strike the rear passenger or
squeeze your body against the steering wheel.
GX460_OM_OM60F68U_(U).book Page 139 Wednesday, June 8, 2016 6:37 PM

140
GX 460 _O M_ OM6 0F 6 8U _(U )3-3. Adjusting the seats

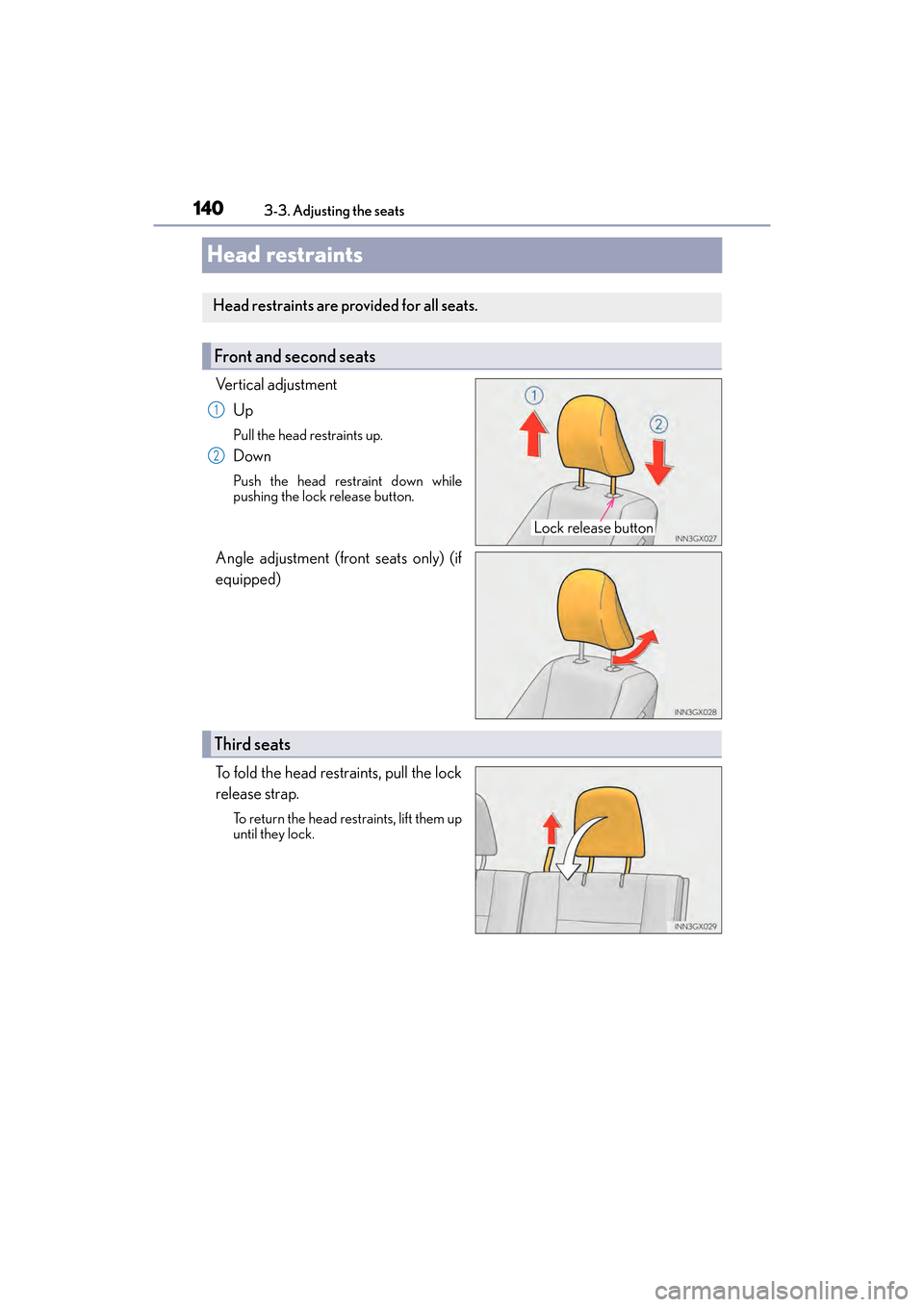

Head restraints
Vertical adjustment
Up
Pull the head restraints up.
Down
Push the head restraint down while
pushing the lock release button.
Angle adjustment (front seats only) (if
equipped)
To fold the head restraints, pull the lock
release strap.
To return the head restraints, lift them up
until they lock.
Head restraints are provided for all seats.
Front and second seats
Lock release button
1
2
Third seats
GX460_OM_OM60F68U_(U).book Page 140 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
1413-3. Adjusting the seats
3
Operation of each component

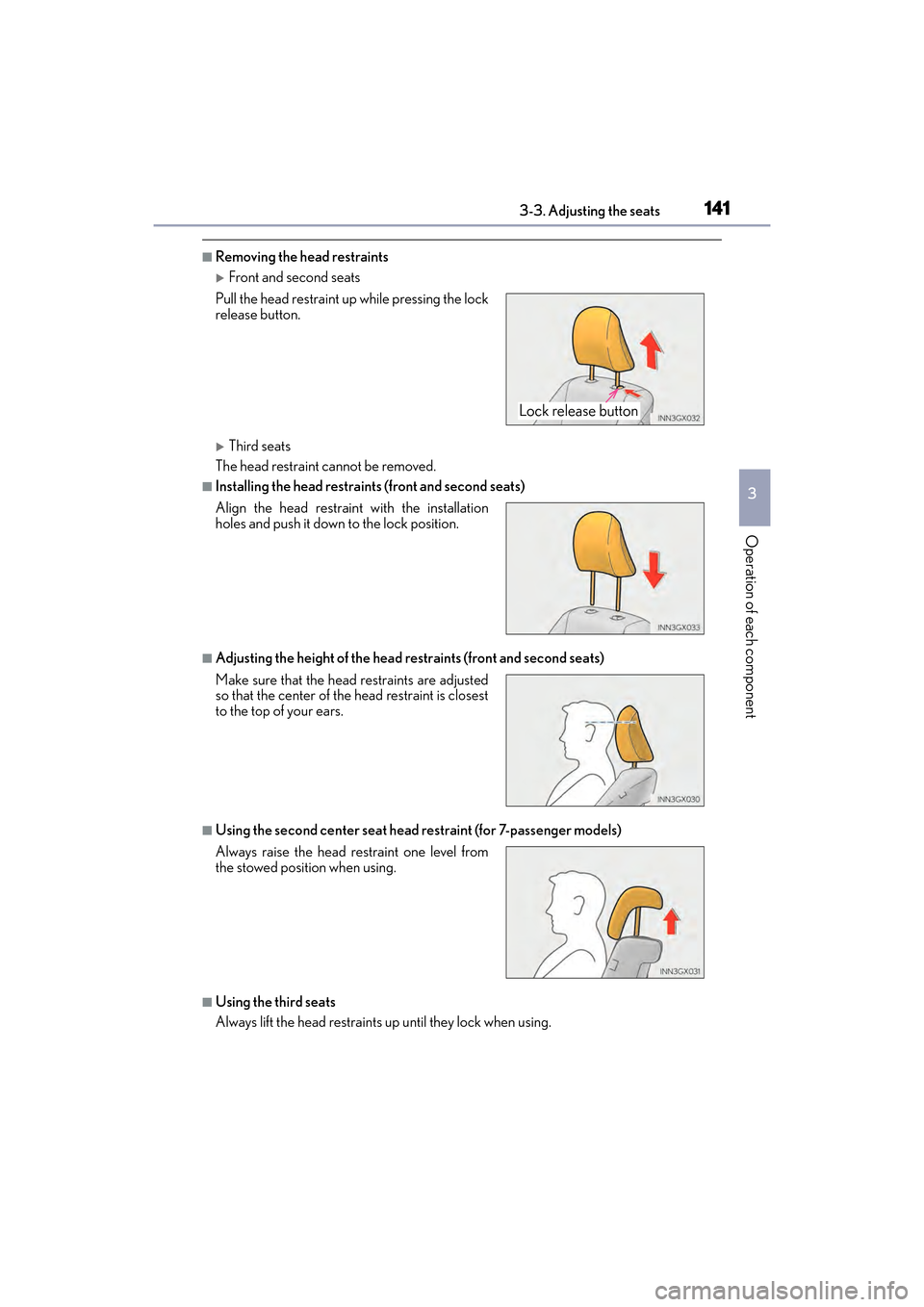

■Removing the head restraints
XFront and second seats
XThird seats
The head restraint cannot be removed.
■Installing the head restraints (front and second seats)
■Adjusting the height of the head restraints (front and second seats)
■Using the second center seat head restraint (for 7-passenger models)
■Using the third seats
Always lift the head restraints up until they lock when using. Pull the head restraint up while pressing the lock
release button.
Align the head restraint with the installation
holes and push it down to the lock position.
Make sure that the head restraints are adjusted
so that the center of the head restraint is closest
to the top of your ears.
Always raise the head restraint one level from
the stowed position when using.
Lock release button
GX460_OM_OM60F68U_(U).book Page 141 Wednesday, June 8, 2016 6:37 PM

142
GX 460 _O M_ OM6 0F 6 8U _(U )3-3. Adjusting the seats

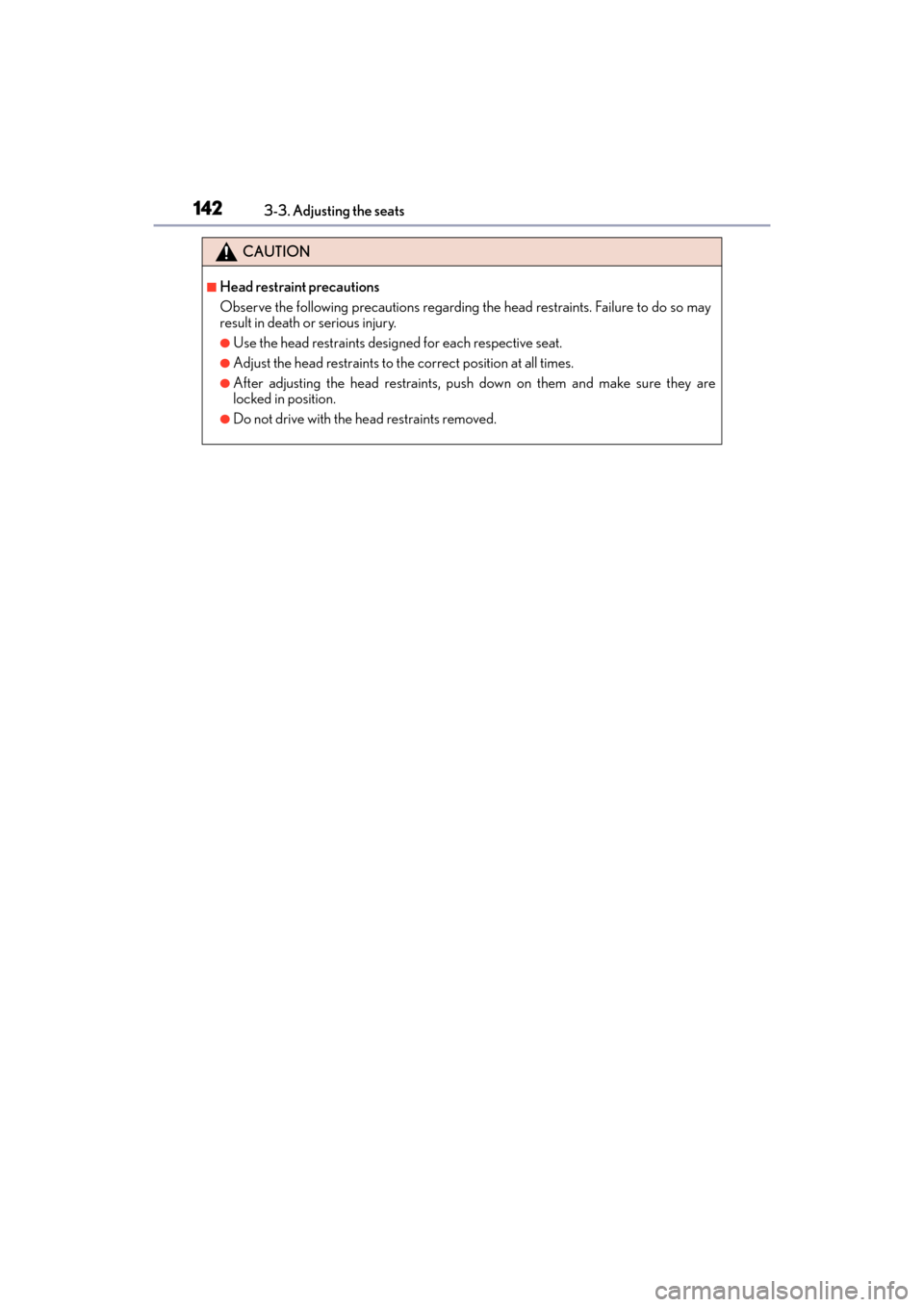

CAUTION
■Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to do so may
result in death or serious injury.
●Use the head restraints designed for each respective seat.
●Adjust the head restraints to the correct position at all times.
●After adjusting the head restraints, push
down on them and make sure they are
locked in position.
●Do not drive with the head restraints removed.
GX460_OM_OM60F68U_(U).book Page 142 Wednesday, June 8, 2016 6:37 PM

1433-4. Adjusting the steering wheel and mirrors
3
Operation of each component
GX 460 _O M_ OM6 0F 6 8U _(U )

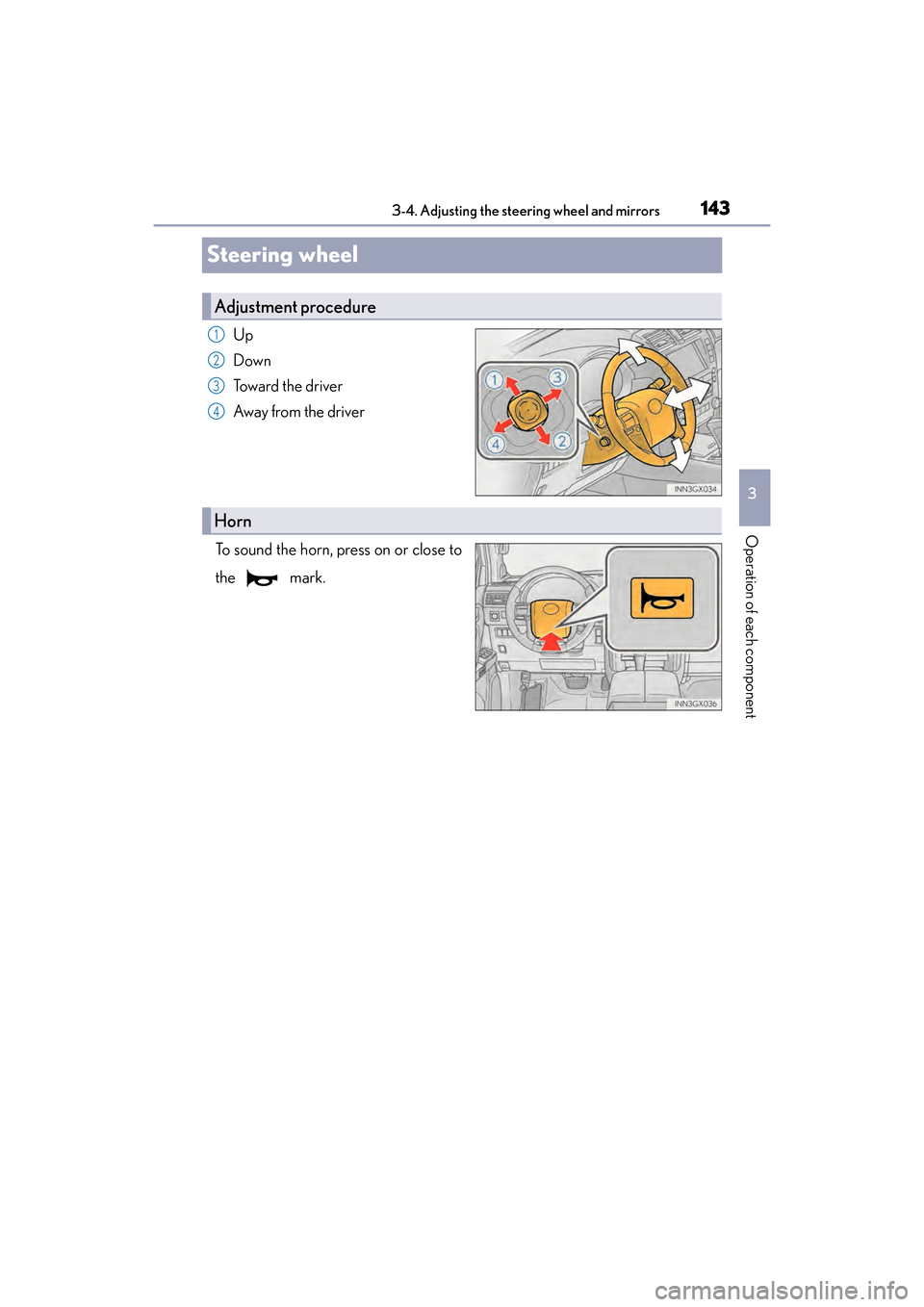

Steering wheel
Up
Down
Toward the driver
Away from the driver
To sound the horn, press on or close to
the mark.
Adjustment procedure
1
2
3
4
Horn
GX460_OM_OM60F68U_(U).book Page 143 Wednesday, June 8, 2016 6:37 PM

1443-4. Adjusting the steering wheel and mirrors
GX 460 _O M_ OM6 0F 6 8U _(U )
■The steering wheel can be adjusted when
The engine switch is in AC CESSORY or IGNITION ON mode
*.
*: If the driver’s seat belt is fastened, the steering wheel can be adjusted regardless of
engine switch mode.
■Automatic adjustment of the steering position
A desired steering position can be entered to memory and recalled automatically by the
driving position memory system. ( →P. 1 3 5 )
CAUTION
Do not adjust the steer ing wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an accident, result-
ing in death or serious injury.
GX460_OM_OM60F68U_(U).book Page 144 Wednesday, June 8, 2016 6:37 PM

1453-4. Adjusting the steering wheel and mirrors
3
Operation of each component
GX 460 _O M_ OM6 0F 6 8U _(U )
Inside rear view mirror
The height of the rear view mirror can be adjusted to suit your driving posture.
Adjust the height of the rear view mir-
ror by moving it up and down.
Responding to the level of brightness of the headlights of vehicles behind, the
reflected light is automatically reduced.
XWithout compass
Turns automatic mode on
Turns automatic mode off
The indicator comes on when automatic
mode is turned on.
The mirror reverts to automatic mode
each time the engine switch is turned to
IGNITION ON mode.
The rear view mirror’s position can be adjusted to enable sufficient confirma-
tion of the rear view.
Adjusting the height of rear view mirror
Anti-glare function
Indicator
1
2
GX460_OM_OM60F68U_(U).book Page 145 Wednesday, June 8, 2016 6:37 PM

1463-4. Adjusting the steering wheel and mirrors
GX 460 _O M_ OM6 0F 6 8U _(U )
XWi th compa ss
Changing automatic anti-glare func-
tion mode On/off
When the automatic anti-glare function
is in ON mode, the indicator illuminates.
The function will set to ON mode each
time the engine switch is turned to
IGNITION ON mode.
Pressing the button turns the function to
OFF mode. (The indicator also turns
off.)
■To prevent sensor error
Indicator
To ensure that the sensors operate properly, do
not touch or cover them.
CAUTION
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and an accident, resulting in death or
serious injury.
GX460_OM_OM60F68U_(U).book Page 146 Wednesday, June 8, 2016 6:37 PM

1473-4. Adjusting the steering wheel and mirrors
3
Operation of each component
GX 460 _O M_ OM6 0F 6 8U _(U )

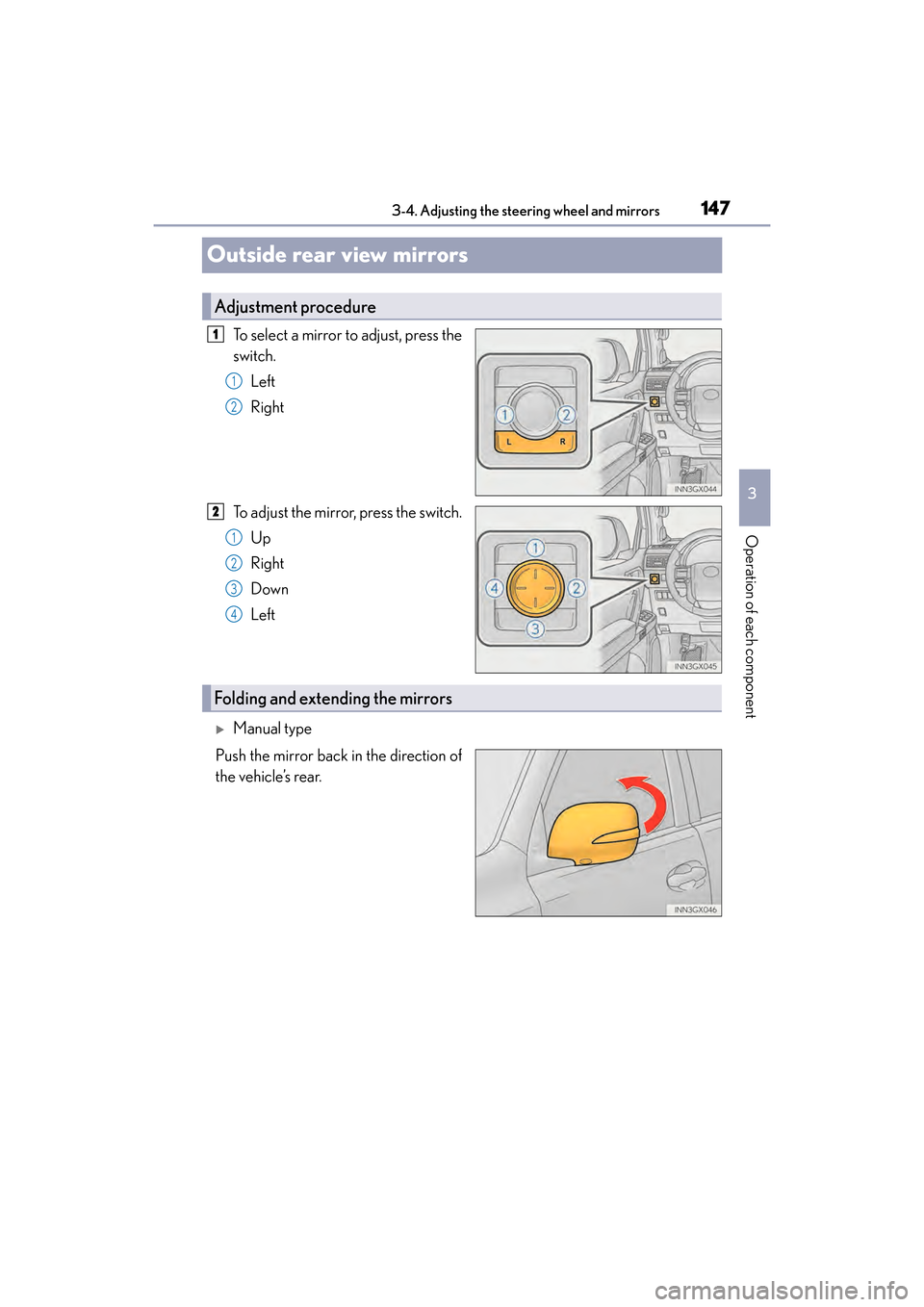

Outside rear view mirrors
To select a mirror to adjust, press the
switch.Left
Right
To adjust the mirror, press the switch. Up
Right
Down
Left
XManual type
Push the mirror back in the direction of
the vehicle’s rear.
Adjustment procedure
1
1
2
2
1
2
3
4
Folding and extending the mirrors
GX460_OM_OM60F68U_(U).book Page 147 Wednesday, June 8, 2016 6:37 PM

1483-4. Adjusting the steering wheel and mirrors
GX 460 _O M_ OM6 0F 6 8U _(U )
XPo w e r t y p e
Extends the mirrors
Folds the mirrors
When the mirror select switch is in the L or R position, the outside rear view mir-
rors will automatically angle downwards wh en the vehicle is reversing in order to
give a better view of the ground.
To disable this function, move the mirror select switch to the neutral position
(between L and R).
■Adjusting the mirror angle when the vehicle is reversing
With the shift lever in R, adjust the mirror angle at a desired position. The
adjusted angle will be memorized and the mirror will automatically tilt to the
memorized angle whenever the shift lever is shifted to R from next time.
The memorized downward tilt position of the mirror is linked to the normal position
(angle adjusted with the shift lever in othe r than R). Therefore, if the normal posi-
tion is changed after adjustment, the tilt position will also change.
When the normal position is changed, readjust the angle in reversing.
■Mirror angle can be adjusted when
The engine switch is in ACCE SSORY or IGNITION ON mode.
■When the mirrors are fogged up
Turn on the mirror defoggers to defog the mirrors. ( →P. 3 9 1 )
■Automatic adjustment of the mirror angle
A desired mirror face angle can be entered to memory and recalled automatically by the
driving position memory. ( →P. 1 3 5 )
■Auto anti-glare function
When the anti-glare inside rear view mirror is set to automatic mode, the outside rear
view mirrors will activate in conjunction with the anti-glare inside rear view mirror to
reduce reflected light. ( →P. 1 4 5 )
1
2
Linked mirror function when reversing
GX460_OM_OM60F68U_(U).book Page 148 Wednesday, June 8, 2016 6:37 PM
