When trouble arises
7-2. Steps to take in an emergency
If the vehicle becomes stuck
Stop the engine. Set the parking brake and shift the shift lever to P.
Remove the mud, snow or sand from around the stuck tire.
Place wood, stones or some other material under the tires to help provide
traction.
Restart the engine.
Lock the center differential. (→P. 3 4 3 )
Shift the shift lever to the D or R positi on and release the parking brake. Then,
while exercising caution, depress the accelerator pedal.
■When it is difficult to free the vehicle
Turn off TRAC or Active TRAC/VSC/Trailer Sway Control if these functions are ham-
pering your attempts to free the vehicle. ( →P. 3 5 3 )
Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt, or snow:
Press to turn off TRAC or Active TRAC/VSC/
Trailer Sway Control.
1
2
3
4
5
6
GX460_OM_OM60F68U_(U).book Page 567 Wednesday, June 8, 2016 6:37 PM

572
GX 460 _O M_ OM6 0F 6 8U _(U )8-1. Specifications
■Engine number
The engine number is stamped on the engine block as shown.
*: The engine oil capacity is a reference quantity to be used when changing the engine
oil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level
on the dipstick.
Engine
Model4.6 L 8-cylinder (1UR-FE)
Ty p e8-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70 × 3.27 in. (94.0 × 83.0 mm)
Displacement281.2 cu.in. (4608 cm3)
Va l v e c l e a r a n c eAutomatic adjustment
Drive belt tensionAutomatic adjustment
Fuel
Fuel typeUnleaded gasoline only
Octane rating91 (Research Octane Number 96) or higher
Fuel tank capacity (Reference)23.0 gal. (87 L, 19.1 Imp.gal.)
Lubrication system
Oil capacity
(Drain and refill — reference*)
With filter
Without filter8.2 qt. (7.8 L, 6.9 Imp.qt.)
7.8 qt. (7.4 L, 6.5 Imp.qt.)
GX460_OM_OM60F68U_(U).book Page 572 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
5738-1. Specifications
8
Vehicle specifications
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good start-
ing in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However, it
must be replaced with SAE 0W-20
at the next oil change.
Oil viscosity (0W-20 is explained here as an example):• The 0W in 0W-20 indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
How to read oil container label:
The International Lubricant Specifi-
cation Advisory Committee (ILSAC)
Certification Mark is added to some
oil containers to help you select the
oil you should use.
Outside temperature
GX460_OM_OM60F68U_(U).book Page 573 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
5758-1. Specifications
8
Vehicle specifications
*: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the factory.Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent of
matching quality to satisfy the above specification. Please contact your Lexus dealer
for further details.
*: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the factory. Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent of
matching quality to satisfy the above specification. Please contact your Lexus dealer
for further details.
Electrical system (battery)
Specific gravity reading at
68 °F (20 °C):12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11.8  12.0 V Discharged
Voltage is checked 20 minutes after the engine
and all the lights are turned off.
Charging rates5 A max.
Front differential
Oil capacity1.48 qt. (1.40 L, 1.23 Imp.qt.)
Oil type and viscosity*Toyota Genuine Differential Gear Oil LT 75W-85
GL-5 or equivalent
Rear differential
Oil capacity2.85 qt. (2.70 L, 2.38 Imp.qt.)
Oil type and viscosity*Toyota Genuine Differential Gear Oil LT 75W-85
GL-5 or equivalent
GX460_OM_OM60F68U_(U).book Page 575 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
5778-1. Specifications
8
Vehicle specifications
*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N, 50 kgf)while the engine is running
*2: Parking brake pedal travel when pulled up with a force of 44.1 lbf (196 N, 20.0 kgf)
Brakes
Pe d a l c l e a r a n c e*13.4 in. (86 mm) Min.
Pedal free play0.04  0.24 in. (1  6 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Parking brake pedal
travel
*25  7 clicks
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3
Chassis lubrication (Propeller shafts)
SpiderLithium base chassis grease, NLGI No.2
Slide yokeMolybdenum-disulfide lithium base chassis grease,
NLGI No.2 or lithium base chassis grease, NLGI No.2
GX460_OM_OM60F68U_(U).book Page 577 Wednesday, June 8, 2016 6:37 PM

580
GX 460 _O M_ OM6 0F 6 8U _(U )8-1. Specifications
Fuel information
■Gasoline quality
In very few cases, driveability problems may be caused by the brand of gasoline you are
using. If driveability problems persist, try chan
ging the brand of gasoline. If this does not
correct the problem, consult your Lexus dealer.
■Gasoline quality standards
●Automotive manufacturers in the U.S.A., Europe and Japan have developed a specifi-
cation for fuel quality called the World-Wide Fuel Charter (WWFC), which is expected
to be applied worldwide.
●The WWFC consists of four categories that are based on required emission levels. In
the U.S., category 4 has been adopted.
●The WWFC improves air quality by lowering emissions in vehicle fleets, and improves
customer satisfaction through better performance.
You must only use unleaded gasoline.
Select premium unleaded gasoline with an octane rating of 91 (Research
Octane Number 96) or higher required for optimum engine performance
and fuel economy. If the octane rating is less than 91, damage to the engine
may occur and may void the vehicle warranty.
At minimum, the gasoline you use should meet the specifications of ASTM
D4814 in the U.S.A..
GX460_OM_OM60F68U_(U).book Page 580 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
5818-1. Specifications
8
Vehicle specifications
■Recommendation of the use of gasoline containing detergent additives
●Lexus recommends the use of gasoline that contains detergent additives to avoid the
build-up of engine deposits.
●All gasoline sold in the U.S.A. contains minimum detergent additives to clean and/or
keep clean intake systems, per EPA’s lowest additives concentration program.
●Lexus strongly recommends the use of Top Tier Detergent Gasoline. For more informa-
tion on Top Tier Detergent Gasoline and a list of marketers, please go to the official
website www.toptiergas.com.
■Recommendation of the use of low emissions gasoline
Gasolines containing oxygenates such as ethers and ethanol, as well as reformulated
gasolines, are available in some cities. These fuels are typically acceptable for use, pro-
viding they meet other fuel requirements.
Lexus recommends these fuels, since the formulations allow for reduced vehicle emis-
sions.
■Non-recommendation of the use of blended gasoline
●If you use gasohol in your Lexus, be sure that it has an octane rating no lower than 91.
●Lexus does not recommend the use of gasoline containing methanol.
■Non-recommendation of the use of gasoline containing MMT
Some gasoline contains an octane enhancin g additive called MMT (Methylcy clopenta-
dienyl Manganese Tricarbonyl).
Lexus does not recommend the use of gasoline that contains MMT. If fuel containing
MMT is used, your emission control system may be adversely affected.
The malfunction indicator lamp on the instrument cluster may come on. If this happens,
contact your Lexus dealer for service.
●Use only gasoline containing up to 15% etha-
nol.
DO NOT use any flex-fuel or gasoline that
could contain more than 15% ethanol, includ-
ing from any pump labeled E30, E50, E85
(which are only some examples of fuel con-
taining more than 15% ethanol).DO NOT use gasoline
containing more than 15%
ethanol.
(30% ethanol)
(50% ethanol)
(85% ethanol)
GX460_OM_OM60F68U_(U).book Page 581 Wednesday, June 8, 2016 6:37 PM

582
GX 460 _O M_ OM6 0F 6 8U _(U )8-1. Specifications
■If your engine knocks
●Consult your Lexus dealer.
●You may occasionally notice light knocking for a short time while accelerating or driv-
ing uphill. This is normal and
there is no need for concern.
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If improper fu els are used, the engine will be damaged.
●Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic converters
causing the emission control system to malfunction.
●Do not use gasohol other than the type previously stated.
Other gasohol may cause fuel system damage or vehicle performance problems.
●Using unleaded gasoline with an octane number or rating lower than the level previ-
ously stated may cause persistent heavy knocking.
At worst, this may lead to engine damage and will void the vehicle warranty.
■Fuel-related poor driveability
If poor driveability (poor hot starting, vaporization, engine knocking, etc.) is encoun-
tered after using a different type of fuel, discontinue the use of that type of fuel.
■When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle’s paint.
GX460_OM_OM60F68U_(U).book Page 582 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
5898-1. Specifications
8
Vehicle specifications
Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pressure
Tire pressure when the vehicle has been parked for
three hours or more, or has not been driven more than 1
mile or 1.5 km under that condition
Maximum inflation pres-
sureThe maximum cold inflated pressure to which a tire may
be inflated, shown on the sidewall of the tire
Recommended inflation
pressureCold tire inflation pressure recommended by a manu-
facturer
Accessory weight
The combined weight (in excess of those standard items
which may be replaced) of automatic transmission,
power steering, power brakes, power windows, power
seats, radio and heater, to the extent that these items are
available as factory-installed equipment (whether
installed or not)
Curb weight
The weight of a motor vehicle with standard equipment,
including the maximum capacity of fuel, oil and coolant,
and if so equipped, air conditioning and additional
weight optional engine
Maximum loaded vehicle
weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant weight150 lb. (68 kg) times the number of occupants specified
in the second column of Table 1* that follows
Occupant distributionDistribution of occupants in a vehicle as specified in the
third column of Table 1* below
Production options weight
The combined weight of installed regular production
options weighing over 5 lb. (2.3 kg) in excess of the
standard items which they replace, not previously con-
sidered in curb weight or accessory weight, including
heavy duty brakes, ride levelers, roof rack, heavy duty
battery, and special trim
RimA metal support for a tire or a tire and tube assembly
upon which the tire beads are seated
GX460_OM_OM60F68U_(U).book Page 589 Wednesday, June 8, 2016 6:37 PM

600
GX 460 _O M_ OM6 0F 6 8U _(U )8-2. Customization

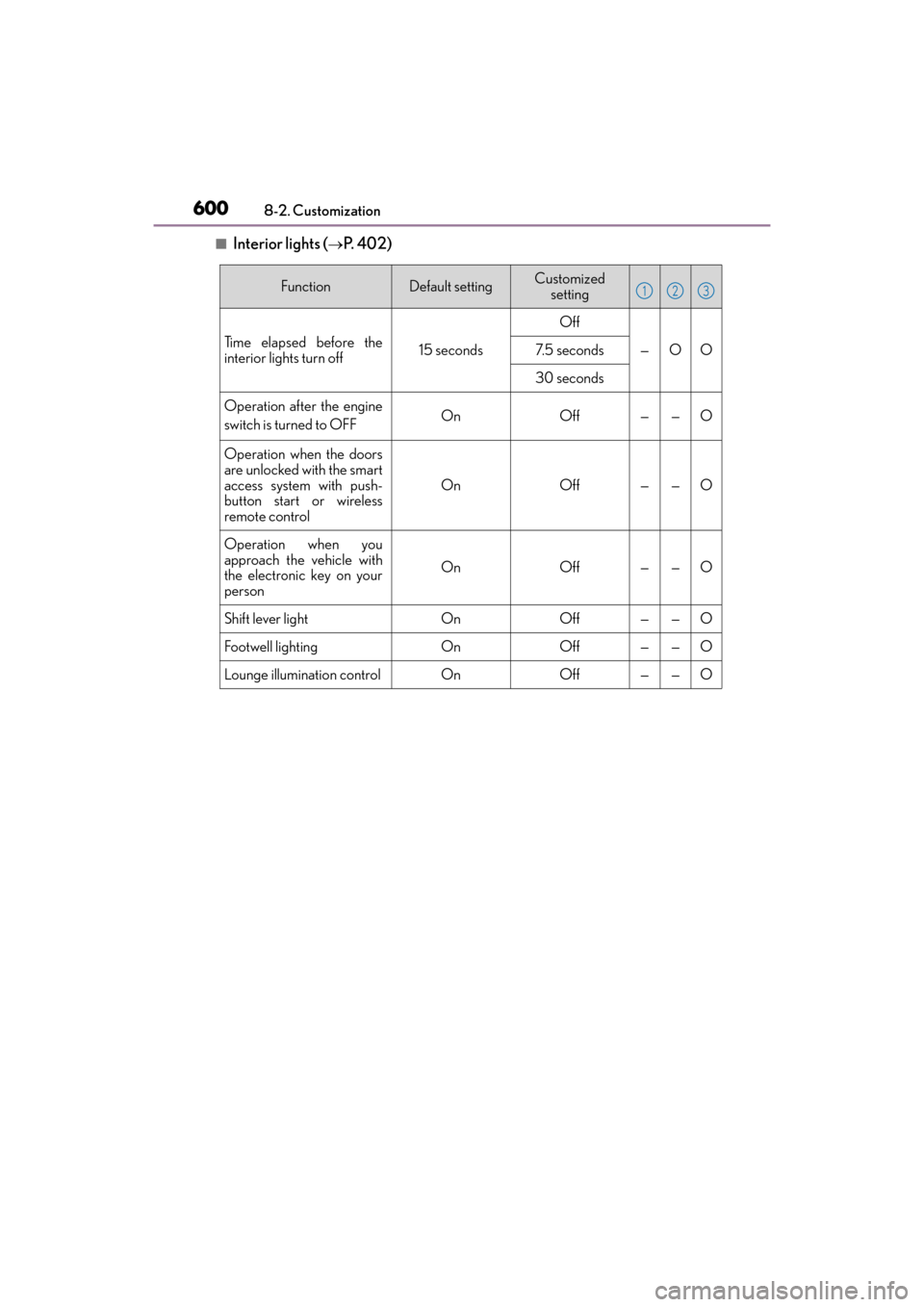

■Interior lights (→P. 4 0 2 )
FunctionDefault settingCustomized
setting
Time elapsed before the
interior lights turn off15 seconds
Off
—OO7. 5 s e c o n d s
30 seconds
Operation after the engine
switch is turned to OFFOnOff——O
Operation when the doors
are unlocked with the smart
access system with push-
button start or wireless
remote control
OnOff——O
Operation when you
approach the vehicle with
the electronic key on your
person
OnOff——O
Shift lever lightOnOff——O
Footwell lightingOnOff——O
Lounge illumination controlOnOff——O
123
GX460_OM_OM60F68U_(U).book Page 600 Wednesday, June 8, 2016 6:37 PM
