engine Lexus GX460 2017 User Guide

721-2. Theft deterrent system
GX 460 _O M_ OM6 0F 6 8U _(U )
Engine immobilizer system
The indicator light flashes after the
engine switch has been turned off to
indicate that the system is operating.
The indicator light stops flashing after
the engine switch has been turned to
ACCESSORY or IGNITION ON
mode to indicate that the system has
been canceled.
■System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
■Conditions that may cause the system to malfunction
●If the grip portion of the key is in contact with a metallic object
●If the key is in close proximity to or touching a key to the security system (key with a
built-in transponder chip) of another vehicle
■Certifications for the engine immobilizer system
XFor vehicles sold in the U.S.A., Hawaii, Guam, Saipan and Puerto Rico
The vehicle’s keys have built-in transponder chips that prevent the engine
from starting if a key has not been previously registered in the vehicle’s on-
board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
This system is designed to help prevent vehicle theft but does not guarantee
absolute security against all vehicle thefts.
GX460_OM_OM60F68U_(U).book Page 72 Wednesday, June 8, 2016 6:37 PM

741-2. Theft deterrent system
GX 460 _O M_ OM6 0F 6 8U _(U )
Alarm
The alarm uses light and sound to give an alert when an intrusion is detected.
The alarm is triggered in the following situations when the alarm is set:
●A locked door or glass hatch is unlo cked or opened in any way other than
using the entry function, wireless remote control or mechanical key. (The
doors will lock again automatically.)
●The hood is opened.
Close the doors, glass hatch and hood,
and lock all the doors. The system will
be set automatically after 30 seconds.
The indicator light changes from being
on to flashing when the system is set.
Do one of the following to deactivate or stop the alarms:
●Unlock the doors.
●Start the engine. (The alarm will be deactivated or stopped after a few sec-
onds.)
The alarm
Setting the alarm system
Deactivating or stopping the alarm
GX460_OM_OM60F68U_(U).book Page 74 Wednesday, June 8, 2016 6:37 PM

80
GX 460 _O M_ OM6 0F 6 8U _(U )2. Instrument cluster
*1: These lights turn on when the engine switch is turned to IGNITION ON mode to
indicate that a system check is being performed. They will turn off after the engine is
on, or after a few seconds. There may be a malfunction in a system if the lights do not
turn on, or turn off. Have the vehicle inspected by your Lexus dealer.
*2: The light flashes to indicate a malfunction.
The indicators inform the driver of the operating state of the vehicle’s various sys-
tems.
Indicators
Turn signal indicator
(→ P. 2 0 0 ) “SET” indicator
(
→ P. 2 2 4 , 2 2 7 )
(U.S.A.)
Headlight indicator
(→ P. 202)
(if equipped)
Dynamic radar cruise
control indicator
(→ P. 2 2 7 )
(Canada)
Tail light indicator
(→ P. 202)
(if equipped)
“LDA” (Lane Departure
Alert) indicator (→ P. 2 3 8 )
Headlight high beam
indicator ( →P. 2 0 3 )
*1, 2
Slip indicator ( →P. 3 5 2 )
(if equipped)
Automatic High Beam
indicator ( →P. 2 0 5 )*1VSC OFF indicator
(→ P. 3 5 3 )
(if equipped)
Fog light indicator
(→ P. 2 1 0 )
(if equipped)
Multi-terrain Select
indicator ( →P. 3 0 8 )
*1
Eco Driving Indicator
Light ( →P. 9 0 )
*1
(if equipped)
Crawl Control indicator
(→ P. 3 4 6 )
Cruise control indicator
( → P. 2 2 4 , 2 2 7 )
*1
(if equipped)
Downhill assist control
system indicator
(→ P. 3 4 9 )
GX460_OM_OM60F68U_(U).book Page 80 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
812. Instrument cluster
2
Instrument cluster
*1: These lights turn on when the engine switch is turned to IGNITION ON mode toindicate that a system check is being performed. They will turn off after the engine is
on, or after a few seconds. There may be a malfunction in a system if the lights do not
turn on, or turn off. Have the vehicle inspected by your Lexus dealer.
*2: The light flashes to indicate that the system is operating.
*3: The light turns on when the system is turn ed off. The light flashes quickly to indicate
that the system is operating.
*4: In order to confirm operation, the BSM outside rear view mirror indicators illumi- nate in the following situations:
• When the engine switch is turned to IGNITION ON mode while the system is set to on.
• When the system is set to on while the engine switch is in IGNITION ON mode.
If the system is functioning correctly, the BSM outside rear view mirror indicators
will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not turn off,
there may be a malfunction with the system.
If this occurs, have the vehicle inspected by your Lexus dealer.
*5: This light illuminates on the outside rear view mirrors.
*6: This light illuminates on the center panel. “2nd STRT” indicator
(
→ P. 1 9 5 )
*1, 3
(if equipped)
“PCS” warning light
(→ P. 3 6 8 )
Low speed four-wheel
drive indicator light
( → P. 3 4 2 )
(if equipped)
“BSM” (Blind Spot
Monitor) indicator
(→ P. 3 5 7 )
Center differential lock
indicator ( →P. 3 4 3 )
*4, 5
(if equipped)
BSM (Blind Spot Monitor)
outside rear view mirror
indicators ( →P. 3 5 7 )
(if equipped)
Intuitive parking assist
indicator ( →P. 2 4 4 )*1, 6“A I R B A G O N / O F F ”
indicator ( →P. 4 8 )
GX460_OM_OM60F68U_(U).book Page 81 Wednesday, June 8, 2016 6:37 PM

82
GX 460 _O M_ OM6 0F 6 8U _(U )2. Instrument cluster
CAUTION
■If a safety system warning light does not come on
Should a safety system light such as th
e ABS/Multi Terrain ABS and the SRS warning
light not come on when you start the engine, this could mean that these systems are not
available to help protect you in an acciden t, which could result in death or serious
injury. Have the vehicle inspected by your Lexus dealer immediately if this occurs.
GX460_OM_OM60F68U_(U).book Page 82 Wednesday, June 8, 2016 6:37 PM

83
GX 460 _O M_ OM6 0F 6 8U _(U )2. Instrument cluster
2
Instrument cluster
Gauges and meters
The units used on the speedometer may di
ffer depending on the target region.
Ta c h o m e t e r
Displays the engine speed in revolutions per minute
Engine coolant temperature gauge
Displays the engine coolant temperature
Multi-information display
Presents the driver with a variety of driving-related data (→P. 8 6 )
Fuel gauge
Displays the quantity of fuel remaining in the tank
Speedometer
Displays the vehicle speed
Rear height control air suspension display (if equipped)
Displays the rear height mode selected ( →P. 3 3 7 )
Shift position and shift range display
Displays the selected shift position or selected shift range ( →P. 1 9 4 )
Odometer and trip meter display
Odometer:
Displays the total distance the vehicle has been driven
Tr i p m e t e r :
Displays the distance the vehicle has been driven since the meter was last reset. Trip
meters A and B can be used to record and display different distances independently.
1
2
3
4
5
6
7
8
GX460_OM_OM60F68U_(U).book Page 83 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
852. Instrument cluster
2
Instrument cluster
■The meters and display illuminate when
The engine switch is in IGNITION ON mode.
■Instrument cluster brightness adjustment
The instrument cluster brightness levels when the tail lights are on and off can be
adjusted.
■The brightness of the instrument cluster lights
When the tail lights are on, the brightness wi ll change. However, when the surroundings
are bright (daytime, etc.) turning on the tail lights will not change the instrument cluster
brightness.
In addition, the brightness of the instrument cluster lights is automatically adjusted based
on the light sensor detecting ho w bright the surroundings are.
■When disconnecting and reconnecting battery terminals
The trip meter data will be reset.
If the trip meter was displayed last, the odometer will be displayed after resetting.
■Customization
Setting of sensitivity of the ambient light se nsor used for dimming the meter lights can be
changed. (Customizable features: → P. 5 9 4 )
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indicates
the maximum engine speed.
●The engine may be overheating if the engine coolant temperature gauge is in the red
zone (H). In this case, immediately stop the vehicle in a safe place, and check the
engine after it has cooled completely. ( →P. 5 6 4 )
GX460_OM_OM60F68U_(U).book Page 85 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
872. Instrument cluster
2
Instrument cluster
Menu switch
Changes modes to electronic features
control mode, customization mode or
back to normal display mode.
“ENTER” switch
Changes trip information items. This
switch is also used to turn on/off elec-
tronic features controls and to change
customization settings.
Trip information items displayed can be switched by pressing the “ENTER”
switch upwards or downwards.
■Outside temperature
Displays the outside temperature
• The temperature range that can be displayed is from -40°F (-40°C) to 122°F(50°C).
• When the outside temperature drops below 37°F (3°C), the outside temperature
display flashes several times.
■Front tire angle
The direction of the front tires is displayed
The tire direction is displayed in 3 stages for both left and right, in accordance with
the angle of the tire.
■Driving range
Displays the estimated maximum distance that can be driven with the quantity
of fuel remaining
• This distance is computed based on your average fuel consumption. As a result,
the actual distance that can be driven may differ from that displayed.
• When only a small amount of fuel is added to the tank, the display may not be updated.
• When refueling, turn the engine switch off. If the vehicle is refueled without turning the engine switch off, the display may not be updated.
■Average fuel consumption after refueling
Displays the average fuel consumption since the vehicle was last refueled
Use the displayed average fuel consumption as a reference.
■Current fuel consumption
Displays the current rate of fuel consumption

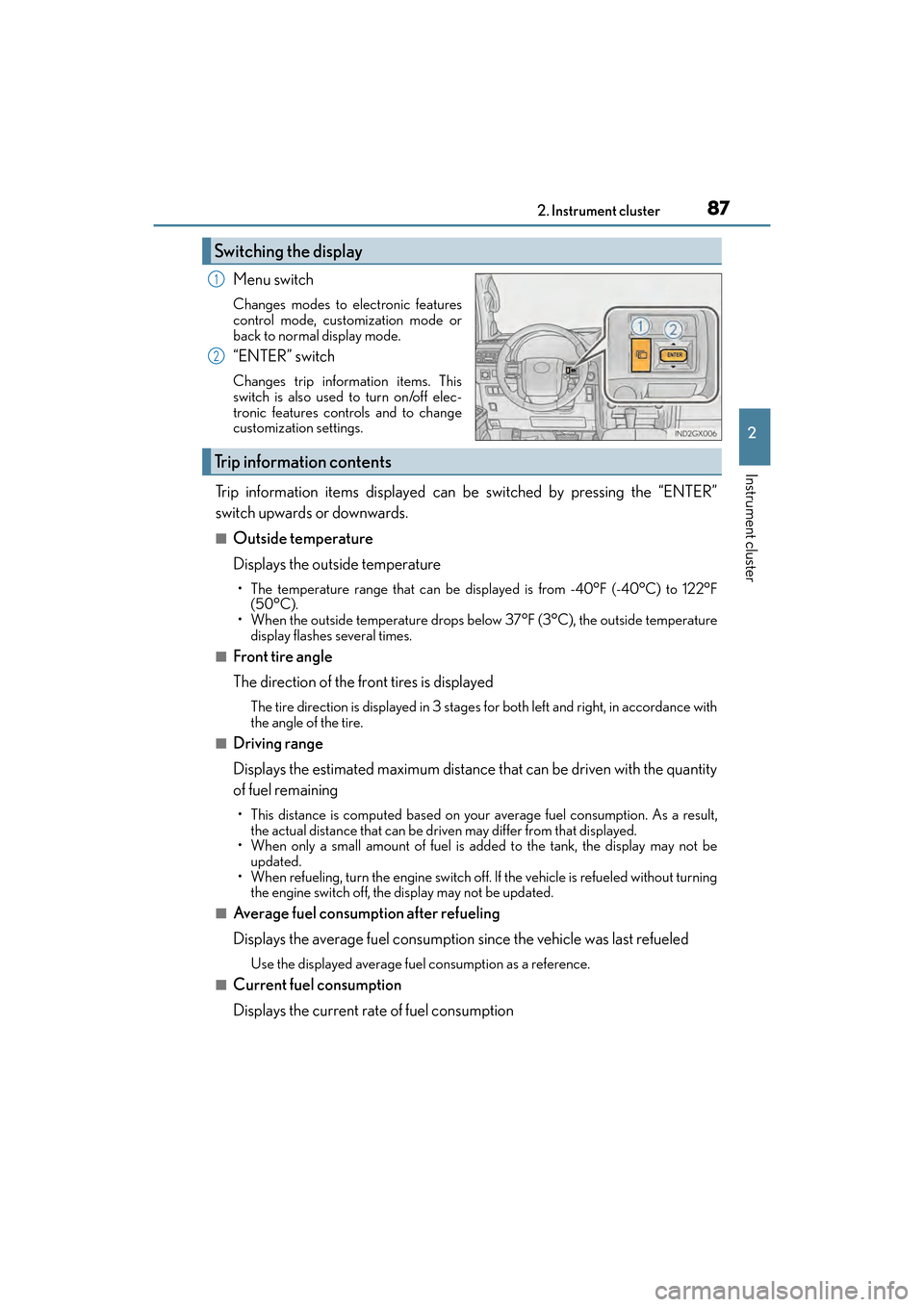

Switching the display
1
2
Trip informat ion contents
GX460_OM_OM60F68U_(U).book Page 87 Wednesday, June 8, 2016 6:37 PM

88
GX 460 _O M_ OM6 0F 6 8U _(U )2. Instrument cluster
■Average fuel consumption and Eco
Driving Indicator Zone Display
(→ P. 9 0 )
Displays the average fuel consumption since the function was reset
• The function can be reset by pressing th e “ENTER” switch for longer than 1 second
when the average fuel consumption is displayed.
• Use the displayed average fuel consumption as a reference.
■Average vehicle speed
Displays the average vehicle speed since the engine was started or the func-
tion was reset
The function can be reset by pressing the “ENTER” switch for longer than 1 second
when the average vehicle speed is displayed.
■Elapsed time
Displays the elapsed time since the function was last reset
The function can be reset by pressing the “ENTER” switch for longer than 1 second
when the elapsed time is displayed.
■Display off
A blank screen is displayed
■Multi-terrain Select (if equipped) ( →P. 3 0 8 )
■Intuitive parking assist (if equipped) ( →P. 2 4 4 )
■BSM (Blind Spot Monitor) (if equipped) ( →P. 3 5 7 )
■Second start mode ( →P. 1 9 5 )
Electronic features control contents
GX460_OM_OM60F68U_(U).book Page 88 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
892. Instrument cluster
2
Instrument cluster
■Dynamic radar cruise control display* (if equipped) (→P. 2 2 7 )
■LDA (Lane Departure Alert) display* (if equipped) ( →P. 238)
■Intuitive parking assist display* (if equipped) ( →P. 2 4 4 )
■Crawl Control display* (if equipped) ( →P. 3 4 6 )
■Wa r n i n g m e s s a g e s ( →P. 5 2 8 )
Automatically displayed when a malfunction occurs in one of the vehicles sys-
tems.
■Customization
Settings (e.g. available language) can be changed.
(Customizable features: →P. 594)
*: Automatically displayed when the system is used
■Electronic features control can be turned on/off when
Engine switch is in IGNITION ON mode.
■System check display
After turning the engine switch to IGNI TION ON mode, “CHECKING” is displayed
while system operation is checked. When the system check is complete, the normal
screen will return.
■Conditions for ending electronic features control
In the following situations, the electronic features control will end automatically:
●The menu switch is pressed
●Intuitive parking assist display starts operating
●The Crawl Control is operated
●The dynamic radar cruise control is operated
●A warning message appears after the electronic features control screen is displayed
Other contents
GX460_OM_OM60F68U_(U).book Page 89 Wednesday, June 8, 2016 6:37 PM
