Start Lexus GX460 2017 Owner's Guide

105
GX 460 _O M_ OM6 0F 6 8U _(U )3-2. Opening, closing and locking the doors
3
Operation of each component
Back door
◆Smart access system with push-button start
Carry the electronic key to enable this function.
Locks all the doors
Check that the door is securely
locked.
Unlocks all the doors
The doors cannot be unlocked for 3
seconds after the doors are locked.
◆Wireless remote control
→P. 9 8
◆Door lock switch
Locks all the doors
Unlocks all the doors
The back door can be locked/unlocked and opened by the following proce-
dures.
Locking and unlocking the ba ck door from the outside
1
2
Locking and unlocking the back door from the inside
1
2
GX460_OM_OM60F68U_(U).book Page 105 Wednesday, June 8, 2016 6:37 PM

110
GX 460 _O M_ OM6 0F 6 8U _(U )3-2. Opening, closing and locking the doors
Glass hatch
◆Glass hatch opener
Press the button to pop up the
glass hatch.
Raise
The glass hatch cannot be opened
when the back door is locked.
Unlock the back door to open the
glass hatch. (→ P. 1 0 5 )
◆Smart access system with push-button start
While carrying the electronic key,
press the button to pop up the
glass hatch.
Raise
The glass hatch can be opened even
when the back door is locked.
◆Wireless remote control
Press and hold the button to open
the glass hatch. The glass hatch will
pop up.
The glass hatch can be opened using the glass hatch opener or wireless
remote control.
Opening the glass hatch
1
2
1
2
GX460_OM_OM60F68U_(U).book Page 110 Wednesday, June 8, 2016 6:37 PM

115
GX 460 _O M_ OM6 0F 6 8U _(U )3-2. Opening, closing and locking the doors
3
Operation of each component

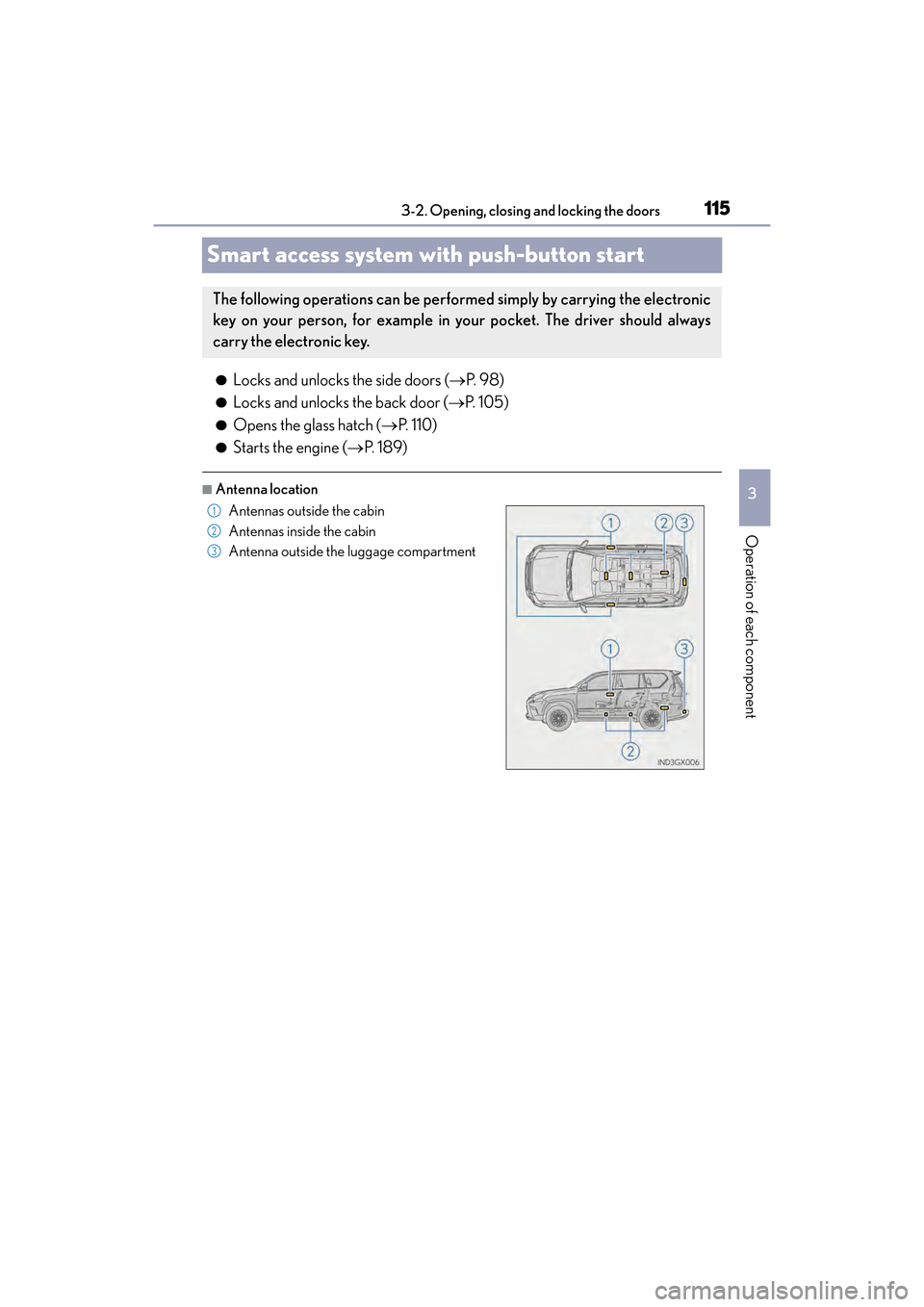

Smart access system with push-button start
●Locks and unlocks the side doors (
→P. 9 8 )
●Locks and unlocks the back door ( →P. 1 0 5 )
●Opens the glass hatch ( →P. 1 1 0 )
●Starts the engine ( →P. 1 8 9 )
■Antenna location
The following operations can be performed simply by carrying the electronic
key on your person, for example in your pocket. The driver should always
carry the electronic key.
Antennas outside the cabin
Antennas inside the cabin
Antenna outside the luggage compartment1
2
3
GX460_OM_OM60F68U_(U).book Page 115 Wednesday, June 8, 2016 6:37 PM

116
GX 460 _O M_ OM6 0F 6 8U _(U )3-2. Opening, closing and locking the doors
■Effective range (areas within which the electronic key is detected)
When starting the engine or changing engine switch modesThe system can be operated when the electronic key is inside the vehicle.
■Alarms and warning indicators
A combination of exterior and interior alarms as well as warning messages shown on the
multi-information display are used to prevent theft of the vehicle and accidents resulting
from erroneous operation. Take appropriate measures in response to any warning mes-
sage on the multi-information display. ( →P. 5 2 8 )
When locking or unlocking the doors
The system can be operated when the elec-
tronic key is within about 2.3 ft. (0.7 m) of
either of the outside front door handle.
(Only the doors detecting the key can be
operated.)
When opening the glass hatch and locking
or unlocking the back door
The system can be operated when the elec-
tronic key is within about 2.3 ft. (0.7 m) of
the back door handle.
AlarmSituationCorrection procedure
Exterior alarm
sounds once for
5 seconds
An attempt was made to lock
the vehicle while a door and/or
the glass hatch was open.Close all of the doors
and/or the glass hatch,
and lock the doors
again.
An attempt was made to close
the glass hatch while the elec-
tronic key was still inside the
vehicle.Open the glass hatch
again and retrieve the
electronic key from the
vehicle.
Interior alarm pings
continuously
The engine switch was turned to
ACCESSORY mode while the
driver’s door was open (or the
driver’s door was opened while
the engine switch was in
ACCESSORY mode).
Tu r n t h e e n g i n e s w i t c h
off and close the driver’s
door.
GX460_OM_OM60F68U_(U).book Page 116 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
1173-2. Opening, closing and locking the doors
3
Operation of each component
■Battery-saving function
The battery-saving function will be activated in order to prevent the electronic key bat-
tery and the vehicle battery from being discharged while the vehicle is not in operation
for a long time.
●In the following situations, the smart access system with push-button start may take
some time to unlock the doors.
• The electronic key has been left in an area of approximately 6 ft. (2 m) of the outside
of the vehicle for 10 minutes or longer.
• The smart access system with push-button start has not been used for 5 days or
longer.
●If the smart access system with push-button start has not been used for 14 days or
longer, the doors cannot be unlocked at any doors except the driver’s door. In this case,
take hold of the driver’s door handle, or use the wireless remote control or the mechan-
ical key, to unlock the doors.
■Conditions affecting operation
The smart access system with push-button start uses weak radio waves. In the following
situations, the communication between the electronic key and the vehicle may be
affected, preventing the smart access system with push-button start, wireless remote
control and engine immobilizer system from operating properly.
(Ways of coping: →P. 5 5 8 )
●When the electronic key battery is depleted
●Near a TV tower, electric power plant, gas station, radio station, large display, airport or
other facility that generates strong radio waves or electrical noise
●When carrying a portable radio, cellular phone, cordless phone or other wireless com-
munication device
●When the electronic key is in contact with , or is covered by the following metallic
objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
•Coins
•Hand warmers made of metal
• Media such as CDs and DVDs
●When other wireless keys (that emit radio waves) are being used nearby
●When carrying the electronic key together with the following devices that emit radio
waves
• Another vehicle’s electronic key or a wireless key that emits radio waves
• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems
●If window tint with a metallic content or me tallic objects are attached to the rear win-
dow
GX460_OM_OM60F68U_(U).book Page 117 Wednesday, June 8, 2016 6:37 PM

118
GX 460 _O M_ OM6 0F 6 8U _(U )3-2. Opening, closing and locking the doors
■Note for the entry function
●Even when the electronic key is within the effective range (detection areas), the system
may not operate properly in the following cases:
• The electronic key is too close to the
window or outside door handle, near the
ground, or in a high place when the doors are locked or unlocked.
• The electronic key is near the ground or in a high place, or too close to the rear
bumper center when the glass hatch is opened.
• The electronic key is on the instrument panel, luggage cover or floor, or in the door pockets or glove box when the engine is started or engine switch modes are
changed.
●Do not leave the electronic key on top of the instrument panel or near the door pockets
when exiting the vehicle. Depending on the radio wave reception conditions, it may be
detected by the antenna outside the cabin and the doors will become lockable from the
outside, possibly trapping the electronic key inside the vehicle.
●As long as the electronic key is within th e effective range, the doors may be locked or
unlocked by anyone. However, only the doors detecting the electronic key can be used
to unlock the vehicle.
●Even if the electronic key is not inside the vehicle, it may be possible to start the engine
if the electronic key is near the window.
●The doors may lock or unlock if a large amou nt of water splashes on the door handle,
such as in the rain or in a car wash, when th e electronic key is within the effective range.
(The doors will automatically be locked after approximately 60 seconds if the doors or
the glass hatch are not opened and closed.)
●If the wireless remote control is used to lock the doors when the electronic key is near
the vehicle, there is a possibility that the door may not be unlocked by the entry func-
tion. (Use the wireless remote control to unlock the doors.)
●Touching the door lock sensor while wearing gloves may prevent lock operation.
●If the door handle becomes wet while the electronic key is within the effective range,
the door may lock and unlock repeatedly. Place the electronic key in a location 6 ft. (2
m) or more away from the vehicle. (Take care to ensure that the key is not stolen.)
●If the electronic key is inside the vehicle and a door handle becomes wet during a car
wash, a message may be shown on the multi-information display and a buzzer will
sound outside the vehicle. To turn off the alarm, lock all the doors.
●The lock sensor may not work properly if it comes into contact with ice, snow, mud, etc.
Clean the lock sensor and attempt to operate it again, or use the lock sensor on the
lower part of the door handle.
●Fingernails may scrape against the door during operation of the door handle.
Be careful not to injure fingernails or damage the surface of the door.
●A sudden approach to the effective range or door handle may prevent the doors from
being unlocked. In this case, return the door handle to the original position and check
that the doors unlock before pulling the door handle again.
●Unlocking the vehicle may take more time if another electronic key is within the effec-
tive range.
GX460_OM_OM60F68U_(U).book Page 118 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
1193-2. Opening, closing and locking the doors
3
Operation of each component
■When the vehicle is not driven for extended periods
●To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2 m) of the
vehicle.
●The smart access system with push-button start can be deactivated in advance.
(→ P. 5 9 4 )
■To operate the system properly
Make sure to carry the electronic key when operating the system. Do not get the elec-
tronic key too close to the vehicle when operating the system from the outside of the
vehicle.
Depending on the position and holding condit ion of the electronic key, the key may not
be detected correctly and the system may not operate properly. (The alarm may go off
accidentally, or the door lock prevention function may not operate.)
■If the smart access system with push-b utton start does not operate properly
●Locking and unlocking the doors: Use the mechanical key. ( →P. 5 5 8 )
●Starting the engine: →P. 5 5 9
■Customization
Settings (e. g. smart access system with push-button start) can be changed.
(Customizable features: →P. 5 9 4 )
■If the smart access system with push-button start has been deactivated in a customized
setting
●Locking and unlocking the doors:
Use the wireless remote control or mechanical key. ( →P. 9 8 , 5 5 8 )
●Starting the engine and changing engine switch modes: →P. 5 5 9
●Stopping the engine: →P. 1 9 0
GX460_OM_OM60F68U_(U).book Page 119 Wednesday, June 8, 2016 6:37 PM

120
GX 460 _O M_ OM6 0F 6 8U _(U )3-2. Opening, closing and locking the doors

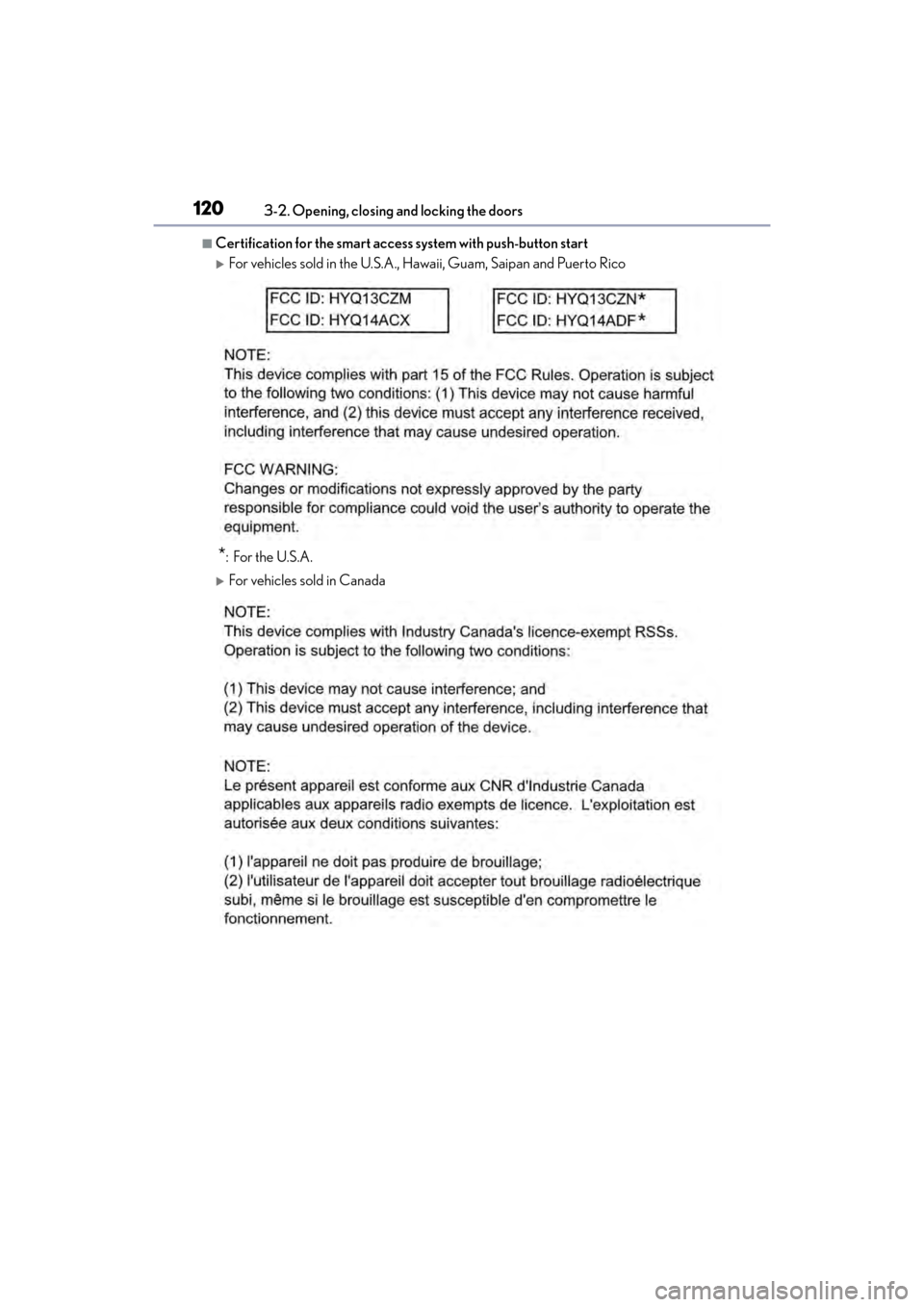

■Certification for the smart access system with push-button start
XFor vehicles sold in the U.S.A., Hawaii, Guam, Saipan and Puerto Rico
*:For the U.S.A.
XFor vehicles sold in Canada
GX460_OM_OM60F68U_(U).book Page 120 Wednesday, June 8, 2016 6:37 PM

138
GX 460 _O M_ OM6 0F 6 8U _(U )3-3. Adjusting the seats
While pressing the recalled but-
ton, press and hold the door lock
switch (either lock or unlock) until
the buzzer sounds.
If the button could not be registered,
the buzzer sounds continuously for
approximately 3 seconds.
■Recall procedure
Carry the electronic key that has been registered to the driving position,
and then unlock and open the driver’s door using the smart access system
with push-button start or wireless remote control.
The driving position will move to the recorded position (not including the steering
wheel). However, the seat will move to a position slightly behind the recorded posi-
tion in order to make entering the vehicle easier.
If the driving position is in a position that has already been recorded, the seat and
outside rear view mirrors will not move.
Turn the engine switch to ACCESSORY mode or IGNITION ON mode,
or fasten a seat belt.
The seat and steer ing wheel will move to the recorded position.
■Cancelation procedure
Carry only the key you want to cancel and then close the driver’s door.
If 2 or more keys are in the vehicle, the driving position cannot be canceled
properly.
Turn the engine switch to IGNITION ON mode.
While pressing the “SET” button, press and hold the door lock switch
(either lock or unlock) until the buzzer sounds twice.
If the button could not be canceled, the buzzer sounds continuously for approxi-
mately 3 seconds.
4
1
2
1
2
GX460_OM_OM60F68U_(U).book Page 138 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )

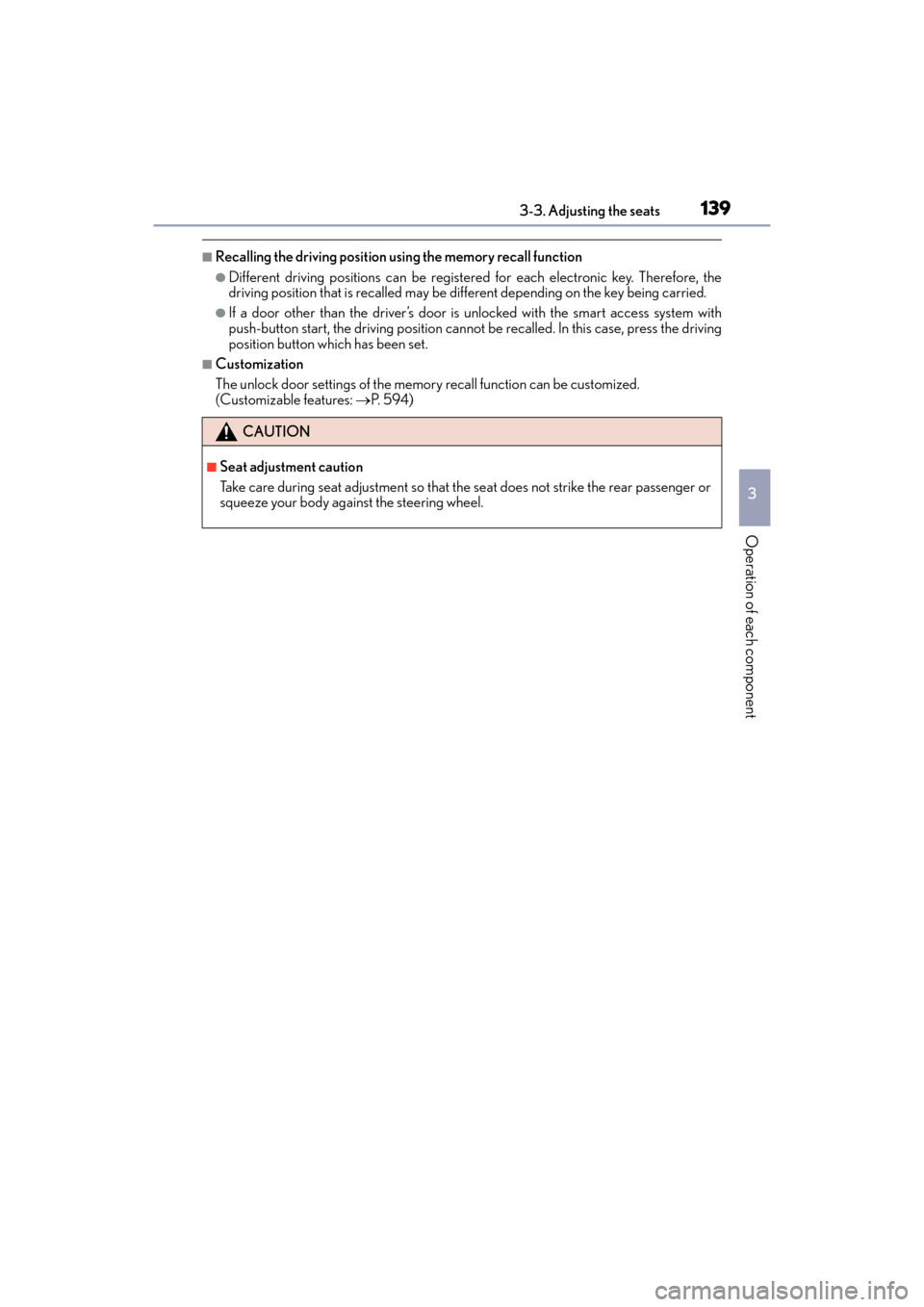

1393-3. Adjusting the seats
3
Operation of each component
■Recalling the driving position using the memory recall function
●Different driving positions can be registered for each electronic key. Therefore, the
driving position that is recalled may be different depending on the key being carried.
●If a door other than the driver’s door is unlocked with the smart access system with
push-button start, the driving position cannot be recalled. In this case, press the driving
position button which has been set.
■Customization
The unlock door settings of the memory recall function can be customized.
(Customizable features: →P. 5 9 4 )
CAUTION
■Seat adjustment caution
Take care during seat adjustment so that the seat does not strike the rear passenger or
squeeze your body against the steering wheel.
GX460_OM_OM60F68U_(U).book Page 139 Wednesday, June 8, 2016 6:37 PM
