GX 460 _O M_ OM6 0F 6 8U _(U )7-2. Steps to take in an emergency
If the electronic key does not operate properly
Use the mechanical key (
→P. 9 5 ) i n
order to perform the following opera-
tions (driver’s door only):
Locks all the doors
Closes the windows and moon roof
*
(turn and hold)
Unlocks the doors
Turning the key rearward unlocks the
driver’s door. Turning the key once again
unlocks the other doors.
Opens the windows and moon roof* (turn and hold)
*: These settings must be customized at your Lexus dealer.
If communication between the electronic key and vehicle is interrupted
(→ P. 117) or the electronic key cannot be used because the battery is
depleted, the smart access system with push-button start and wireless
remote control cannot be used. In such cases, the doors can be opened and
the engine can be started by following the procedure below.
Locking and unlocking the door s and key linked functions
1
2
3
4
GX460_OM_OM60F68U_(U).book Page 558 Wednesday, June 8, 2016 6:37 PM

5597-2. Steps to take in an emergency
GX 460 _O M_ OM6 0F 6 8U _(U )
7
When trouble arises
Ensure that the shift lever is in P and depress the brake pedal.
Touch the Lexus emblem side of the
electronic key to the engine switch.
If any of the doors is opened or closed
while the key is being touched to the
switch, an alarm will sound to indicate
that the start function cannot detect the
electronic key.
Press the engine switch within 10 seconds of the buzzer sounding, keeping the
brake pedal depressed.
In the event that the engine switch still cannot be operated, contact your Lexus
dealer.
■Stopping the engine
Shift the shift lever to P and press the engine switch as you normally do when stopping
the engine.
■Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the electronic
key battery be replaced immediately when the battery is depleted. ( →P. 4 9 2 )
■Changing engine switch modes
Within 10 seconds of the buzzer sounding, release the brake pedal and press the engine
switch.
The engine does not start and modes will be changed each time the switch is pressed.
( → P. 1 9 0 )
■When the electronic key does not work properly
Make sure that the smart access system with push-button start has not been deactivated
in the customization setting. If it is off, turn the function on.
(Customizable features: →P. 5 9 4 )
Starting the engine
1
2
3
GX460_OM_OM60F68U_(U).book Page 559 Wednesday, June 8, 2016 6:37 PM

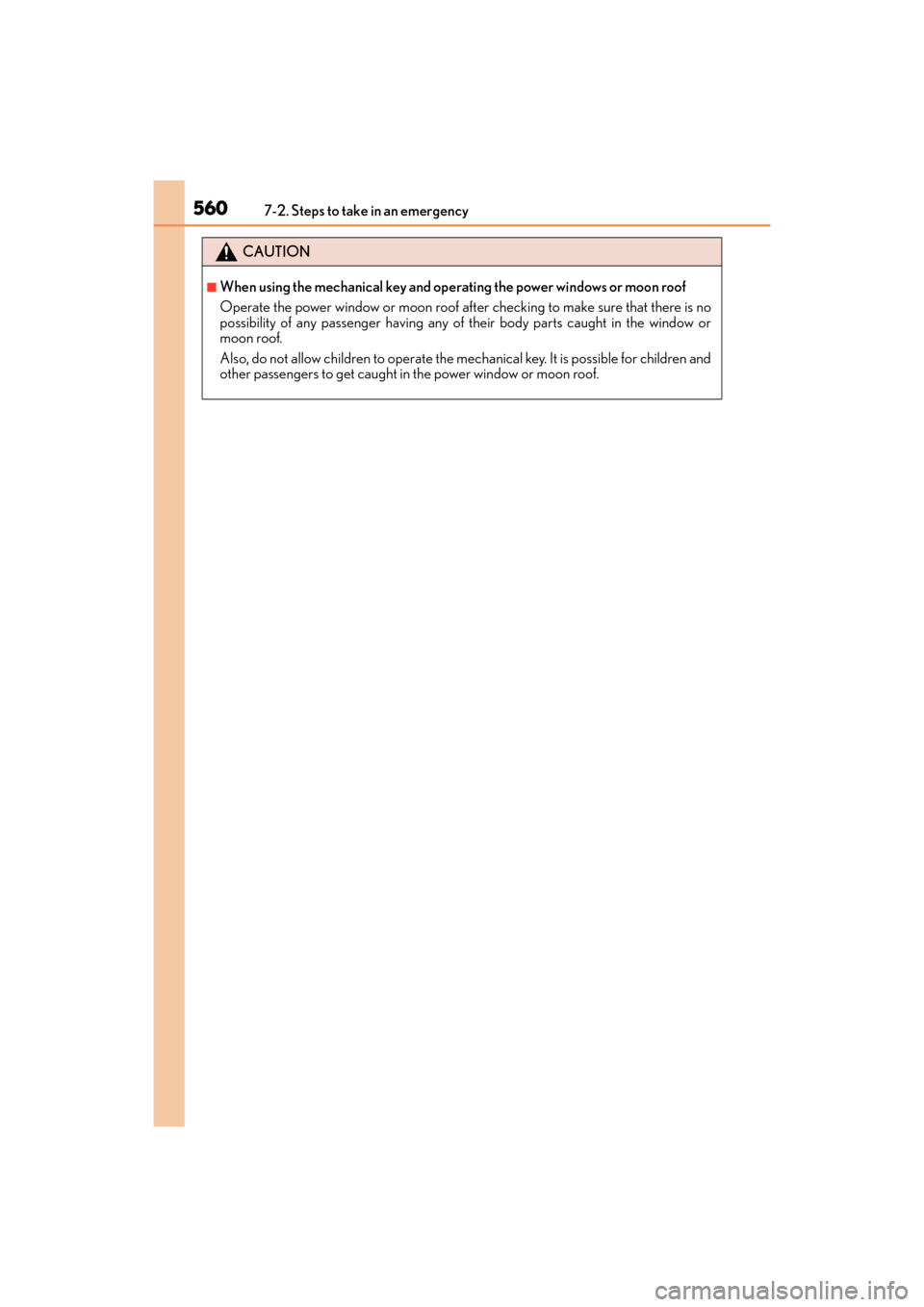

5607-2. Steps to take in an emergency
GX 460 _O M_ OM6 0F 6 8U _(U )
CAUTION
■When using the mechanical key and operating the power windows or moon roof
Operate the power window or moon roof after checking to make sure that there is no
possibility of any passenger having any of their body parts caught in the window or
moon roof.
Also, do not allow children to operate the mechanical key. It is possible for children and
other passengers to get caught in the power window or moon roof.
GX460_OM_OM60F68U_(U).book Page 560 Wednesday, June 8, 2016 6:37 PM

561
GX 460 _O M_ OM6 0F 6 8U _(U )
7
When trouble arises
7-2. Steps to take in an emergency
If the vehicle battery is discharged
If you have a set of jumper (or booster) cables and a second vehicle with a 12 volt
battery, you can jump start your Lexus by following the steps below.Confirm that the electronic key is
being carried.
When connecting the jumper (or
booster) cables, depending on the situa-
tion, the alarm may activate and the
doors locked. ( →P. 7 5 )
Open the hood. ( →P. 4 6 2 )
Connecting the jumper cables acco rding to the following procedure:
Positive (+) battery terminal on your vehicle.
Positive (+) battery terminal on the second vehicle.
Negative (-) battery terminal on the second vehicle.
Connect the jumper cable to ground on your vehicle as shown in the illus-
tration.
The following procedures may be used to start the engine if the vehicle’s bat-
tery is discharged.
You can call your Lexus dealer, or qualified repair shop.
1
2
3
1
2
3
4
GX460_OM_OM60F68U_(U).book Page 561 Wednesday, June 8, 2016 6:37 PM

5627-2. Steps to take in an emergency
GX 460 _O M_ OM6 0F 6 8U _(U )
Start the engine of the second vehicle. Increase the engine speed slightly and
maintain at that level for approximately 5 minutes to recharge the battery of
your vehicle.
Open and close any of the doors of your vehicle with the engine switch off.
Maintain the engine speed of the second vehicle and start the engine of your
vehicle by turning the engine switch to IGNITION ON mode.
Once your vehicle’s engine has started, remove the jumper cables in the exact
reverse order in which they were connected.
Once the engine starts, have the vehicle checked at your Lexus dealer as soon
as possible.
■Starting the engine when the battery is discharged
The engine cannot be started by push-starting.
■To prevent battery discharge
●Turn off the headlights and the audio system while the engine is off.
●Turn off any unnecessary electrical components when the vehicle is running at a low
speed for an extended period, such as in heavy traffic.
■Charging the battery
The electricity stored in the battery will disc harge gradually even when the vehicle is not
in use, due to natural discharge and the draining effects of certain electrical appliances. If
the vehicle is left for a long time, the battery may discharge, and the engine may be
unable to start. (The battery recharges automatically during driving.)
■When recharging or replacing the battery
●In some cases, it may not be possible to unlock the doors using the smart access system
with push-button start when the battery is discharged. Use the wireless remote control
or the mechanical key to lock or unlock the doors.
●The engine may not start on the first attempt after the battery has recharged but will
start normally after the second attempt. This is not a malfunction.
●The engine switch mode is memorized by the vehicle. When the battery is recon-
nected, the system will return to the mode it was in before the battery was discharged.
Before disconnecting the battery, turn the engine switch off. If you are unsure what
mode the engine switch was in before the battery discharged, be especially careful
when reconnecting the battery.
4
5
6
7
GX460_OM_OM60F68U_(U).book Page 562 Wednesday, June 8, 2016 6:37 PM

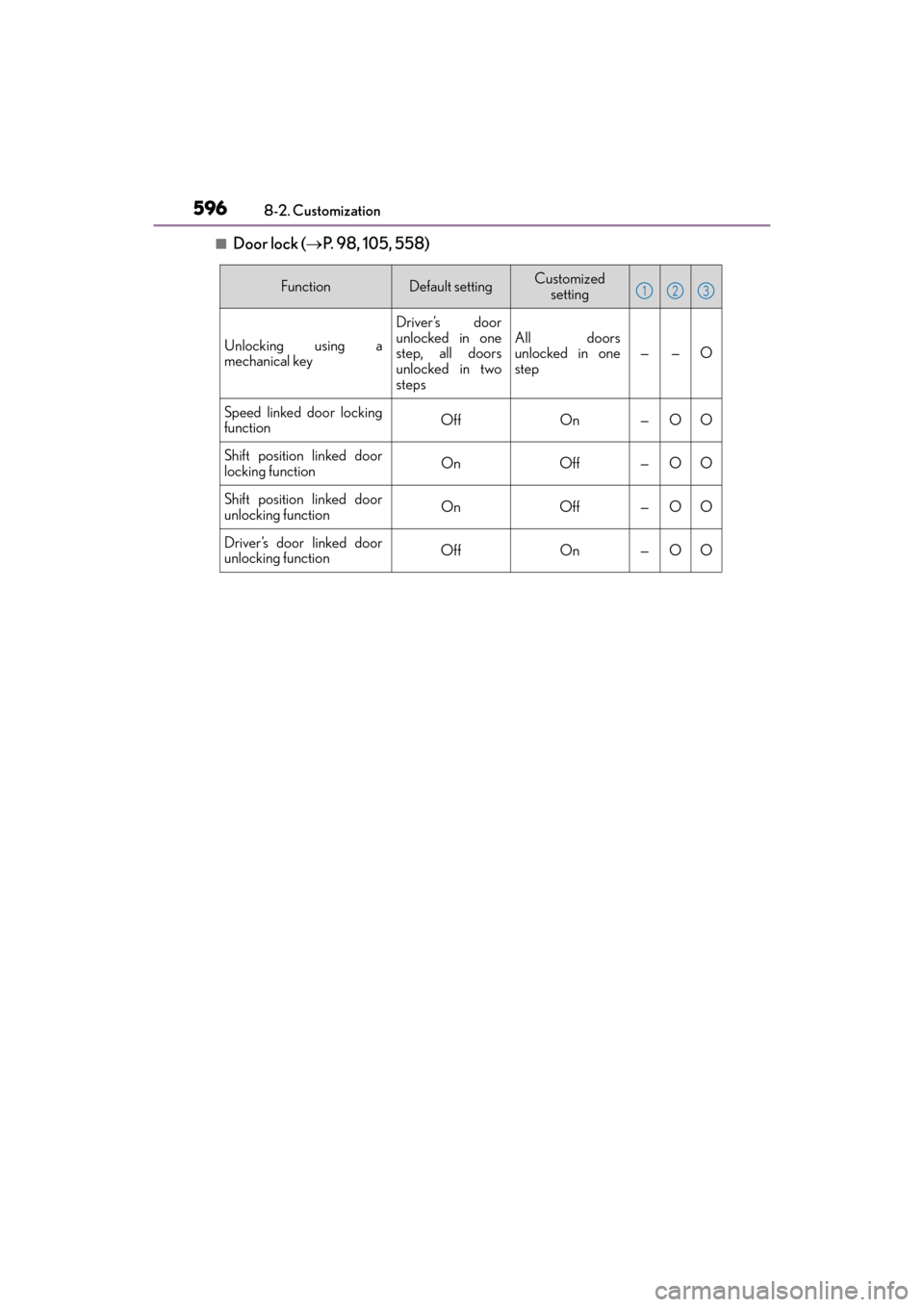

596
GX 460 _O M_ OM6 0F 6 8U _(U )8-2. Customization
■Door lock (
→P. 98, 105, 558)
FunctionDefault settingCustomized
setting
Unlocking using a
mechanical key
Driver’s door
unlocked in one
step, all doors
unlocked in two
stepsAll doors
unlocked in one
step——O
Speed linked door locking
functionOffOn—OO
Shift position linked door
locking functionOnOff—OO
Shift position linked door
unlocking functionOnOff—OO
Driver’s door linked door
unlocking functionOffOn—OO
123
GX460_OM_OM60F68U_(U).book Page 596 Wednesday, June 8, 2016 6:37 PM

600
GX 460 _O M_ OM6 0F 6 8U _(U )8-2. Customization
■Interior lights (→P. 4 0 2 )
FunctionDefault settingCustomized
setting
Time elapsed before the
interior lights turn off15 seconds
Off
—OO7. 5 s e c o n d s
30 seconds
Operation after the engine
switch is turned to OFFOnOff——O
Operation when the doors
are unlocked with the smart
access system with push-
button start or wireless
remote control
OnOff——O
Operation when you
approach the vehicle with
the electronic key on your
person
OnOff——O
Shift lever lightOnOff——O
Footwell lightingOnOff——O
Lounge illumination controlOnOff——O
123
GX460_OM_OM60F68U_(U).book Page 600 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
6018-2. Customization
8
Vehicle specifications
■Exterior lights (→P. 4 0 2 )
FunctionDefault settingCustomized setting
Time elapsed before the
exterior lights turn off15 seconds
Off
—OO7. 5 s e c o n d s
30 seconds
Operation when the doors
are unlocked with the smart
access system with push-
button start or wireless
remote control
OnOff——O
Operation when you
approach the vehicle with
the electronic key on your
person
OnOff——O
Running board lightsOnOff——O
Operation when the door is
openedOnOff——O
123
GX460_OM_OM60F68U_(U).book Page 601 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
6038-2. Customization
8
Vehicle specifications
■Seat belt reminder buzzer (→P. 5 2 0 )
■Po w e r w i n d o w s (→P. 150) and moon roof (→P. 1 5 3 )
FunctionDefault settingCustomized setting
Speed-linked seat belt
reminder functionOnOff——O
123
FunctionDefault settingCustomized setting
Mechanical key linked
operation (close)OffOn——O
Mechanical key linked
operation (open)OffOn——O
Wireless remote control
linked operation (open)OffOn——O
Wireless remote control
linked operation signal
(buzzer)OnOff——O
123
GX460_OM_OM60F68U_(U).book Page 603 Wednesday, June 8, 2016 6:37 PM

622What to do if... (Troubleshooting)
GX 460 _O M_ OM6 0F 6 8U _(U )
What to do if... (Troubleshooting)
●If you lose your mechanical keys, new genuine mechanical keys can be made
by your Lexus dealer. ( →P. 9 5 )
●If you lose your electronic keys, the risk of vehicle theft increases significantly.
Contact your Lexus dealer immediately. ( →P. 9 7 )
●Is the electronic key battery weak or depleted? ( →P. 4 9 2 )
●Is the engine switch in IGNITION ON mode?
When locking the doors, turn the engine switch off. ( →P. 1 9 0 )
●Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic key on your
person.
●The function may not operate properly du e to the condition of the radio wave.
( → P. 117)
●Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when the lock is set.
Open the rear door from outside and then unlock the child-protector lock.
(→ P. 1 0 1 )
If you have a problem, check the following before contacting your Lexus
dealer.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked
The rear door cannot be opened
