792. Instrument cluster
2
Instrument cluster
Warning lights inform the driver of malfunctions in any of the vehicle’s systems.
Warning lights
*1
(U.S.A.)
Brake system warning light
(→ P. 5 2 0 )*1LED headlight warning light
(→ P. 5 2 1 )
*1
(Canada)
Brake system warning light
(→ P. 5 2 0 )*1, 2Automatic headlight
leveling system warning
light ( →P. 5 2 1 )
*1Charging system warning
light ( →P. 5 2 0 )*1Kinetic dynamic suspension
system warning light
(→ P. 5 2 1 )
*1
(U.S.A.)
Malfunction indicator lamp
(→ P. 5 2 0 )*2Low speed four-wheel
drive indicator light
(→ P. 5 2 2 )
*1
(Canada)
Malfunction indicator lamp
(→ P. 5 2 0 )*2Center differential lock
indicator light ( →P. 5 2 2 )
*1SRS warning light
(→ P. 5 2 0 ) Open door warning light
(
→ P. 5 2 2 )
*1
(U.S.A.)
ABS warning light
(→ P. 5 2 0 ) Low fuel level warning light
(
→ P. 5 2 2 )
*1
(Canada)
ABS warning light
(→ P. 5 2 0 ) Seat belt reminder light
(
→ P. 5 2 2 )
*1, 2
(if equipped)
Pre-collision system
warning light ( →P. 5 2 1 )*1Master warning light
(→ P. 5 2 2 )
*1Slip indicator light
(→ P. 5 2 1 )*1Tire pressure warning light
(→ P. 5 2 2 )
GX460_OM_OM60F68U_(U).book Page 79 Wednesday, June 8, 2016 6:37 PM

476
GX 460 _O M_ OM6 0F 6 8U _(U )6-3. Do-it-yourself maintenance
Tires
Check if the treadwear indicators are showing on the tires. Also check the tires
for uneven wear, such as excessive wear on one side if the tread.
Check the spare tire condition and pressure if not rotated.
New tread
Wo r n t r e a d
Treadwear indicator
The location of treadwear indicators is shown by the “TWI” or “ ∆” mark, etc., molded
into the sidewall of each tire.
Replace the tires if the treadwear indicators are showing on a tire.
Rotate the tires in the order shown.
To equalize tire wear and extend tire life,
Lexus recommends that tire rotation is
carried out at the same interval as tire
inspection.
Replace or rotate tires in accordance with maintenance schedules and tread-
wear.
Checking tires
Tire rotation
1
2
3
Front
GX460_OM_OM60F68U_(U).book Page 476 Wednesday, June 8, 2016 6:37 PM

478
GX 460 _O M_ OM6 0F 6 8U _(U )6-3. Do-it-yourself maintenance

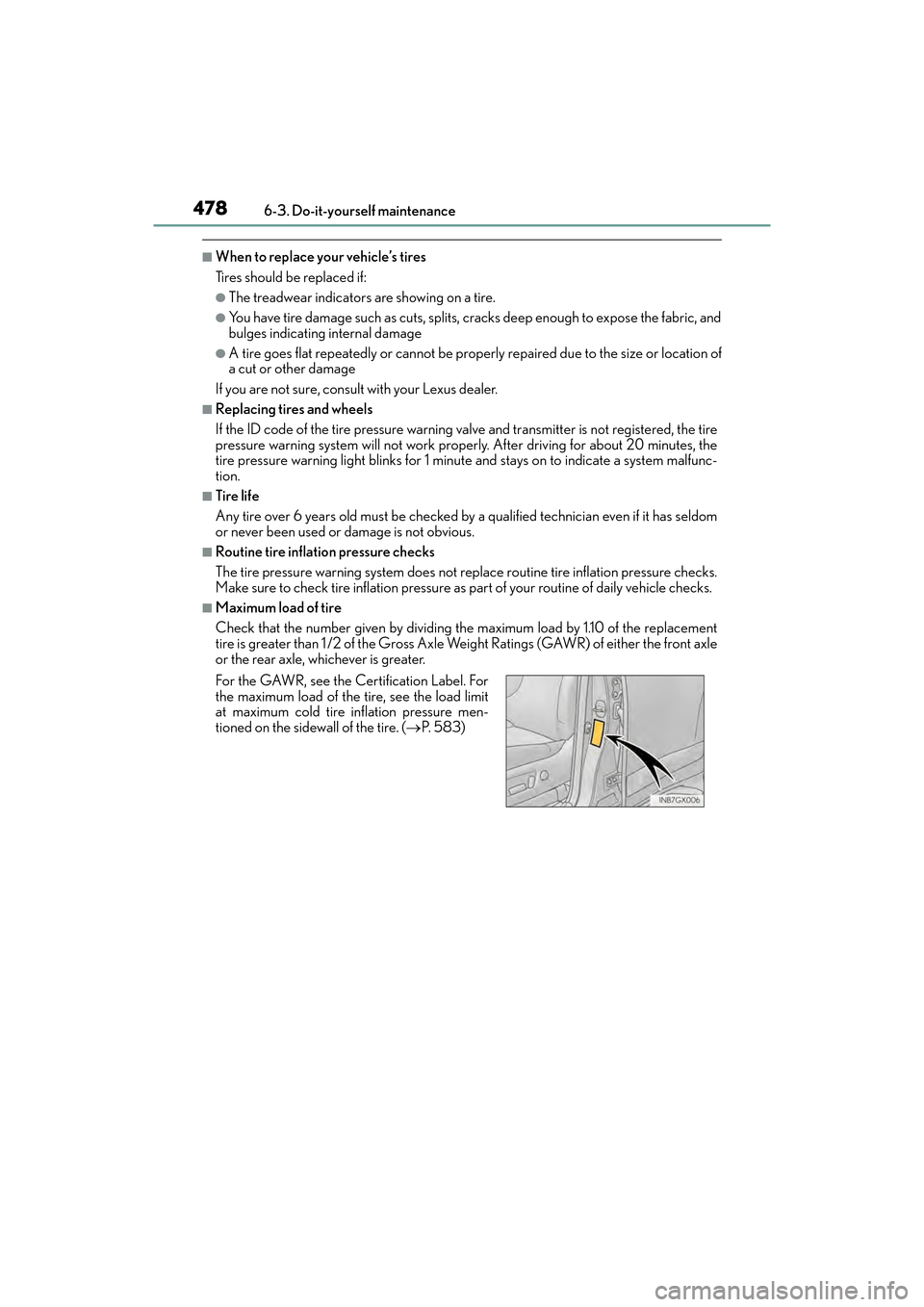

■When to replace your vehicle’s tires
Tires should be replaced if:
●The treadwear indicators are showing on a tire.
●You have tire damage such as cuts, splits, cracks deep enough to expose the fabric, and
bulges indicating internal damage
●A tire goes flat repeatedly or cannot be properly repaired due to the size or location of
a cut or other damage
If you are not sure, consult with your Lexus dealer.
■Replacing tires and wheels
If the ID code of the tire pressure warning valve and transmitter is not registered, the tire
pressure warning system will not work properly. After driving for about 20 minutes, the
tire pressure warning light blinks for 1 minu te and stays on to indicate a system malfunc-
tion.
■Tire life
Any tire over 6 years old must be checked by a qualified technician even if it has seldom
or never been used or damage is not obvious.
■Routine tire inflation pressure checks
The tire pressure warning system does not replace routine tire inflation pressure checks.
Make sure to check tire inflation pressure as part of your routine of daily vehicle checks.
■Maximum load of tire
Check that the number given by dividing the maximum load by 1.10 of the replacement
tire is greater than 1 /2 of the Gross Axle Weight Ratings (GAWR) of either the front axle
or the rear axle, whichever is greater.
For the GAWR, see the Certification Label. For
the maximum load of the tire, see the load limit
at maximum cold tire inflation pressure men-
tioned on the sidewall of the tire. ( →P. 5 8 3 )
GX460_OM_OM60F68U_(U).book Page 478 Wednesday, June 8, 2016 6:37 PM

5227-2. Steps to take in an emergency
GX 460 _O M_ OM6 0F 6 8U _(U )
(Flashes)
Low speed four-wheel drive indicator lightIndicates a malfunction in the four-wheel drive system if the light
continues flashing. ( →P. 3 4 2 )
→ Have the vehicle inspected by your Lexus dealer immediately.
(Flashes)
Center differential lock indicator light
Indicates a malfunction in the four-wheel drive system if the light
continues flashing. ( →P. 3 4 2 )
→ Have the vehicle inspected by your Lexus dealer immediately.
Open door warning light (warning buzzer)*1
Indicates that a door or the glass hatch is not fully closed
→ Check that all the doors and the glass hatch are closed.
Low fuel level warning light
Indicates that remaining fuel is approximately 3.5 gal. (13.1 L, 2.9
Imp. gal.) or less
→ Refuel the vehicle.
Driver’s and front passenger’s seat belt reminder light (warning
buzzer)
*2
Warns the driver and/or front passenger to fasten their seat belts
→ Fasten the seat belt.
If the front passenger’s seat is occupied, the front passenger’s
seat belt also needs to be fastened to make the warning light
(warning buzzer) turn off.
Master warning light
A buzzer sounds and the warning light comes on and flashes to
indicate that the master warning system has detected a malfunc-
tion.
→ P. 5 2 8
Tire pressure warning light
When the light comes on:
Low tire inflation pressure such as
• Natural causes (→ P. 5 2 4 )
•Flat tire ( →P. 5 4 2 )
→ Adjust the tire inflation pressure to the specified level.
The light will turn off after a few minutes. In case the light does
not turn off even if the tire inflation pressure is adjusted, have the
system checked by your Lexus dealer.
When the light comes on after blinking for 1 minute:
Malfunction in the tire pressure warning system
→ Have the system checked by your Lexus dealer.
Warning lightWarning light/Details/Actions
GX460_OM_OM60F68U_(U).book Page 522 Wednesday, June 8, 2016 6:37 PM

5247-2. Steps to take in an emergency
GX 460 _O M_ OM6 0F 6 8U _(U )
■If the low speed four-wheel drive indicator light or the center differential lock indicator
light blinks
Take the specified steps. (→P. 3 4 4 )
■When the tire pressure warning light comes on
Check the tire inflation pressure and adjust to the appropriate level.
■The tire pressure warning light may turn on due to natural causes
The tire pressure warning light may turn on due to natural causes such as natural air leaks
or tire inflation pressure changes caused by temperature. In this case, adjusting the tire
inflation pressure will turn off the warning light (after a few minutes).
■When a tire is replaced with a spare tire
The tire pressure warning light will turn on if the tire inflation pressure of the spare tire is
low. If a tire goes flat, the tire pressure warning light will not turn off even though the flat
tire has been replaced with the spare tire.
■Conditions that the tire pressure warning system may not function properly
→ P. 4 8 0
■If the tire pressure warning light freque ntly comes on after blinking for 1 minute
If the tire pressure warning light frequently comes on after blinking for 1 minute when the
engine switch is turned to IGNITION ON mode, have it checked by your Lexus dealer.
■Warning buzzer
In some cases, the buzzer may not be heard due to being in a noisy location or audio
sound.
■Customization
The vehicle speed linked seat belt reminder buzzer can be disabled.
(Customizable features: →P. 5 9 4 )
GX460_OM_OM60F68U_(U).book Page 524 Wednesday, June 8, 2016 6:37 PM

5267-2. Steps to take in an emergency
GX 460 _O M_ OM6 0F 6 8U _(U )
CAUTION
■Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly when cold and
inflated to the inflation pressure recommended by the vehicle manufacturer on the
vehicle placard or tire inflation pressure label (tire and load information label). (If your
vehicle has tires of a different size than the size indicated on the vehicle placard or tire
inflation pressure label [tire and load in formation label], you should determine the
proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire pressure moni-
toring system (TPMS-tire pressure warning system) that illuminates a low tire pressure
telltale (tire pressure warning light) when on e or more of your tires is significantly
under-inflated. Accordingly, when the low ti re pressure telltale (tire pressure warning
light) illuminates, you should stop and check yo ur tires as soon as possible, and inflate
them to the proper pressure. Driving on a significantly under-inflated tire causes the
tire to overheat and can lead to tire failure. Under-inflation also reduces fuel efficiency
and tire tread life, and may affect the vehicle’s handling and stopping ability.
Please note that the TPMS (tire pressure warning system) is not a substitute for proper
tire maintenance, and it is the driver’s responsibility to maintain correct tire pressure,
even if under-inflation has not reached the level to trigger illumination of the TPMS low
tire pressure telltale (tire pressure warning light).
Your vehicle has also been equipped with a TPMS (tire pressure warning system) mal-
function indicator to indicate when the system is not operating properly. The TPMS
(tire pressure warning system) malfunction indicator is combined with the low tire pres-
sure telltale (tire pressure warning light). When the system detects a malfunction, the
telltale will flash for approximately one minu te and then remain continuously illumi-
nated. This sequence will continue upon su bsequent vehicle start-ups as long as the
malfunction exists. When the malfunction indicator is illuminated, the system may not
be able to detect or signal low tire pressure as intended.
TPMS (tire pressure warning system) malfunctions may occur for a variety of reasons,
including the installation of replacement or alternate tires or wheels on the vehicle that
prevent the TPMS (tire pressure warning system) from functioning properly. Always
check the TPMS (tire pressure warning syst em) malfunction telltale after replacing one
or more tires or wheels on your vehicle to ensure that the replacement or alternate
tires and wheels allow the TPMS (tire pressure warning system) to continue to function
properly.
GX460_OM_OM60F68U_(U).book Page 526 Wednesday, June 8, 2016 6:37 PM

583
GX 460 _O M_ OM6 0F 6 8U _(U )8-1. Specifications
8
Vehicle specifications
Tire information
Ti r e s i z e
(→ P. 585)
DOT and Tire Identification Number (TIN) (→ P. 5 8 4 )
Location of treadwear indicators (→ P. 4 76 )
Tire ply composition and materials
Plies are layers of rubber-coated parallel cords. Cords are the strands which form the
plies in a tire.
Radial tires or bias-ply tires
A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL” is a bias-ply
tire.
TUBELESS or TUBE TYPE
A tubeless tire does not have a tube and air is directly put into the tire. A tube type tire
has a tube inside the tire and the tube maintains the air pressure.
Load limit at maximum cold tire inflation pressure (→ P. 589)
Maximum cold tire inflation pressure (→ P. 589)
This means the pressure to which a tire may be inflated.
Uniform tire quality grading
For details, see “Uniform Tire Quality Grading” that follows.
Summer tires or all season tires (→ P. 4 7 9 )
An all season tire has “M+S” on the sidewall. A tire not marked “M+S” is a summer
tire.
Ty p i c a l t i r e s y m b o l s
1
2
3
4
5
6
7
8
9
10
GX460_OM_OM60F68U_(U).book Page 583 Wednesday, June 8, 2016 6:37 PM

634Alphabetical index
GX 460 _O M_ OM6 0F 6 8U _(U )
Seat heaters ............................................400
Seat ventilators ....................................... 401
Seat position memory.......................... 135
Seats................................................... 122, 124Adjustment ....................................122, 124
Adjustment precautions ........ 123, 134
Child seats/child restraint system installation..............................59
Cleaning .................................................449
Driving position memory ................ 135
Head restraint ....................................... 140
Properly sitting in the seat ................28
Seat position memory....................... 135
Ventilators .............................................. 401
Sensor Automatic headlight system .........204
Inside rear view mirror ..................... 146
Intuitive parking
assist-sensor ..................................... 244
Rain-sensing windshield
wipers .................................................... 215
Service reminder indicators ............... 78
Shift lever Automatic transmission ................... 194
If the shift lever cannot be shifted from P .................................... 198
Shift lock system...................................... 197
Shopping bag hooks .............................413
Side airbags ............................................... 36
Side mirrors .............................................. 147 Adjusting and folding .........................147
Blind Spot Monitor............................357
Side turn signal lights ..........................200 Replacing light bulbs ....................... 507
Turn signal lever ................................ 200 Smart access system with
push-button start.................................. 115
Antenna location................................... 115
Starting the engine ............................. 189
Snow tires .................................................379
Spare tire ..................................................542 Inflation pressure................................ 578
Storage location ................................. 543
Spark plug ................................................574
Specifications......................................... 570
Speedometer ............................................ 83
Steering lock Column lock release ......................... 192
Steering wheel ........................................ 143
Adjustment.............................................. 143
Audio switches
*
Heated steering wheel ................... 399
Steering wheel position memory.................................................135
Stop/tail lights
Replacing light bulbs ....................... 507
Storage feature ..................................... 405
Stuck If the vehicle becomes stuck........ 567
Sun shade Roof ............................................................154
Sun visors................................................... 421
Switch “2nd START” button ..........................195
AVS switch ............................................. 341
BSM (Blind Spot Monitor) switch ................................................... 357
Center differential lock/ unlock switch.................................... 343
Crawl Control switch ...................... 346
Cruise control switch ........... 224, 227
“DAC” switch ...................................... 349
GX460_OM_OM60F68U_(U).book Page 634 Wednesday, June 8, 2016 6:37 PM

636Alphabetical index
GX 460 _O M_ OM6 0F 6 8U _(U )
Tools........................................................... 543
TowingDinghy towing ...................................... 188
Emergency towing ............................. 514
Towing hooks ....................................... 515
Trailer Sway Control ........................352
Trailer towing ........................................ 170
Trailer Sway Control........................... 352
TRAC (Traction Control) .................. 351
Transmission
Automatic transmission ................... 194
AVS switch ............................................ 341
If the shift lever cannot be shifted from P .................................... 198
Trip information........................................ 87
Trip meters ................................................. 83
Turn signal lights ...................................200 Replacing light bulbs .......... 503, 504
Turn signal lever ................................ 200
Wattage ..................................................579
USB port
*
Vanity lights Vanity lights ............................................421
Wattage ..................................................579
Vanity mirrors .......................................... 421
Vehicle identification number...........571
VSC (Vehicle Stability Control) ..... 351 Warning buzzers ................................. 520
Brake system .......................................520
Downshifting ......................................... 198
Open back door................................530
Open door ...........................................530
Seat belt remainder .......................... 523
Warning lights ....................................... 520
ABS ..........................................................520
Automatic headlight leveling system .................................................... 521
Brake system .......................................520
Charging system ...............................520
KDSS.......................................................... 521
LED headlight ....................................... 521
Low fuel level ....................................... 522
Malfunction indicator lamp...........520
Master warning light ........................ 522
Open door ........................................... 522
Parking brake indicator ..................520
PCS ............................................................ 521
Seat belt reminder light .................. 522
Slip indicator ..........................................521
SRS............................................................520
Tire pressure warning light ........... 522
Warning message................................ 528
Warning reflector holder.................... 412
Washer ....................................................... 212
Checking ............................................... 475
Preparing and checking before winter .....................................377
Switch ........................................................ 212
Washing and waxing ...........................446
Wide view front & side monitor ..... 289
U
V
W
GX460_OM_OM60F68U_(U).book Page 636 Wednesday, June 8, 2016 6:37 PM
