deactivate passenger airbag Lexus GX460 2017 Owner's Manual

491-1. For safe use
GX 460 _O M_ OM6 0F 6 8U _(U )
1
For safety and security
■Adult*1
■Child*4 or child restraint system with infant*5

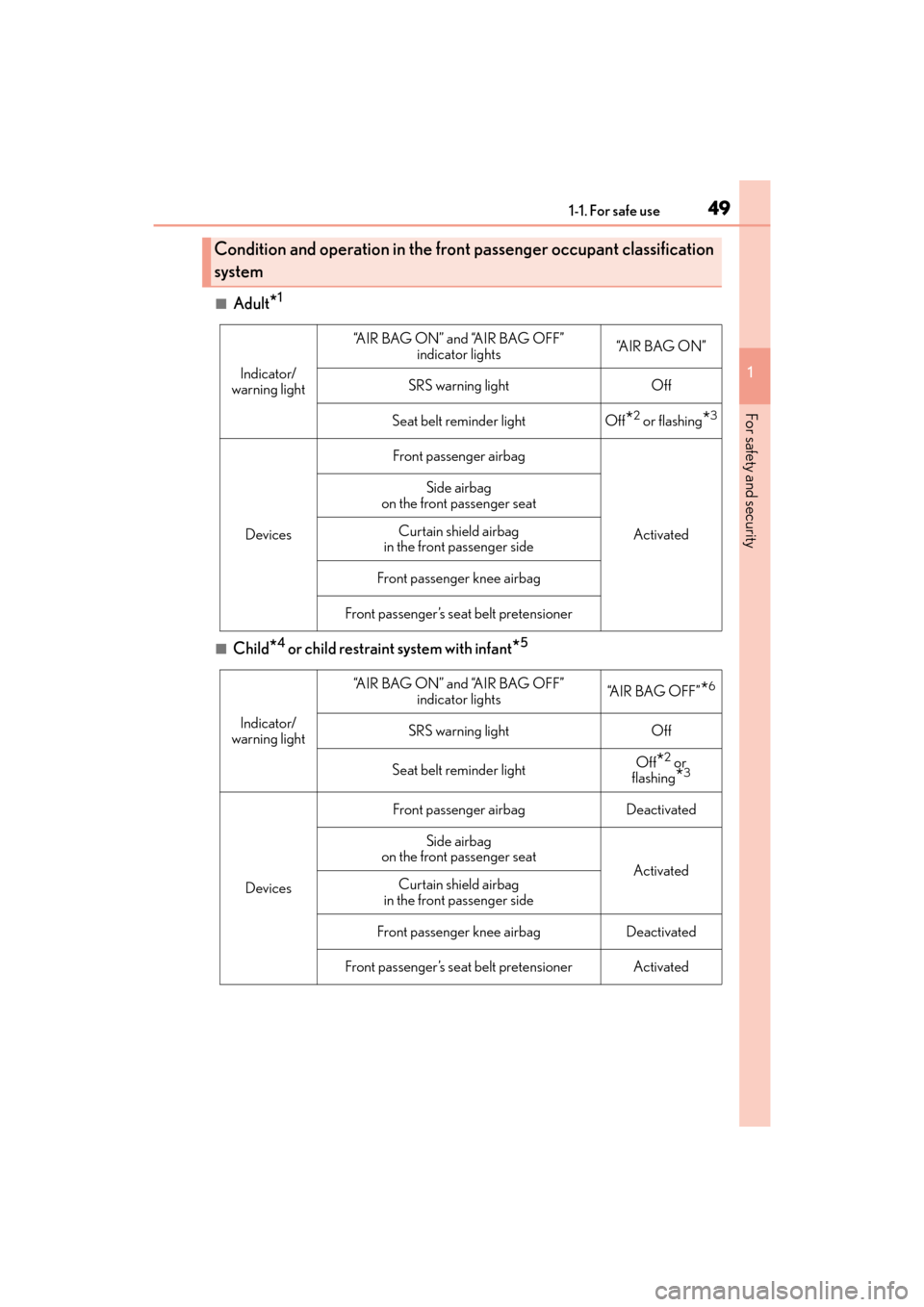

Condition and operation in the fron t passenger occupant classification
system
Indicator/
warning light
“A I R B A G O N ” a n d “A I R B A G O F F ” indicator lights“A I R B A G O N ”
SRS warning lightOff
Seat belt reminder lightOff*2 or flashing*3
Devices
Front passenger airbag
Activated
Side airbag
on the front passenger seat
Curtain shield airbag
in the front passenger side
Front passenger knee airbag
Front passenger’s seat belt pretensioner
Indicator/
warning light
“A I R B A G O N ” a n d “A I R B A G O F F ”
indicator lights“A I R B A G O F F ”*6
SRS warning lightOff
Seat belt reminder lightOff*2 or
flashing*3
Devices
Front passenger airbagDeactivated
Side airbag
on the front passenger seat
ActivatedCurtain shield airbag
in the front passenger side
Front passenger knee airbagDeactivated
Front passenger’s seat belt pretensionerActivated
GX460_OM_OM60F68U_(U).book Page 49 Wednesday, June 8, 2016 6:37 PM

501-1. For safe use
GX 460 _O M_ OM6 0F 6 8U _(U )

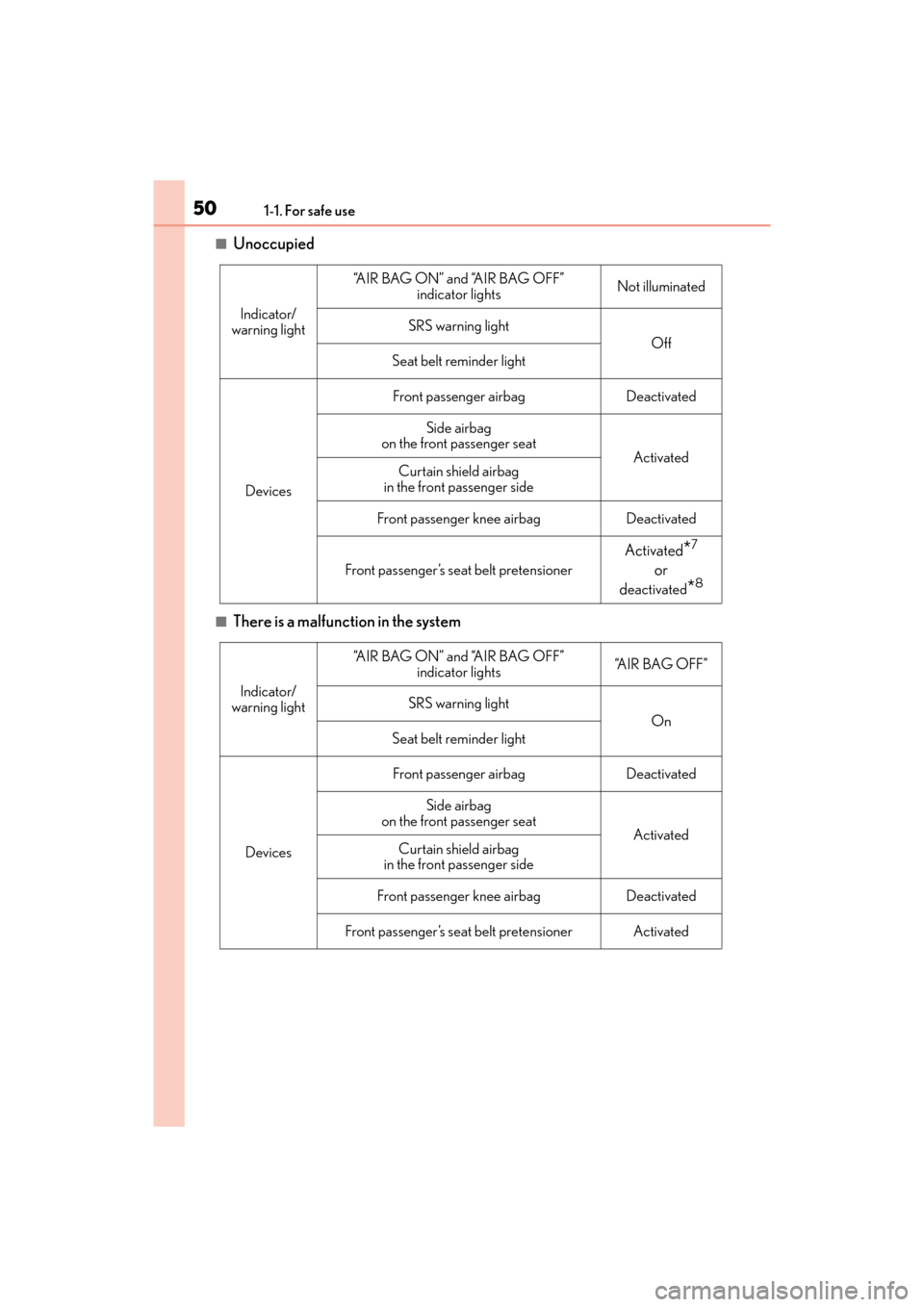

■Unoccupied
■There is a malfunction in the system
Indicator/
warning light
“A I R B A G O N ” a n d “A I R B A G O F F ” indicator lightsNot illuminated
SRS warning light
Off
Seat belt reminder light
Devices
Front passenger airbagDeactivated
Side airbag
on the front passenger seat
ActivatedCurtain shield airbag
in the front passenger side
Front passenger knee airbagDeactivated
Front passenger’s seat belt pretensioner
Activated*7
or
d
eactivated*8
Indicator/
warning light
“A I R B A G O N ” a n d “A I R B A G O F F ”
indicator lights“A I R B A G O F F ”
SRS warning light
On
Seat belt reminder light
Devices
Front passenger airbagDeactivated
Side airbag
on the front passenger seat
ActivatedCurtain shield airbag
in the front passenger side
Front passenger knee airbagDeactivated
Front passenger’s seat belt pretensionerActivated
GX460_OM_OM60F68U_(U).book Page 50 Wednesday, June 8, 2016 6:37 PM
