fuel cap release Lexus GX460 2017 Owner's Manual

GX 460 _O M_ OM6 0F 6 8U _(U )

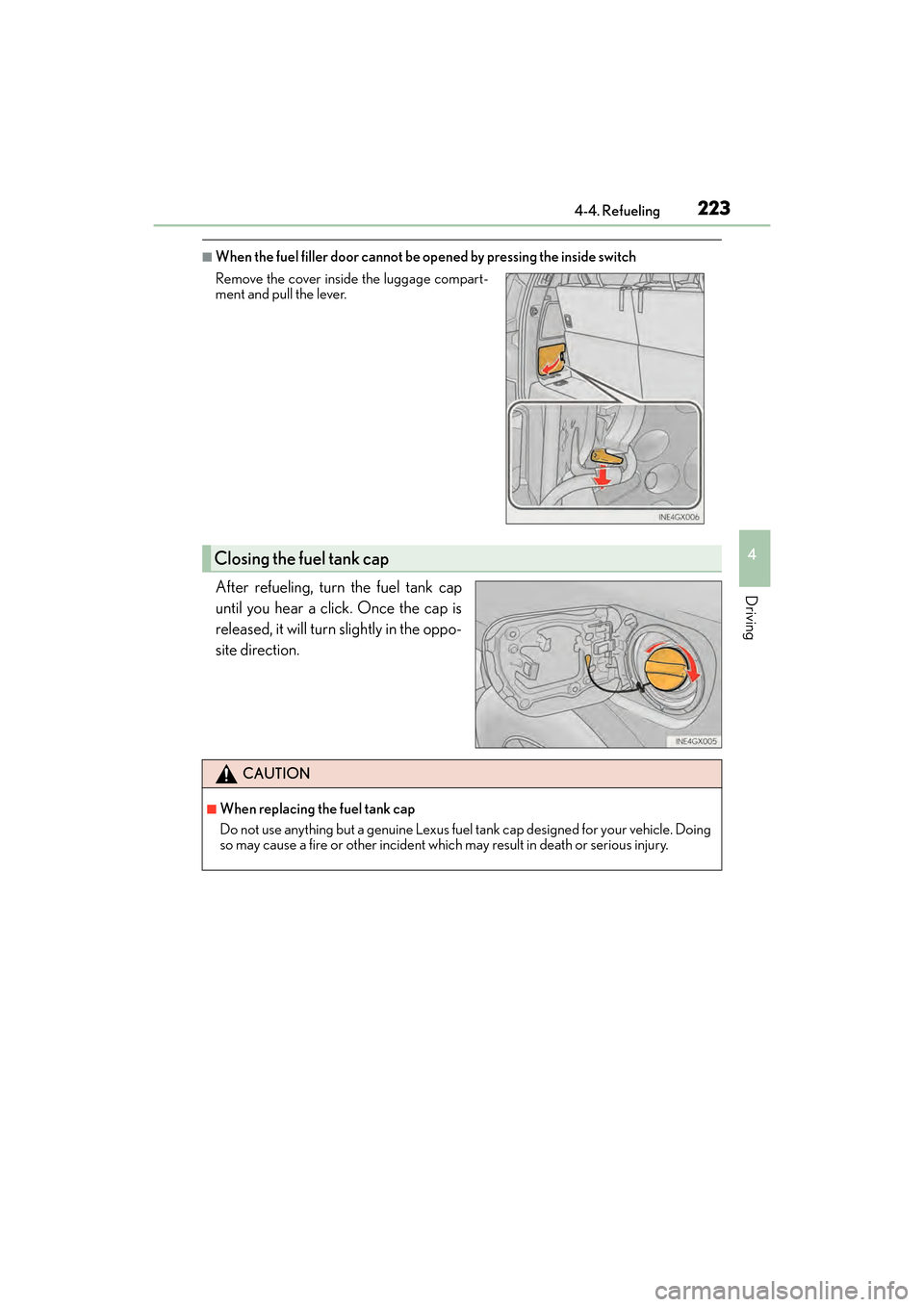

2234-4. Refueling
4
Driving
■When the fuel filler door cannot be opened by pressing the inside switch
After refueling, turn the fuel tank cap
until you hear a click. Once the cap is
released, it will turn slightly in the oppo-
site direction.
Remove the cover inside the luggage compart-
ment and pull the lever.
Closing the fuel tank cap
CAUTION
■When replacing the fuel tank cap
Do not use anything but a genuine Lexus fuel tank cap designed for your vehicle. Doing
so may cause a fire or other incident which may result in death or serious injury.
GX460_OM_OM60F68U_(U).book Page 223 Wednesday, June 8, 2016 6:37 PM

640
GX 460 _O M_ OM6 0F 6 8U _(U )GAS STATION INFORMATION
Auxiliary catch leverFuel filler door
P. 462 P. 222
Hood lock release leverFuel filler door openerTi r e i n f l a t i o n p r e s s u r e
P. 462P. 222P. 578
Fuel tank capacity
(Reference) 23.0 gal. (87 L, 19.1 Imp.gal.)
Fuel typeUnleaded gasoline with a Octa
ne Rating of 91 or higher
(Research Octane Number 96) P. 5 7 2 , 5 8 0
Cold tire inflation
pressure P. 5 7 8
Engine oil capacity
(Drain and refill —
reference)With filter
Without filter 8.2 qt.(7.8 L, 6.9 Imp.qt.)
7. 8 q t . ( 7.4 L , 6 . 5 I m p . q t . )
Engine oil type
“Toyota Genuine Motor Oil” or equivalent
P. 5 7 2
GX460_OM_OM60F68U_(U).book Page 640 Wednesday, June 8, 2016 6:37 PM
