octane Lexus GX460 2017 Owner's Manual

572
GX 460 _O M_ OM6 0F 6 8U _(U )8-1. Specifications
■Engine number
The engine number is stamped on the engine block as shown.
*: The engine oil capacity is a reference quantity to be used when changing the engine
oil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level
on the dipstick.
Engine
Model4.6 L 8-cylinder (1UR-FE)
Ty p e8-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70 × 3.27 in. (94.0 × 83.0 mm)
Displacement281.2 cu.in. (4608 cm3)
Va l v e c l e a r a n c eAutomatic adjustment
Drive belt tensionAutomatic adjustment
Fuel
Fuel typeUnleaded gasoline only
Octane rating91 (Research Octane Number 96) or higher
Fuel tank capacity (Reference)23.0 gal. (87 L, 19.1 Imp.gal.)
Lubrication system
Oil capacity
(Drain and refill — reference*)
With filter
Without filter8.2 qt. (7.8 L, 6.9 Imp.qt.)
7.8 qt. (7.4 L, 6.5 Imp.qt.)
GX460_OM_OM60F68U_(U).book Page 572 Wednesday, June 8, 2016 6:37 PM

580
GX 460 _O M_ OM6 0F 6 8U _(U )8-1. Specifications
Fuel information
■Gasoline quality
In very few cases, driveability problems may be caused by the brand of gasoline you are
using. If driveability problems persist, try chan
ging the brand of gasoline. If this does not
correct the problem, consult your Lexus dealer.
■Gasoline quality standards
●Automotive manufacturers in the U.S.A., Europe and Japan have developed a specifi-
cation for fuel quality called the World-Wide Fuel Charter (WWFC), which is expected
to be applied worldwide.
●The WWFC consists of four categories that are based on required emission levels. In
the U.S., category 4 has been adopted.
●The WWFC improves air quality by lowering emissions in vehicle fleets, and improves
customer satisfaction through better performance.
You must only use unleaded gasoline.
Select premium unleaded gasoline with an octane rating of 91 (Research
Octane Number 96) or higher required for optimum engine performance
and fuel economy. If the octane rating is less than 91, damage to the engine
may occur and may void the vehicle warranty.
At minimum, the gasoline you use should meet the specifications of ASTM
D4814 in the U.S.A..
GX460_OM_OM60F68U_(U).book Page 580 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
5818-1. Specifications
8
Vehicle specifications
■Recommendation of the use of gasoline containing detergent additives
●Lexus recommends the use of gasoline that contains detergent additives to avoid the
build-up of engine deposits.
●All gasoline sold in the U.S.A. contains minimum detergent additives to clean and/or
keep clean intake systems, per EPA’s lowest additives concentration program.
●Lexus strongly recommends the use of Top Tier Detergent Gasoline. For more informa-
tion on Top Tier Detergent Gasoline and a list of marketers, please go to the official
website www.toptiergas.com.
■Recommendation of the use of low emissions gasoline
Gasolines containing oxygenates such as ethers and ethanol, as well as reformulated
gasolines, are available in some cities. These fuels are typically acceptable for use, pro-
viding they meet other fuel requirements.
Lexus recommends these fuels, since the formulations allow for reduced vehicle emis-
sions.
■Non-recommendation of the use of blended gasoline
●If you use gasohol in your Lexus, be sure that it has an octane rating no lower than 91.
●Lexus does not recommend the use of gasoline containing methanol.
■Non-recommendation of the use of gasoline containing MMT
Some gasoline contains an octane enhancin g additive called MMT (Methylcy clopenta-
dienyl Manganese Tricarbonyl).
Lexus does not recommend the use of gasoline that contains MMT. If fuel containing
MMT is used, your emission control system may be adversely affected.
The malfunction indicator lamp on the instrument cluster may come on. If this happens,
contact your Lexus dealer for service.
●Use only gasoline containing up to 15% etha-
nol.
DO NOT use any flex-fuel or gasoline that
could contain more than 15% ethanol, includ-
ing from any pump labeled E30, E50, E85
(which are only some examples of fuel con-
taining more than 15% ethanol).DO NOT use gasoline
containing more than 15%
ethanol.
(30% ethanol)
(50% ethanol)
(85% ethanol)
GX460_OM_OM60F68U_(U).book Page 581 Wednesday, June 8, 2016 6:37 PM

582
GX 460 _O M_ OM6 0F 6 8U _(U )8-1. Specifications
■If your engine knocks
●Consult your Lexus dealer.
●You may occasionally notice light knocking for a short time while accelerating or driv-
ing uphill. This is normal and
there is no need for concern.
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If improper fu els are used, the engine will be damaged.
●Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic converters
causing the emission control system to malfunction.
●Do not use gasohol other than the type previously stated.
Other gasohol may cause fuel system damage or vehicle performance problems.
●Using unleaded gasoline with an octane number or rating lower than the level previ-
ously stated may cause persistent heavy knocking.
At worst, this may lead to engine damage and will void the vehicle warranty.
■Fuel-related poor driveability
If poor driveability (poor hot starting, vaporization, engine knocking, etc.) is encoun-
tered after using a different type of fuel, discontinue the use of that type of fuel.
■When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle’s paint.
GX460_OM_OM60F68U_(U).book Page 582 Wednesday, June 8, 2016 6:37 PM

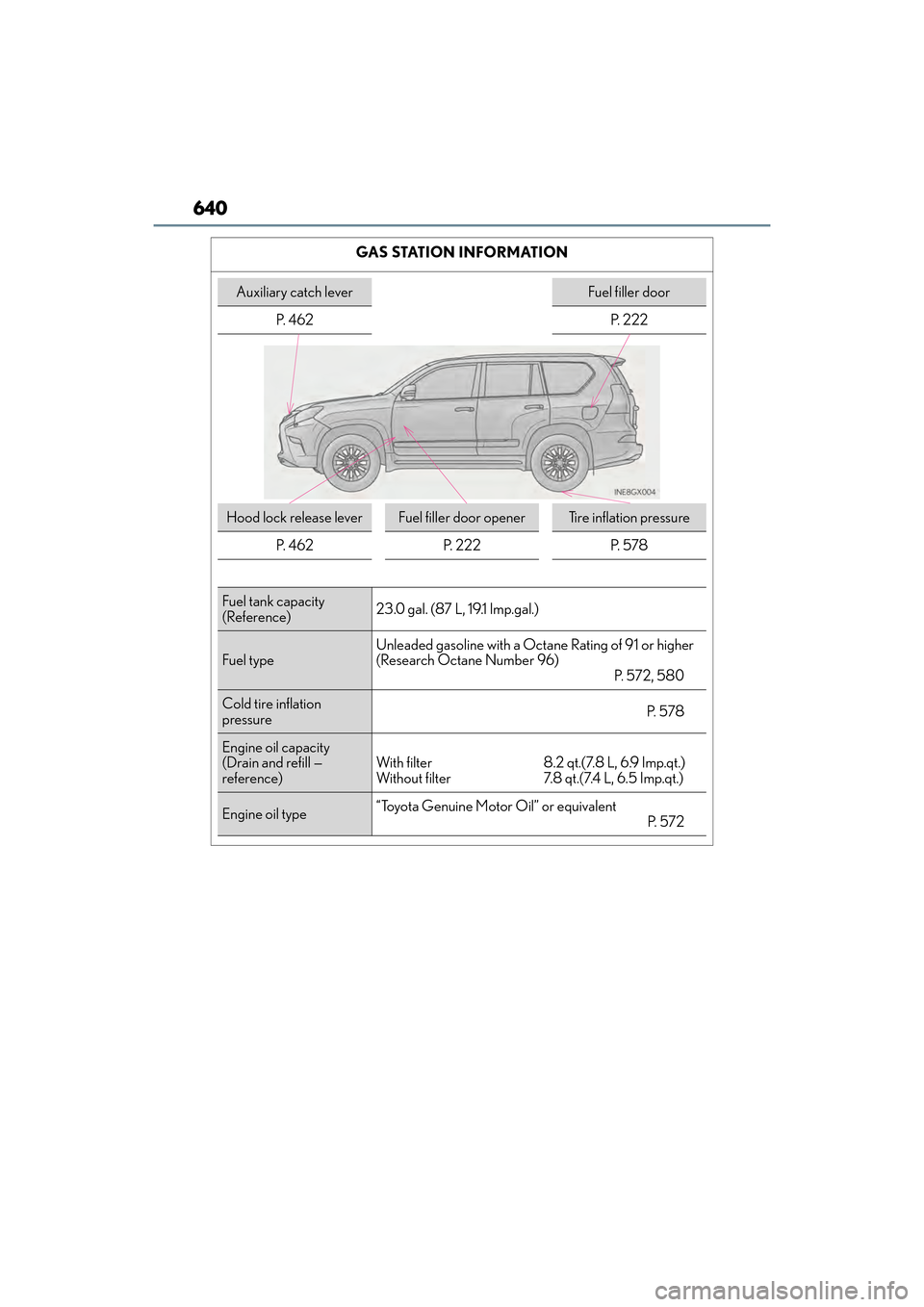

640
GX 460 _O M_ OM6 0F 6 8U _(U )GAS STATION INFORMATION
Auxiliary catch leverFuel filler door
P. 462 P. 222
Hood lock release leverFuel filler door openerTi r e i n f l a t i o n p r e s s u r e
P. 462P. 222P. 578
Fuel tank capacity
(Reference) 23.0 gal. (87 L, 19.1 Imp.gal.)
Fuel typeUnleaded gasoline with a Octa
ne Rating of 91 or higher
(Research Octane Number 96) P. 5 7 2 , 5 8 0
Cold tire inflation
pressure P. 5 7 8
Engine oil capacity
(Drain and refill —
reference)With filter
Without filter 8.2 qt.(7.8 L, 6.9 Imp.qt.)
7. 8 q t . ( 7.4 L , 6 . 5 I m p . q t . )
Engine oil type
“Toyota Genuine Motor Oil” or equivalent
P. 5 7 2
GX460_OM_OM60F68U_(U).book Page 640 Wednesday, June 8, 2016 6:37 PM
