5217-2. Steps to take in an emergency
GX460_OM_OM60Q84U_(U)
7
When trouble arises
*1: Open door warning buzzer:  P. 528
*2:Seat belt reminders:
The driver’s seat belt buzzer sounds to alert the driver that his or her seat belt is not
fastened. Once the engine switch is turned to IGNITION ON mode, the buzzer
sounds for 6 seconds. If the vehicle reaches a speed of 12 mph (20 km/h), the buzzer
sounds once. If the seat belt is still unfastened after 30 seconds, the buzzer will sound
intermittently for 10 seconds. Then, if the se at belt is still unfastened, the buzzer will
sound in a different tone for 20 more seconds.
The front passenger’s seat belt buzzer soun ds to alert the front passenger that his or
her seat belt is not fastened. The buzzer so unds once if the vehicle reaches a speed of
12 mph (20 km/h). If the seat belt is still unfastened after 30 seconds, the buzzer will
sound intermittently for 10 se conds. Then, if the seat belt is still unfastened, the buzzer
will sound in a different to ne for 20 more seconds.
■SRS warning light
This warning light system monitors the airbag sensor assembly, front airbag sensors, side
and curtain shield airbag sensors, rear side and curtain shield airbag sensors, floor sen-
sor, driver’s seat belt buc kle switch, front passenger occupant classification system (ECU
and sensors), “AIR BAG ON” indicator light, “AIR BAG OFF” indicator light, front pas-
senger’s seat belt buckle sw itch, seat belt pretensioner assemblies, airbags, intercon-
necting wiring and power sources. ( P. 36)
■Front passenger detection sensor, seat belt reminder and warning buzzer
●If luggage is placed on the front passenger seat, the front passenger detection sensor
may cause the warning light to flash and the warning buzzer to sound even if a passen-
ger is not sittin g in the seat.
●If a cushion is placed on the seat, the sens or may not detect a passenger, and the warn-
ing light may not operate properly.
■If the malfunction indicator lamp comes on while driving
First check the following:
●Is the fuel tank empty?
If it is, fill the fu el tank immediately.
●Is the fuel tank cap loose?
If it is, tighten it securely.
The light will go off after several driving trips.
If the light does not go off even after severa l trips, contact your Lexus dealer as soon as
possible.

5227-2. Steps to take in an emergency
GX460_OM_OM60Q84U_(U)
■If the low speed four-wheel drive indicator light or the center differential lock indicator
light blinks
Take the specified steps. ( P. 348)
■When the tire pressure warning light comes on
Check the tire inflation pressure and adjust to the appropriate level.
■The tire pressure warning light ma y turn on due to natural causes
The tire pressure warning light may turn on du e to natural causes such as natural air leaks
or tire inflation pressure changes caused by temperature. In this case, adjusting the tire
inflation pressure will turn off the warning light (after a few minutes).
■When a tire is replaced with a spare tire
The tire pressure warning light wi ll turn on if the tire inflation pressure of the spare tire is
low. If a tire goes flat, the tire pressure warn ing light will not turn off even though the flat
tire has been replaced with the spare tire.
■Conditions that the tire pressure wa rning system may not function properly
 P. 478
■If the tire pressure warning light freque ntly comes on after blinking for 1 minute
If the tire pressure warning light frequently comes on after blinking for 1 minute when the
engine switch is turned to IGNITION ON mo de, have it checked by your Lexus dealer.
■Warning buzzer
In some cases, the buzzer may not be heard due to being in a noisy location or audio
sound.
■Customization
The vehicle speed linked seat belt reminder buzzer can be disabled.
(Customizable features: P. 592)

5237-2. Steps to take in an emergency
GX460_OM_OM60Q84U_(U)
7
When trouble arises
CAUTION
■If both the ABS and the brake sy stem warning lights remain on
Stop your vehicle in a safe place immediat ely and contact your Lexus dealer. The vehi-
cle will become extremely unstable during br aking, and the ABS system may fail, which
could cause an accident resultin g in death or serious injury.
■If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could cause loss of vehi-
cle control and result in death or serious injury.
●Stop your vehicle in a safe place as soon as possible. Adjust the tire inflation pressure
immediately.
●If the tire pressure warning light comes on even after tire inflation pressure adjust-
ment, it is probable that you have a flat tire. Check the tires. If the tire is flat, change to
the spare tire and have the flat tire repaired by the nearest Lexus dealer.
●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you could lose
control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.

5247-2. Steps to take in an emergency
GX460_OM_OM60Q84U_(U)
CAUTION
■Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly when cold and
inflated to the inflation pressure recomm ended by the vehicle manufacturer on the
vehicle placard or tire inflation pressure label (tire and load information label). (If your
vehicle has tires of a different size than the size indicated on the vehicle placard or tire
inflation pressure label [tire and load in formation label], you should determine the
proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle ha s been equipped with a tire pressure moni-
toring system (TPMS-tire pressure warning system) that illuminates a low tire pressure
telltale (tire pressure warning light) when on e or more of your tires is significantly
under-inflated. Accordingly, when the low ti re pressure telltale (tire pressure warning
light) illuminates, you should stop and check your tires as soon as possible, and inflate
them to the proper pressure. Driving on a si gnificantly under-inflated tire causes the
tire to overheat and can lead to tire failure . Under-inflation also reduces fuel efficiency
and tire tread life, and may affect the vehicle’s handling and stopping ability.
Please note that the TPMS (tire pressure wa rning system) is not a substitute for proper
tire maintenance, and it is th e driver’s responsibility to ma intain correct tire pressure,
even if under-inflation has not reached the le vel to trigger illumination of the TPMS low
tire pressure telltale (tir e pressure warning light).
Your vehicle has also been equipped with a TPMS (tire pressure warning system) mal-
function indicator to indicate when the system is not operating properly. The TPMS
(tire pressure warning system) malfunction indi cator is combined with the low tire pres-
sure telltale (tire pressure warning light). When the system detects a malfunction, the
telltale will flash for approximately one mi nute and then remain continuously illumi-
nated. This sequence will cont inue upon subsequent vehicle start-ups as long as the
malfunction exists. When the malfunction in dicator is illuminated, the system may not
be able to detect or signal low tire pressure as intended.
TPMS (tire pressure warning system) malfun ctions may occur for a variety of reasons,
including the installation of replacement or alternate tires or wheels on the vehicle that
prevent the TPMS (tire pressure warning system) from functioning properly. Always
check the TPMS (tire pressure warning system) malfunction telltale after replacing one
or more tires or wheels on your vehicle to ensure that the replacement or alternate
tires and wheels allow the TPMS (tire pressu re warning system) to continue to function
properly.

5257-2. Steps to take in an emergency
GX460_OM_OM60Q84U_(U)
7
When trouble arises
NOTICE
■To ensure the tire pressure warning system operates properly
Do not install tires with different specifications or makers, as the tire pressure warning
system may not operate properly.

526
GX460_OM_OM60Q84U_(U)7-2. Steps to take in an emergency
If a warning message is displayed
Master warning light
The master warning light also comes on
or flashes in order to
indicate that a mes-
sage is currently being displayed on the
instrument cluster.
Multi-information display
Rear height control air suspension
display
If any of the warning lights comes on ag ain after the following actions have been
performed, contact your Lexus dealer.
If a warning is shown on the instrument cluster, stay calm and perform the fol-
lowing actions:
1
2
3

5277-2. Steps to take in an emergency
GX460_OM_OM60Q84U_(U)
7
When trouble arises
Warning message and warning buzzer list
Warning messageDetails/Actions
(If equipped)
Indicates that:
• There is a high possibility of a frontal collision; or
• The pre-collision braking function is operating A buzzer also sounds.
 Slow the vehicle by applying the brakes.
(If equipped)
Indicates that your vehicle is nearing the vehicle ahead
(in vehicle-to-vehicle distance mode)
A buzzer also sounds.
 Slow the vehicle by applying the brakes.
(If equipped)
Alerts the driver that the vehicle is about to or actually
deviates from the lane (while the LDA [Lane Departure
Alert] system is operating)
The lane line flashes.
The warning buzzer sounds continuously.
 Check around the vehicle and back to inside of the
lane lines.
(Flashes rapidly)

5287-2. Steps to take in an emergency
GX460_OM_OM60Q84U_(U)

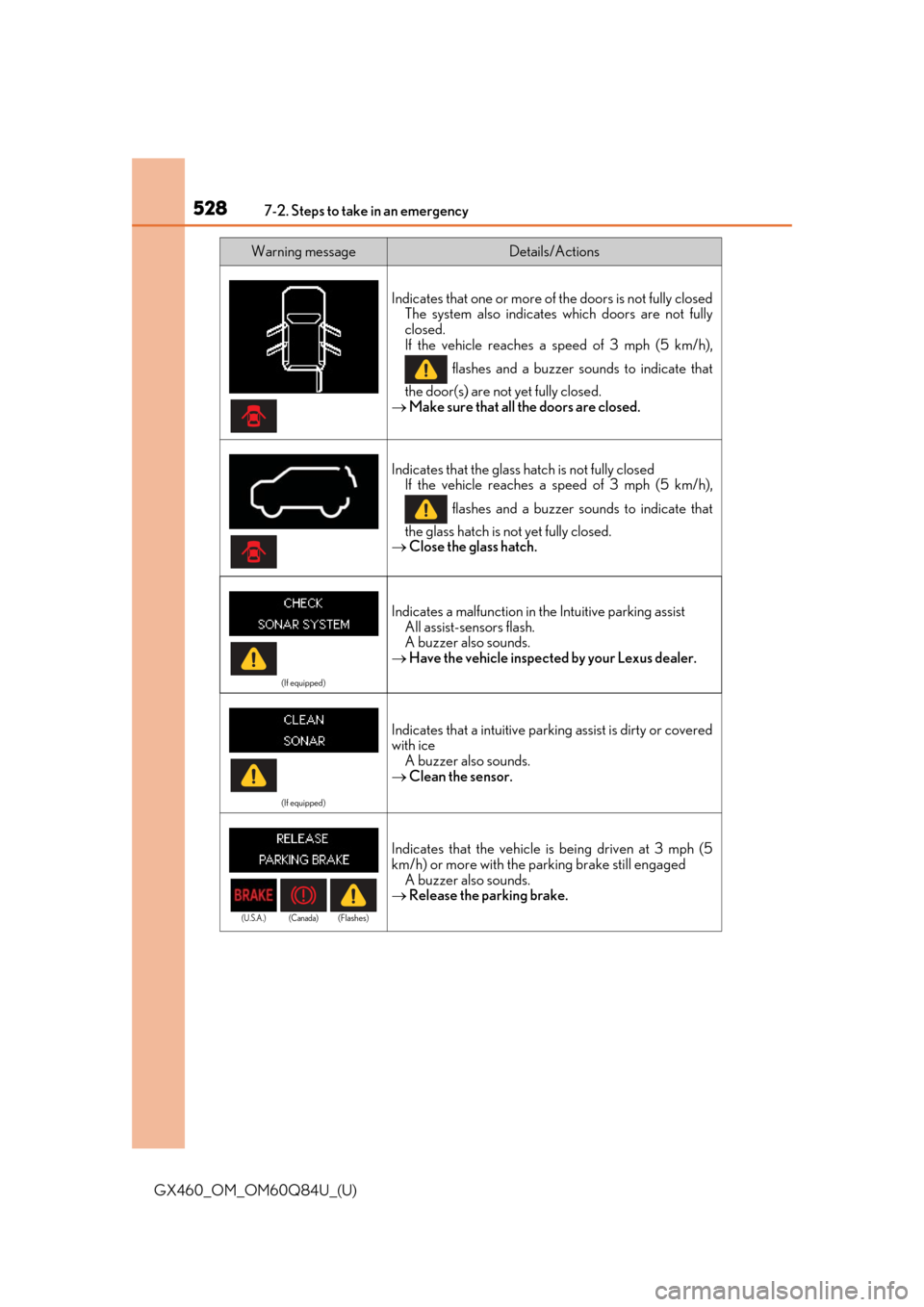

Indicates that one or more of the doors is not fully closedThe system also indicates which doors are not fully
closed.
If the vehicle reaches a speed of 3 mph (5 km/h),
flashes and a buzzer sounds to indicate that
the door(s) are not yet fully closed.
 Make sure that all the doors are closed.
Indicates that the glass hatch is not fully closed
If the vehicle reaches a speed of 3 mph (5 km/h),
flashes and a buzzer sounds to indicate that
the glass hatch is not yet fully closed.
 Close the glass hatch.
(If equipped)
Indicates a malfunction in the Intuitive parking assist
All assist-sensors flash.
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates that a intuitive parking assist is dirty or covered
with ice
A buzzer also sounds.
 Clean the sensor.
Indicates that the vehicle is being driven at 3 mph (5
km/h) or more with the pa rking brake still engaged
A buzzer also sounds.
 Release the parking brake.
Warning messageDetails/Actions
(U.S.A.) (Canada)(Flashes)

5297-2. Steps to take in an emergency
GX460_OM_OM60Q84U_(U)
7
When trouble arises

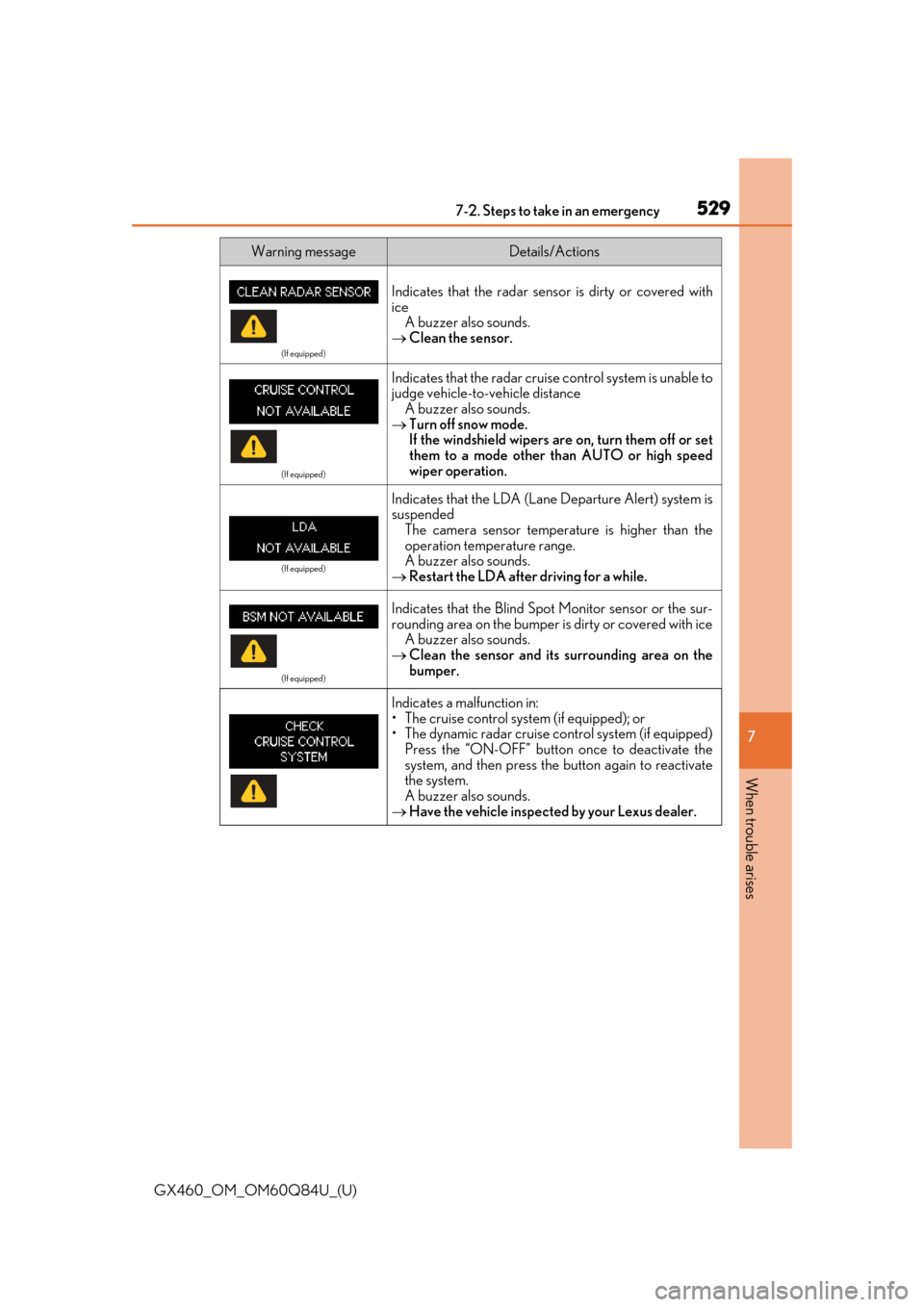

(If equipped)
Indicates that the radar sensor is dirty or covered with
ice A buzzer also sounds.
 Clean the sensor.
(If equipped)
Indicates that the radar cruise control system is unable to
judge vehicle-to-vehicle distance
A buzzer also sounds.
 Turn off snow mode.
If the windshield wipers are on, turn them off or set
them to a mode other than AUTO or high speed
wiper operation.
(If equipped)
Indicates that the LDA (Lane Departure Alert) system is
suspended
The camera sensor temperature is higher than the
operation temperature range.
A buzzer also sounds.
 Restart the LDA after driving for a while.
(If equipped)
Indicates that the Blind Spot Monitor sensor or the sur-
rounding area on the bumper is dirty or covered with ice
A buzzer also sounds.
 Clean the sensor and its surrounding area on the
bumper.
Indicates a malfunction in:
• The cruise control sy stem (if equipped); or
• The dynamic radar cruise co ntrol system (if equipped)
Press the “ON-OFF” button once to deactivate the
system, and then press the button again to reactivate
the system.
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
Warning messageDetails/Actions

5307-2. Steps to take in an emergency
GX460_OM_OM60Q84U_(U)

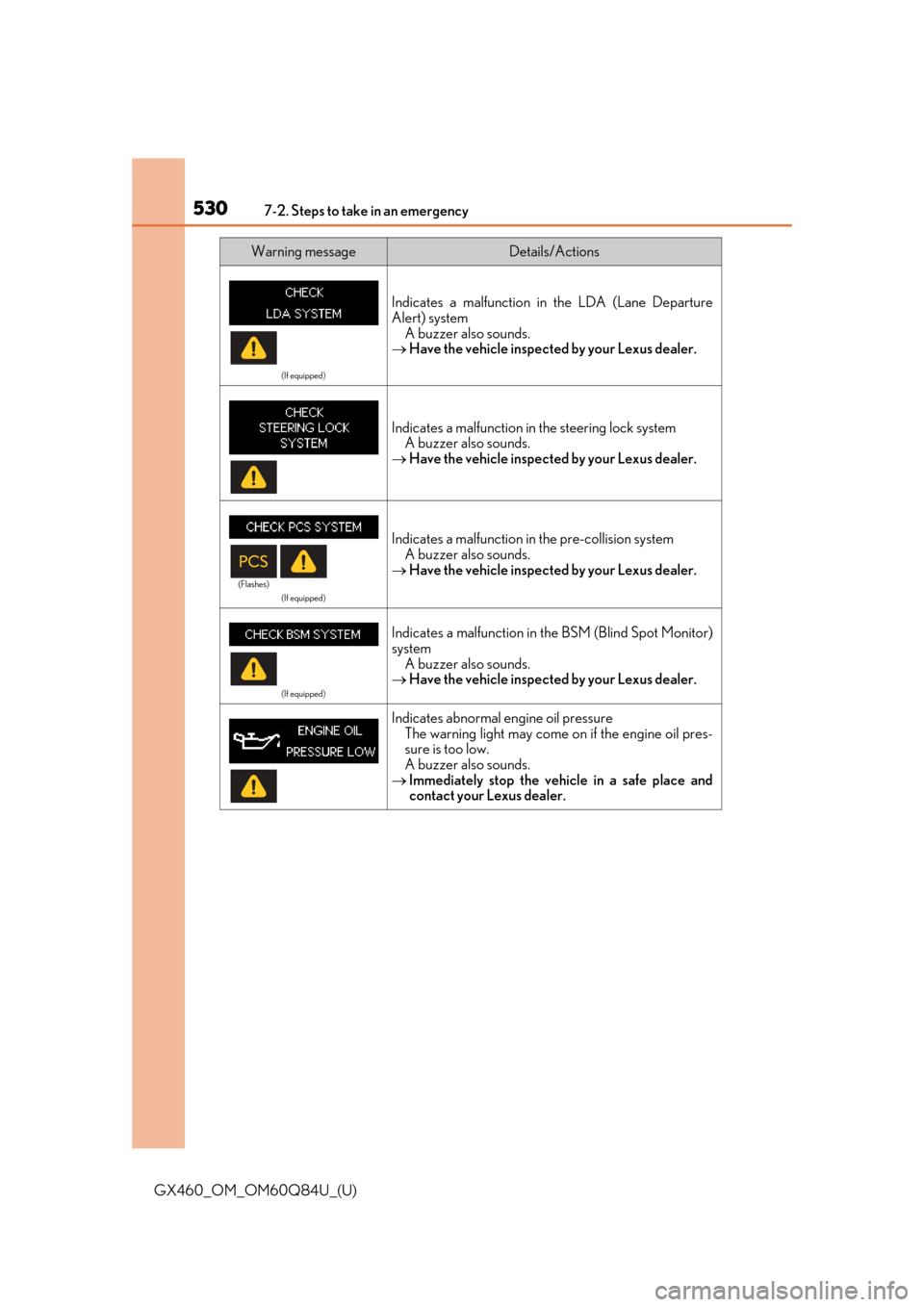

(If equipped)
Indicates a malfunction in the LDA (Lane Departure
Alert) systemA buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
Indicates a malfunction in the steering lock system
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates a malfunction in the pre-collision system
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates a malfunction in the BSM (Blind Spot Monitor)
system
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
Indicates abnormal engine oil pressure
The warning light may come on if the engine oil pres-
sure is too low.
A buzzer also sounds.
 Immediately stop the vehicle in a safe place and
contact your Lexus dealer.
Warning messageDetails/Actions
(Flashes)
