5718-1. Specifications
8
Vehicle specifications
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good start-
ing in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However, it
must be replaced with SAE 0W-20
at the next oil change.
Oil viscosity (0W-20 is explained here as an example): • The 0W in 0W-20 indicates the characteristic of the oil which allows cold startability. Oils with a lower value be fore the W allow for easier starting of
the engine in cold weather.
• The 20 in 0W-20 indicates the viscos ity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme lo ad conditions.
How to read oil container label:
The International Lubricant Specifi-
cation Advisory Co mmittee (ILSAC)
Certification Mark is added to some
oil containers to help you select the
oil you should use.
Outside temperature

572
GX460_OM_OM60Q84U_(U)8-1. Specifications

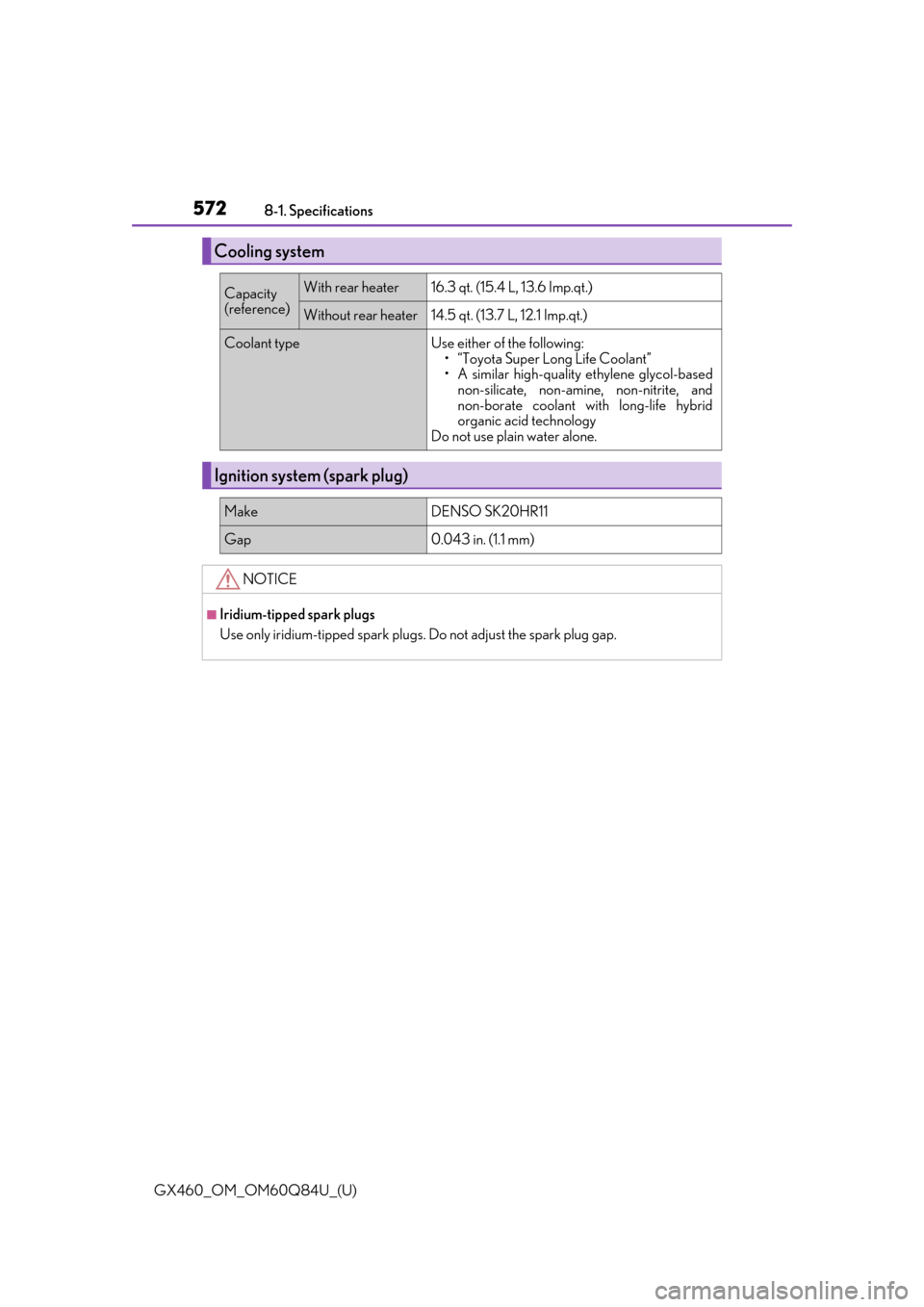

Cooling system
Capacity
(reference)With rear heater16.3 qt. (15.4 L, 13.6 Imp.qt.)
Without rear heater14.5 qt. (13.7 L, 12.1 Imp.qt.)
Coolant typeUse either of the following:
• “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-basednon-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.
Ignition system (spark plug)
MakeDENSO SK20HR11
Gap0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

GX460_OM_OM60Q84U_(U)
5738-1. Specifications
8
Vehicle specifications
*: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the factory.Use Lexus approved “Toyota Genuine Differ ential Gear Oil” or an equivalent of
matching quality to satisfy the above specification. Please contact your Lexus dealer
for further details.
*: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the factory. Use Lexus approved “Toyota Genuine Differ ential Gear Oil” or an equivalent of
matching quality to satisfy the above specification. Please contact your Lexus dealer
for further details.
Electrical system (battery)
Specific gravity reading at
68 F (20 C):12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11.8  12.0 V Discharged
Voltage is checked 20 minutes after the engine
and all the lights are turned off.
Charging rates5 A max.
Front differential
Oil capacity1.48 qt. (1.40 L, 1.23 Imp.qt.)
Oil type and viscosity*Toyota Genuine Differential Gear Oil LT 75W-85
GL-5 or equivalent
Rear differential
Oil capacity2.85 qt. (2.70 L, 2.38 Imp.qt.)
Oil type and viscosity*Toyota Genuine Differential Gear Oil LT 75W-85
GL-5 or equivalent

574
GX460_OM_OM60Q84U_(U)8-1. Specifications
*: The fluid capacity is a reference quantity
. If replacement is necessary, contact your
Lexus dealer.
*: Your Lexus vehicle is filled with “Toyota Ge nuine Transfer Gear oil LF” at the factory.
Use Lexus approved “Toyota Genuine Transf er Gear oil LF” or an equivalent of
matching quality to satisfy the above specification. Please contact your Lexus dealer
for further details.

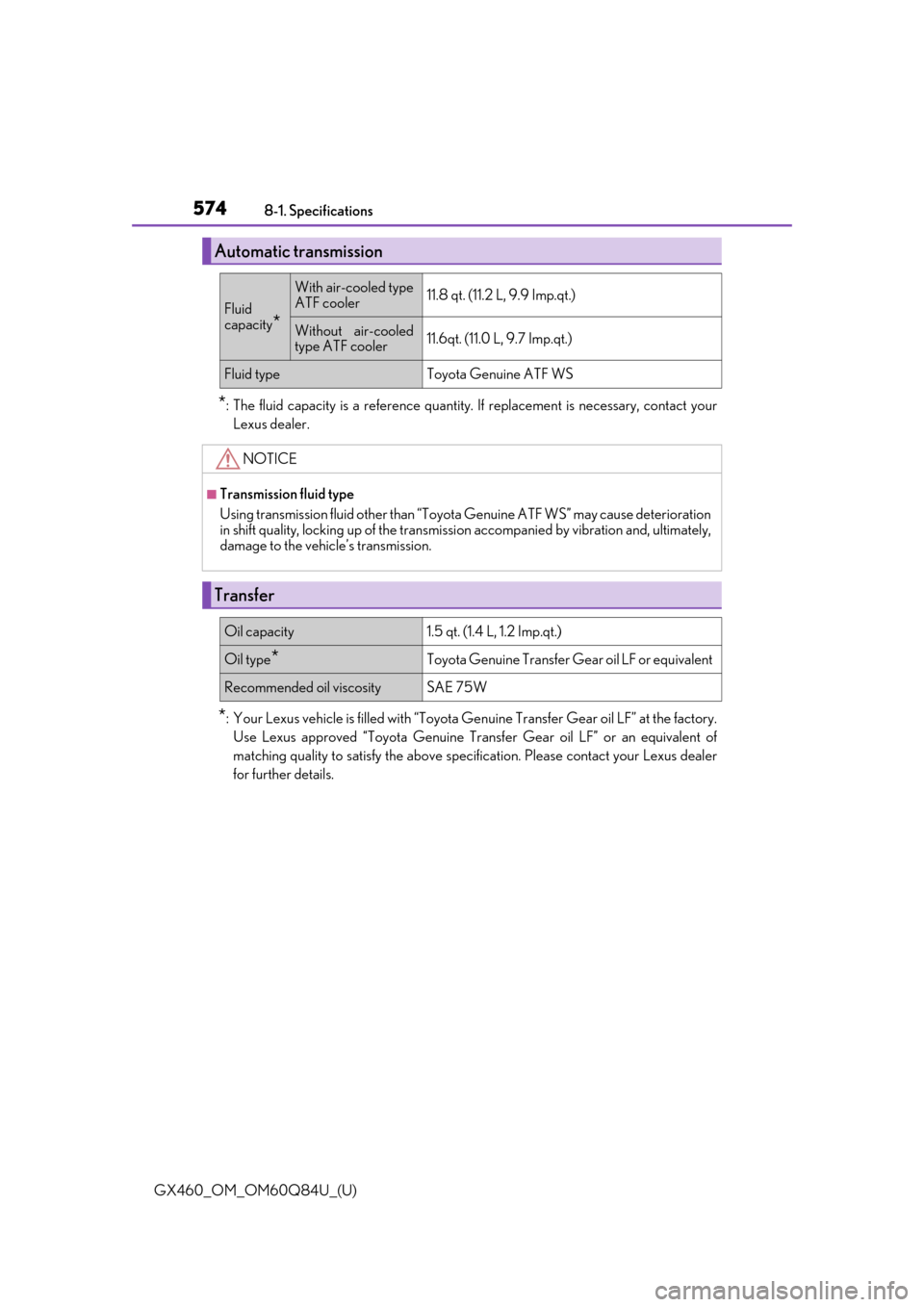

Automatic transmission
Fluid
capacity
*
With air-cooled type
ATF cooler11.8 qt. (11.2 L, 9.9 Imp.qt.)
Without air-cooled
type ATF cooler11.6qt. (11.0 L, 9.7 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterioration
in shift quality, locking up of the transmissi on accompanied by vibration and, ultimately,
damage to the vehicle’s transmission.
Transfer
Oil capacity1.5 qt. (1.4 L, 1.2 Imp.qt.)
Oil type*Toyota Genuine Transfer Gear oil LF or equivalent
Recommended oil viscositySAE 75W

GX460_OM_OM60Q84U_(U)
5758-1. Specifications
8
Vehicle specifications
*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N, 50 kgf)
while the engine is running
*2: Parking brake pedal travel when pulled up with a force of 44.1 lbf (196 N, 20.0 kgf)

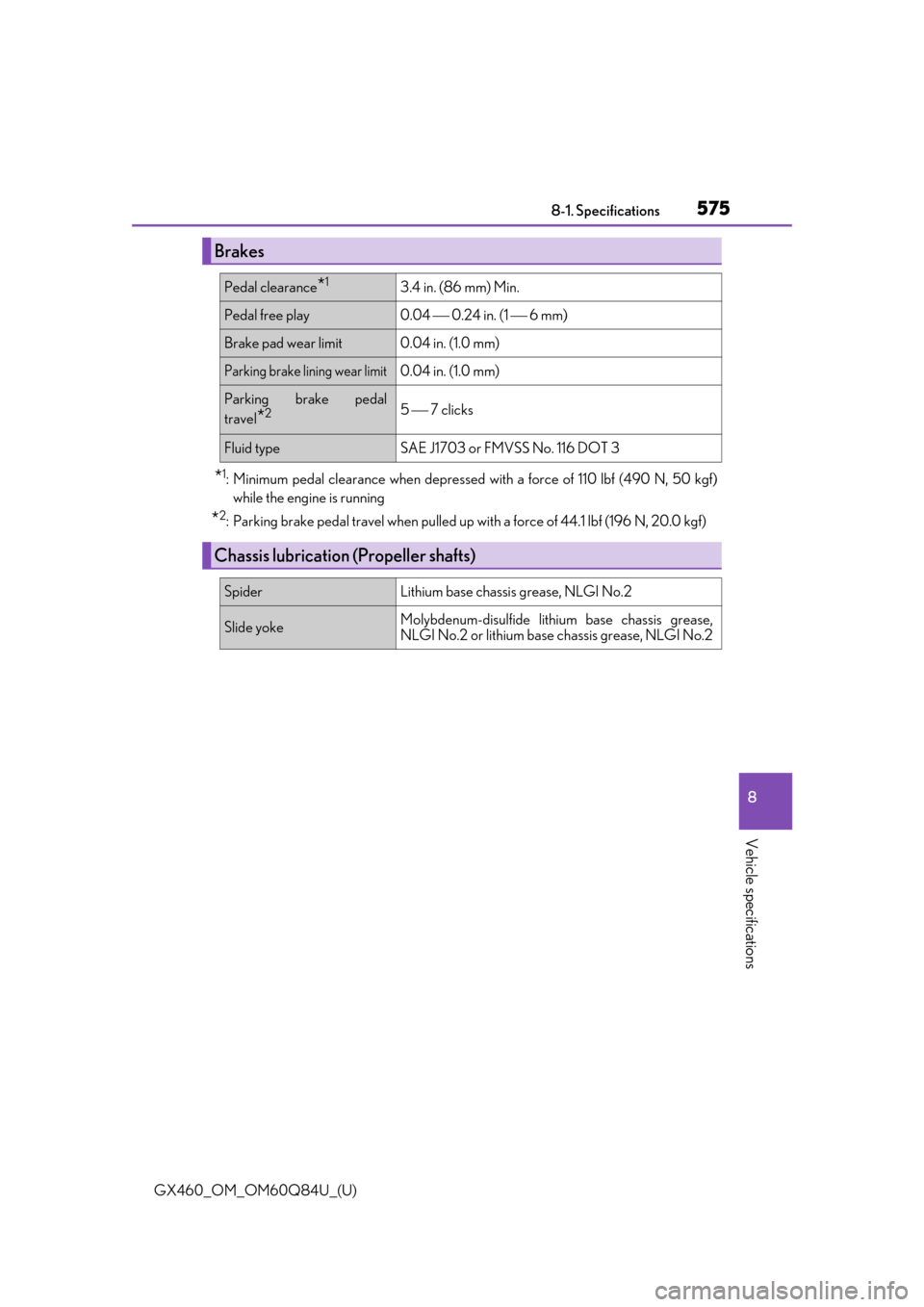

Brakes
Pedal clearance*13.4 in. (86 mm) Min.
Pedal free play0.04  0.24 in. (1  6 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Parking brake pedal
travel
*25  7 clicks
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3
Chassis lubrication (Propeller shafts)
SpiderLithium base chassi s grease, NLGI No.2
Slide yokeMolybdenum-disulfide lith ium base chassis grease,
NLGI No.2 or lithium base chassis grease, NLGI No.2

576
GX460_OM_OM60Q84U_(U)8-1. Specifications

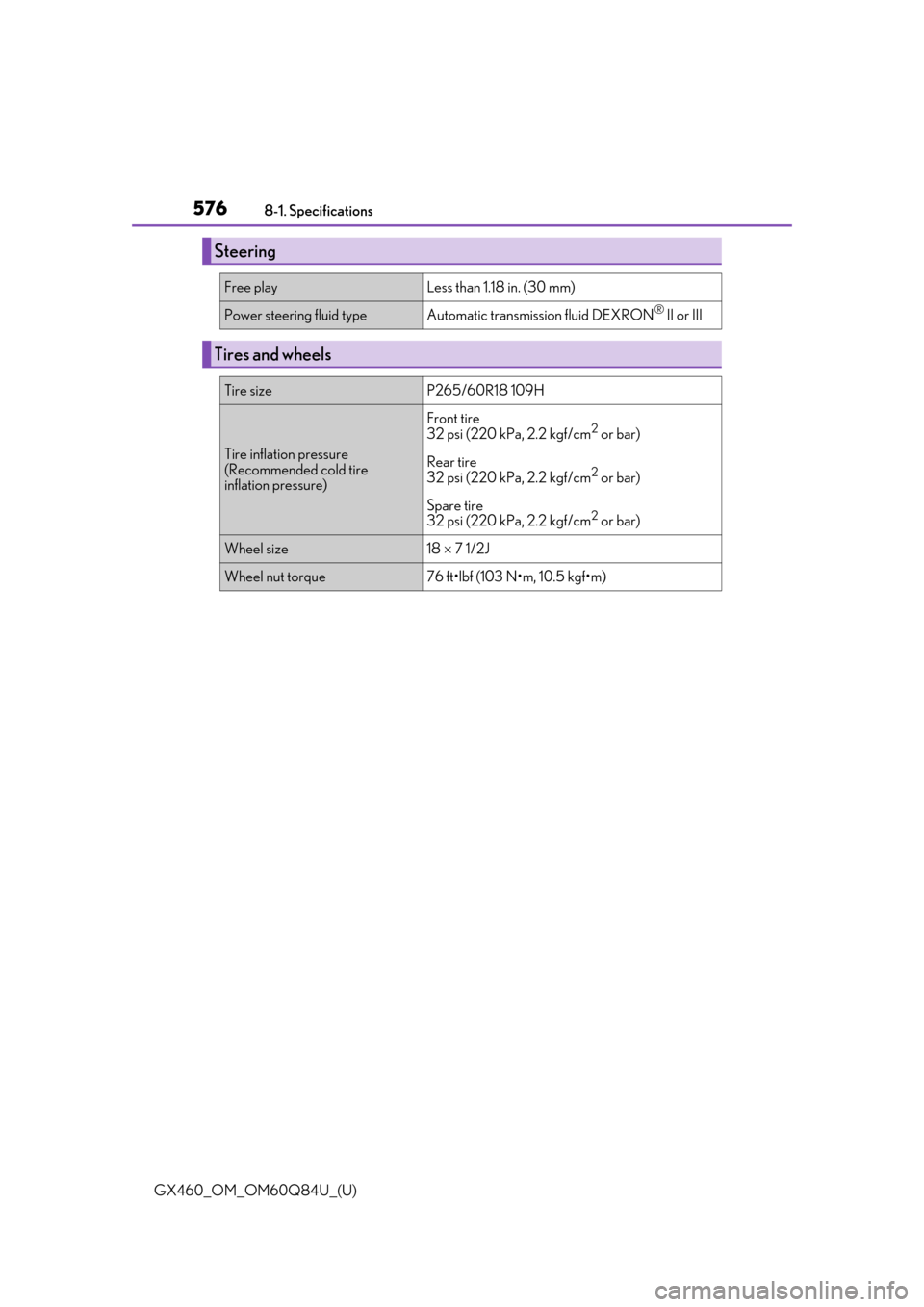

Steering
Free playLess than 1.18 in. (30 mm)
Power steering fluid typeAutomatic transmission fluid DEXRON® II or III
Tires and wheels
Tire sizeP265/60R18 109H
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front tire
32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Rear tire
32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Spare tire
32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Wheel size18
 7 1/2J
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)

GX460_OM_OM60Q84U_(U)
5778-1. Specifications
8
Vehicle specifications

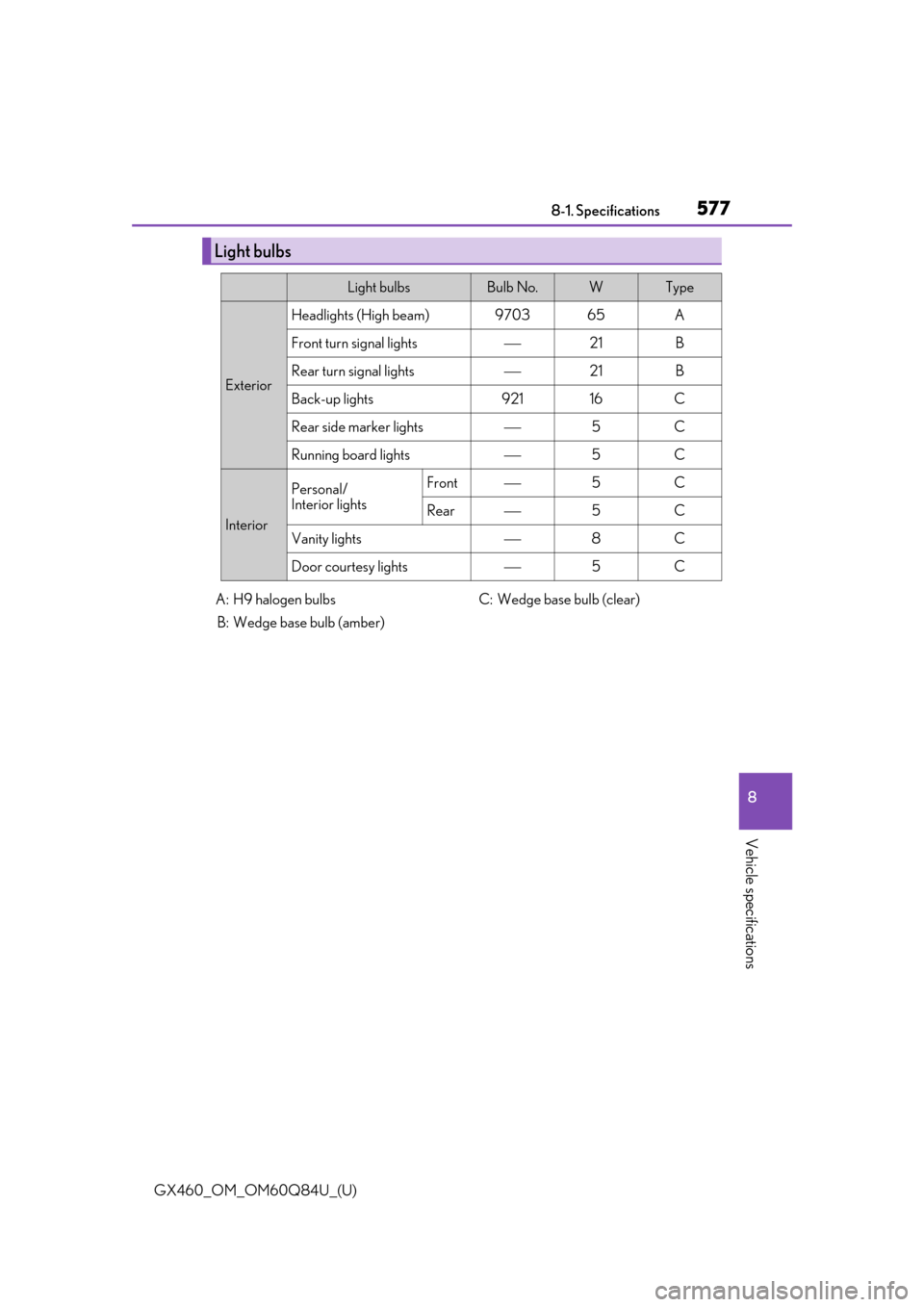

Light bulbs
Light bulbsBulb No.WType
Exterior
Headlights (High beam)970365A
Front turn signal lights21B
Rear turn signal lights21B
Back-up lights92116C
Rear side marker lights5C
Running board lights5C
Interior
Personal/
Interior lightsFront5C
Rear5C
Vanity lights8C
Door courtesy lights5C
A: H9 halogen bulbsB: Wedge base bulb (amber) C: Wedge base bulb (clear)

578
GX460_OM_OM60Q84U_(U)8-1. Specifications
Fuel information
■Gasoline quality
In very few cases, driveabilit
y problems may be caused by th e brand of gasoline you are
using. If driveability problems persist, try ch anging the brand of gasoline. If this does not
correct the problem, consult your Lexus dealer.
■Recommendation of the use of gasoline containing detergent additives
●Lexus recommends the use of gasoline that contains detergent additives to avoid the
build-up of engine deposits.
●All gasoline sold in the U.S.A. contains minimum detergent additives to clean and/or
keep clean intake systems, per EPA’s lowest additives concentration program.
●Lexus strongly recommends the use of Top Tier Detergent Gasoline. For more informa-
tion on Top Tier Detergent Gasoline and a lis t of marketers, please go to the official
website www.toptiergas.com.
■Recommendation of the use of low emissions gasoline
Gasolines containing oxygenates such as et hers and ethanol, as well as reformulated
gasolines, are available in some cities. Thes e fuels are typically acceptable for use, pro-
viding they meet other fuel requirements.
Lexus recommends these fuels, since the form ulations allow for reduced vehicle emis-
sions.
You must only use unleaded gasoline.
Select premium unleaded gasoline with an octane rating of 91 (Research
Octane Number 96) or higher requir ed for optimum engine performance
and fuel economy. If the octane rating is less than 91, damage to the engine
may occur and may void the vehicle warranty.
At minimum, the gasoline you use shou ld meet the specifications of ASTM
D4814 in the U.S.A..

GX460_OM_OM60Q84U_(U)
5798-1. Specifications
8
Vehicle specifications
■Non-recommendation of the use of blended gasoline
●If you use gasohol in your Lexus, be sure that it has an octane rating no lower than 91.
●Lexus does not recommend the use of gasoline containing methanol.
■Non-recommendation of the use of gasoline containing MMT
Some gasoline contains an octane enhancin g additive called MMT (Methylcy clopenta-
dienyl Manganese Tricarbonyl).
Lexus does not recommend the use of gasoline that contains MMT. If fuel containing
MMT is used, your emission control system may be adversely affected.
The malfunction indicator lamp on the instru ment cluster may come on. If this happens,
contact your Lexus dealer for service.
■If your engine knocks
●Consult your Lexus dealer.
●You may occasionally notice light knocking for a short time while accelerating or driv-
ing uphill. This is normal and there is no need for concern.
●Use only gasoline containing up to 15% etha-
nol.
DO NOT use any flex-fuel or gasoline that
could contain more than 15% ethanol, includ-
ing from any pump labeled E30, E50, E85
(which are only some examples of fuel con-
taining more than 15% ethanol).DO NOT use gasoline con-
taining more than 15% ethanol.
(30% ethanol)
(50% ethanol)
(85% ethanol)

580
GX460_OM_OM60Q84U_(U)8-1. Specifications
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If improper fuels are used, the engine will be damaged.
●Do not use leaded gasoline.
Leaded gasoline can cause damage to your
vehicle’s three-way catalytic converters
causing the emission control system to malfunction.
●Do not use gasohol other than the type previously stated.
Other gasohol may cause fuel system damage or vehicle performance problems.
●Using unleaded gasoline with an octane numb er or rating lower than the level previ-
ously stated may cause pe rsistent heavy knocking.
At worst, this may lead to engine da mage and will void the vehicle warranty.
■Fuel-related poor driveability
If poor driveability (poor hot starting, vaporization, engine knocking, etc.) is encoun-
tered after using a different type of fuel, discontinue the use of that type of fuel.
■When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle’s paint.
