41
GX460_QG_OM60Q86U_(U)
■Rain-sensing windshield wipers
Type A
Rain-sensing operation (“AUTO”)
Low speed operation
High speed operation
Temporary operation
When “AUTO” is selected, the wipers
will operate automatically when the
sensor detects falling rain. The system
automatically adjusts wiper timing in
accordance with rain volume and vehi-
cle speed.
The sensor sensitivity can be adjusted when “AUTO” is selected.
Increases the sensitivity
Decreases the sensitivity
Washer/wiper dual operation
Pulling the lever op erates the wipers
and washer.
The wipers operate automatically.
(After operating several times, the wip-
ers operate one more time after a short
delay to prevent dripping.)
Vehicles with headlight cleaners: If the
headlights are on, the headlight clean-
ers will operate once.
1
2
3
4
5
6
7

42
GX460_QG_OM60Q86U_(U)
Type BRain-sensing operation (“AUTO”)
Low speed operation
High speed operation
Temporary operation
When “AUTO” is selected, the wipers
will operate automatically when the
sensor detects falling rain. The system
automatically adjusts wiper timing in
accordance with rain volume and vehi-
cle speed.
The sensor sensitivity can be adju sted when “AUTO” is selected.
Increases the sensitivity
Decreases the sensitivity
Washer/wiper dual operation
Pulling the lever operates the wipers
and washer.
The wipers operate automatically.
(After operating seve ral times, the wip-
ers operate one more time after a short
delay to prevent dripping.)
Vehicles with headlight cleaners: If the
headlights are on, the headlight clean-
ers will operate once.
1
2
3
4
5
6
7

43
GX460_QG_OM60Q86U_(U)

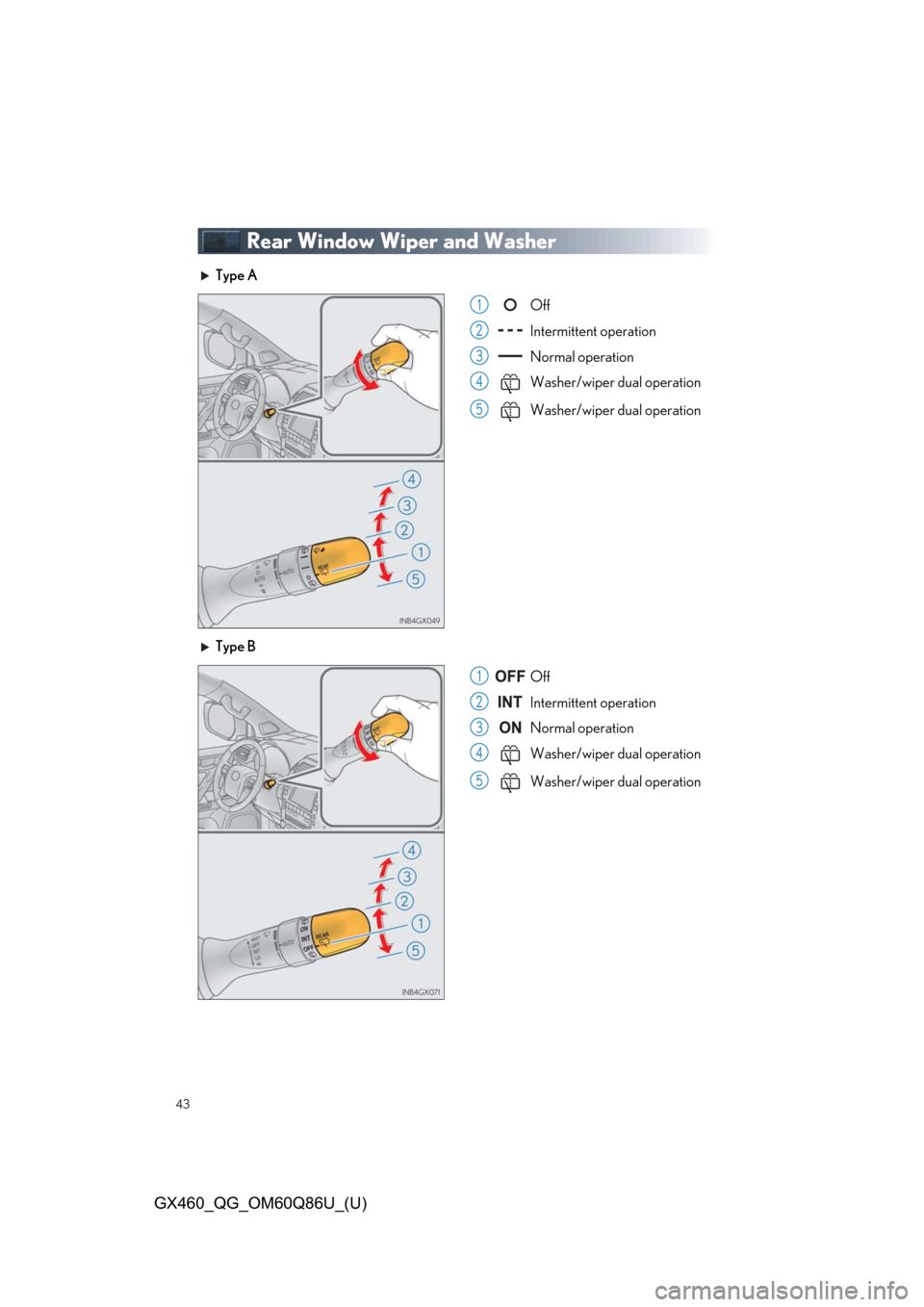

Rear Window Wiper and Washer
Type AOff
Intermittent operation
Normal operation
Washer/wiper dual operation
Washer/wiper dual operation
Type B Off
Intermittent operation
Normal operation
Washer/wiper dual operation
Washer/wiper dual operation
1
2
3
4
5
1
2
3
4
5

44
GX460_QG_OM60Q86U_(U)
Touch Screen (with navigation system)
■Basic operation
Press to display the hand s-free operation screen.
Press to display the “Information” screen.
Press to display th e “Setup” screen.
Press to display the home screen.
Press to display the air co nditioning control screen.
Press to display the map screen.
Press to display the audio/visual screen.
This system is operated mainly by selectin g the buttons on the screen. (Referred to as
screen buttons in this manual.)
For details, see the “NAVIGA TION SYSTEM OWNER’S MANUAL”.
1
2
3
4
5
6
7

45
GX460_QG_OM60Q86U_(U)
■Home
Three-way split screen
Press the “HOME” button to display the
home screen.
The home screen can display multiple infor-
mation screens, such as the navigation sys-
tem screen, audio system screen and fuel
consumption screen, simultaneously. When
a screen is selected, the selected screen is
switched to a full-screen display.
Displays the condition of the
Bluetooth
® connection
Select to change th e display items/area
and the home screen layout.
Two-way split screen
■
Screen scroll operation
Use the scroll feature to move the desired
point to the center of the screen for looking
at a point on the map that is different from
the current position.
Cursor mark
Distance from the current position to
the cursor mark.
Zooms in on the map
Zooms out on the map
Select to return to the current position.
Select to register as a memory point.
Select to set as a destination.
1
2
1
2
3
4
5
6
7

46
GX460_QG_OM60Q86U_(U)
■Setting a route
While route guidance is operating, you can change the route using the following method.
Select “Options”.
Select “Edit Route”.
Select the item to be set.Set route preferences
Set detours
Change route type
Start from adjacent road
1
2
3
1
2
3
4
Some functions are unavailable while the vehi cle is in motion. Refer to the “NAVIGATION
SYSTEM OWNER’S MANUAL”.

47
GX460_QG_OM60Q86U_(U)
Navigation System (if equipped)
■Register home
Press the “SETUP” button.
Select “Navigation”.
Select “Home”.
Select “Set Home Location”.
Select “Address”.21
2
33
44
5

48
GX460_QG_OM60Q86U_(U)
Select “City”.
Enter a city name and select “OK”.
Select the screen button of the desired
city name from the displayed list.
For security reasons, use a point close
to your home instead of your actual
home address.
Enter a street name and select “OK”.
When the desired street name is found,
select the correspondi ng screen button.
Enter a house number and select “OK”.
Select “OK”.
66
7
8
9
10
11
12

49
GX460_QG_OM60Q86U_(U)
■Destination input  Search by address
Select by city name
Press the “NAV” button.
Select “Dest.”.
Select “Address”.
Select “City”.
Enter a city name and select “OK”.
Select the screen button of the desired
city name from the displayed list.
Enter a street name and select “OK”.
When the desired street name is found,
select the corresponding screen but-
ton.
Enter a house number and select
“OK”.
Select “Go”.
Select “OK”.
31
2
3
44
55
6
7
8
9
10
11

50
GX460_QG_OM60Q86U_(U)
Select by street addressPress the “NAV” button.
Select “Dest.”.
Select “Address”.
Select “Street Address”.
Enter a house number and select
“OK”.
Enter a street name and select “OK”.
When the desired street name is found,
select the correspon ding screen but-
ton.
Enter a city name and select “OK”.
Select the screen bu tton of the desired
city name from the displayed list.
Select “Go”.
Select “OK”.
31
2
3
44
55
6
7
8
9
10
11
