4556-3. Do-it-yourself maintenance
6
Maintenance and careThe coolant level is satisfactory if it is between the “F” and “L” lines on the reser-
voir when the engine is cold.Reservoir cap
“F”
“L”
If the level is on or below the “L” line, add
coolant up to the “F” line.
WARNING
■Used engine oil
●Used engine oil contains potentially harm ful contaminants which may cause skin dis-
orders such as inflammation or skin canc er, so care should be taken to avoid pro-
longed and repeated contact. To remove used engine oil from your skin, wash
thoroughly with soap and water.
●Dispose of used oil and filters only in a sa fe and acceptable manner. Do not dispose of
used oil and filters in household trash, in sewers or onto the ground. Call your Lexus
dealer, service station or auto parts store for information concerning recycling or dis-
posal.
●Do not leave used engine oil within the reach of children.
NOTICE
■To prevent serious engine damage
Check the oil level on regular basis.
■When replacing the engine oil
●Be careful not to spill engine oil on the vehicle components.
●Avoid overfilling, or the engine could be damaged.
●Check the oil level on the dipstick every time you refill the vehicle.
●Be sure the engine oil filler cap is properly tightened.
Engine coolant
1
2
3

456
GX460_OM_OM60R27U_(U)6-3. Do-it-yourself maintenance
■Coolant selection
Only use “Toyota Super Long Life Coolant”
or a similar high quality ethylene glycol
based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life hybrid
organic acid technology.
U.S.A.: “Toyota Super Long Life Coolant” is a mixture of 50 % coolant and 50 % deion-
ized water. (Minimum temperature: -31 F [-35 C])
Canada: “Toyota Super Long Life Coolant” is a mixture of 55 % coolant and 45 % deion-
ized water. (Minimum temperature: -44 F [-42 C])
For more details about engine coolant, contact your Lexus dealer.
■If the coolant level drops within a short time of replenishing
Visually check the radiator, hoses, engine c oolant reservoir cap, radiator cap, drain cock
and water pump. If you cannot find a leak, have your Lexus dealer test the cap and check
for leaks in the cooling system.
WARNING
■When the engine is hot
Do not remove the radiator cap.
The cooling system may be under pressure and may spray hot coolant if the cap is
removed, causing serious injuries, such as burns.
NOTICE
■When adding coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of water and
antifreeze must be used to provide proper lubrication, corrosion protection and cool-
ing. Be sure to read the antifreeze or coolant label.
■If you spill coolant
Be sure to wash it off with water to pr event it from damage to parts or paint.

509
GX460_OM_OM60R27U_(U)
7
When trouble arises
7-2. Steps to take in an emergency
If you think something is wrong
●Fluid leaks under the vehicle
(Water dripping from the air conditioning after use is normal.)
●Flat-looking tires or uneven tire wear
●Engine coolant temperature gauge needle continually points higher than nor-
mal
●Changes in exhaust sound
●Excessive tire squeal when cornering
●Strange noises related to the suspension system
●Pinging or other noises related to the engine
●Engine missing, stumbling or running roughly
●Appreciable loss of power
●Vehicle pulls heavily to one side when braking
●Vehicle pulls heavily to one side when driving on a level road
●Loss of brake effectiveness, spongy feeling, pedal almost touches the floor
If you notice any of the following symptoms, your vehicle probably needs
adjustment or repair. Contact your Lexus dealer as soon as possible.
Visible symptoms
Audible symptoms
Operational symptoms

511
GX460_OM_OM60R27U_(U)
7
When trouble arises
7-2. Steps to take in an emergency
If a warning light turns on or a warning buzzer
sounds
Calmly perform the following actions if any of the warning lights comes on or
flashes. If a light comes on or flashes, but then goes off, this does not necessar-
ily indicate a malfunction in the system. However, if this continues to occur,
have the vehicle inspecte d by your Lexus dealer.
Warning light and warning buzzer list
Warning lightWarning light/Details/Actions
(U.S.A.)
(Canada)
Brake system warning light (warning buzzer) Indicates that:
• The brake fluid level is low; or
• The brake system is malfunctioning.
 Immediately stop the vehicle in a safe place and contact your
Lexus dealer. Continuing to drive the vehicle may be dangerous.
Charging system warning light
Indicates a malfunction in the vehicle’s charging system
 Immediately stop the vehicle in a safe place and contact your
Lexus dealer.
Low engine oil pressure warning light*1
Indicates that the engine oil pressure is too low
 Immediately stop the vehicle in a safe place and contact your
Lexus dealer.
(U.S.A.)
(Canada)
Malfunction indicator lamp Indicates a malfunction in:
• The electronic engine control system;
• The electronic throttle control system; or
• The electronic automatic transmission control system
 Have the vehicle inspected by your Lexus dealer immediately.
High coolant temperature warning light (warning buzzer)*1
Indicates that the engine coolant temperature is too high
 Immediately stop the vehicle in a safe place. Handling method
( P. 546)
SRS warning light
Indicates a malfunction in:
• The SRS airbag system;
• The front passenger occupant classification system; or
• The seat belt pretensioner system
 Have the vehicle inspected by your Lexus dealer immediately.

5237-2. Steps to take in an emergency
GX460_OM_OM60R27U_(U)
7
When trouble arises
■If “SEE OWNER’S MANUAL”/“See Owner’s Manual” is shown
●If any of the following messages are shown on the multi-information display, follow the
instructions.
• “Engine Coolant Temp High” ( P. 546)
●If any of the following messages are shown on the multi-information display, it may indi-
cate a malfunction. Immediately stop the vehicle and contact your Lexus dealer.
• “BRAKING POWER LOW”/“Braking Power Low”
• “Charging System Malfunction”
■If a following message is shown, take appropriate action and confirm that the message
has disappeared. ( P. 344) (if equipped)
●“CRAWL NOT AVAILABLE SELECT L4 AND SHIFT TO D OR R POSITION”/
“Crawl Not Available Select L4 and Shift to D or R Position”
●“CRAWL NOT AVAILABLE CHECK SYSTEM OPERATION CONDITIONS”/
“Crawl Not Available Check System Operation Conditions”
■If “VISIT YOUR DEALER”/“Visit Your Dealer” or “CHECKED BY A DEALER”/
“checked by a dealer” is shown
The system or part shown on the multi-info rmation display is malfunctioning. Have the
vehicle inspected by your Lexus dealer immediately.

546
GX460_OM_OM60R27U_(U)7-2. Steps to take in an emergency
If your vehicle overheats
Stop the vehicle in a safe place and tu
rn off the air conditioning system, and
then stop the engine.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
After the engine has cooled down suff iciently, inspect the hoses and radiator
core (radiator) for any leaks.
Radiator
Cooling fans
If a large amount of coolant leaks,
immediately contact your Lexus
dealer.
The following may indicate that your vehicle is overheating.
●The needle of the engine coolant temperature gauge ( P. 88) enters the
red zone or a loss of engine power is experienced. (For example, the vehicle
speed does not increase.)
●Steam is coming from under the hood.
Correction procedures
1
2
3
1
2

5477-2. Steps to take in an emergency
GX460_OM_OM60R27U_(U)
7
When trouble arises
The coolant level is satisfactory if it is between the “F” and “L” lines on the res-
ervoir. Reservoir
“F”
“L”
Radiator cap
Add coolant if necessary.
Water can be used in an emergency if
coolant is unavailable.
Start the engine and turn the air conditio ning system on to check that the radi-
ator cooling fans operate and to check for coolant leaks from the radiator or
hoses.
The fans operate when the air conditioning system is turned on immediately after a
cold start. Confirm that the fans are operating by checking the fan sound and air flow.
If it is difficult to check these, turn the air conditioning system on and off repeatedly.
(The fans may not operate in freezing temperatures.)
If the fans are not operating:
Stop the engine immediately an d contact your Lexus dealer.
If the fans are operating:
Have the vehicle inspected at the nearest Lexus dealer.
4
1
2
3
4
5
6
7

5487-2. Steps to take in an emergency
GX460_OM_OM60R27U_(U)
WARNING
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the h ood, do not open the hood until the steam
has subsided. The engine compartment may be very hot.
●Keep hands and clothing (especially a tie, a scarf or a muffler) away from the fans and
belts. Failure to do so may cause the hands or clothing to be caught, resulting in seri-
ous injury.
●Do not loosen the radiator cap or the cool ant reservoir cap while the engine and radi-
ator are hot. High temperature steam or coolant could spray out.
NOTICE
■When adding engine coolant
Add coolant slowly after the engine has cool ed down sufficiently. Adding cool coolant
to a hot engine too quickly can cause damage to the engine.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreig n matter (such as sand or dust etc.).
●Do not use any coolant additive.

GX460_OM_OM60R27U_(U)
5718-1. Specifications
8
Vehicle specifications

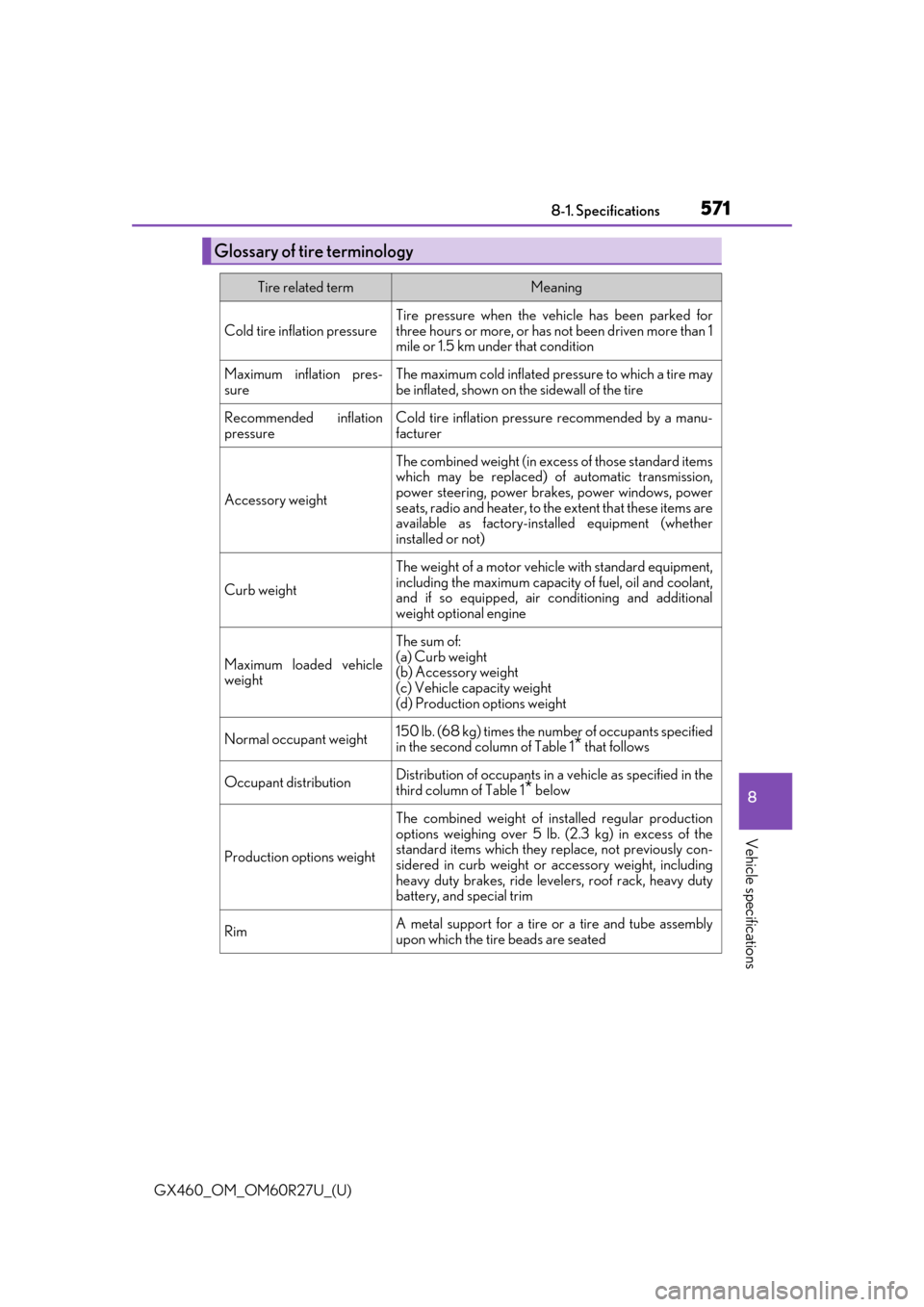

Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pressure
Tire pressure when the vehicle has been parked for
three hours or more, or has not been driven more than 1
mile or 1.5 km un der that condition
Maximum inflation pres-
sureThe maximum cold inflated pr essure to which a tire may
be inflated, shown on the sidewall of the tire
Recommended inflation
pressureCold tire inflation pressure recommended by a manu-
facturer
Accessory weight
The combined weight (in exce ss of those standard items
which may be replaced) of automatic transmission,
power steering, power brakes, power windows, power
seats, radio and heater, to the extent that these items are
available as factory-installed equipment (whether
installed or not)
Curb weight
The weight of a motor vehicle with standard equipment,
including the maximum capacity of fuel, oil and coolant,
and if so equipped, air co nditioning and additional
weight optional engine
Maximum loaded vehicle
weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant weight150 lb. (68 kg) times the numb er of occupants specified
in the second column of Table 1* that follows
Occupant distributionDistribution of occupants in a vehicle as specified in the
third column of Table 1
* below
Production options weight
The combined weight of in stalled regular production
options weighing over 5 lb. (2.3 kg) in excess of the
standard items which they re place, not previously con-
sidered in curb weight or accessory weight, including
heavy duty brakes, ride levelers, roof rack, heavy duty
battery, and special trim
RimA metal support for a tire or a tire and tube assembly
upon which the tire beads are seated

609Alphabetical index
GX460_OM_OM60R27U_(U)
Emergency flashers .............................500
EngineAccessory mode..................................197
Brake Override System .................. 165
Compartment....................................... 451
Drive-Start Control............................ 166
Hood ....................................................... 450
How to start the engine ................... 196
Identification number ...................... 554
If the engine will not start............... 538
Ignition switch (engine switch)..... 196
Overheating ........................................ 546
Engine compartment cover ............. 452
Engine coolant....................................... 455 Capacity ................................................ 556
Checking............................................... 455
Preparing and checking before winter ....................................367
Engine immobilizer system ..................76
Engine oil ................................................. 453 Capacity ................................................ 554
Checking................................................453
Preparing and checking before winter ....................................367
Warning message ............................. 522
Engine oil maintenance data ........... 454
Engine switch ...........................................196
Engine switch light ............................... 392
Event data recorder (EDR) ...................10 Flat tire .......................................................524
Floor mats....................................................26
Fluid
Automatic transmission ................. 558
Brake........................................................559
Steering ................................................. 560
Washer ................................................... 463
Fog lights.................................................... 217 Replacing light bulbs ....................... 497
Switch ........................................................ 217
Four-wheel drive system................... 340
Front passenger occupant classification system ............................ 47
Front passenger’s seat belt reminder light ....................................... 513
Front seats ................................................. 128 Adjustment..............................................128
Cleaning................................................. 437
Correct driving posture .................... 28
Driving position memory...................141
Head restraints .....................................146
Seat heaters ..........................................390
Seat position memory .........................141
Front turn signal lights .........................207 Replacing light bulbs ....................... 493
Turn signal lever ................................. 207
Wattage ...................................................561F
