GAUGES, METERS AND SERVICE REMINDER INDICATORS
75

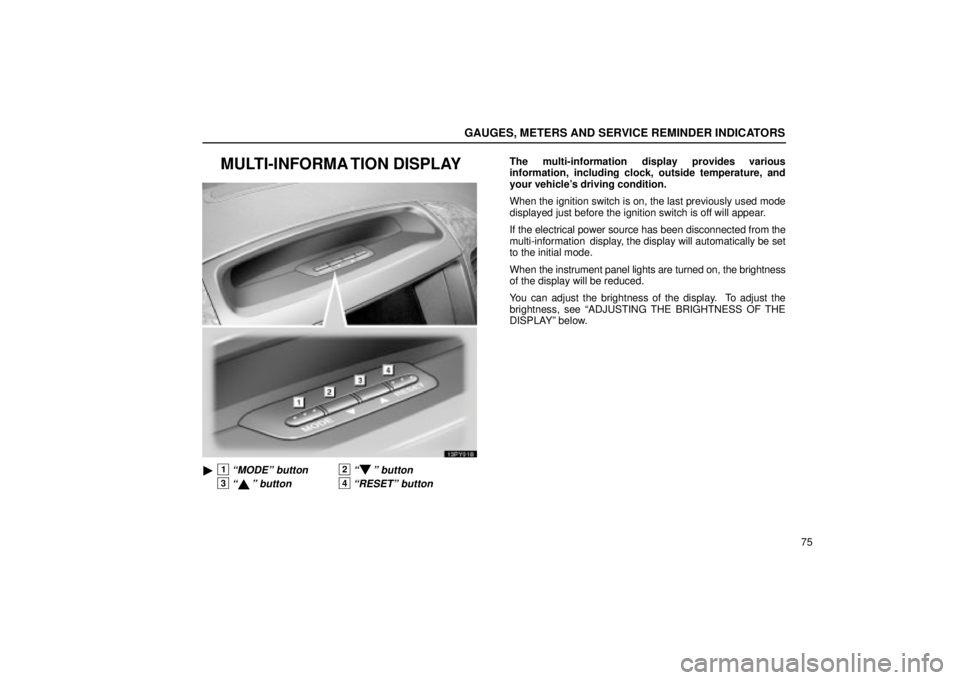

MULTI-INFORMA TION DISPLAY
13PY018

1MODEº button2º button
3º button4RESETº button
The multi-information display provides various
information, including clock, outside temperature, and
your vehicle's driving condition.
When the ignition switch is on, the last previously used mode
displayed just before the ignition switch is off will appear.
If the electrical power source has been disconnected from the
multi-information display, the display will automatically be set
to the initial mode.
When the instrument panel lights are turned on, the brightness
of the display will be reduced.
You can adjust the brightness of the display. To adjust the
brightness, see ADJUSTING THE BRIGHTNESS OF THE
DISPLAYº below.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
76ADJUSTING THE BRIGHTNESS OF THE DISPLAY
The key must be in the ACCº or ONº position. To adjust the
brightness of the display, push and hold the MODEº button for
more than 2 seconds. ILLº will appear on the display.
To increase the brightness Ð Push the
º button.
To decrease the brightness Ð Push the
º button.
You can adjust the brightness to 3 levels (when the tail lights
are off) or 6 levels (when the tail lights are on).
After adjusting, the display automatically return to the previous
display.
CAUTION
Do not adjust the display while the vehicle is moving.
Be sure to adjust the display only when the vehicle is
stopped.
Clock

U.S.A.

Canada

GAUGES, METERS AND SERVICE REMINDER INDICATORS
77
The digital clock indicates the time when the key is in the
ACCº or ONº position.
To reset the time, push and hold the MODEº button for 2
seconds. ILLº will appear on the display. Then push the
MODEº button once. The time will blink.
To reset the hour Ð Push the
º button.
To reset the minutes Ð Push the
º button.
To adjust the time to the nearest hour, push the RESETº
button. For example, if the RESETº button is depressed when
the time is between 1:01 Ð 1:29, the time will change to 1:00.
If the time is between 1:30 Ð 1:59, the time will change to 2:00.
If the electric power source has been disconnected, the time
display will automatically be set to 1:00.
Outside temperature and cruise information
The following information is shown with the ignition
switch turned on. Each time you push the MODEº button,
the display toggles through this information.
 Outside temperature
 Average fuel consumption
 Instantaneous fuel consumption
 Driving range
 Average vehicle speed
 Barometer
 Altimeter
 Elapsed time
The displayed values indicate general driving conditions.
Accuracy varies with driving habits and road conditions.

INTERIOR EQUIPMENT
96
NOTICE
To prevent the battery from being discharged, do notuse the power outlet longer than necessary when theengine is not running.
Close the power outlet lid when the power outlet isnot in use. Inserting anything other than anappropriate plug that fits the outlet, or allowing anyliquid to get into the outlet may cause electricalfailure or short circuits.
The power outlet is not designed for the following electric
appliances even though their power consumption is
under 115 VAC/100W. These appliances may not operate
properly.
 Appliances with high initial peak wattage: Cathode-ray
tube type televisions, compressor-driven refrigerators,
electric pumps, electric tools, etc.
 Measuring devices which process precise data: Medical
equipment, measuring instruments, etc.
 Other appliances requiring an extremely stable power
supply: Microcomputer-controlled electric blankets, touch
sensor lamps, etc.
Certain electrical appliances may cause radio noise.GLOVE BOX
1Unlock2Open3Lock
To open the glove box door, pull the lever. To lock the
glove box door, insert the master key and turn it
clockwise.
With the tail lights on, the gl ove box light will come on when the
glove box door is open.

EXTERIOR EQUIPMENT
11 4
2. To remove the fuel tank cap, turn the cap
counterclockwise by 90 degrees (to the pressure point
1), and then turn it an additional 30 degrees (to point
2). Pause slightly before removing it.
It is not unusual to hear a slight swoosh when the cap is
opened.
15PY017
3. The removed cap can be stored on the back side of the
fuel filler door.
Position the cap so that the hooks point to the left and right or
up and down, and set it in the receptacle on the back side of
the door.

EXTERIOR EQUIPMENT
11 5
When installing the cap, turn the cap clockwise until you
hear a click. When you hear the click, the cap is fully
closed.
If the cap is not tightened securely, the malfunction indicator
lamp comes on. Make sure the cap is tightened securely.
The indicator lamp goes off after driving several times. If the
indicator lamp does not go off, contact your Lexus dealer as
soon as possible.
CAUTION

Make sure the cap is installed securely to prevent fuel
spillage in the event of an accident.
 Use only a genuine Lexus fuel tank cap for
replacement. It is designed to regulate fuel tank
pressure.
NOTICE
To prevent damage to the cap, apply force only in the
turning direction to the cap. Do not pull or pry it.

EXTERIOR EQUIPMENT
120
Adjusting the position of cross rails
1. Turn the knobs counterclockwise to loosen the cross
rails.
2. Slide the cross rails to the appropriate position for
loading the luggages.
There are cross rail stoppers on the roof rails which help you
prevent the cross rails being touched with the tilted-up moon
roof.
NOTICE
Do not remove the cross rail stoppers, or the moon roofmay be damaged when it is tilted.

EXTERIOR EQUIPMENT
121
3. After adjusting, be sure to tighten the cross rails by
turning knobs clockwise.
CAUTION
Make sure the cross rails are fixed securely by pushing
forward and rearward them. Failure to do so may cause
an unexpected accident or severe injury in the event of
emergency braking or a collision.
Follow the manufacturer's instructions and precautions when
installing the attachments or their equivalent.
CAUTION
When you load cargo on the roof luggage carrier,
observe the following:
 Place the cargo so that its weight is distributed
evenly between the front and rear axles.
 If loading long or wide cargo, never exceed the
vehicle overall length or width. (See Specificationsº
on page 631 for information on your vehicle overall
length and width.)
 Before driving, make sure the cargo is securely
fastened on the roof luggage carrier.
 Loading cargo on the roof luggage carrier will make
the center of the vehicle gravity higher. Avoid high
speeds, sudden starts, sharp turns, sudden braking
or abrupt maneuvers, otherwise it may result in loss
of control or vehicle rollover due to failure to operate
this vehicle correctly.
 If driving for a long distance, on rough roads, or at
high speeds, stop the vehicle now and then during
the trip to make sure the cargo remains in its place.
 Do not exceed 58 kg (130 lb.) cargo weight on the roof
luggage carrier.
NOTICE
When loading the luggages, be careful not to scratch
the surface of the moon roof.

IN CASE OF AN EMERGENCY
490
40PY040

1Jack
2Spare tire
3Tool tray
1. Get the tool, jack and spare tire.To remove the tool tray, turn the knob
counterclockwise and open the cover, then pull the
tray out.
To prepare yourself for an emergency, you should
familiarize yourself with the use of the jack and each
tool, and their storage locations.
When storing the jack, put it into place and secure
to prevent it from flying forward during a collision or
sudden braking.

1Jack handle extension with bolt
2Jack handle extension without bolt
3Jack handle

IN CASE OF AN EMERGENCY
492
40PY046

1Lower2Raise3Cloth
To remove the spare tire:
1. Open the back door and remove the spare tire
carrier lid using a flat-bladed screwdriver.
2. Insert the end of the jack handle extension into the
lowering screw and put a cloth between the jack
handle extension and rear bumper to protect the
bumper surface.
3. Turn the jack handle counterclockwise until the
spare tire completely lowered to the ground. Make
sure the handle remains firmly fitted onto the jack
handle extension.
