radiator cap Lexus GX470 2004 Audio / LEXUS 2004 GX470 FROM AUG. 2004 THROUGH SEP. 2004 PROD. OWNER'S MANUAL (OM60B55U)

IN CASE OF AN EMERGENCY
487
B: If no steam is coming from your engine:
Leave the engine running and turn off the air conditioning.
Check the following.

Is the cooling fan operating?
 Is the coolant in the acceptable range?
 Is the engine drive belt O.K.?
CAUTION
When the engine is running, keep hands and clothing
away from the moving fan and engine drive belt.
 Do not attempt to remove the radiator cap when the
engine and radiator are hot. Serious injury could
result from scalding hot fluid and steam blown out
under pressure.
If the cooling fan is not operating or the coolant is not in the
acceptable range, turn off the engine and call your Lexus
dealer.
If both conditions are O.K., after the engine coolant
temperature has cooled to normal, continue driving your
vehicle.
If the engine coolant temperature does not cool down, or your
vehicle overheats again, have it checked as soon as possible
by your Lexus dealer.
IF YOU HAVE A FLAT TIRE
1. Reduce your speed gradually, keeping a straight
line. Move cautiously off the road to a safe place
Ð well away from the traffic. Avoid stopping on the
center divider of a highway. Park on a level spot with
firm ground.
2. Stop the engine and turn on your emergency
flashers.
3. F i r m l y s e t t h e p a r k i n g b r a k e a n d p u t t h e
transmission in Pº.
4. Have everyone get out of the vehicle on the side
away from traffic.
5. Read the following instructions thoroughly.
CAUTION
When jacking, be sure to observe the following
to reduce the possibility of personal injury:
Turn off the active height control suspension
by pushing the active height control switch.
 Follow jacking instructions.

61PY004
INTRODUCTION
544
NOTICE
You should not attempt to remove the theft preventionlabels as it may violate certain state or federal laws.
ENGINE COMPARTMENT OVERVIEW
1Engine oil leveldipstick
2Engine oil filler cap
3Brake fluid reservoir
4Fuse box
5Battery
6Condenser
7Electric cooling fan
8Radiator
9Engine coolantreservoir
10Washer fluid tank
11Power steering fluidreservoir

INTRODUCTION
547
DO-IT-YOURSELF SERVICEPRECAUTIONS
If you perform maintenance yourself, be sure to follow the
correct procedure given in this Section.
You should be aware that improper or incomplete servicing
may result in operating problems.
Performing do-it-yourself maintenance during the warranty
period may affect your warranty coverage. Read the separate
Lexus Warranty statement for details and suggestions.
This Section gives instructions only for those items that are
relatively easy for an owner to perform. As explained in
Section 5, there are still a number of items that must be
performed by a qualified technician with special tools.
For information on tools and parts for do-it-yourself
maintenance, see Parts and toolsº on page 549.
Utmost care should be taken when working on your vehicle to
prevent accidental injury. Here are a few precautions that you
should be especially careful to observe:

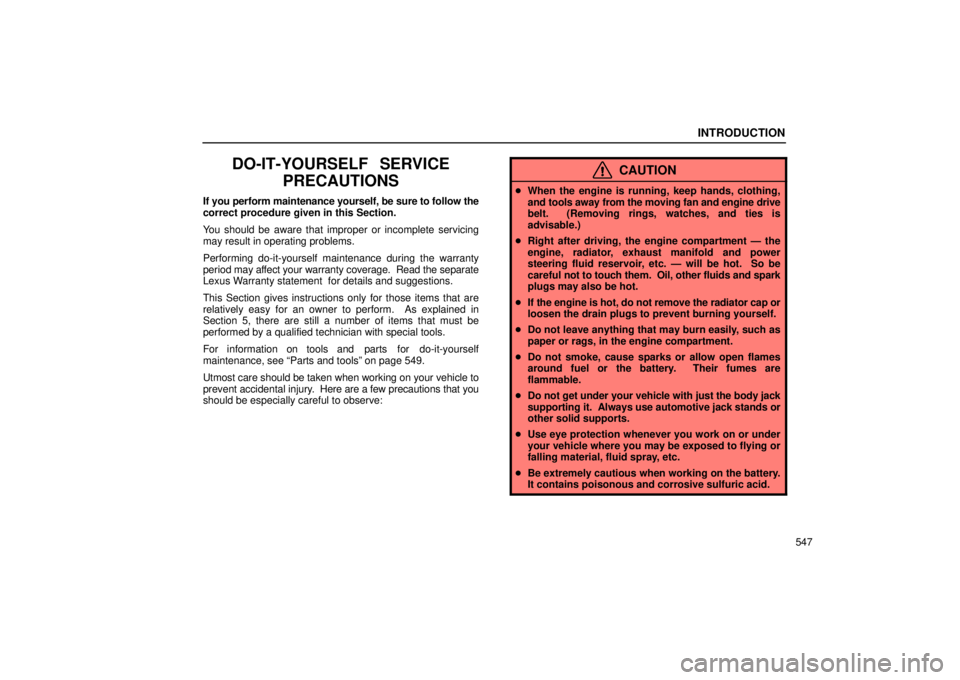

CAUTION

When the engine is running, keep hands, clothing,
and tools away from the moving fan and engine drive
belt. (Removing rings, watches, and ties is
advisable.)

Right after driving, the engine compartment Ð the
engine, radiator, exhaust manifold and power
steering fluid reservoir, etc. Ð will be hot. So be
careful not to touch them. Oil, other fluids and spark
plugs may also be hot.

If the engine is hot, do not remove the radiator cap or
loosen the drain plugs to prevent burning yourself.

Do not leave anything that may burn easily, such as
paper or rags, in the engine compartment.

Do not smoke, cause sparks or allow open flames
around fuel or the battery. Their fumes are
flammable.

Do not get under your vehicle with just the body jack
supporting it. Always use automotive jack stands or
other solid supports.

Use eye protection whenever you work on or under
your vehicle where you may be exposed to flying or
falling material, fluid spray, etc.

Be extremely cautious when working on the battery.
It contains poisonous and corrosive sulfuric acid.

ENGINE
568If the coolant level drops within a short time after replenishing,
there
may be a leak in the system. Visually check the radiator,
hoses, engine coolant filler cap, radiator cap and drain cock
and water pump.
If you can find no leak, have your Lexus dealer test the radiator
cap pressure and check for leaks in the cooling system.
CAUTION
To prevent burning yourself, do not remove the radiator
cap when the engine is hot.
Coolant type selection
Use of improper coolants may damage your engine cooling
system.
Only use Toyota Super Long Life Coolantº or similar high
quality ethylene glycol based non- silicate, non- amine,
non- nitrite, and non- borate coolant with long- life hybrid
organic acid t echnology. (Coolant with long-life hybrid organic
acid technology is a combination of low phosphates and
organic acids.) For the U.S.A. Ð Toyota Super Long Life Coolantº is a mixture
of 50% coolant and 50% deionized water. This coolant
provides protection down to about -35C (-31F).
For Canada Ð Toyota Super Long Life Coolantº is a mixture
of 55% coolant and 45% deionized water. This coolant
provides protection down to about -42C (-44F).
