GAUGES, METERS AND SERVICE REMINDER INDICATORS
76Elapsed time mode
The time that has elapsed since the engine started is
displayed.
When the engine is started, driving time is counted from 0:00.
Up to 19:59 (19 hours, 59 minutes) can be displayed. When
the driving time exceeds 19:59, the counter returns to 0:00.
To reset the calculations, push and hold the RESETº button for
more than 1 second.
INSTRUMENT PANEL LIGHT
CONTROL
To adjust the brightness of the instrument panel lights,
turn the dial.
With the dial turned fully up, the intensity of the instrument
panel lights will not be reduced when the headlight switch is on.

STEERING WHEEL AND MIRRORS
217 Displays
Directions
N
NE
E
SE
S
SW
W
NWNorth
Northeast
East
Southeast
South
Southwest
West
Northwest
The compass may not show the correct direction in the
following conditions:
The vehicle is stopped immediately after turning.
The compass does not adjust while the vehicle is stopped.
The ignition switch is turned off immediately after turning.
The vehicle is on an inclined surface.
The vehicle is in a place where the earth's magnetic field is
subject to interference by artificial magnetic fields
(underground parking, under a steel tower, between
buildings, roof parking, near a crossing, near a large vehicle,
etc.).
The vehicle is magnetized. (There is a magnet or a metal
object on or near the inside rear view mirror.)
The battery has been disconnected.
Your vehicle is out of the set zone. Refer to the Calibrating the
compassº in this Section to set the zone number.
The compass works to calibrate the direction automatically
while the vehicle is in motion, if deviation is small.For additional precision or for complete calibrating, see
Calibrating the compassº below.

STEERING WHEEL AND MIRRORS
219 Calibrating the compass (deviation calibration)
The direction display on the compass deviates from the true
direction determined by the earth's magnetic field. The angle
of deviation varies according to the geographic position of the
vehicle.To adjust this deviation, stop the vehicle, then push and hold
the COMPº switch until the zone number appears on the
display. Then push the COMPº switch, referring to the

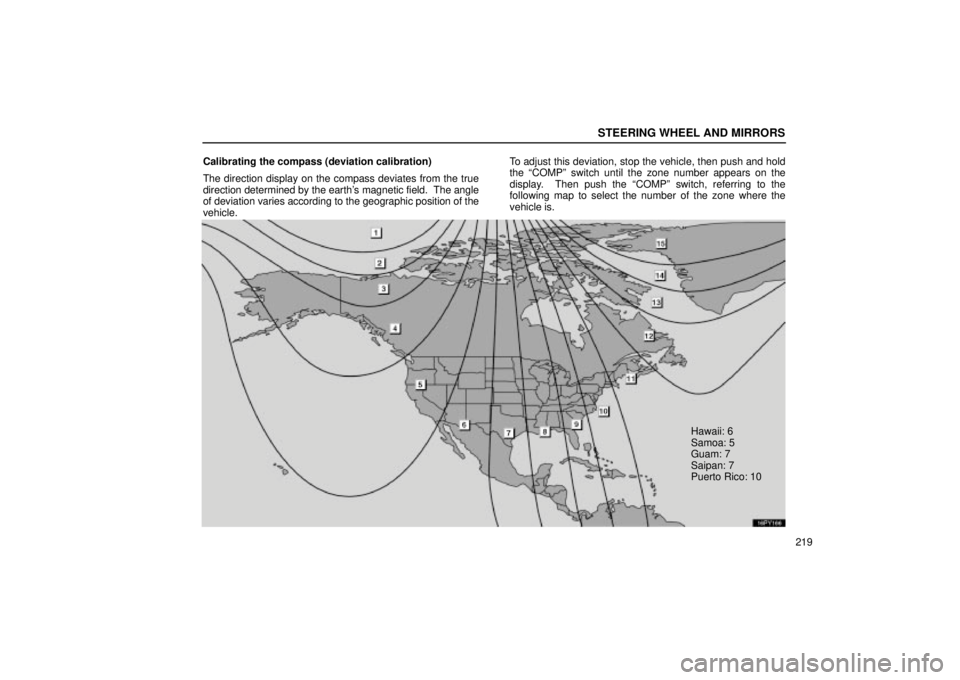

following map to select the number of the zone where the
vehicle is.
Hawaii: 6
Samoa: 5
Guam: 7
Saipan: 7
Puerto Rico: 10

STEERING WHEEL AND MIRRORS
220

Zone numbersLeaving the system after the calibration for several seconds,
the direction will appear on the display. It shows the zone
number is set.
CAUTION
Do not adjust the display while the vehicle is moving.
Be sure to adjust the display only when the vehicle is
stopped.
Calibrating the compass (circling calibration)
To rectify the compass, stop the vehicle and push and hold the
COMPº switch until Cº appears on the display.
There is also a case that Cº appears on the display in case of
the drastic change of the magnetic field.

STEERING WHEEL AND MIRRORS
221
Drive the vehicle slowly (at 8 km/h [5 mph] or lower) in a circle
until the direction is displayed. If there is not enough space to
drive in a circle, drive around the block until the direction is
displayed.
After driving in 1 to 3 circles in the above method, calibration
is complete with the direction shown on the display.Perform circling calibration just after you have purchased
your Lexus. And then always perform circling calibration
after the battery has been removed, replaced or
disconnected.
Do not perform circling calibration of the compass in a place
where the earth's magnetic field is subject to interference by
artificial magnetic fields (underground parking, under a steel
tower, between buildings, roof parking, near a crossing,
near a large vehicle, etc.).
During calibration, do not operate electric systems (moon
roof, power windows, etc.) as they may interfere with the
calibration.
CAUTION
When doing the circling calibration, be sure to secure
a wide space, and watch out for people and vehicles
in the neighborhood. Do not violate any local traffic
rules while performing circling calibration.
Do not adjust the display while the vehicle is moving.
Be sure to adjust the display only when the vehicle is
stopped.

AIR CONDITIONING
224
AUTOMATIC AIR CONDITIONING CONTROLS
21PY023

You can adjust the brightness of the display. See Instrument panel light controlº on page 76 for details.

AIR CONDITIONING
226
1AUTOº button
2OFFº button
3Driver side temperature display (in degrees
Fahrenheit or Centigrade)
4Fan speed display
5Air flow display
6Passenger side temperature display (in degrees
Fahrenheit or Centigrade)
7Windshield air flow button
8PASSENGER TEMPº (passenger side temperature
control) button
9DUALº (temperature setting mode change) button
10A/Cº button
11MODEº(air flow control) button
12Fan speed control button
13Air intake control button
14TEMPº (driver side temperature control) button

AIR CONDITIONING
230If quick heating or cooling is desired Ð
Push the TEMPº or PASSENGER TEMPº button on either
side and hold it until MAX. HOTº or MAX. COLDº appears on
the display.
If manual fan speed control is desired Ð

1Fan speed at low2Fan speed at high
The fan speed can be set to your desired speed by pushing the
appropriate side of fan speed control button. The higher the fan
speed is, the more air is delivered. Pushing the OFFº button
turns off the fan.
To remove exterior windshield frost, use the high speed setting.If manual switching of air intake is desired Ð
Each time you push the air intake control button, the mode
changes in order from the RECIRCULATED AIR mode to
OUTSIDE AIR mode, then back to the RECIRCULATED AIR
mode. Each indicator light shows which mode is now selected.
1RECIRCULATED AIR mode Ð If quick circulation of
cooled air is desired, select this mode.
2OUTSIDE AIR mode Ð The system will take fresh
outside air into the vehicle.
To prevent fogging up of the windshield, the air intake mode
may change automatically to the OUTSIDE AIR mode
depending on the condition of the air conditioning system.
For example, when the ambient temperature is low, the air
intake mode may change automatically to the OUTSIDE AIR
mode. This is not a malfunction.

AUDIO
244
AUDIO SYSTEM
Quick reference for your audio system
22PY029

You can adjust the brightness of the display. See Instrument panel light controlº on page 76 for details.
If a Mark Levinson brand audio system is installed, the Mark Levinsonº logo is shown on the panel.

AUDIO
245
1Ejecting a compact disc
(See page 261 for details.)
2Compact disc slot
(See page 259 for details.)
3Display of functions in TAPE or CD mode
RPT:Automatic repeat
(See page 257 or 263 for details.)
:DOLBY NR
(See page 256 for details.)


:
Side change
(See page 257 for details.)
:Rewinding or reversing
(See page 257 or 263 for details.)


:Fast forwarding
(See page 257 or 263 for details.)
RAND:Random access
(See page 264 for details.)
:Disc selection
(See page 262 for details.)
4Station selector and function buttons
(See page 252 for details.)
5Radio mode:Scan tuning
(See page 253 for details.)
CD mode:Scan selection
(See page 262 for details.)
6Radio mode:Radio text message
(See page 255 for details.)
CD mode:Compact disc text
(See page 264 for details.)
7Compact disc load button
(See page 259 for details.)
8AUDIO´TUNE knob
(See page 248 for details.)
9Traffic announcement
(See page 254 for details.)
10Radio data system/program type
(See page 253 for details.)
11Mode selectors
(See page 247 for details.)
12Radio mode:Seek tuning
(See page 252 for details.)
TAPE mode:Direct access to a desired program
(See page 258 for details.)
CD mode:Direct access to a desired program
(See page 263 for details.)
13Cassette tape slot
(See page 256 for details.)
14Stopping and ejecting a cassette tape
(See page 256 for details.)
15Turning the system on and adjusting the volume
(See page 247 for details.)
