PICTORIAL INDEX
x
Page
1Driving position memory switches 200. . . . . . . . . . .
2Power window switches 43. . . . . . . . . . . . . . . . . . . . . . .
3Power door lock switch 22. . . . . . . . . . . . . . . . . . . . . . .
4Window lock switch 44. . . . . . . . . . . . . . . . . . . . . . . . . . .
5Power rear view mirror control switches 205. . . . . .
6Side vents 228. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7Headlight, turn signal and
fog light switches 29, 31, 32. . . . . . . . . . . . . . . . . . . . . .
8Wiper and washer switch 32. . . . . . . . . . . . . . . . . . . . . .
9Center vents 228. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10Emergency flasher switch 46. . . . . . . . . . . . . . . . . . . . .
11Car audio 235. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12Multi-information display 67. . . . . . . . . . . . . . . . . . . . . .
13Automatic air conditioning controls 215. . . . . . . . . .
14Rear window defogger switch 40. . . . . . . . . . . . . . . . . .
15Front passenger's seat belt reminder light 58. . . . . .
16Glove box 84. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17Ashtray 79. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18Cigarette lighter 79. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19Seat heater switches 47. . . . . . . . . . . . . . . . . . . . . . . . . . Page
20Four-wheel drive control lever 373. . . . . . . . . . . . . . .
21Automatic transmission selector lever 365. . . . . . . .
22Parking brake lever 363. . . . . . . . . . . . . . . . . . . . . . . . .
23Center differential lock switch 373. . . . . . . . . . . . . . .
24Power outlet (12 VDC) 81. . . . . . . . . . . . . . . . . . . . . . . . .
25Downhill assist control switch 393. . . . . . . . . . . . . . .
26Electronic modulated suspension
control switch 387. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27Rear height control air suspension
switches 380. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28Ignition switch 361. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
292nd STRTº switch 373. . . . . . . . . . . . . . . . . . . . . . . . . .
30Cruise control switch 377. . . . . . . . . . . . . . . . . . . . . . .
31Steering pad switches 256. . . . . . . . . . . . . . . . . . . . . . .
32Hood lock release lever 99. . . . . . . . . . . . . . . . . . . . . . .
33Fuel filler door opener 100. . . . . . . . . . . . . . . . . . . . . . .
34Instrument panel light control dial 73. . . . . . . . . . . . . .
35Outside rear view mirror defogger switch 42. . . . . . .
36Power outlet (115 VAC) main switch 81. . . . . . . . . . . .

SECTION 1 ± 3
50
INSTRUMENTS AND CONTROLS
Gauges, meters and service reminder indicators
Fuel gauge51 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine coolant temperature gauge52 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer54 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Odometer and trip meter55 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers55 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Multi-information display67 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument panel light control73 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

GAUGES, METERS AND SERVICE REMINDER INDICATORS
55
ODOMETER AND TRIP METER

Trip meter reset knob
This meter displays the odometer and two trip meters. To
change the mode indication, push the trip meter reset
knob briefly. Each time you push the knob, the mode
changes in order from the odometer to trip meter A to trip
meter B, then back to the odometer, etc.
The odometer records the total distance the vehicle has
been driven. The twin trip meter records two different
distances independently.
For example, you can use one meter to calculate the fuel
economy and the other to measure the distance on each trip.
To set the A trip meter to zero, display the A meter reading,
push the knob and hold it. The same applies for the B trip
meter.
The data of trip meters will be cancelled if the electrical power
source is disconnected.
SERVICE REMINDER INDICATORS
AND WARNING BUZZERS
IF THIS INDICATOR OR
BUZZER COMES ON...DO THIS.
(a)
(Indicator and buzzer)
If parking brake is off,
stop immediately and
contact Lexus dealer.
(b)
(Indicator and buzzer)
Fasten driver's seat
belt.
(c)Fasten front
passenger's seat belt.
(d)Take vehicle to Lexus
dealer immediately.
(e)Take vehicle to Lexus
dealer.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
67
MULTI-INFORMA TION DISPLAY
13PY018

1MODEº button2º button
3º button4RESETº button
The multi-information display provides various
information, including clock, outside temperature, and
your vehicle's driving condition.
When the ignition switch is on, the last previously used mode
displayed just before the ignition switch is off will appear.
If the electrical power source has been disconnected from the
multi-information display, the display will automatically be set
to the initial mode.
When the instrument panel lights are turned on, the brightness
of the display will be reduced.
You can adjust the brightness of the display. To adjust the
brightness, see ADJUSTING THE BRIGHTNESS OF THE
DISPLAYº below.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
68ADJUSTING THE BRIGHTNESS OF THE DISPLAY
The key must be in the ACCº or ONº position. To adjust the
brightness of the display, push and hold the MODEº button for
more than 2 seconds. ILLº will appear on the display.
To increase the brightness Ð Push the
º button.
To decrease the brightness Ð Push the
º button.
You can adjust the brightness to 3 levels (when the tail lights
are off) or 6 levels (when the tail lights are on).
After adjusting, the display automatically return to the previous
display.
CAUTION
Do not adjust the display while the vehicle is moving.
Be sure to adjust the display only when the vehicle is
stopped.
Clock
The digital clock indicates the time when the key is in the
ACCº or ONº position.
To reset the time, push and hold the MODEº button for 2
seconds. ILLº will appear on the display. Then push the
MODEº button once. The time will blink.
To reset the hour Ð Push the
º button.
To reset the minutes Ð Push the
º button.
To adjust the time to the nearest hour, push the RESETº
button. For example, if the RESETº button is depressed when
the time is between 1:01 Ð 1:29, the time will change to 1:00.
If the time is between 1:30 Ð 1:59, the time will change to 2:00.
If the electric power source has been disconnected, the time
display will automatically be set to 1:00.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
69
Outside temperature and cruise information
The following information is shown with the ignition
switch turned on. Each time you push the MODEº button,
the display toggles through this information.
Outside temperature mode
Average fuel consumption mode
Instantaneous fuel consumption mode
Driving range mode
Average vehicle speed mode
Barometer mode
Altimeter mode
Elapsed time mode
The displayed values indicate general driving conditions.
Accuracy varies with driving habits and road conditions.Outside temperature mode
In outside temperature mode, outside air temperatures
are displayed.
The displayed value is updated every 1 second.
The displayed temperature ranges from -22F (-30C) up to
122F (50C).
If there is some abnormality in the connection of the outside air
temperature sensor, --º will appear on the display. If --º
appears on the display, contact your Lexus dealer.
In some cases, --º may appear momentarily when the ignition
is quickly turned to ONº. It is normal if it goes out soon.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
70Average fuel consumption mode
Average fuel consumption is calculated and displayed
based on total driving distance and total fuel consumption
with the engine running.
The displayed value is updated every 10 seconds.
To reset the calculations, push and hold the RESETº button for
more than 1 second.Instantaneous fuel consumption modeInstantaneous fuel consumption is calculated and
displayed based on distance and fuel consumption for 2
seconds with the engine running.
The displayed value is updated every 2 seconds.
Note that an accurate figure may not be shown in the following
cases.
When the vehicle is stopped with the engine running, the
display will indicate extremely high fuel consumption.
When the vehicle is driving down a long slope, with the
engine brake applied, the display will indicate extremely low
fuel consumption.

GAUGES, METERS AND SERVICE REMINDER INDICATORS

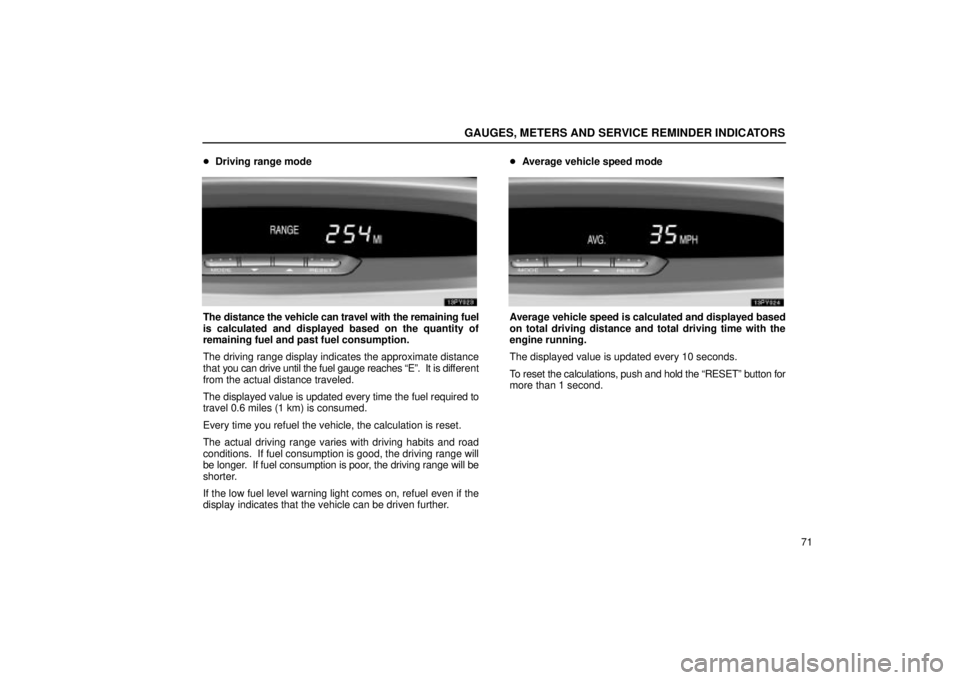

71 Driving range mode
The distance the vehicle can travel with the remaining fuel
is calculated and displayed based on the quantity of
remaining fuel and past fuel consumption.
The driving range display indicates the approximate distance
that you can drive until the fuel gauge reaches Eº. It is different
from the actual distance traveled.
The displayed value is updated every time the fuel required to
travel 0.6 miles (1 km) is consumed.
Every time you refuel the vehicle, the calculation is reset.
The actual driving range varies with driving habits and road
conditions. If fuel consumption is good, the driving range will
be longer. If fuel consumption is poor, the driving range will be
shorter.
If the low fuel level warning light comes on, refuel even if the
display indicates that the vehicle can be driven further.Average vehicle speed modeAverage vehicle speed is calculated and displayed based
on total driving distance and total driving time with the
engine running.
The displayed value is updated every 10 seconds.
To reset the calculations, push and hold the RESETº button for
more than 1 second.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
72Barometer mode
In barometer mode, the atmospheric pressure in the
vehicle is displayed.
The displayed atmospheric pressure ranges from 17.8 IN.HG
(600 hPa) up to 31.0 IN.HG (1050 hPa).
The displayed value is updated every 2 seconds.
The displayed value may deviate from the actual atmospheric
pressure depending on opening or closing of the windows and
doors and the driving conditions.Altimeter modeIn altimeter mode, the approximate altitude is displayed.
The displayed altitude ranges from -1500 ft. (-500 m) up to
13000 ft. (4000 m).
As the altitude value is converted from the atmospheric
pressure, it can be easily affected by air motion and
temperature, so the indication may vary. The indicated altitude
of a single position may deviate according to the atmospheric
pressure and temperature.
The displayed value is updated every 2 seconds.
RECTIFICATION OF THE ALTITUDE
Rectification is valid only when the correct altitude is known.
While the altitude mode is on the display, push the
º or º
button to increase or decrease the altitude by 50 ft. (10 m).
To reset the rectified altitude, push and hold the RESETº
button for more than 1 second.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
73 Elapsed time mode
The time that has elapsed since the engine started is
displayed.
When the engine is started, driving time is counted from 0:00.
Up to 19:59 (19 hours, 59 minutes) can be displayed. When
the driving time exceeds 19:59, the counter returns to 0:00.
To reset the calculations, push and hold the RESETº button for
more than 1 second.
INSTRUMENT PANEL LIGHT
CONTROL
To adjust the brightness of the instrument panel lights,
turn the dial.
With the dial turned fully up, the intensity of the instrument
panel lights will not be reduced when the headlight switch is on.
