overheating Lexus GX470 2004 Audio System / LEXUS 2004 GX470 FROM AUG. 2004 THROUGH SEP. 2004 PROD. OWNER'S MANUAL (OM60B55U)

SWITCHES
53
SEAT HEATER SWITCHES
The seat heater has two dials; one marked Lº (for the
driver's seat) and the other marked Rº (for the front
passenger's seat). To turn the seat heaters on, turn the
dials forward. The indicator lights come on. To turn them
off, turn the dials backward until they stop. The indicator
lights go off.
You can adjust the heating temperature to 5 stages. To
increase the temperature, turn them forward. To decrease the
temperature, turn them backward.
The ignition key must be in the ONº position to operate seat
heaters.
CAUTION
Occupants must use caution when operating the seat
heater because they may experience minor burns even
at low temperatures. Use extra caution for;
 Babies, small children, elderly persons, sick persons
or persons with physical disabilities
 Persons who have delicate skin
 Persons who are exhausted
 Persons who have taken alcohol or drugs which
induce sleep (sleeping drug, cold remedy, etc.)
To prevent the seat from overheating, do not use the
seat heater with a blanket, cushion, or other insulating
objects which cover the seat.

STARTING AND DRIVING
397
(c) Using the 3º, 2º and Lº positions
The 3º, 2º and Lº positions are used for strong engine braking
as described previously.
With the selector lever in 3º, 2º or Lº, you can start the vehicle
in motion as with the lever in Dº.
With the selector lever in 3º or 2º, the vehicle will start in f\
irst
gear and automatically shift to second gear.
With the selector lever in Lº, the transmission is engaged in
first gear.
NOTICE
Be careful not to over-rev the engine. Watch the tachometer to keep engine rpm from going into thered zone. The approximate maximum allowablespeed for each position is given below for yourreference:
Transmission Transfer Lº Hº
3º 53 km/h (33 mph) 136 km/h (85 mph) 2º 36 km/h (22 mph) 93 km/h (58 mph)Lº 21 km/h (13 mph) 54 km/h (33 mph)
Do not continue hill climbing or hard towing for a long time in the 3º, 2º or Lº position. This may causesevere automatic transmission damage from
overheating. To prevent such damage, 4º positionshould be used in hill climbing or hard towing.

DRIVING TIPS
451

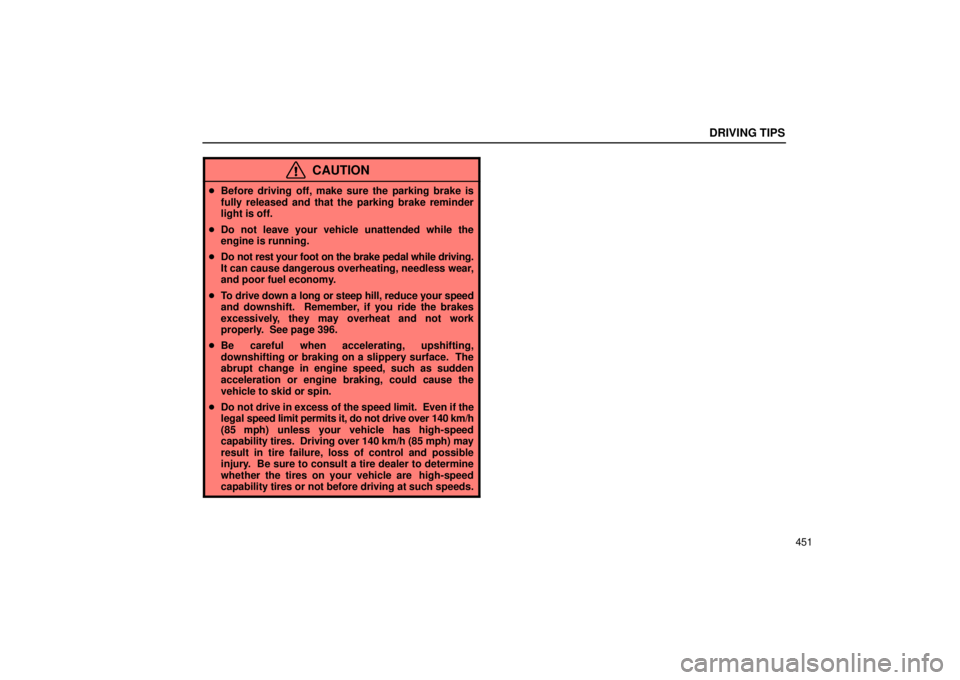

CAUTION
Before driving off, make sure the parking brake is
fully released and that the parking brake reminder
light is off.
 Do not leave your vehicle unattended while the
engine is running.
 Do not rest your foot on the brake pedal while driving.
It can cause dangerous overheating, needless wear,
and poor fuel economy.
 To drive down a long or steep hill, reduce your speed
and downshift. Remember, if you ride the brakes
excessively, they may overheat and not work
properly. See page 396.
 Be careful when accelerating, upshifting,
downshifting or braking on a slippery surface. The
abrupt change in engine speed, such as sudden
acceleration or engine braking, could cause the
vehicle to skid or spin.
 Do not drive in excess of the speed limit. Even if the
legal speed limit permits it, do not drive over 140 km/h
(85 mph) unless your vehicle has high-speed
capability tires. Driving over 140 km/h (85 mph) may
result in tire failure, loss of control and possible
injury. Be sure to consult a tire dealer to determine
whether the tires on your vehicle are high-speed
capability tires or not before driving at such speeds.

DRIVING TIPS
471

Because of the added load of the trailer, your vehicle's
engine may overheat on hot days (at temperatures over
30C [85 F]) when going up a long or steep grade with a
trailer. If the engine coolant temperature gauge indicates
overheating, immediately turn off the air conditioning (if in
use), pull your vehicle off the road and stop in a safe spot.
See If your vehicle overheatsº on page 486.
 Always place wheel blocks under both the vehicle and trailer
wheels when parking. Apply the parking brake firmly. Put
the transmission in Pº. Avoid parking on a slope with a
trailer, but if it cannot be avoided, do so only after performing
the following:
1. Apply the brakes and keep them applied.
2. Have someone place wheel blocks under both the vehicle
and trailer wheels.
3. When the wheel blocks are in place, release your brakes
slowly until the blocks absorb the load.
4. Apply the parking brake firmly.
5. Shift into Pº and turn off the engine. When restarting out after parking on a slope:
1. With the transmission in Pº position, start the engine. Be
sure to keep the brake pedal depressed.
2. Shift into the 3º, 2º, Lº or Rº position.
3. Release the parking brake and brake pedal and slowly pull
or back away from the wheel blocks. Stop and apply your
brakes.
4. Have someone retrieve the blocks.
CAUTION

Do not exceed 72 km/h (45 mph) or the posted towing
speed limit, whichever is lower. Because instability
(swaying) of a towing vehicle-trailer combination
usually increases as the speed increases, exceeding
72 km/h (45 mph) may cause loss of control.
 Slow down and downshift before descending steep
or long downhill grades. Do not make sudden
downshifts.
 Avoid holding the brake pedal down too long or too
frequently. This could cause the brakes to overheat
and result in reduced braking efficiency.

DRIVING TIPS
472
HOW TO SAVE FUEL AND MAKEYOUR VEHICLE LAST LONGER
Improving fuel economy is easy Ð just take it easy. It will help
make your vehicle last longer, too. Here are some specific tips
on how to save money on both fuel and repairs:
 Keep your tires inflated at the correct pressure. Check
the pressure every two weeks, or at least once a month.
Underinflation causes tire wear and wastes fuel.
 Do not carry unneeded weight in your vehicle. Excess
weight puts a heavier load on the engine, causing greater
fuel consumption.
 Avoid lengthy warm-up idling. Once the engine is
running smoothly, begin driving Ð but gently. Remember,
however, that on cold winter days this may take a little
longer.
 Always keep the automatic transmission selector lever
in the Dº position when engine braking is not required.
Driving with the overdrive off will reduce the fuel economy.
(For details, see Automatic transmissionº on page 393.)
 Accelerate slowly and smoothly. Avoid jackrabbit starts.
 Avoid long engine idling. If you have a long wait and you
are not in traffic, it is better to turn off the engine and start
again later.
Avoid engine over-revving. Use a gear position suitable
for the road on which you are traveling.
 Avoid continuous speeding up and slowing down.
Stop-and-go driving wastes fuel.
 Avoid unnecessary stopping and braking. Maintain a
steady pace. Try to time the traffic si gnals so you only need
to stop as little as possible or take advantage of through
streets to avoid traffic lights. Keep a proper distance from
other vehicles to avoid sudden braking. This will also
reduce wear on your brakes.
 Avoid heavy traffic or traffic jams whenever possible.
 Do not rest your foot on the brake pedal. This causes
premature wear, overheating and poor fuel economy.
 Maintain a m oderate speed on highways. The faster you
drive, the greater the fuel consumption. By reducing your
speed, you will cut down on fuel consumption.
 Keep the front wheels in proper alignment. Avoid hitting
the curb and slow down on rough roads. Improper
alignment not only causes faster tire wear but also puts an
extra load on the engine, which, in turn, wastes fuel.
 Keep the bottom of your vehicle free from mud, etc. This
not only lessens weight but also helps prevent corrosion.

IN CASE OF AN EMERGENCY
486
IF YOU CANNOT INCREASEENGINE SPEED
If engine speed does not increase when the accelerator pedal
is depressed, there may be a problem somewhere in the
electronic throttle control system.
At this time, vibration may occur. However, if you depress the
accelerator pedal more firmly and slowly, you can drive your
vehicle at low speeds. Have your vehicle checked by your
Lexus dealer as soon as possible.
Even if the abnormality of the electronic throttle control system
is corrected during low speed driving, the system may not be
recovered until the engine is stopped and the ignition key is
turned to ACCº or LOCKº position.
CAUTION
Be especially careful to prevent erroneous pedal
operation.
IF YOUR VEHICLE OVERHEATS
If your engine coolant temperature gauge indicates
overheating, if you experience a loss of power, or if you
hear a loud knocking or pinging noise, the engine has
probably overheated.
When the engine overheats
Pull safely off the road, stop the vehicle and turn on your
emergency flashers. Put the transmission in Pº and apply the
parking brake.
A: If steam is coming from your engine:
Turn off the engine. Leave the hood closed until there is no sign
of steam or coolant. Your engine could have been seriously
damaged already. Call your Lexus dealer for assistance.
CAUTION
To help avoid personal injury, keep the hood closed until
there is no steam. Escaping steam or coolant is sign of
very high pressure.
