STARTING AND DRIVING
387
NOTICE
As soon as the center differential lock switch is turnedon, the VSC OFFº indicator light comes on. After thewheels are out of the ditch or off the slippery or bumpysurface, turn the center differential lock switch off.Make sure the center differential lock indicator light andvehicle stability control system off indicator light turnoff.
Hº (high speed position, center differential unlocked):
Lever at Hº, center differential lock button left out
Use this for normal driving on all types of roads, from dry
hard-surfaced roads to wet, icy or snow-covered roads. This
position gives greater economy, quietest ride, least wear and
better vehicle control.
Hº (high speed position, center differential locked): Lever
at Hº, center differential lock button pushed in
Use this for greater traction when you experience a loss of
power, such as wheel slipping, in the center differential unlock
mode.
Nº (neutral position): Lever at Nº
No power is delivered to the wheels. The vehicle must be
stopped. Lº (low speed position, center differential unlocked):
Lever at Lº, center differential lock button left out
Use this for maximum power and traction. Use this for climbing
or descending steep hills, off-road driving, and hard pulling in
sand or mud.
In this mode, the braking feeling that occurs when the wheels
are negotiating a sharp corner is further reduced than in the Lº
(low position, center differential locked) mode.
Lº (low speed position, center differential locked):
Lever
at Lº, center differential lock button pushed in
Use this for maximum power and traction. Use this for hard
pulling in si tuations the vehicle cannot negotiate even in the Lº
(low speed position, center differential unlocked) mode. Also,
using this mode when driving down steep of f-road inclines will
help contribute to increased vehicle stability.

STARTING AND DRIVING
389
(b) Shifting procedure
To shift between unlock and lock modes in Hº, push the
center differential lock button.
To shift between unlock and lock modes in Lº, push the
center differential lock button.
To shift between Hº and Lº, stop the vehicle, put the
transmission into Nº and move the four-wheel drive control
lever.CAUTION
Never move the four-wheel drive control lever if wheels
are slipping. Stop the slipping or spinning before
shifting.
NOTICE
For normal driving on dry and hard surface roads, unlock the center differential. To prevent damage to thecenter differential lock system, do not push the centerdifferential lock button when the vehicle is cornering or
when its wheels are spinning freely off the ground. If the
indicator light does not go off when unlocking the center differential, drive straight ahead while
accelerating or decelerating, or drive in reverse.

STARTING AND DRIVING
398
NOTICE
Use the LOº mode when the vehicle is stopped.Otherwise, when the vehicle speed exceeds about 12km/h (7 mph), Nº mode is selected automatically. Sobe careful when you drive in any place where theoverhead height is limited.
(b) Vehicle height mode changing condition
To change the vehicle height, it is necessary to meet the
following conditions.
 The engine should be running.
 The height control OFFº indicator light should go off.
When selecting a mode, there is a vehicle speed limit. Refer
to the following table.
Yes = The mode can be selected.
No = The mode cannot be selected.
LOº
modeNº
modeHIº
mode
Under about
12 km/h (7 mph)Ye sYe sYe s
Under about
30 km/h (19 mph)NoYe sYe s
About 30 km/h
(19 mph) or overNoYe sNo

STARTING AND DRIVING
399
In the following cases, the rear height control suspension
will not operate.

The underbody of the vehicle has touched the surface on
bumpy roads.
 The area around the rear suspension is coated with ice.
If the vehicle is moved to its usual location or the ice is removed
and the height select switch is pressed, the vehicle height
control cannot be operated. In this case, turn off and restart the
engine, then push the control switches.
(c) Vehicle height adjustment

1Higher2Lower
To change the mode, push the height select switch on
either side of  º (higher) or º (lower). The height control indicator light indicates which mode is
selected. (See (e) Height control indicator lightº described
below.)

Selecting the HIº mode
Push the height select switch on the  º side when the vehicle
speed is under about 30 km/h (19 mph).
To change the Nº mode to HIº: Push the switch once.
To change the LOº mode to HIº: Push the switch twice. It
takes about 30 seconds until the LOº mode changes to the HIº
mode.
 Selecting the Nº mode
To change the HIº mode to Nº: Push the height select
switch on the  º side once.
To change the LOº mode to Nº: Push the height select
switch on the  º side once.
 Selecting the LOº mode
Push the height select switch on the º side while the vehicle
is stopped.
To change the Nº mode to LOº: Push the switch once.
To change the HIº mode to LOº: Push the switch twice.
Even if the engine is stopped while the vehicle height is being
lowered, the operation continues for up to 25 seconds. If within
this 25 seconds, any of the side doors or the back door is
opened, operation will continue for a further 15 seconds.

STARTING AND DRIVING
400
NOTICE
If the vehicle height is changed frequently when thevehicle is heavily loaded, the compressor mayoverheat causing the vehicle height adjustmentoperation to stop.
Before you lower the vehicle height with the heightselect switch, check under the vehicle to make surenothing to dam age the vehicle or no one to be injured
is there and that the underbody of the vehicle does not touch the ground.
After unloading, the height of a vehicle equipped with
the rear height control air suspension becomes
slightly higher than the normal vehicle height. Takesufficient care where the overhead height isrestricted.
Do not select the LOº mode in the bumpy roads. Ifthe underbody of the vehicle touches the ruggedroad surface, the vehicle may be damaged.

STARTING AND DRIVING
401

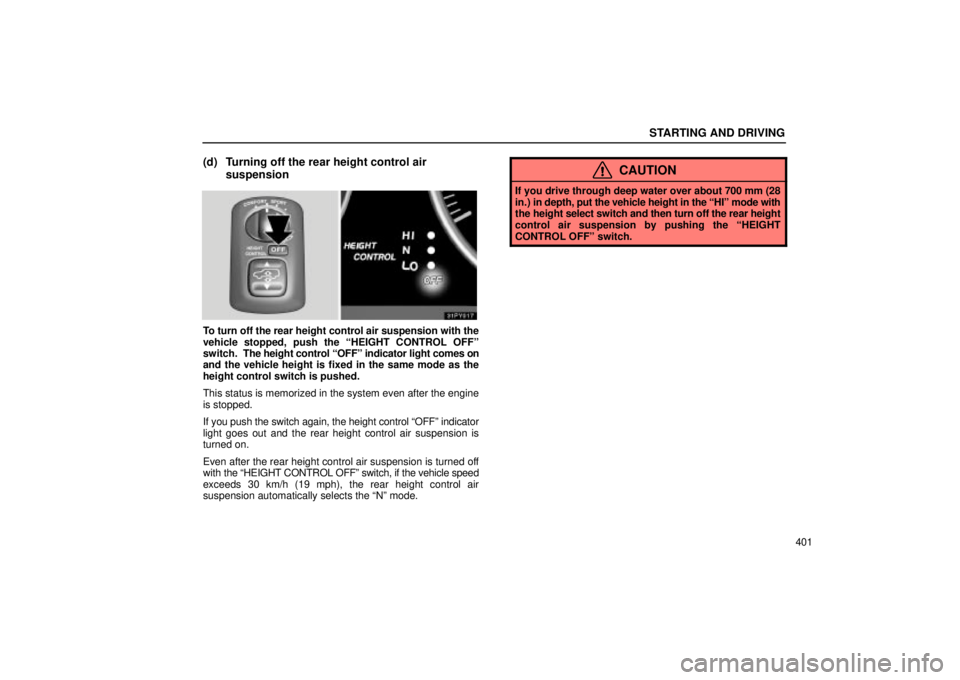

(d) Turning off the rear height control airsuspension
To turn off the rear height control air suspension with the
vehicle stopped, push the HEIGHT CONTROL OFFº
switch. The height control OFFº indicator light comes on
and the vehicle height is fixed in the same mode as the
height control switch is pushed.
This status is memorized in the system even after the engine
is stopped.
If you push the switch again, the height control OFFº indicator
light goes out and the rear height control air suspension is
turned on.
Even after the rear height control air suspension is turned off
with the HEIGHT CONTROL OFFº switch, if the vehicle speed
exceeds 30 km/h (19 mph), the rear height control air
suspension automatically selects the Nº mode.
CAUTION
If you drive through deep water over about 700 mm (28
in.) in depth, put the vehicle height in the HIº mode with
the height select switch and then turn off the rear height
control air suspension by pushing the HEIGHT
CONTROL OFFº switch.

STARTING AND DRIVING
402
NOTICE
When jacking up or installing tire chains, be sure toturn off the rear height control air suspension withthe HEIGHT CONTROL OFFº switch and stop theengine. Otherwise, the vehicle height may changebecause of the automatic leveling function resultingin accident.
If your vehicle must be towed, put the vehicle heightin the Nº mode and turn off the rear height control airsuspension. Otherwise, the vehicle height may
change because of the automatic leveling functionresulting in accident.
If your vehicle gets ditched, turn off the rear heightcontrol air suspension with the HEIGHT CONTROLOFFº switch. Otherwise, the vehicle height maychange because of the automatic leveling functionresulting in accident.

STARTING AND DRIVING
404
(f) Parking and stopping tips
If you immediately stop the engine to park the vehicle after
off-road driving, the vehicle height is lowered slightly as the
vehicle becomes cool. When parking, make sure there is
nothing that will be in contact with the underbody of the vehicle.
When you start the engine, the vehicle returns to the previous
height.
If you park the vehicle for a long time, the vehicle height may
be gradually lowered. When parking for a long time, make sure
there is nothing that will be in contact with the underbody of the
vehicle. When you start the engine, the vehicle returns to the
previous height.
If you stop the engine, the vehicle height may change in
accordance with the change in the temperature. When you
start the engine, the vehicle returns to the previous height.
(g) Rear height control failure warning
If there is a problem somewhere in the rear height control air
suspension, the Nº mode is automatically selected. If this
occurs, the height control OFFº indicator light blinks and the
vehicle height control cannot be activated until the malfunction
is corrected. If this is the case, bring your vehicle to your Lexus
dealer as soon as possible and have it checked.
ELECTRONIC MODULATED SUSPENSION
This electronic modulated suspension adjusts the
damping effect on the shock absorbers with the control
switch. Select one of the 4 modes which is suited to the
driving conditions with the control switch to provide good
riding comfort and stability.
1For driving on a bumpy road
2For ordinary driving such as in the city traffic
3For moderate high speed driving
4For sporty type driving such as on winding mountain
roads and high speed driving
5Soft
6Firm

STARTING AND DRIVING
407
Depressing the brake pedal repeatedly may turn on the light.
It is normal if it goes out after a few seconds.
The brake actuator temperature increases during continuous
operation of the above mentioned systems such as on slippery
roads. If the brake actuator temperature becomes too high
while any of the systems is operating, a buzzer will start to
sound intermittently to indicate that the active traction control
system can no longer operate. In this case, immediately stop
your vehicle at a safe place.
If the system continues to operate, the buzzer sound changes
from intermittent to continuous. (The continuous buzzer
sounds for about 3 seconds.) At the time, the VSC TRACº
warning light will come on and the active traction control
system temporarily stops operating in order to protect the
brake actuator. (Although the active traction control system
does
not operate, there is no problem to continue your driving.)
The system will be automatically restored after a short time and
the VSC TRACº warning light goes out.
If the light comes on while driving, the active traction control
system does not work. However, as normal braking operates
when being applied, there is no problem to continue your
driving.
In the following cases, contact your Lexus dealer:
 The warning light does not come on after the ignition key is
turned to ONº.
 The warning light remains on after the ignition key is turned
to ONº.
 The warning light comes on while driving.
VEHICLE STABILITY CONTROL
SYSTEM
The vehicle stability control system helps provide
integrated control of the systems such as anti-lock brake
system, traction control, engine control, etc. This system
automatically controls the output of the brakes or engine
to help prevent the vehicle from skidding when cornering
on a slippery road surface or operating steering wheel
abruptly.
This system activates when the vehicle speed about more than
15 km/h (9mph).
You may hear a sound in the engine compartment for a few
seconds when the engine is started or just after the vehicle
begins to move. This means that the system is in the
self-check mode, but does not indicate a malfunction.
CAUTION
 Do not rely excessively on the vehicle stability
control system. Even if the vehicle stability control
system is operating, you must always drive carefully
and attentively to avoid serious injury. Reckless
driving will result in an unexpected accident. If the
slip indicator light blinks and an alarm sounds,
special care should be taken while driving.

STARTING AND DRIVING
411
If the downhill assist control system indicator light flashes, the
transmission selector lever may be in Nº or four-wheel drive
control lever may be in the Hº position.
If the indicator light does not come on when the switch is
pushed, contact your Lexus dealer.

Slip indicator light
With the vehicle traveling at a speed of 25 km/h (15 mph) or
less, release your foot from the accelerator or brake pedal to
activate the system. The vehicle will descend the hill at a low
speed. While the system is operating, the slip indicator light on
the instrument panel will flash and the stop lights and high
mounted stoplight will be lit.
If you push the DACº switch to turn the system off while it is
in operation, the system will stop operating gradually. The
downhill assist control system indicator light will flash to alert
the driver. To continue driving at a low speed, push the DACº
switch to turn the system on.
The slip indicator light and downhill assist control system
indicator l
ight come on for a few seconds when the ignition key
is turned to ONº. If any of the indicator lights does not come
on when the ignition is turned on, contact your Lexus dealer.
If the system is used frequently, the brake actuator
temperature may become too high and a buzzer will sound
intermittently.
If this happens, the downhill assist control system indicator
light will flash and a buzzer will sound intermittently. When the
temperature of the brake actuator goes down, the system will
begin to operate again. Until it restarts, the active traction
control system and hill-start assist control system will not
operate; however, the conventional brake can be operated.
