For detailed information, refer to the description given in each Section.
PICTORIAL INDEX
x
Page
1Driving position memory switches 208. . . . . . . . . . .
2Power window switches 45. . . . . . . . . . . . . . . . . . . . . . .
3Power door lock switch 22. . . . . . . . . . . . . . . . . . . . . . .
4Window lock switch 46. . . . . . . . . . . . . . . . . . . . . . . . . . .
5Power rear view mirror control switches 213. . . . . .
6Side vents 237. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7Headlight, turn signal and
fog light switches 31, 33, 34. . . . . . . . . . . . . . . . . . . . . .
8Wiper and washer switch 34. . . . . . . . . . . . . . . . . . . . . .
9Center vents 237. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10Emergency flasher switch 48. . . . . . . . . . . . . . . . . . . . .
11Car audio 244. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12Multi-information display 70. . . . . . . . . . . . . . . . . . . . . .
13Automatic air conditioning controls 224. . . . . . . . . .
14Rear window defogger switch 42. . . . . . . . . . . . . . . . . .
15Front passenger's seat belt reminder light 61. . . . . .
16Glove box 88. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17Ashtray 83. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18Cigarette lighter 83. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19Seat heater switches 49. . . . . . . . . . . . . . . . . . . . . . . . . .
20Four-wheel drive control lever 384. . . . . . . . . . . . . . . Page
21Automatic transmission selector lever 376. . . . . . . .
22Parking brake lever 374. . . . . . . . . . . . . . . . . . . . . . . . .
23Center differential lock switch 384. . . . . . . . . . . . . . .
24Power outlet (12 VDC) 85. . . . . . . . . . . . . . . . . . . . . . . . .
25Downhill assist control switch 408. . . . . . . . . . . . . . .
26Electronic modulated suspension
control switch 402. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27Rear height control air suspension
switches 395. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28Ignition switch 372. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
292nd STRTº switch 384. . . . . . . . . . . . . . . . . . . . . . . . . .
30Tire pressure warning system
selector switch 425. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
31Cruise control switch 392. . . . . . . . . . . . . . . . . . . . . . .
32Steering pad switches 265. . . . . . . . . . . . . . . . . . . . . . .
33Instrument panel light control dial 76. . . . . . . . . . . . . .
34Hood lock release lever 103. . . . . . . . . . . . . . . . . . . . .
35Fuel filler door opener 104. . . . . . . . . . . . . . . . . . . . . . .
36Roll sensing of curtain shield airbags
off switch 183. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
37Outside rear view mirror defogger switch 44. . . . . . .
38Power outlet (115 VAC) main switch 85. . . . . . . . . . . .

For detailed information, refer to the description given in each Section.
PICTORIAL INDEX
xii
Page
1Driving position memory switches 208. . . . . . . . . . .
2Power window switches 45. . . . . . . . . . . . . . . . . . . . . . .
3Power door lock switch 22. . . . . . . . . . . . . . . . . . . . . . .
4Window lock switch 46. . . . . . . . . . . . . . . . . . . . . . . . . . .
5Power rear view mirror control switches 213. . . . . .
6Side vents 237. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7Headlight, turn signal and
fog light switches 31, 33, 34. . . . . . . . . . . . . . . . . . . . . .
8Wiper and washer switch 34. . . . . . . . . . . . . . . . . . . . . .
9Center vents 237. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10Emergency flasher switch 48. . . . . . . . . . . . . . . . . . . . .
11Rear view monitor/navigation system display
(See the separate Navigation System
Owner's Manualº.) 388. . . . . . . . . . . . . . . . . . . . . . . . . .
12Multi-information display 70. . . . . . . . . . . . . . . . . . . . . .
13Automatic air conditioning controls 224. . . . . . . . . .
14Rear window defogger switch 42. . . . . . . . . . . . . . . . . .
15Front passenger's seat belt reminder light 61. . . . . .
16Glove box 88. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17Car audio 244. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18Ashtray 83. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19Cigarette lighter 83. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
20Seat heater switches 49. . . . . . . . . . . . . . . . . . . . . . . . . . Page
21Four-wheel drive control lever 384. . . . . . . . . . . . . . .
22Automatic transmission selector lever 376. . . . . . . .
23Parking brake lever 374. . . . . . . . . . . . . . . . . . . . . . . . .
24Center differential lock switch 384. . . . . . . . . . . . . . .
25Power outlet (12 VDC) 85. . . . . . . . . . . . . . . . . . . . . . . . .
26Downhill assist control switch 408. . . . . . . . . . . . . . .
27Electronic modulated suspension
control switch 402. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28Rear height control air suspension
switches 395. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
29Ignition switch 372. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
302nd STRTº switch 384. . . . . . . . . . . . . . . . . . . . . . . . . .
31Tire pressure warning system
selector switch 425. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
32Cruise control switch 392. . . . . . . . . . . . . . . . . . . . . . .
33Steering pad switches 265. . . . . . . . . . . . . . . . . . . . . . .
34Instrument panel light control dial 76. . . . . . . . . . . . . .
35Hood lock release lever 103. . . . . . . . . . . . . . . . . . . . .
36Fuel filler door opener 104. . . . . . . . . . . . . . . . . . . . . . .
37Roll sensing of curtain shield airbags
off switch 183. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
38Outside rear view mirror defogger switch 44. . . . . . .
39Power outlet (115 VAC) main switch 85. . . . . . . . . . . .

PPY014
PICTORIAL INDEX
xvi
EXTERIOR VIEW
Page
1Rear window defogger 42. . . . . . . . . . .
2Back door 25. . . . . . . . . . . . . . . . . . . . . .
3Fuel filler door 104. . . . . . . . . . . . . . . . .
4Moon roof 107. . . . . . . . . . . . . . . . . . . . .
5Wiper and washer 34, 599. . . . . . . . . .
6Outside rear view mirror 212. . . . . . . .
7Side door 20. . . . . . . . . . . . . . . . . . . . . . .
8Tire and wheel 557. . . . . . . . . . . . . . . . .
9Headlights 31, 600. . . . . . . . . . . . . . . . .
10Hood 103. . . . . . . . . . . . . . . . . . . . . . . . . .
For detailed information, refer to the
description given in each Section.

KEYS AND DOORS
17
Sounding an alarm*
When you push the PANICº button for about 1 second, an
alarm sounds to deter any person trying to break into or
damage your vehicle.
If you want to stop the alarm, push any button.
This function does not work when the ignition key is in the ONº
position.
NOTE:
* The alarm can be set not to sound.
Ask your Lexus dealer for details.
Operating the windows and moon roof
The windows and moon roof can be opened using a
wireless key from outside the vehicle.*
NOTE:
* The windows and moon roof can be set inoperative.
Ask your Lexus dealer for details.
Push the UNLOCKº button until the windows and moon roof
start to move. A beep sounds just before opening. When you
release the button, the windows and moon roof stop opening.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.

KEYS AND DOORS
28
Testing the system
1. Open all the windows.
2. Set the system as described above.
The front doors should be locked with the ignition key or
wireless remote control. Be sure to wait until the indicator light
starts flashing.
3. Unlock one of the doors from the inside.
The system should activate the alarm.4. Unlock any of the doors with a key or the wireless
remote control to cancel the system.
5. Repeat this operation for the other doors and hood.
When testing the hood, also check that the system is activated
when the battery terminal is disconnected and then
reconnected.
If the system does not work properly, have it checked by your
Lexus dealer.
NOTICE
Disconnecting the battery may result in the erasure of
information you have set in the computer memory. After
reconnecting the battery, check that the memorized
data has been retained. If it has been erased, input it into
the computer once more.

SECTION 1 ± 2
30
INSTRUMENTS AND CONTROLS
Switches
Headlight switch31 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlight dimmer and turn signal switch 33 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fog light switch34 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield wiper and washer switch34 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window wiper and washer switch40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window defogger switch42 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside rear view mirror defogger switch44 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power window switches45 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flasher switch48 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seat heater switches49 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SWITCHES
40
REAR WINDOW WIPER AND
WASHER SWITCH

1Washer on during wiping
2Washer on
To turn the wipers on, twist the knob at the end of the lever.
The ignition key must be in the ONº position.
There are 2 settings:
INTº position: Intermittent operation
ONº position: Low speed operation
If you stop the vehicle with the rear window wiper switch in the
ONº position, the wiper speed automatically changes from low
speed to intermittent operation speed.
To make the washer squirt, twist the knob downward to
position 2.To make the washer squirt while operating in ONº
position, twist the knob upward to position 1.
The knob automatically returns from these positions after you
release it.
The low washer fluid warning light in the instrument cluster
comes on when the fluid level in the tank becomes nearly
empty. For information on adding washer fluid, see Adding
washer fluidº on page 599.

SWITCHES
41
NOTICE
Do not operate the rear window wiper if the rear window
is dry. It may scratch the glass.

SWITCHES
42

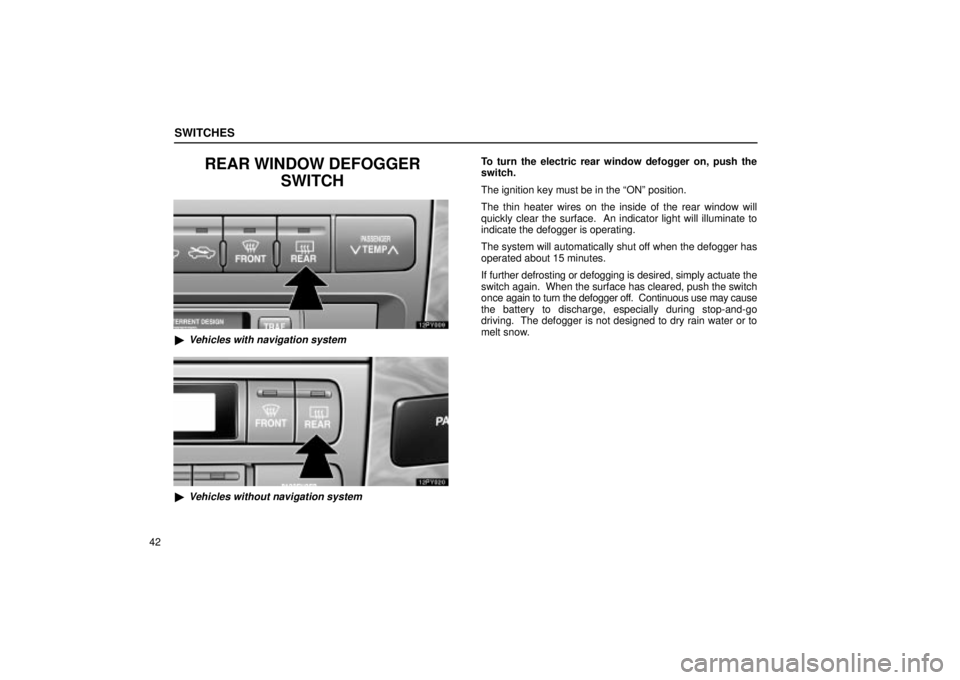

REAR WINDOW DEFOGGER
SWITCH

Vehicles with navigation system

Vehicles without navigation system
To turn the electric rear window defogger on, push the
switch.
The ignition key must be in the ONº position.
The thin heater wires on the inside of the rear window will
quickly clear the surface. An indicator light will illuminate to
indicate the defogger is operating.
The system will automatically shut off when the defogger has
operated about 15 minutes.
If further defrosting or defogging is desired, simply actuate the
switch again. When the surface has cleared, push the switch
once again to turn the defogger off. Continuous use may cause
the battery to discharge, especially during stop-and-go
driving. The defogger is not designed to dry rain water or to
melt snow.

SWITCHES
43
NOTICE
When cleaning the inside of the rear window, be
careful not to scratch or damage the heater wires or
connectors.
To prevent the battery from being discharged, turn
the switch off when the engine is not running.
