STARTING AND DRIVING
406
31PY046

Corners of bumper
The area covered by the camera is limited. Objects
which are close to either corner of the bumper or under
the bumper cannot be seen on the screen.
 The area displayed on the screen may vary according
to vehicle orientation or road conditions.
If the above screen appears on the display, the back door is
open. W hen backing up the vehicle, make sure the back door
is securely closed.

ENGINE
565
Engine oil selection
Toyota Genuine Motor Oilº is used in your Lexus vehicle. Use
Lexus approved Toyota Genuine Motor Oilº or equivalent to
satisfy the following grade and viscosity.
Oil grade: API grade SL Energy-Conservingº or ILSAC
multigrade engine oil.
Recommended viscosity: SAE 5W-30
62Z002

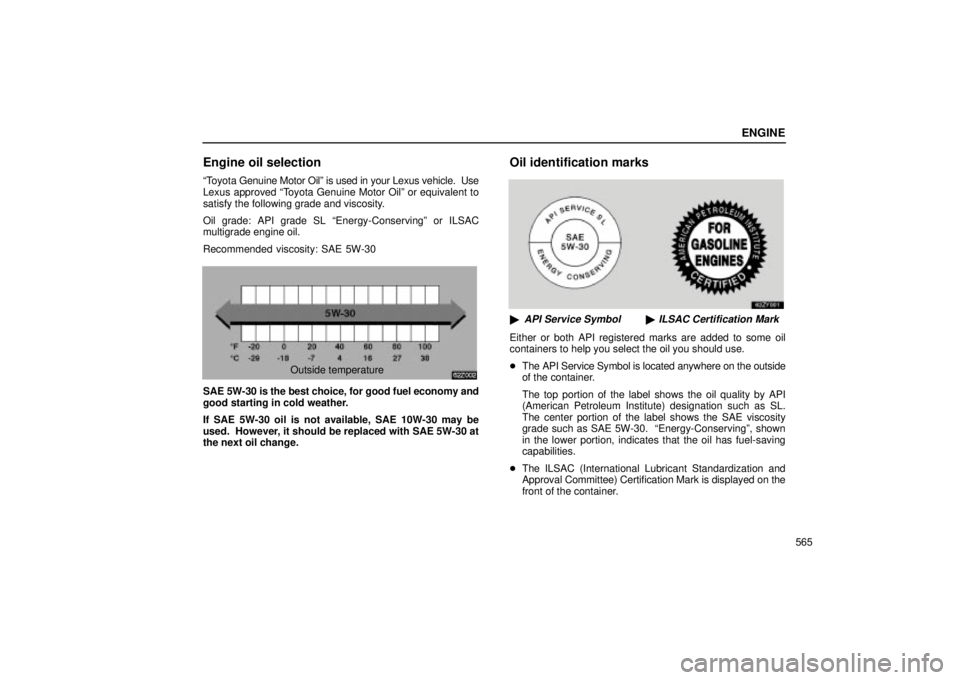

Outside temperature
SAE 5W-30 is the best choice, for good fuel economy and
good starting in cold weather.
If SAE 5W-30 oil is not available, SAE 10W-30 may be
used. However, it should be replaced with SAE 5W-30 at
the next oil change.
Oil identification marks

API Service Symbol
ILSAC Certification Mark
Either or both API registered marks are added to some oil
containers to help you select the oil you should use.
 The API Service Symbol is located anywhere on the outside
of the container.
The top portion of the label shows the oil quality by API
(American Petroleum Institute) designation such as SL.
The center portion of the label shows the SAE viscosity
grade such as SAE 5W-30. Energy-Conservingº, shown
in the lower portion, indicates that the oil has fuel-saving
capabilities.
 The ILSAC (International Lubricant Standardization and
Approval Committee) Certification Mark is displayed on the
front of the container.

ELECTRICAL COMPONENTS
607
25AIRSUSNO.210Rear height control air
suspension
26SEAT
HEATER20Seat heaters
27DOME10
Ignition switch light, interior
lights, personal lights, foot
lights, running board lights,
door courtesy lights, inside
door handle lights,
multi- information display
28RADIO NO.120Audio system, navigation
system
No.FUSEAMPERECIRCUIT
29ECU-B10
Multiplex communication
system, vehicle stability control
system, wireless remote
control system, inside rear
view mirror, air conditioning
system, electronic modulated
suspension, driving position
memory system, power
windows, moon roof, rear view
monitor system
30ECU-B NO.210Theft deterrent system
31ABS
MTR40
Anti- lock brake system,
vehicle stability control system,
active traction control system,
brake assist system
32AM230Starting system, all components
in IGNº, SRSº, GAUGEº and
ST2º fuses

ELECTRICAL COMPONENTS
609
48FR
WIP-WSH30Windshield wipers, windshield
washer
49TEMS20Electronic modulated
suspension
50DIFF20Four-wheel drive system
51RR WIP15Rear window wiper
52D P/SEAT30Driver's power seat
53P P/SEAT30Front passenger's power seat
54PWR
OUTLET15Power outlet (12 VDC)
55IG1 NO.210Rear air conditioning system,
inside rear view mirror, kinetic
dynamic suspension system
56RR WSH15Rear window washer
No.FUSEAMPERECIRCUIT
57ECU-IG10
Shift lock control system, power
windows, outside rear view
mirror defogger, anti-lock brake
system, active traction control
system, vehicle stability control
system, air conditioning system,
navigation system, power
windows, moon roof, Lexus Link
System, tilt and telescopic
steering, multi- information
display, driving position
memory system, rear view
monitor system, tire pressure
warning system

ELECTRICAL COMPONENTS
610
58IG110
Air conditioning system, back-up
lights, rear window defogger,
seat heaters, vehicle stability
control system
59STA7.5Multiport fuel injection
system/sequential multiport fuel
injection system
60P FR P/W20Front passenger's power window
61P RR P/W20Rear right side power window
No.FUSEAMPERECIRCUIT
62D RR P/W20Rear left side power window
63PANEL10Instrument panel lights
64TAIL10Parking lights, tail lights, license
plate lights, front fog lights
65ACC7.5
Shift lock control system, power
outlets, outside rear view
mirrors, audio system, navigation
system, power rear view mirrors,
multi- information display, rear
view monitor system
66CIG10Cigarette lighter
67POWER
OR TI&TE30Power windows, moon roof, tilt
and telescopic steering
