OCCUPANT RESTRAINT SYSTEMS
146

1Front airbag sensors
2Seat belt pretensioner assemblies
3SRS warning light
4Airbag sensor assembly
The front seat belt pretensioner system consists mainly of the
above components, and their locations are shown in the
illustration.
The front seat belt pretensioners are controlled by the airbag
sensor assembly. The airbag sensor assembly consists of a
safing sensor and airbag sensor.
When the front seat belt pretensioners are activated, an
operating noise may be heard and a small amount of non-toxic
gas may be released. This does not indicate that a fire is
occurring. This gas is normally harmless.
Once the front seat belt pretensioners have been activated, the
seat belt retractors remain locked.
CAUTION
Do not modify, remove, strike or open the front seat belt
pretensioner assemblies, airbag sensor or surrounding
area or wiring. Failure to follow these instruction may
prevent the seat belt pretensioners from activating
correctly, cause sudden operation of the system or
disable the system, which could result in death or
serious injury. Consult your Lexus dealer about any
repairs and modifications.

OCCUPANT RESTRAINT SYSTEMS
147
NOTICE
Do not perform any of the following changes without
consulting your Lexus dealer. Such changes can
interfere with proper operation of the front seat belt
pretensioners in some cases.
Installation of electronic devices such as a mobile
two-way radio, cassette tape player or compact disc
player.
Repairs on or near the front seat belt retractor
assemblies.
Modification of the suspension system.
Modification of the front end structure.
Attachment of a grille guard (bull bar, kangaroo bar,
etc.), snowplow, winches or any other equipment to
the front end.
Repairs made on or near the front fenders, the front
end structure and console.

OCCUPANT RESTRAINT SYSTEMS
148
This indicator comes on when the ignition key is turned to
the ONº position. It goes off after about 6 seconds. This
means the front seat belt pretensioners are operating
properly.
This warning light system monitors the airbag sensor
assembly, front airbag sensors, side and curtain shield airbag
sensor assemblies, curtain shield airbag sensor assemblies,
driver's seat position sensor, driver's seat belt buckle switch,
front seat belt pretensioner assemblies, inflators, warning light,
interconnecting wiring and power sources. (For details, see
Service reminder indicators and warning buzzersº on page 55
for instructions.)If any of the following conditions occurs, this indicates a
malfunction of the airbags or seat belt pretensioners. Contact
your Lexus dealer as soon as possible.
When the ignition switch is turned to the ONº position, the
light does not come on, remains on or flashes.
The light comes on or starts flashing while driving.
If either front seat belt does not retract or cannot be pulled
out due to a malfunction or activation of the relevant front
seat belt pretensioner.

OCCUPANT RESTRAINT SYSTEMS
149
In the following cases, contact your Lexus dealer as soon as
possible:
The front seat belt pretensioner assembly or surrounding
area has been damaged.
The front of the vehicle (shaded in the illustration) was
involved in an accident that was not severe enough to cause
the front seat belt pretensioners to operate.
The front seat belt pretensioner assembly is scratched,
cracked, or otherwise damaged.
SRS DRIVER AIRBAG AND FRONT
PASSENGER AIRBAG
The SRS (Supplemental Restraint System) front airbags
are designed to provide further protection for the driver
and front passenger in addition to the primary safety
protection provided by the seat belts.
In response to a severe frontal impact, the SRS front airbags
work together with the seat belts to help reduce injury by
inflating. The SRS front airbags help to reduce injuries mainly
to the driver's or front passenger's head or chest caused hitting
the vehicle interior.
The front passenger airbag is activated even with no
passenger in the front seat.

OCCUPANT RESTRAINT SYSTEMS
150Always wear your seat belt properly.
Your vehicle is equipped with a crash sensing and diagnostic
module, which will record the use of the seat belt restraint
system by the driver and front passenger when the SRS front
airbags are inflated.
CAUTION
The SRS front airbag system is designed only as a
supplement to the primary protection of the driver
and front passenger seat belt systems. The driver
and front passenger can be killed or seriously injured
by the inflating airbags if they do not wear the
available seat belts properly. During sudden braking
just before a collision, an unrestrained driver or front
passenger can move forward into direct contact with
or close proximity to the airbag which may then
deploy during the collision. To ensure maximum
protection in an accident, the driver and all
passengers in the vehicle must wear their seat belts
properly. Wearing a seat belt properly during an
accident reduces the chances of death or serious
injury or being thrown out of the vehicle. For
instructions and precautions concerning the seat
belt system, see Seat beltsº on page 135.
Improperly seated and/or restrained infants and
children can be killed or seriously injured by the
deploying airbags. An infant or child who is too small
to use a seat belt should be properly secured using
a child restraint system. Lexus strongly
recommends that all infants and children be placed
in the second or third seat of the vehicle and properly
restrained. The second or third seat is the safest for
infants and children. For instructions concerning the
installation of a child restraint system, see Child
restraintº on page 176.
The SRS front airbags are designed to deploy in severe
(usually frontal) collisions where the magnitude and
duration of the forward deceleration of the vehicle
exceeds the designed threshold level.

OCCUPANT RESTRAINT SYSTEMS
151 The SRS front airbags will deploy if the severity of the impact
is above the designed threshold level, comparable to an
approximate 25 km/h (15 mph) collision when the vehicle has
the impact straight into a fixed barrier that does not move or
deform.
However, this threshold velocity will be considerably higher if
the vehicle strikes an object, such as a parked vehicle or sign
pole, which can move or deform on impact, or if the vehicle is
involved in an underride collision (e.g. a collision in which the
front of the vehicle underridesº, or goes under, the bed of a
truck, etc.).
It is possible that in some collisions where the forward
deceleration of the vehicle is very close to the designed
threshold level, the SRS front airbags and the seat belt
pretensioners may not activate together.
Always wear your seat belts properly.

1Collision from the side
2Collision from the rear
3Vehicle rollover
The SRS front airbags are generally not designed to inflate
if the vehicle is involved in a side or rear collision, if it rolls
over, or if it is involved in a low-speed frontal collision.
But, whenever a collision of any type causes sufficient
forward deceleration of the vehicle, deployment of the
SRS front airbags may occur.

OCCUPANT RESTRAINT SYSTEMS
152

1Hitting a curb, edge of pavement or hard surface
2Falling into or jumping over a deep hole
3Landing hard or vehicle falling
The SRS front airbags may also deploy if a serious impact
occurs to the underside of your vehicle. Some examples
are shown in the illustration.
16PY149

OCCUPANT RESTRAINT SYSTEMS
153

1Airbag module for front passenger
(airbag and inflator)
2SRS warning light
3Airbag module for driver (airbag and inflator)
4Driver's seat position sensor
5Driver's seat belt buckle switch
6Front airbag sensors
7Airbag sensor assembly
The SRS front airbag system consists mainly of the above
components, and their locations are shown in the illustration.
The airbag sensor assembly consists of a safing sensor and
airbag sensor.The airbag sensors constantly monitor the forward
deceleration of the vehicle. If an impact results in a forward
deceleration beyond the designed threshold level, the system
triggers the airbag inflators. At this time a chemical reaction in
the inflators very quickly fills the airbags with non-toxic gas to
help restrain the forward motion of the occupants. The front
airbags then quickly deflate, so that there is no obstruction of
the driver's vision should it be necessary to continue driving.
When the airbags inflate, they produce a loud noise and
release some smoke and residue along with non-toxic gas.
This does not indicate a fire. This smoke may remain inside the
vehicle for some time, and may cause some minor irritation to
the eyes, skin or breathing. Be sure to wash off any residue as
soon as possible to prevent any potential skin irritation with
soap and water. If you safely exit from the vehicle, you should
do so immediately.

OCCUPANT RESTRAINT SYSTEMS
154Deployment of the airbags happens in a fraction of a second,
so the airbags must inflate with considerable force. While the
system is designed to reduce serious injuries, primarily to the
head and chest, it may also cause other, less severe injuries
to the face, chest, arms and hands. These are usually in the
nature of minor burns or abrasions and swelling, but the force
of a deploying airbag can cause more serious injuries,
especially if an occupant's hands, arms, chest or head are in
close proximity to the airbag module at the time of deployment.
This is why it is important for the occupant to: avoid placing any
object or part of the body between the occupant and the airbag
module; sit straight and well back into the seat; wear the
available seat belt properly; and sit as far as possible from the
airbag module, while still maintaining control of the vehicle.
Parts of the airbag module (steering wheel hub, airbag cover
and inflator) may be hot for several minutes after deployment,
so do not touch! The airbags inflate only once. The windshield
may be damaged by absorbing some of the force of the
inflating airbag.
CAUTION
The driver or front passenger who is too close to the
steering wheel or dashboard during airbag deployment
can be killed or seriously injured. Lexus strongly
recommends that:
The driver sit as far back as possible from the
steering wheel while still maintaining control of the
vehicle.
The front passenger sit as far back as possible from
the dashboard.
All vehicle occupants be properly restrained using
the available seat belts.
If the seat belt extender has been connected to the
driver's seat belt buckle without wearing the seat belt
when using the extender in the driver's seat, the SRS
driver's airbag system will judge that the driver wears
the seat belt even if not wearing it. In this case, the
driver's airbag may not activate correctly, causing
death or serious injury in the event of collision. Be
sure to wear the seat belt with the seat belt extender.
For instructions and precautions concerning the
seating position, see Front seat precautionsº on page
11 2 .

OCCUPANT RESTRAINT SYSTEMS
155

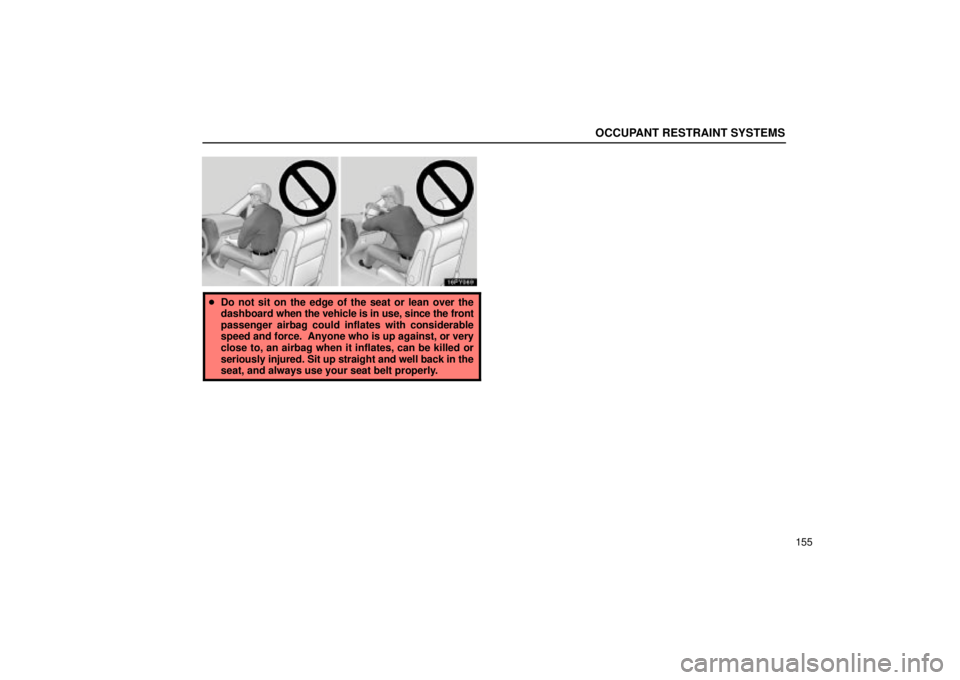

Do not sit on the edge of the seat or lean over the
dashboard when the vehicle is in use, since the front
passenger airbag could inflates with considerable
speed and force. Anyone who is up against, or very
close to, an airbag when it inflates, can be killed or
seriously injured. Sit up straight and well back in the
seat, and always use your seat belt properly.
