AIR CONDITIONING
226For manual operation Ð
Fan speed Ð To the desired fan speed
Temperature Ð Towards low temperature
Air intake Ð OUTSIDE AIR
Air flow Ð PANEL
Air conditioning Ð OFF
Defogging and defrosting
Ð The inside of the windshieldFor best results, set controls to:
For automatic operation Ð
Temperature Ð Towards high temperature to heat;
low temperature to cool
Air intake Ð OUTSIDE AIR
Air flow Ð WINDSHIELD
For manual operation Ð
Fan speed Ð To the desired fan speed
Temperature Ð Towards high temperature to heat;
low temperature to cool
Air intake Ð OUTSIDE AIR
Air flow Ð WINDSHIELD
When the windshield air flow button is pushed, air flows mainly
from the windshield vents and turns on the defogging function
with the purpose of clearing the front view.
Pushing this button once again returns the air flow mode to the
last one used.This button allows the air intake to select OUTSIDE AIR mode
automatically. This is to clean up the front view more quickly.
If you want to return the setting to RECIRCULATED AIR mode,
push the air intake control button once again.
Push the A/Cº button for dehumidified heating or cooling. This
setting clears the front view more quickly.
On humid days, do not blow cold air on the windshield Ð the
difference between the outside and inside temperatures
could make the fogging worse.
Ð The outside of the windshield

AIR CONDITIONING
227 For best results, set controls to: For automatic operation Ð
Temperature Ð Towards high temperature
Air intake Ð OUTSIDE AIR
Air flow Ð WINDSHIELD
For manual operation Ð
Fan speed Ð To the desired fan speed
Temperature Ð Towards high temperature
Air intake Ð OUTSIDE AIR
Air flow Ð WINDSHIELD

AIR CONDITIONING
228When the windshield air flow button is pushed, air flows mainly
from the windshield vents and turns on the defogging function
with the purpose of clearing the front view.
Pushing this button once again returns the air flow mode to the
last one used.
This button allows the air intake to select OUTSIDE AIR mode
automatically. This is to clean up the front view more quickly.
If you want to return the setting to RECIRCULATED AIR mode,
push the air intake control button once again.
Push the A/Cº button for dehumidified heating or cooling. This
setting clears the front view more quickly.
To heat the vehicle interior while defrosting the windshield,
choose floor/windshield air flow.
(d) Center vents and side vents

Center vents

Side vents
If air flow control is not satisfactory, check the center
vents and side vents. The center vents and side vents may
be opened or closed as shown.

AIR CONDITIONING
229
(e) Checking and replacing the air conditioning
filter
The air conditioning filter information label is placed in the
glove box as shown and indicates that a filter has been
installed.
The air conditioning filter prevents dust from entering the
vehicle through the air conditioning vent.
The air conditioning filter is behind the glove box.
The air conditioning filter may clog after long use. The filter
may need to be replaced if the air flow of the air conditioner and
heater experiences extreme reductions in operating efficiency,
or if the windows begin to fog up easily.
To maintain the air conditioning efficiency, inspect and replace
the air conditioning filter according to the maintenance
schedule. In dusty areas or areas with heavy traffic flow, such
as inner city or desert areas, early replacement may be
required. (For scheduled maintenance information, please
refer to the Owner's Manual Supplement/Scheduled
Maintenanceº.)

AIR CONDITIONING
230

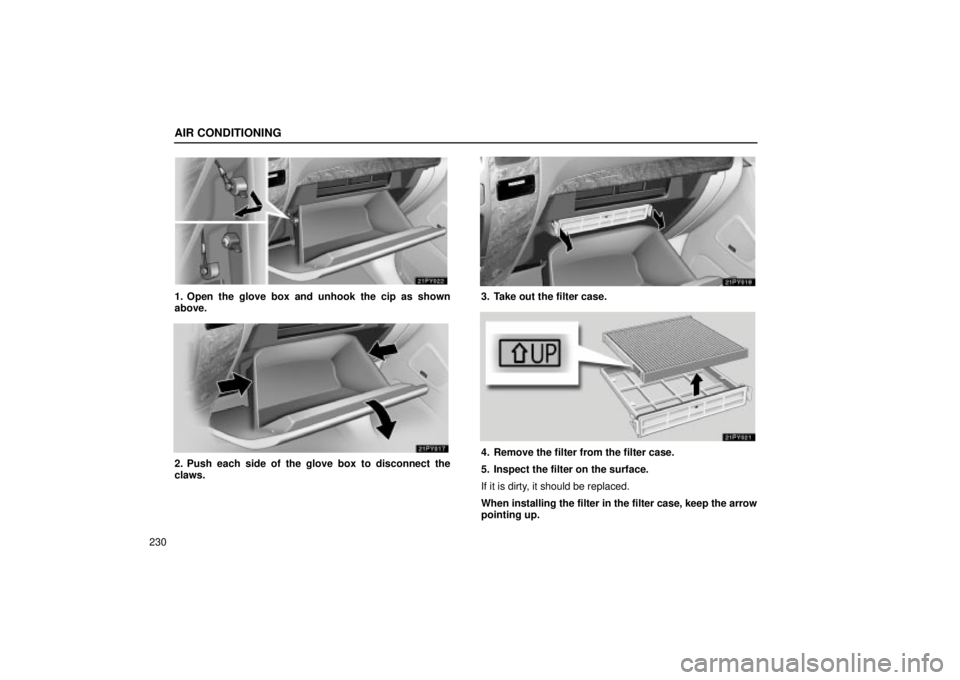

1. Open the glove box and unhook the cip as shown
above.
2. Push each side of the glove box to disconnect the
claws.
3. Take out the filter case.
4. Remove the filter from the filter case.
5. Inspect the filter on the surface.
If it is dirty, it should be replaced.
When installing the filter in the filter case, keep the arrow
pointing up.

AIR CONDITIONING
231
INFORMATION
The air conditioning filter should be installed properly
in position. The use of air conditioning with the filter
removed may cause deteriorated dustproof
performance and then affect air conditioning
performance.

AIR CONDITIONING
232
REAR COOLER CONTROLS
21PY034

1Rear cooler vents
2Fan speed control button
3REAR COOLº button
4Temperature control button
(a) Rear cooler ON-OFF
To turn the rear cooler on, push the REAR COOLº button
with front air conditioning on. To turn the rear cooler off,
push the button once again.
When you turn the rear cooler on with the front air conditioning
off, the cooling device is not operated.
(b) Air flow control
The fan speed can be set to your desired speed by pushing
the appropriate side of the fan speed control button.
AUTOº mode: The fan speed is automatically adjusted only
when the air flow setting of the front air conditioning is in the
panel mode.
(c) Temperature control

AIR CONDITIONING
233 You can adjust the temperature within
10F (
5C)
which compared with the temperature setting of the front
air conditioning. Push the left side of the button to lower
the temperature, and push the right side to raise the
temperature.
NOTICE
To prevent the battery from being discharged, do not
leave the rear cooler on longer than necessary when the
engine is not running.

Finish
SECTION 2 ± 2
234
AIR CONDITIONING AND AUDIO
Audio
Audio system235 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear seat audio system264 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear seat entertainment system280 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
For Audio systemº instructions for vehicles
equipped with Navigation System, please refer to
the separate Navigation System Owner's Manualº.

Finish
AUDIO
235
AUDIO SYSTEM
Quick reference for your audio system
22PY029

You can adjust the brightness of the display. See Instrument panel light controlº on page 73 for details.
If a Mark Levinson brand audio system is installed, the Mark Levinsonº logo is shown on the panel.
