STARTING AND DRIVING
365
AUTOMATIC TRANSMISSION
Your automatic transmission has a shift lock system to
minimize the possibility of incorrect operation. This
means you can only shift out of Pº position when the
brake pedal is depressed with the ignition switch in ONº
position. ()
31PY039

The shift position is displayed beside the selector lever
and on the instrument cluster.
P:Parking, engine starting and key removal position
R:Reverse position
N:Neutral position
D:Normal driving position (Shifting into overdrive possible)
4:Position for engine braking (Shifting into overdrive not
possible)
When the cruise control is being used, even if you
downshift from Dº to 4º, engine braking will not be
enabled because the cruise control is not cancelled. For
the operation to decrease the vehicle speed, see page
379.
3, 2:Position for more powerful engine braking
L:Position for maximum engine braking

ENGINE
518
Engine oil selection
Toyota Genuine Motor Oilº is filled in your Lexus vehicle. Use
Lexus approved Toyota Genuine Motor Oilº or equivalent to
satisfy the following grade and viscosity.
Oil grade: API grade SL Energy-Conservingº or ILSAC
multigrade engine oil.
Recommended viscosity: SAE 5W-30
62Z002

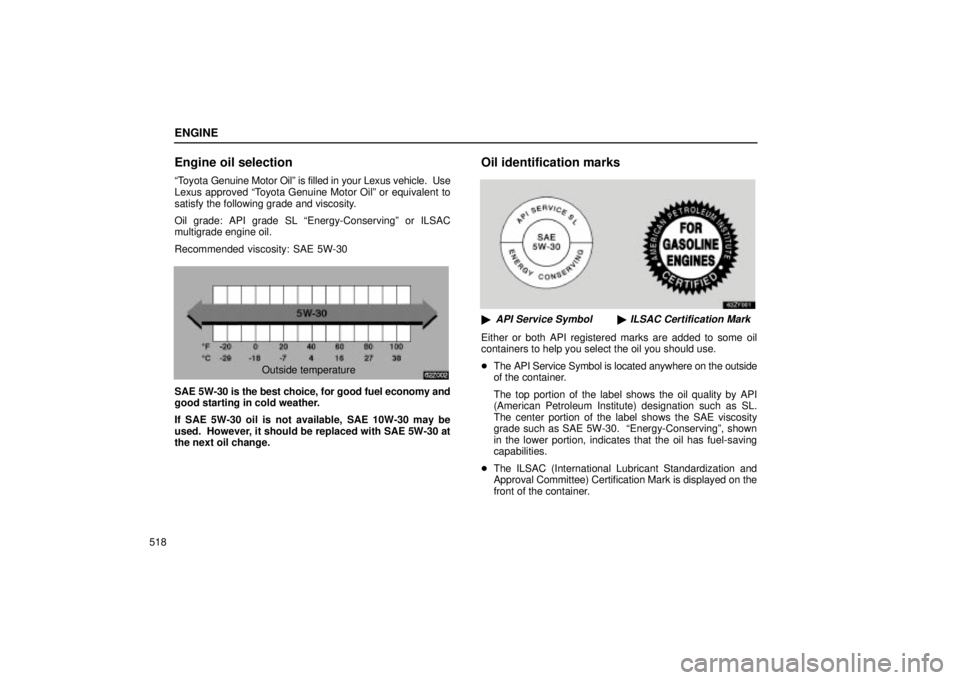

Outside temperature
SAE 5W-30 is the best choice, for good fuel economy and
good starting in cold weather.
If SAE 5W-30 oil is not available, SAE 10W-30 may be
used. However, it should be replaced with SAE 5W-30 at
the next oil change.
Oil identification marks

API Service Symbol
ILSAC Certification Mark
Either or both API registered marks are added to some oil
containers to help you select the oil you should use.
The API Service Symbol is located anywhere on the outside
of the container.
The top portion of the label shows the oil quality by API
(American Petroleum Institute) designation such as SL.
The center portion of the label shows the SAE viscosity
grade such as SAE 5W-30. Energy-Conservingº, shown
in the lower portion, indicates that the oil has fuel-saving
capabilities.
The ILSAC (International Lubricant Standardization and
Approval Committee) Certification Mark is displayed on the
front of the container.

ELECTRICAL COMPONENTS
558
25AIRSUS
NO.210Rear height control air
suspension
26SEAT
HEATER20Seat heaters
27DOME10
Ignition switch light, interior
lights, personal lights, foot
lights, running board lights,
door courtesy lights, inside
door handle lights,
multi- information display
28RADIO
NO.120Car audio system, navigation
system
29ECU-B10
Multiplex communication
system, vehicle stability control
system, wireless remote
control system, inside rear
view mirror, air conditioning
system, electronic modulated
suspension, driving position
memory system, power
windows, moon roof
30ECU-B
NO.210Theft deterrent system
31ABS
MTR40
Anti- lock brake system,
vehicle stability control system,
active traction control system,
brake assist system
32AM230Starting system, all components
in IGNº, SRSº, GAUGEº and
ST2º fuses
No.FUSEAMPERECIRCUIT

ELECTRICAL COMPONENTS
560
48FR
WIP-WSH30Windshield wipers, windshield
washer
49TEMS20Electronic modulated
suspension
50DIFF20Four-wheel drive system
51RR WIP15Rear window wiper
52D P/SEAT30Driver's power seat
53P P/SEAT30Front passenger's power seat
54PWR
OUTLET15Power outlet (12 VDC)
55IG1 NO.210Rear air conditioning system,
inside rear view mirror
56RR WSH15Rear window washer
57ECU-IG10
Shift lock control system, power
windows, outside rear view
mirror defogger, anti-lock brake
system, active traction control
system, vehicle stability control
system, air conditioning system,
navigation system, power
windows, moon roof, Lexus link
system, tilt and telescopic
steering, multi- information
display, driving position
memory system
58IG110
Air conditioning system, back-up
lights, rear window defogger,
seat heaters, vehicle stability
control system
No.FUSEAMPERECIRCUIT

ELECTRICAL COMPONENTS
561
59STA7.5Multiport fuel injection
system/sequential multiport fuel
injection system
60P FR P/W20Front passenger's power window
61P RR P/W20Rear right side power window
62D RR P/W20Rear left side power window
63PANEL10Instrument panel lights
64TAIL10Parking lights, tail lights, license
plate lights, front fog lights
65ACC7.5
Shift lock control system, power
outlets, outside rear view
mirrors, car audio system,
navigation system, power rear
view mirrors, multi- information
display
66CIG10Cigarette lighter
67POWER
OR TI&TE30Power windows, moon roof, tilt
and telescopic steering
