STARTING AND DRIVING
427
HILL-ST ART ASSIST CONTROLSYSTEM
The hill-start assist control system assists you in starting
to move up a steep or slippery hill. When you start to move
up the hill slope, the system helps to prevent the vehicle
from rolling backward in the interval while you move your
foot from the brake pedal to the accelerator pedal.
CAUTION
 Do not rely excessively on the hill-start assist control
system. The vehicle may not be able to start
smoothly on road surfaces or off-road surfaces such
as extremely steep slopes or icy roads, on which
sliding can occur very easily.
 Do not use the hill-start assist control system to stop
the vehicle. This system is not designed as a function
for stopping the vehicle on a uphill slope.
The hill-start assist control system will operate for 5
seconds maximally when all of the following conditions
apply.
When the transmission is in any of positions Dº, 4º,
3º, 2º or Lº
 When the brake pedal is not depressed
The system is designed to operate when the vehicle is starting
on an uphill slope; therefore, if the transmission is in Pº or Nº
it will not operate. It will not operate either if the vehicle starts
to move in reverse on a slope with the transmission in the Rº.

Slip indicator light
When the hill-start assist control system is operating, the slip
indicator light flashes and an alarm sounds intermittently. At
the same time, the stop lamps and high mounted stoplight are
lit.

STARTING AND DRIVING
428The slip indicator light comes on for a few seconds when the
ignition key is turned to ONº. If the indicator light does not
come on when the ignition is turned on, contact your Lexus
dealer.
Keep in mind the following when driving.

The hill-start assist control system operates for 5 seconds
maximally. If both the brake and accelerator pedals remain
undepressed for longer than 5 seconds, the buzzer will
sound at more frequent intervals and the system will
gradually stop operating.
 The hill-start assist control system is not designed as a
function for stopping the vehicle on a uphill slope. When
stopping the vehicle, be sure to depress the brake pedal.
If the system is used frequently, the brake actuator
temperature may become too high and a buzzer will sound
intermittently.
In this case, a buzzer will sound intermittently. When the
temperature of the brake actuator goes down, the system will
begin to operate again. Until it restarts, the active traction
control system and downhill assist control system will not
operate; however, the conventional brake can be operated.
VSC TRACº warning light
If there is any abnormality in the system, the VSC TRACº
warning light will come on.
If the system malfunctions, the VSC TRACº warning light will
come on.
If the VSC TRACº warning light comes on, there may be an
abnormality in any of the following systems in addition to the
hill-start assist control system.
 Downhill assist control system
 Active traction control system
 Vehicle stability control system
When the system is normal and the ignition key is turned to
ONº, the warning light will come on and will go off after a few
seconds. It is not a malfunction that the warning light may stay
on for 60 seconds after the ignition key is turned to the ONº
position.

STARTING AND DRIVING
429
Depressing the brake pedal repeatedly may turn on the light.
It is normal if it goes out after a few seconds.
The brake actuator temperature increases during continuous
operation of the above mentioned system on such as slippery
roads. If the brake actuator temperature becomes too high
while any of the systems is operating, a buzzer will start to
sound intermittently to indicate that the hill-start assist control
system can no longer operate. In this case, stop your vehicle
immediately at a safe place.
If the system continues to operate, the buzzer sound changes
from intermittent to continuous. (The continuous buzzer
sounds for about 3 seconds.) At this time, the VSC TRACº
warning light will come on and the hill-start assist control
system stops operating temporarily in order to protect the
brake actuator. (Although the hill-start assist control system
does
not operate, it is no problem to continue your driving.) The
system w ill be automatically restored after a short time and the
VSC TRACº warning light goes out.
If the warning light comes on while driving, the system does not
work. However, as normal braking operates when being
applied, it is no problem to continue your driving.
In the following cases, contact your Lexus dealer:
 The warning light does not come on after the ignition key is
turned to ONº.
 The warning light remains on after the ignition key is turned
to ONº.
 The warning light comes on while driving.
BRAKE SYSTEM
This brake system has 2 independent hydraulic circuits. If
either circuit should fail, the other will still work. However, the
pedal will be harder to press, and your stopping distance will
increase. Also, the brake system warning light may come on.
CAUTION
Do not drive your vehicle with only a single brake
system. Have your brakes fixed immediately.
Brake booster
The brake booster uses brake fluid pressurized by the pump
to power-assist the brakes. If the brake booster fails during
driving, the brake system warning light comes on and buzzer
sounds continuously. In this case, the brakes may not work
properly. If they do not work well, depress the brake pedal
firmly. If the brake system warning light comes on, immediately
stop your vehicle and contact your Lexus dealer.
The brake system warning light may stay on for about 60
seconds after the ignition key is turned to the ONº position. It
is normal if the light turns off after a while.
Depressing the brake pedal repeatedly may turn on the brake
system warning light and buzzer. It is normal if the light goes
out and the buzzer stops sounding after a few seconds.

STARTING AND DRIVING
430You may hear a small sound in the engine compartment after
the engine is started or the brake pedal is depressed
repeatedly. This is a pump pulsating sound of the brake
system, and it is not a malfunction.
CAUTION

Do not pump the brake pedal if the engine stalls.
Each push on the pedal uses up your brake fluid
pressure reserve.
 Even if the power assist is completely lost, the brakes
will still work. But you will have to push the pedal
hard, much harder than normal. And your braking
distance will increase.
Anti-lock brake system
The anti-lock brake system is designed to automatically
help prevent lock-up of the wheels during a sudden brake
or braking on slippery road surfaces. This assists in
providing directional stability and steering performance
of the vehicle under these circumstances.
Effective way to press the ABS brake pedal: When the
anti-lock brake system function is in action, you may feel the
brake pedal pulsating and hear a noise. In this situation, to
let the anti-lock brake system work for you, just hold the
brake pedal down more firmly. Do not pump the brake in a
panic stop. This will result in reduced braking performance.
The anti-lock brake system becomes operative after the
vehicle has accelerated to a speed in excess of approximately
10 km/h (6 mph). It stops operating when the vehicle
decelerates to a speed below approximately 5 km/h (3 mph).
Depressing the br ake pedal on slippery road surfaces such as
on a manhole cover, a steel plate at a construction site, joints
in a bridge, etc. on a rainy day tends to activate the anti-lock
brake system.
You may hear a click or motor sound in the engine
compartment for a few seconds when the engine is started or
just after the vehicle begins to move. This means that the
anti-lock brake system is in the self-check mode, and does not
indicate a malfunction.
When the anti-lock brake system is activated, the
following conditions may occur. They do not indicate a
malfunction of the system:
 You may hear the anti-lock brake system operating and feel
the brake pedal pulsating and the vibrations of the vehicle
body and steering wheel. You may also hear the motor
sound in the engine compartment even after the vehicle is
stopped.
 At the end of the anti-lock brake system activation, the
brake pedal may move a little to the forward.

STARTING AND DRIVING
431
CAUTION
Do not overestimate the anti-lock brake system:
Although the anti-lock brake system assists in
providing vehicle control, it is still important to drive
with all due care and maintain a moderate speed and
safe distance from the vehicle in front of you, because
there are limits to the vehicle stability and effectiveness
of steering wheel operation even with the anti-lock
brake system on.
If tire grip performance exceeds its capability, or if
hydroplaning occurs during high speed driving in the
rain, the anti-lock brake system does not provide
vehicle control.
Anti-lock brake system is not designed to shorten the
stopping distance: Always drive at a moderate speed
and maintain a safe distance from the vehicle in front of
you. Compared with vehicles without an anti-lock
brake system, your vehicle may require a longer
stopping distance in the following cases:
 Driving on rough, gravel or snow-covered roads.
 Driving with tire chains installed.
Driving over the steps such as the joints on the road.
 Driving on roads where the road surface is pitted or
has other differences in surface height.
Install all 4 tires of specified size at appropriate
pressure: The anti-lock brake system detects vehicle
speeds using the s peed sensors for respective wheels'
turning speeds. The use of tires other than specified
may fail to detect the accurate turning speed resulting
in a longer stopping distance.

STARTING AND DRIVING
432ABSº warning light

1U.S.A.2Canada
The light comes on when the ignition key is turned to the ONº
position. If the anti-lock brake system and the brake assist
system work properly, the light turns off after a few seconds.
Thereafter, if either of the systems malfunctions, the light
comes on again.
When the ABSº warning light is on (and the brake system
warning light is off), the anti-lock brake system, the brake
assist system, the active traction control system and the
vehicle stability control system do/does not operate, but the
brake system still operates conventionally.
When the ABSº warning light is on (and the brake system
warning light is off), the anti-lock brake system does not
operate so that the wheels could lock up during a sudden
braking or braking on slippery road surfaces.
If either of the following conditions occurs, this indicates
a malfunction somewhere in the components monitored
by the warning light system. Contact your Lexus dealer as
soon as possible to service the vehicle.

The light does not come on when the ignition key is turned
to the ONº position, or remains on.
 The light comes on while you are driving.
A warning light turning on briefly during operation does not
indicate a problem.
CAUTION
If the ABSº warning light remains on together with the
brake system warning light, immediately stop your
vehicle at a safe place and contact your Lexus dealer.
In this case, not only the anti-lock brake system will fail
but also the vehicle will become extremely unstable
during braking.
Either of the following conditions may occur, but do not
indicate a malfunction:
 The light may stay on for about 60 seconds after the ignition
key is turned to the ONº position. It is normal if it turns off
after a while.
 Depressing the brake pedal repeatedly may turn on the
light. It is normal if it turns off after a few seconds.

STARTING AND DRIVING
433
Brake assist system
When you slam the brakes on, the brake assist system
judges as an emergency stop and provides more powerful
braking for a driver who cannot hold down the brake pedal
firmly.
When you slam the brakes on, more powerful braking will be
applied. At this time, you may hear a sound in the engine
compartment and feel the vibrations of the brake pedal. This
does not indicate a malfunction.
The brake assist system becomes operative after the vehicle
has accelerated to a speed in excess of approximately 10 km/h
(6 mph). It stops operating when the vehicle decelerates to a
speed below approximately 5 km/h (3 mph).
The brake assist system may not work for about 60 seconds
after the engine is started.
For an explanation of this system's warning light, see ABS
warning lightº on page 67.
Drum-in-disc type parking brake system
Your vehicle has a drum-in-disc type parking brake system.
This type of brake system needs bedding-down of the brake
shoes periodically or whenever the parking brake shoes and/or
drums are replaced.
Have your Lexus dealer perform the bedding-down.
TIRE PRESSURE WARNING SYSTEM
The tire pressure warning system is designed to provide
warning when tire inflation pressure of one or more of
your tires (including the spare tire) is low. The low tire
pressure warning light comes on to inform you that low
tire inflation pressure may hamper driving.

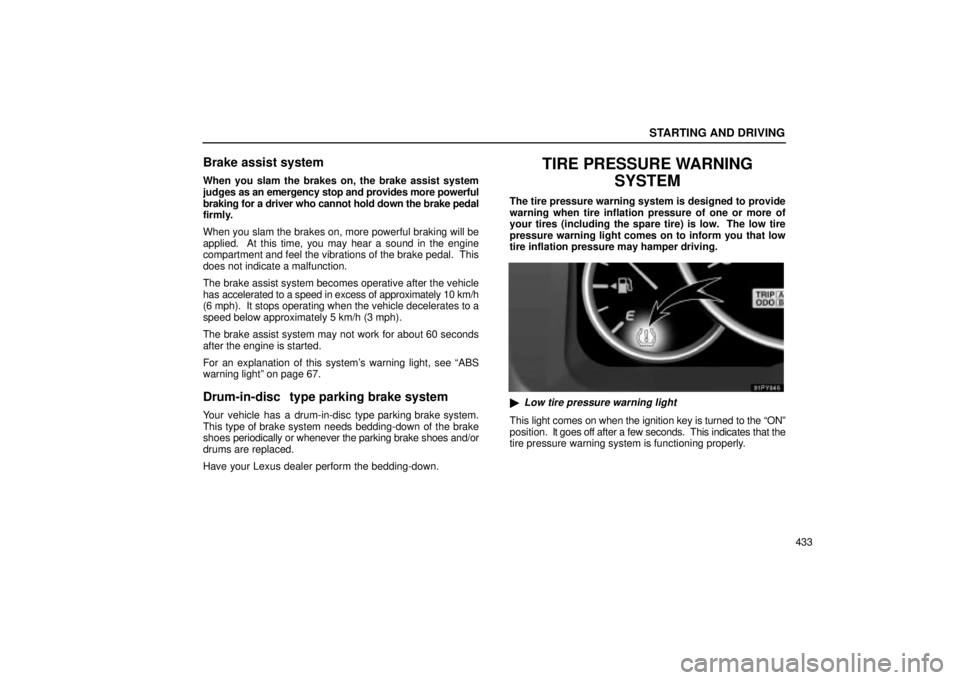

Low tire pressure warning light
This light comes on when the ignition key is turned to the ONº
position. It goes off after a few seconds. This indicates that the
tire pressure warning system is functioning properly.

STARTING AND DRIVING
434If the low tire pressure warning light comes on or blinks,
do the following.
If the warning light comes on:
Stop your vehicle in a safe place as soon as possible and
check that the inflation pressure of all tires (including the
spare tire) is as specified on the tire and loading
information
label. (See Checking tire inflation pressureº
on page 578.) If the warning light comes on even after tire
inflation pressure adjustment, you may have a flat tire. If
you have a flat tire, replace it with the spare tire. For
details, see If you have a flat tireº on page 486.
The warning light goes off a few minutes after air is put into the
deflated tire.
This warning light may turn on due to natural causes such as
natural air leaks or tire pressure changes caused by
temperature. In this case, adjusting the tire pressure will turn
off the warning light.
CAUTION
When the low tire pressure warning light comes on,
observe the following instructions:
 Depending on the conditions, reduce to an
appropriate speed as soon as possible.
 Adjust the tire pressure to the specified level as soon
as possible.
 Avoid abrupt steering wheel maneuvering and
braking. Tire deterioration may reduce steering
wheel control and brake effectiveness. This may lead
to serious injury or death.
 The tire pressure warning system may not activate
immediately if sudden bursts of air leakage occur.

STARTING AND DRIVING
437

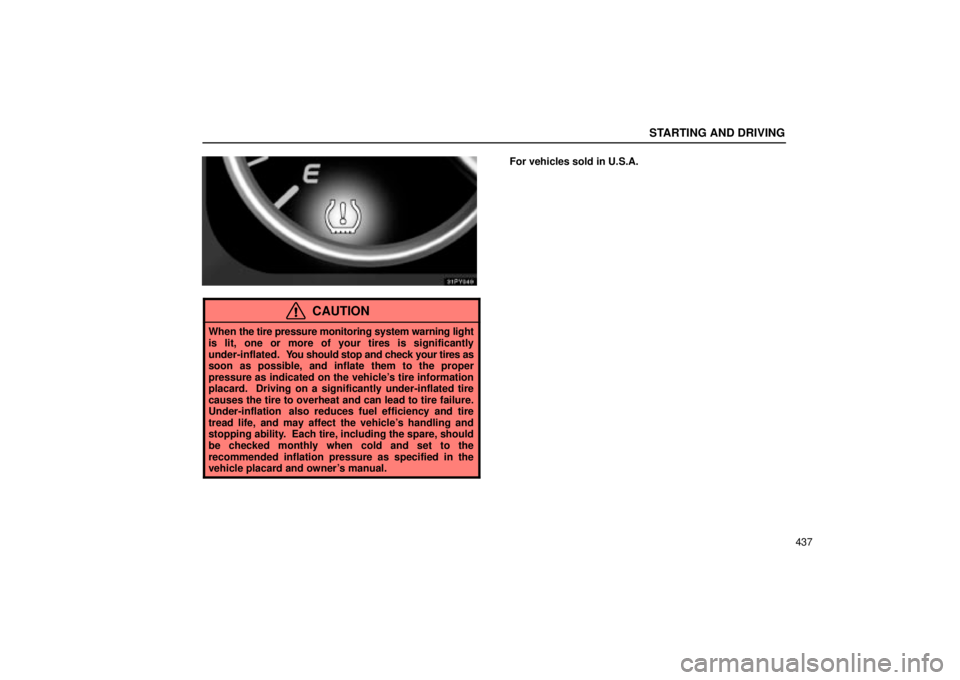

CAUTION
When the tire pressure monitoring system warning light
is lit, one or more of your tires is significantly
under-inflated. You should stop and check your tires as
soon as possible, and inflate them to the proper
pressure as indicated on the vehicle's tire information
placard. Driving on a significantly under-inflated tire
causes the tire to overheat and can lead to tire failure.
Under-inflation also reduces fuel efficiency and tire
tread life, and may affect the vehicle's handling and
stopping ability. Each tire, including the spare, should
be checked monthly when cold and set to the
recommended inflation pressure as specified in the
vehicle placard and owner's manual.
For vehicles sold in U.S.A.

DRIVING TIPS
448
When driving off-road or in rugged terrain, do not
drive at excessive speeds, jump, make sharp turns,
strike objects, etc. This may cause loss of control or
vehicle rollover causing death or serious injury. You
are also risking expensive damage to your vehicle's
suspension and chassis.
 Do not drive horizontally across steep slopes.
Driving straight up or straight down is preferred.
Your vehicle (or any similar off-road vehicle) can tip
over sideways much more easily than forward or
backward.BREAK-IN PERIOD
Drive gently and avoid high speeds.
You need not follow a break-in schedule with your new Lexus.
But following a few simple tips for the first 1600 km (1000 miles)
can add to the future economy and long life of your vehicle:
Avoid full throttle acceleration when starting and driving.
 Avoid racing the engine.
 Try to avoid hard stops during the first 300 km (200 miles).
 Do not drive for a long time at any single speed, either fast
or slow.
 Do not tow a trailer during the first 800 km (500 miles).
