OCCUPANT RESTRAINT SYSTEMS
132
CAUTION
Avoid reclining the seatback any more than needed.
The seat belts provide maximum protection when the
passengers are sitting up straight and well back in the
seats. If you are reclined, the lap belt may slide past
your hips and apply restraint forces directly to the
abdomen or your neck may contact the shoulder belt.
In the event of a frontal collision, the more the seat is
reclined, the greater the risk of death or personal injury.
Tumbling second seat (for third seat entry)
Vehicles with third seat: For easy access to the third seat,
tumble the second seat in accordance with the following
procedure.
Before tumbling the second seat, stow the second seat
buckles as shown above.
This prevents the buckles from falling out when you fold up the
second seat.
Vehicles with rear seat audio system or rear seat
entertainment system: Before tumbling the second seat,
close the headphone input jack lid.

OCCUPANT RESTRAINT SYSTEMS
133
NOTICE
The seat belt buckles must be stowed before youtumble the second seat.
The headphone input jack lid of the rear seat audiosystem or the rear seat entertainment system mustbe closed before you tumble the second seat.
1. Lower the head restraints to the lowest position.2. Fold down the seatbacks while pulling the lock release
levers and swing the whole seats up and forward until they
are locked.

AUDIO
288
REAR SEAT AUDIO SYSTEM
The rear seat audio system is designed for the rear seat
passengers to enjoy the audio sound separately between
the front seats and the rear seats.
The rear seat audio system can be turned on with the rear
audio system controller even if the front audio system is off.
When the front audio is turned off, the rear audio system will be
turned off simultaneously.
The rear passengers can enjoy all the modes (AM and FM
radio, cassette tape player and compact disc player with
changer) with the rear seat audio system when a cassette tape
and a compact disc are loaded in the front audio system.
When the same mode is selected on the front and rear audio
systems at the same time, the system can be operated on the
front audio system.
If the radio mode is selected on the front and rear audio
systems at the same time, AM and FM modes cannot be
changed on the rear seat audio system.

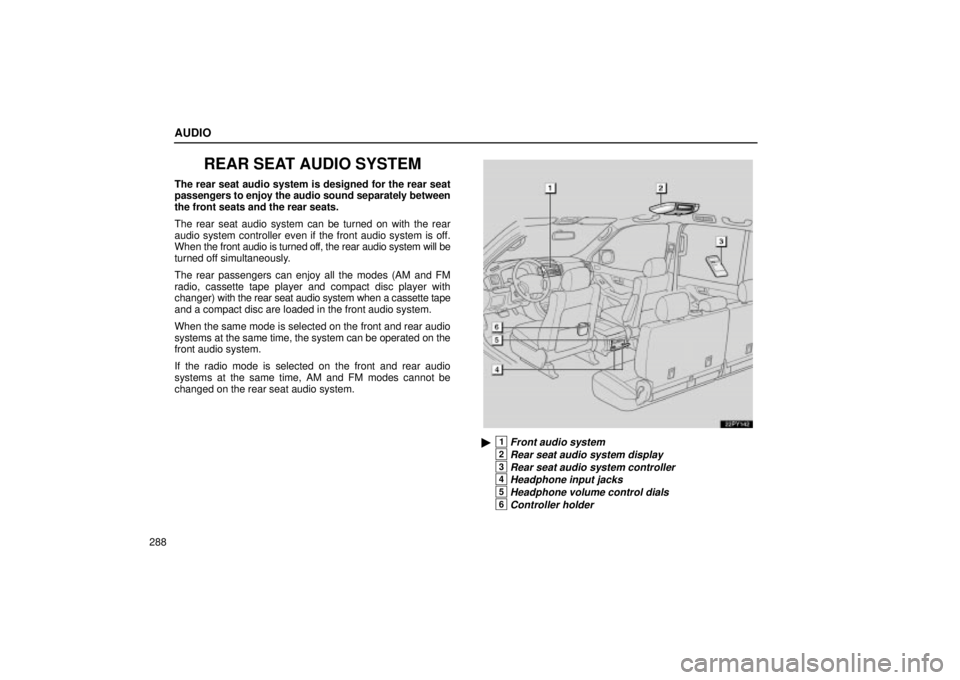

22PY142

1Front audio system
2Rear seat audio system display
3Rear seat audio system controller
4Headphone input jacks
5Headphone volume control dials
6Controller holder

AUDIO
292
Quick reference for your remote control
22PY112

1DISC/CH/PROGº buttons
2TUNE/TRACKº buttons
3ON/SOURCEº button
4OFFº button
Using your rear seat audio system: some
basics
The following instructions are for the rear passengers.
Please let the rear passengers read and follow the
instructions when the rear passengers use the rear audio
system.
This section describes some of the basic features of the Lexus
audio system. Some information may not pertain to your
system.
Your audio system adjusts to the optimum volume and tone
quality automatically. While the system is adjusting the audio
sound, the audio sound fades out and then fades in.
Your audio system works when the ignition switch is in the
ACCº or ONº position.
You can enjoy the rear seat entertainment system with
commercial headphone. See Headphone input jacksº on
page 302 in this Section for details.
You can also enjoy the rear seat entertainment system with a
wireless headphone. The wireless headphone can be used
within rear seat. If the signal becomes weak, the headphone
will mute. For details, refer to the manufacturer's instructions.
With some wireless headphone generally available in the
market, it may be difficult to catch sound properly. Lexus
recommends the use of Lexus genuine wireless headphone.
You can purchase a wireless headphone at a Lexus dealer.

AUDIO
302After replacing the battery, check that the controller operates
properly. If
the controller still does not operate properly, contact
your Lexus dealer.
Headphone input jacks
To use the jack, push the lid.
You can enjoy the rear seat audio system with commercial
headphone.
To use the headphones, connect them to the jack.
The key must be in the ACCº or ONº position.

AUDIO
303
To adjust the volume of the headphones, turn the knob.
Turn right to increase the volume. Turn left to decrease the
volume.
The maximum volume depends on the type of headphones.With
some headphone generally available in the market, it may
be difficult to catch sound properly. Lexus recommends the
use of Lexus genuine headphone.
Please contact your Lexus dealer for further details.
Wireless headphone: You can also enjoy the rear seat audio
system with a wireless headphone. For details, ask your Lexus
dealer.
CAUTION
Adjust the volume when you connect the headphones
to the jack. Loud sounds may have a significant impact
on the human body.
NOTICE
The headphone input jack lid must be closed before you tumble the second seat.

AUDIO
304
REAR SEAT ENTERTAINMENTSYSTEM
22PY140

1Front audio system
2Rear seat entertainment system display
3Rear seat entertainment system controller
4DVD player
5Power outlet
6Input terminal adapter
7Headphone volume control dials
8Headphone input jacks
9Controller holder
10Power outlet main switch

AUDIO
314
Using your audio system: some basics
The following instructions are for the rear passengers.
Please let the rear passengers read and follow the
instructions when the rear passengers use the rear seat
entertainment system.
This section describes some of the basic features of the rear
seat entertainment system. Some information may not pertain
to your system.
Your audio system adjusts to the optimum volume and tone
quality automatically. While the system is adjusting the audio
sound, the audio sound fades out and then fades in.
The rear seat entertainment system is designed for the rear
passengers to enjoy audio and DVD video separately from the
front audio system.
The rear seat entertainment system can be operated when the
ignition key is in the ACCº or ONº position.
The rear passengers can enjoy all modes (AM and FM radio,
cassette tape player, compact disc player with changer and
DVD player) on the rear seat entertainment system only if a
cassette tape and a compact disc are loaded in the front audio
system. The rear seat entertainment system can play DVD video, audio
CD, video CD, CD text, dts-CD or DVD audio only when a disc
is loaded in the DVD player.
You can enjoy videos and sound when your personal audio
system is connected to the input terminal adapter on the rear
console box. For details, refer to the manufacturer's
instructions.
You can enjoy the rear seat entertainment system with
commercial headphone. See Headphone input jacksº on
page 371 in this Section for details.
You can also enjoy the rear seat entertainment system with a
wireless headphone. The wireless headphone can be used
within rear seat. If the signal becomes weak, the headphone
will mute. For details, refer to the manufacturer's instructions.
With some wireless headphone generally available in the
market, it may be difficult to catch sound properly. Lexus
recommends the use of Lexus genuine wireless headphone.
You can purchase a wireless headphone at a Lexus dealer.

AUDIO
371
NOTICE
To prevent the battery from being discharged, do notuse the power outlet longer than necessary when theengine is not running.
Close the power outlet lid when the power outlet isnot in use. Inserting anything other than anappropriate plug that fits the outlet, or allowing anyliquid to get into the outlet may cause electricalfailure or short circuits.
The power outlet is not designed for the following electric
appliances even though their power consumption is
under 115 VAC/100W. These appliances may not operate
properly.
 Appliances with high initial peak wattage: Cathode-ray
tube type televisions, compressor-driven refrigerators,
electric pumps, electric tools, etc.
 Measuring devices which process precise data: Medical
equipment, measuring instruments, etc.
 Other appliances requiring an extremely stable power
supply: Microcomputer-controlled electric blankets, touch
sensor lamps, etc.
Certain electrical appliances may cause radio noise.Headphone input jacks
To use the jack, push the lid.

AUDIO
373
NOTICE
The headphone input jack lid must be closed before youtumble the second seat.
