AUDIO
280The display can show up to 12 letters at once. If the CD title
or music title is longer than 12 letters, hold down the button for
longer
than 1 second. The letters after the 12th one are shown.
However, 24 letters at maximum can be shown on the display.
When you push this button for longer than 1 second or play no
operation for about 6 seconds with the letters after the 13th one
on the display, the display returns and shows the first 12 letters.
Even if the CD title or music title is longer than 24 letters, the
display can show up to 24 letters.
(i) If the player malfunctions
If the player or another unit equipped with the player
malfunctions, your audio system will display one of the four
following error messages.
If WAITº appears on the display: It indicates that the inside
of the player unit may be too hot due to the very high ambient
temperature. Remove the disc from the player and allow the
player to cool down.
If ERROR 1º appears on the display: It indicates that the
disc is dirty, damaged, or it was inserted up-side down. Clean
the disc or insert it correctly.
If ERROR 3º or ERROR 4º appears on the display: It
indicates there is a trouble inside the system. Eject the disc.
If the malfunction is not rectified: Take your vehicle to your
Lexus dealer.
Audio remote controls (steering switches)
The switches are installed on the left side of the steering wheel.
MODEº switch: Use this switch to turn on or off the audio
system, or change the audio mode.
 To turn on the system, push the switch briefly. To turn off the
system, push and hold the switch until you hear a beep.
 To change the audio mode, turn on the system and push the
switch briefly. If a tape or compact disc is not inserted, the
TAPEº or CDº mode is skipped.

AUDIO
293

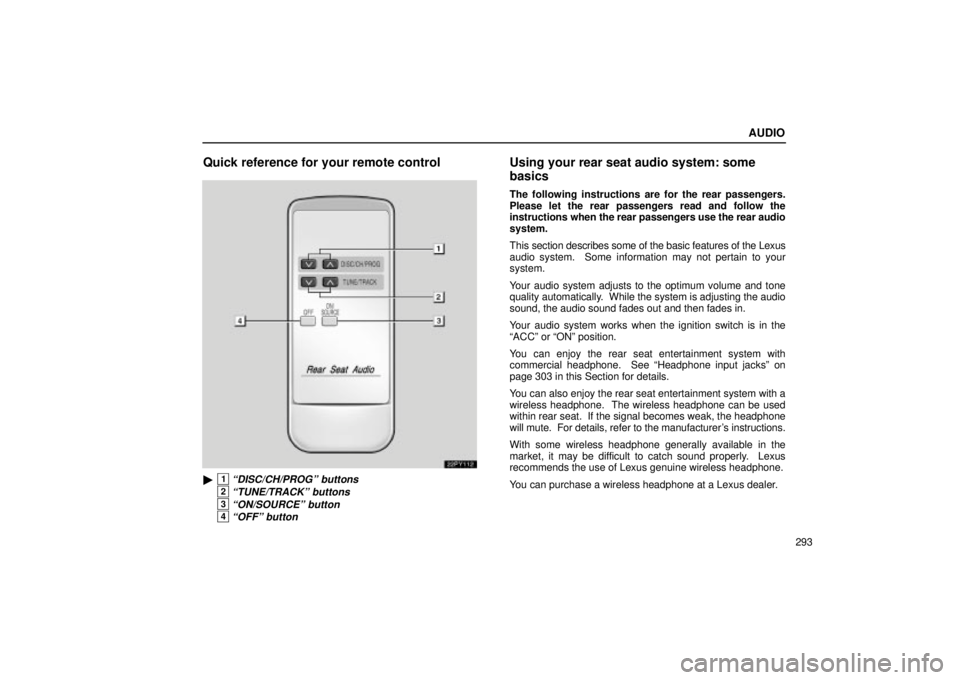

Quick reference for your remote control
22PY112

1DISC/CH/PROGº buttons
2TUNE/TRACKº buttons
3ON/SOURCEº button
4OFFº button
Using your rear seat audio system: some
basics
The following instructions are for the rear passengers.
Please let the rear passengers read and follow the
instructions when the rear passengers use the rear audio
system.
This section describes some of the basic features of the Lexus
audio system. Some information may not pertain to your
system.
Your audio system adjusts to the optimum volume and tone
quality automatically. While the system is adjusting the audio
sound, the audio sound fades out and then fades in.
Your audio system works when the ignition switch is in the
ACCº or ONº position.
You can enjoy the rear seat entertainment system with
commercial headphone. See Headphone input jacksº on
page 303 in this Section for details.
You can also enjoy the rear seat entertainment system with a
wireless headphone. The wireless headphone can be used
within rear seat. If the signal becomes weak, the headphone
will mute. For details, refer to the manufacturer's instructions.
With some wireless headphone generally available in the
market, it may be difficult to catch sound properly. Lexus
recommends the use of Lexus genuine wireless headphone.
You can purchase a wireless headphone at a Lexus dealer.

AUDIO
313
Quick reference for your remote controller
22PY153

IN CASE OF AN EMERGENCY
518
Automatic notifications
If an airbag deploys, an emergency signal is sent
automatically to the Lexus Link Call Center. In your vehicle, the
system announces Placing an emergency call to the Lexus
Link Center.º In response to the signal, Lexus Link Advisor will
attempt to comm unicate with you first. If the Advisor cannot get
any response from you, the Advisor will locate your vehicle
through the GPS, call the nearest emergency services
provider, describe the situation and your location. If necessary,
the Advisor will transfer your call to the emergency services
operator. If the theft deterrent system on your vehicle is activated,
the Lexus Link System on your vehicle will automatically call
the Lexus Link Call Center. The Advisor will attempt to contact
you to determine whether the alarm is valid.
If you report to the Lexus Link Call Center that your vehicle has
been stolen, the Advisor will locate, track and provide location
information to the appropriate law enforcement authority. To
protect subscriber privacy, the Lexus Link Call Center will not
provide the location of a vehicle to anyone other than a law
enforcement authority.
If you accidentally activate the vehicle alarm, push the
UNLOCKº
button on the wireless remote control key within 55
seconds after the alarm was set off, or insert the key into the
door keyhole or ignition switch. The Lexus Link System will
cancel the theft call.

IN CASE OF AN EMERGENCY
526
Audible voice prompts
The following table shows the voice responses from the Lexus Link System\
.Voice phrase: Explanation about Lexus Link System
This is the Lexus Link system. Integrating
global positioning satellite and wireless
communication technology into your
Lexus and providing enhanced safety,
security, and convenience. At the touch of
a button, or automatically in the event of
an accident, you are connected to a Lexus
Link Advisor who will assist you Ð 24
hours a day, 7 days a week where GPS
and cellular coverage is available. The
Lexus Link System also has an audio
recorder allowing you to record reminders
to yourself or information from a Lexus
Link Advisor.
To contact a Lexus Link Advisor, press the
SERVICESº button. The Lexus Link
System will inform the advisor of your
vehicle's current location and your
identity. The advisors can handle a wide
variety of services, such as giving
directions to shops, gas stations, ATMs,
restaurants and roadside assistance with
location. Services available will depend
on the service package you selected.In an emergency, press the emergency
services button on your Lexus Link
console. It is marked with a red
ambulance. Upon receiving your call, the
advisor will assess the situation and, if
necessary, alert the nearest emergency
services provider. The emergency button
should only be used in life threatening
situations.
If your Lexus detects that an airbag
deployment may have occurred, the
Lexus Link System will automatically send
an emergency message to the Lexus Link
Call Center.
The system will also automatically contact
the call center if the security system alarm
goes off. An advisor will first contact you
to determine if the alarm is valid. Upon
your confirmation, the advisor will then
provide the vehicle location to the police.If you accidentally set off the alarm, press
the remote door unlock, or insert your key
in the door lock or ignition within 55
seconds. This will prevent the Lexus Link
System from placing a theft call.
The volume control lets you adjust the
volume level for Lexus Link calls, system
prompts, and memos. Pr ess the plus key
to increase volume and the minus key to
decrease it.
To record a memo or a call, press the key
labeled RECº. When you are finished
recording, press the RECº button again.
To listen to the memo, press the PLAYº
button. You can record one message up
to five minutes long. When you record a
new memo, all of the previous memos will
be erased.
For more detailed information on the use,
features and limitations of this system,
please consult your Lexus Link Owner's
Manual.

IN CASE OF AN EMERGENCY
530
IF YOU LOSE YOUR KEYS ORLOCK YOURSELF OUT
You can purchase a new key at your Lexus dealer if you
can give them the key number and master key.
Even if you lose only one key, contact your Lexus dealer to
make a new key. If you lose all your master keys, you cannot
make new keys; the whole engine immobilizer system must be
replaced.
See the suggestion given in Keysº on page 8.
You can use the wireless remote control system with the new
key. Contact your Lexus dealer for detailed information.
If your keys are locked in the vehicle and you cannot get a
duplicate, many Lexus dealers can still open the door for you
using special tools. If your vehicle is equipped with Lexus Link
System, call the Lexus Link Call Center 1-800-25-LEXUS
(Toll-Free) (1-800-255-3987). Once you provide the Lexus
Link Call Center Advisor with your Lexus Link PIN (Personal
Identification Number), or personal security word, they will
unlock your vehicle.

ELECTRICAL COMPONENTS
608
25AIRSUSNO.210Rear height control air
suspension
26SEAT
HEATER20Seat heaters
27DOME10
Ignition switch light, interior
lights, personal lights, foot
lights, running board lights,
door courtesy lights, inside
door handle lights,
multi- information display
28RADIO NO.120Audio system, navigation
system
No.FUSEAMPERECIRCUIT
29ECU-B10
Multiplex communication
system, vehicle stability control
system, wireless remote
control system, inside rear
view mirror, air conditioning
system, electronic modulated
suspension, driving position
memory system, power
windows, moon roof, rear view
monitor system
30ECU-B NO.210Theft deterrent system
31ABS
MTR40
Anti- lock brake system,
vehicle stability control system,
active traction control system,
brake assist system
32AM230Starting system, all components
in IGNº, SRSº, GAUGEº and
ST2º fuses
