AUDIO
305

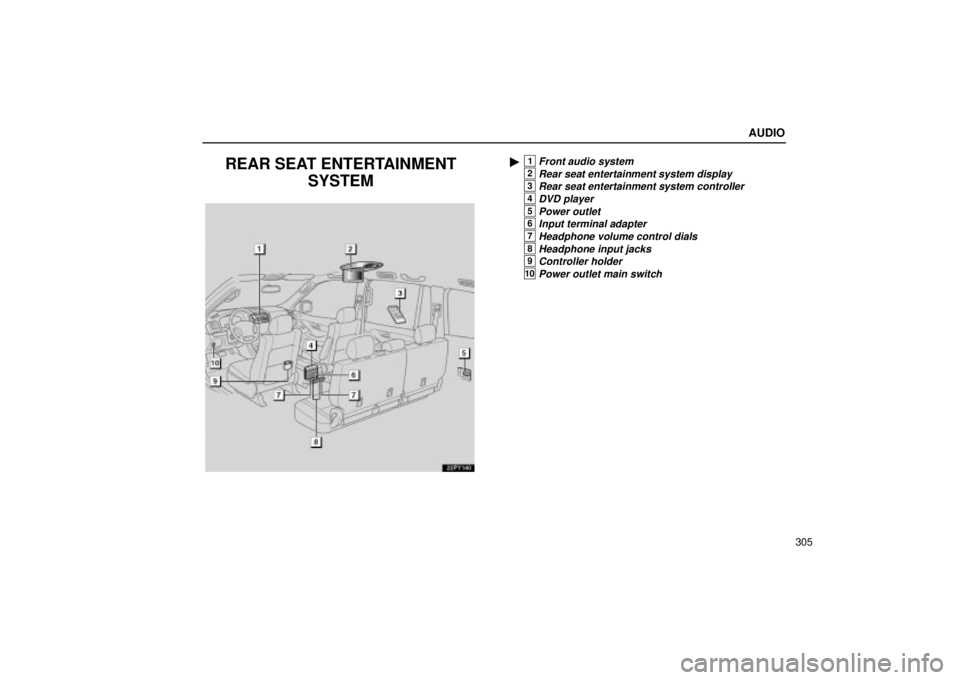

REAR SEAT ENTERTAINMENTSYSTEM
22PY140

1Front audio system
2Rear seat entertainment system display
3Rear seat entertainment system controller
4DVD player
5Power outlet
6Input terminal adapter
7Headphone volume control dials
8Headphone input jacks
9Controller holder
10Power outlet main switch

AUDIO
306Display
To use the display, push the lock release button and lower
the display until you hear a click.
You can adjust the display to your desired angle.
To close, push up the display until you hear a click.
The illumination of the screen is automatically turned off when
the display is closed. However, the rear seat entertainment
system is not turned off.
CAUTION
To reduce the chance of injury in case of an accident or
sudden stop while driving, close the display when it is
not in use.

AUDIO
309

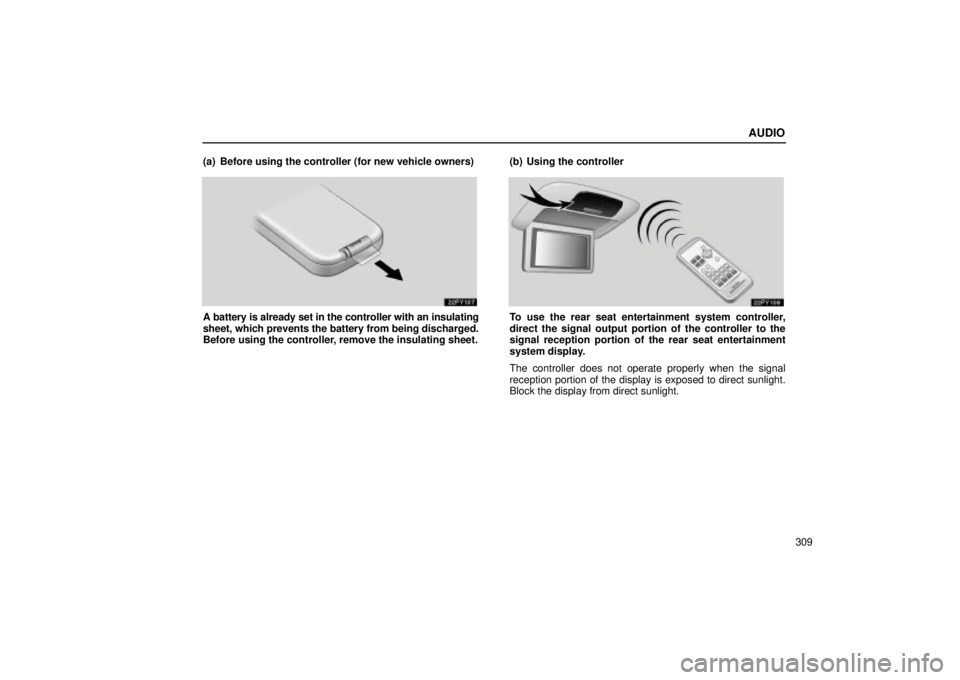

(a) Before using the controller (for new vehicle owners)
A battery is already set in the controller with an insulating
sheet, which prevents the battery from being discharged.
Before using the controller, remove the insulating sheet.
(b) Using the controllerTo use the rear seat entertainment system controller,
direct the signal output portion of the controller to the
signal reception portion of the rear seat entertainment
system display.
The controller does not operate properly when the signal
reception portion of the display is exposed to direct sunlight.
Block the display from direct sunlight.

AUDIO
314
1CURSORº button:
Indicates the control switches on the screen when the
DVD player is operated.
2Joy stick:
Select a control switch, mode switch on the screen or
the menu for the disc.
3ENTº button:
Input the selected switch or the selected menu for the
disc.
4SOURCEº button:
Turn on the rear seat entertainment system and selects
the mode.
5DISPLAYº button:
Adjust the color, tone, contrast and brightness of the
screen.
6VIDEOº button:
Turn on the video mode when your personal audio
device is connected.
7DVDº button:
Turn on the DVD mode.
8RETURNº button:
Skip to the predetermined scene for the disc.
9SET UPº button:
Indicate the initial set up screen when the DVD player
is operated.
10SEARCHº button:
Indicate the title search screen when the DVD player is
operated.
11ANGLEº button:
Select the angle of the screen when the DVD player is
operated.
12

º button: Fast forwards a screen when the DVD
player is operated.
13
º button: Play a screen when the DVD player is
operated.
14º button: Pause a screen when the DVD player is
operated.
15  º button: Reverse a screen when the DVD player
is operated.
16TOP MENUº button:
Indicate the title selection screen for DVD video when
the DVD player is operated.
17AUDIOº button:
Indicate the changing audio screen when the DVD
player is operated.
18SUB TITLEº button:
Indicate the changing subtitle screen when the DVD
player is operated.
19MENUº button:
Indicate the menu screen for DVD video when the DVD
player is operated.
20OFFº button:
Turn off the rear seat entertainment system.
21TUNE/TRACKº buttons:
Operate the front audio system or select the
track/chapter when the DVD player is operated.
22DISC/CH/PROGº buttons:
Skip directly to a desired preset station, disc, track or
chapter.

AUDIO
318
Front audio system operation
All the modes of the front audio system can be operated on the
rear seat entertainment system.
When the same mode is selected on the front and rear audio
systems simultaneously, the system can be operated on the
front audio system.
If the radio mode is selected on the front and rear audio
systems at the same time, AM and FM modes cannot be
changed on the rear seat audio system.
Selecting the mode
Use the joy stick to select the mode. Push the ENTº
button to enter the mode.
The mode display which is selected by the joy stick is
colored blue. When the ENTº button is pushed, the mode
display changes to green. If the mode display is gray, it
cannot be selected.
The Speaker soundº on the mode display is selected on the
front audio system.
When you select a mode, the screen indicates which is
selected.

AUDIO
320Manual tuning: Quickly push and release the
º or º
(TUNE/TRACK) button. Each time you push the button, the
radio will step up or down to another frequency. If you push and
hold the button, and the radio will go into the seek mode.
To scan the preset stations: You can scan only the preset
stations for the band of the front audio system. Push the º
or º (DISC/CH/PROG) button. The radio will tune in the next
preset station up or down the band. The station frequency will
appear on the screen.
Cassette tape player operation
(a) Playing a cassette tape
Using joy stick and the ENTº button to select the cassette tape
mode.
TAPEº appears on the display.
Auto-reverse feature: After the cassette player reaches the
end of a tape, it automatically reverses and begins to play the
other side, regardless of whether the cassette was playing or
fast forwarding.

AUDIO
321
(b) Manual program selection
Programº button: Push the º or º (DISC/CH/PROG)
button to select the other side of a cassette tape. The screen
indicates which side is currently selected. (
º indicates the
top side, º indicates the bottom side.)
Rewindº button: Push the º (TUNE/TRACK) button to
rewind a tape. REWº appears on the display. To stop rewinding, push the same button.
Fast
forwardº button: Push the
º (TUNE/TRACK) button
to fast forward a cassette tape. FFº appears on the display.
To stop fast forwarding, push the same button.
(c) Automatic program selection
Automatic program selectionº button: The automatic
program selection feature allows you to program your cassette
player to skip forward or backward to locate the song you want
to hear. You can skip up to 9 programs at a time.
Push the
º (TUNE/TRACK) button to skip forward. FFº and
the number will appear on the display. Push the button until the
number you want to skip appears on the display. After that, the
player will automatically skip forward.
When the end of the tape is reached, the player automatically
reverses sides and resumes normal play.

AUDIO
322Push the
º (TINE/TRACK) button to skip backward. Push
the button until REWº and the number you want to skip appear
on the display.
 If you set REW 1º, the player will rewind to the beginning
of the current program.
 When counting the number of programs you want to rewind,
remember to count the current program as well. For
example, if you want to rewind to a song that is two before
the song you are listening to, push this button until REW
3º appears on the display.
When the beginning of the tape is reached, the player
automatically resumes normal play.
There must be at least 3 seconds of blank space between
programs for this feature to work correctly.
This feature may not work well with some spoken word, live or
classical recordings.Compact disc player operation
(a) Playing a compact disc
Using joy stick and the ENTº button to select the compact
disc mode.
CDº appears on the display.
The discs set in the player are played continuously, starting
with the last disc you inserted. The disc number of the disc
currently being played, the track number and the time from the
beginning of the program appear on the display.
When play of one disc ends, the first track of the following disc
starts. When play of the final disc ends, play of the first disc
starts again.
The player will skip any empty disc trays.

AUDIO
323
(b) Selecting a desired disc
Searching for a desired disc:
Push the º and º
(DISC/CH/PROG) button to select the disc number.
Push the button several times until the desired disc number
appears on the display. When you release the button, the
player will start playing the selected disc from the first track. (c) Selecting a desired trackTo select a desired track: Push the º or º
(TUNE/TRACK) button until the number of the track you want
to listen to appears on the screen. If you want to return to the
beginning of the current track, quickly push the
º
(TUNE/TRACK) button one time.
Fast forwardº button: Push the
º (TUNE/TRACK) button
and hold it to fast forward the disc. When you release the
button, the compact disc player will resume playing from that
position.
Reverseº button: Push the
º (TUNE/TRACK) button and
hold it to reverse the disc. When you release the button, the
compact disc player will resume playing.

AUDIO
335
DVD video/DVD audio player operation
NOTE: The playback condition of some DVD discs may be
determined by a DVD software producer. This DVD player
plays a disc as the software producer intended. So, some
functions may not work properly. Be sure to read the
instruction manual for the DVD disc separately provided.
For the detailed information about DVD video discs, see
DVD video disc informationº on page 367.
Precautions for DVD video discs
When recording on a DVD video, DVD audio, video CD or
audio tracks may not record in some cases while the menu is
displayed. As audio will not play in this case, verify that the
video tracks are playing and then activate playback.
When playback of a disc is completed:
 If an audio CD is playing, the first track starts.
 If a DVD video, DVD audio or video CD is playing, playback
will stop or the menu screen will be displayed.
The title/chapter number and playback time display may not
appear while playing back certain DVD video discs.CAUTION
Conversational speech on some DVDs is recorded at a
low volume to emphasize the impact of sound effects.
If you adjust the volume assuming that the
conversations represent the maximum volume level
available for the DVD, you may be startled by louder
sound effects or when you change to a different audio
source. Loud sounds may have a significant impact on
the human body or pose a driving hazard. Keep this in
mind when you adjust the volume.
