EXTERIOR EQUIPMENT
11 4
2. To remove the fuel tank cap, turn the cap
counterclockwise by 90 degrees (to the pressure point
1), and then turn it an additional 30 degrees (to point
2). Pause slightly before removing it.
It is not unusual to hear a slight swoosh when the cap is
opened.
15PY017
3. The removed cap can be stored on the back side of the
fuel filler door.
Position the cap so that the hooks point to the left and right or
up and down, and set it in the receptacle on the back side of
the door.

OCCUPANT RESTRAINT SYSTEMS
125
SEATS
While the vehicle is being driven, all vehicle occupants should
have the seatback upright, sit well back in the seat and properly
wear the seat belts provided.
CAUTION
 Do not drive the vehicle unless the occupants are
properly seated. Do not allow any passengers to sit
in the luggage compartment or cargo area. Persons
not properly seated and/or not properly restrained by
seat belts can be severely injured in the event of
emergency braking or a collision.
 During driving, do not allow any passengers to stand
up or move around between seats. Otherwise, severe
injuries can occur in the event of emergency braking
or a collision.
FRONT SEATS
Front seat precautions
Driver seat
CAUTION
The SRS driver airbag deploys with considerable force,
and can cause death or serious injury especially if the
driver is very close to the airbag. The National Highway
Traffic Safety Administration (NHTSAº) advises:
Since the risk zone for driver airbag is the first 50 Ð 75
mm (2 Ð 3 in.) of inflation, placing yourself 250 mm (10
in.) from your driver airbag provides you with a clear
margin of safety. This distance is measured from the
center of the steering wheel to your breastbone. If you
sit less than 250 mm (10 in.) away now, you can change
your driving position in several ways:
 Move your seat to the rear as far as you can while still
reaching the pedals comfortably.
 Slightly recline the back of the seat. Although vehicle
designs vary, many drivers can achieve the 250 mm
(10 in.) distance, even with the driver seat all the way
forward, simply by reclining the back of the seat
somewhat. If reclining the back of your seat makes
it hard to see the road, raise yourself by using a firm,
non-slippery cushion, or raise the seat if your vehicle
has that feature.

OCCUPANT RESTRAINT SYSTEMS
152

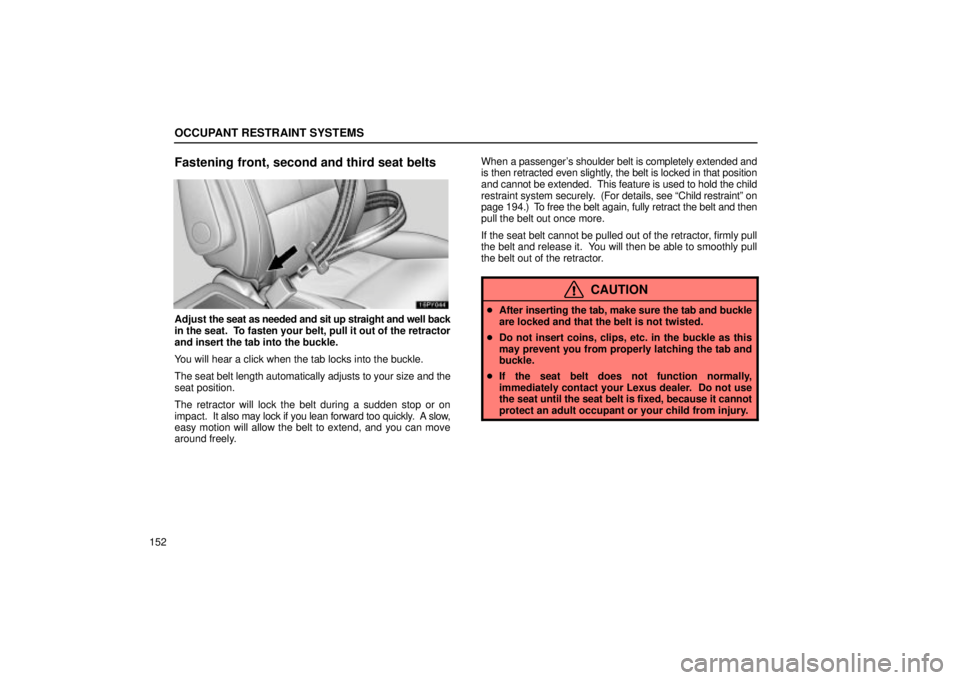

Fastening front, second and third seat belts
Adjust the seat as needed and sit up straight and well back
in the seat. To fasten your belt, pull it out of the retractor
and insert the tab into the buckle.
You will hear a click when the tab locks into the buckle.
The seat belt length automatically adjusts to your size and the
seat position.
The retractor will lock the belt during a sudden stop or on
impact. It also may lock if you lean forward too quickly. A slow,
easy motion will allow the belt to extend, and you can move
around freely. When a passenger's shoulder belt is completely extended and
is then retracted even slightly, the belt is locked in that position
and cannot be extended. This feature is used to hold the child
restraint system securely.
(For details, see Child restraintº on
page 194.) To free the belt again, fully retract the belt and then
pull the belt out once more.
If the seat belt cannot be pulled out of the retractor, firmly pull
the belt and release it. You will then be able to smoothly pull
the belt out of the retractor.
CAUTION
 After inserting the tab, make sure the tab and buckle
are locked and that the belt is not twisted.
 Do not insert coins, clips, etc. in the buckle as this
may prevent you from properly latching the tab and
buckle.
 If the seat belt does not function normally,
immediately contact your Lexus dealer. Do not use
the seat until the seat belt is fixed, because it cannot
protect an adult occupant or your child from injury.

OCCUPANT RESTRAINT SYSTEMS
154
To release the belt, press the buckle release button and
allow the belt to retract.
If the belt does not retract smoothly, pull it out and check for
kinks or twists. Then make sure it remains untwisted as it
retracts.
CAUTION
Do not separate the buckle with light gray buckle
release button. Otherwise, the seat belt may not work
properly. See the information in the following columns.
Third center seat belt

Buckle with light gray buckle-release button
The third center seat belt is a 3-point type restraint with 2
buckles. Both seat belt buckles must be correctly located and
securely latched for proper operation.
Make sure that buckle with light gray buckle-release button is
securely latched for ready use of the center seat belt.

OCCUPANT RESTRAINT SYSTEMS
155
Two buckles and tabs for third center seat belt.
The 2 buckles for the third center seat belt are distinguished
with colors of the buckle release button. Also the 2 tabs have
different shape for its end so that the belt is not buckled in the
wrong place.
1Buckle with light gray buckle-release button:
Properly matches with concave end tab
2Buckle with red buckle-release button:
Properly matches with round end tab
To release the concave end tab, insert the key into the hole on
buckle with light gray buckle-release button and allow the belt
to retract.

OCCUPANT RESTRAINT SYSTEMS
161

Roll sensing of curtain shield airbags off (RSCA OFF)indicator light
The seat belt pretensioners will not operate in a vehicle rollover
if the RSCA OFFº indicator light is on. For details, see Roll
sensing of curtain shield airbags off switchº on page 193.

1Front airbag sensors
2Seat belt pretensioner assemblies
3SRS warning light
4Airbag sensor assembly
The seat belt pretensioner system consists mainly of the above
components, and their locations are shown in the illustration.
The seat belt pretensioners are controlled by the airbag sensor
assembly. The airbag sensor assembly consists of a safing
sensor and airbag sensor.
When the seat belt pretensioners are activated, an operating
noise may be heard and a small amount of non-toxic gas may
be released. This does not indicate that a fire is occurring. This
gas is normally harmless.
Once the seat belt pretensioners have been activated, the seat
belt retractors remain locked.

OCCUPANT RESTRAINT SYSTEMS
164
This indicator comes on when the ignition key is turned to
the ONº position. It goes off after about 6 seconds. This
means the seat belt pretensioners are operating properly.
This warning light system monitors the airbag sensor
assembly, front airbag sensors, side and curtain shield airbag
sensor assemblies, curtain shield airbag sensor assemblies,
driver's seat position sensor, driver's seat belt buckle switch,
front seat belt pretensioner assemblies, inflators, warning light,
RSCA OFFº indicator light, interconnecting wiring and power
sources. (For details, see Service reminder indicators and
warning buzzersº on page 62 for instructions.) If any of the following conditions occurs, this indicates a
malfunction of the airbags or seat belt pretensioners. Contact
your Lexus dealer as soon as possible.

The light does not come on when the ignition key is turned
to the ONº position or remains on for more than 6 seconds
or flashes.
 The light comes on or starts flashing while driving.
 If either front seat belt does not retract or cannot be pulled
out due to a malfunction or activation of the relevant front
seat belt pretensioner.
 The front seat belt pretensioner assembly or surrounding
area has been damaged.

OCCUPANT RESTRAINT SYSTEMS
169


1Airbag module for front passenger
(airbag and inflator)
2SRS warning light
3Airbag module for driver (airbag and inflator)
4Driver's seat position sensor
5Driver's seat belt buckle switch
6Front airbag sensors
7Airbag sensor assembly
The SRS front airbag system consists mainly of the above
components, and their locations are shown in the illustration.
The airbag sensor assembly consists of a safing sensor and
airbag sensor. The airbag sensors constantly monitor the forward
deceleration of the vehicle. If an impact results in a forward
deceleration beyond the designed threshold level, the system
triggers
the airbag inflators. At this time a chemical reaction in
the inflators very quickly fills the airbags with non-toxic gas to
help restrain the forward motion of the occupants. The front
airbags then quickly deflate, so that there is no obstruction of
the driver's vision should it be necessary to continue driving.
When the airbags inflate, they produce a loud noise and
release some smoke and residue along with non-toxic gas.
This does not indicate a fire. This smoke may remain inside the
vehicle for some time, and may cause some minor irritation to
the eyes, skin or breathing. Be sure to wash off any residue as
soon as possible to prevent any potential skin irritation with
soap and water. If you safely exit from the vehicle, you should
do so immediately.

OCCUPANT RESTRAINT SYSTEMS
175
The indicator comes on when the ignition key is turned to
the ONº position. It goes off after about 6 seconds. This
means the SRS front airbags are operating properly.
This warning light system monitors the airbag sensor
assembly, front airbag sensors, side and curtain shield airbag
sensor assemblies, curtain shield airbag sensor assemblies,
driver's seat position sensor, driver's seat belt buckle switch,
front seat belt pretensioner assemblies, inflators, warning light,
RSCA OFFº indicator light, interconnecting wiring and power
sources. (For details, see Service reminder indicators and
warning buzzersº on page 62 for instructions.) If any of the following conditions occurs, this indicates a
malfunction of the airbags or seat belt pretensioners. Contact
your Lexus dealer as soon as possible.

The light does not come on when the ignition key is turned
to the ONº position or remains on for more than 6 seconds
or flashes.
 The light comes on or starts flashing while driving.
If the light stays on, it indicates that the SRS front airbags have
a problem. If the light flashes, the SRS side and curtain shield
airbags have a problem.

OCCUPANT RESTRAINT SYSTEMS
183


1Side and curtain shield airbag sensor assemblies
2Curtain shield airbag modules (airbag and inflator)
3Side airbag modules (airbag and inflator)
4Curtain shield airbag sensor assemblies
5SRS warning light and RSCA OFFº indicator light
6Roll sensing of curtain shield airbags off switch
7Airbag sensor assembly
The SRS side airbag and curtain shield airbag system consists
mainly of the above components, and their locations are shown
in the illustration.
The SRS side airbag and curtain shield airbag system is
controlled by the airbag sensor assembly. The airbag sensor
assembly consists of a safing sensor and airbag sensor.
In a severe side impact, the side and curtain shield airbag
sensor and/or the curtain shield airbag sensor trigger(s) the
side airbag inflators and/or the curtain shield airbag inflators.
At this time a chemical reaction in the inflators quickly fills the
airbags with non-toxic gas to help restrain the lateral motion
of the occupants.
In a vehicle rollover, the airbag sensor assembly triggers the
curtain shield airbag inflator. At this time, a chemical reaction
in the inflators quickly fills the airbags with non-toxic gas to
help restrain the lateral motion of the occupants.
When the airbags inflate, they produce a fairly loud noise and
release some smoke and residue along with non-toxic gas.
This
does not indicate a fire. This smoke may remain inside the
vehicle for some time, and may cause some minor irritation to
the eyes, skin or breathing. Be sure to wash off any residue as
soon as possible to prevent any potential skin irritation with
soap and water. If you can safely exit from the vehicle, you
should do so immediately.
Deployment of the airbags happens in a fraction of a second,
so the airbags must inflate with considerable force. While the
system is designed to reduce serious injuries, it may also
cause minor burns or abrasions and swelling.
Front seats as well as parts of the front and rear pillars, and roof
side rail may be hot for several minutes, but the airbags
themselves will not be hot. The airbags are designed to inflate
only once.
CAUTION
SRS side airbags and curtain shield airbags inflate with
considerable force. To reduce the possibility of death
or serious injury when they inflate, the driver, front
passenger and second outside passengers must:
 Wear their seat belts properly.
 Remain properly seated with their backs upright and
against the seats at all times.
